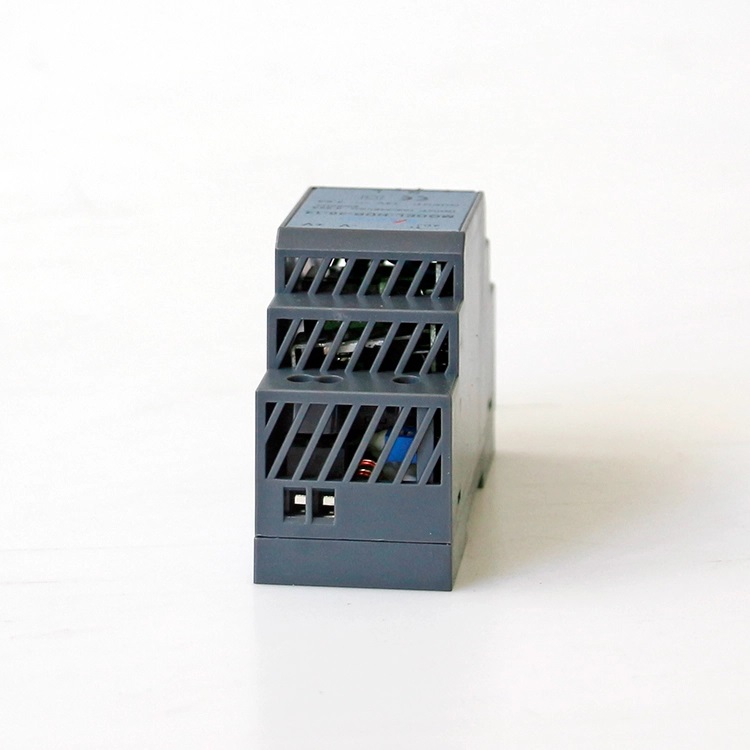

HDR-30 30W Ultra Slim Step Shape DIN Rail Power supply
HDR-30 30W Ultra Slim Step Shape DIN Rail Power supply
HDR-30 30W Ultra Slim Step Shape DIN Rail Power supply
HDR-30 30W Ultra Slim Step Shape DIN Rail Power supply
HDR-30 30W Ultra Slim Step Shape DIN Rail Power supply
HDR-30 30W Ultra Slim Step Shape DIN Rail Power supply

HDR-30 30W Ultra Slim Step Shape DIN Rail Power supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote
HDR-30 30W Ultra Slim Step Shape DIN Rail Power supply
HDR-30 30W Ultra Slim Step Shape DIN Rail Power supply
HDR-30 30W Ultra Slim Step Shape DIN Rail Power supply
HDR-30 30W Ultra Slim Step Shape DIN Rail Power supply
HDR-30 30W Ultra Slim Step Shape DIN Rail Power supply
HDR-30 30W Ultra Slim Step Shape DIN Rail Power supply

Model HDR-30-5 HDR-30-14 HDR-30-15 HDR-30-24 HDR-30-48
  DC voltage 5V 14V 15V 24V 48V
output Current range 0~3A 0~2A 0~2A 0~1.5A 0-0.75A
  Rated power 15W 24W 30W 36W 36W
  Ripple&noise 80mvp-p 120mvp-p 12mvp-p 150mvp-p 240mvp-p
  Voltage tolerance ±2% ±1% ±1% ±1% ±1%
  Line regulation ±1% ±1% ±1% ±1% ±1%
  Load regulation ±1% ±1% ±1% ±1% ±1%
  Setup, rise time 500ms, 50ms/230VAC 500ms, 50ms/115VAC at full load
  Hold up tome 30ms/230VAC 12ms/115VAC at full load
  Voltage range 85 ~ 264VAC (277VAC operational ) 120 ~ 370VDC (390VDC operational )
  Efficiency 82% 88% 89% 89% 90%
  AC current 0.88A/115VAC 0.48A/230VAC
  Inrush current cold start 25A/115VAC    45A/230VAC
  Over load

105%~160% rated output power

Protection type:constant current limiting, recovers automatically after fault condition is removed

  Over voltage 5.57-7.5V 15-18V 18.8-22.5V 30-36V 57.6-67.2V
environment Working temperature -30°C~+70°C
safety Withstand voltage I/P-O/P:4KVAC
Isolated resistance I/P-O/P: 100M ohms/500VDC/25°C/70%RH
others Dimension 35*90*54.5mm (L*W*H)
Weight/packing 0.12kg/96pcs/12.5kg/1.04CUFT
note 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.



Featuers

Ultra slim design with 35mm(2SU) width

Universal input 85-264VAC(277VAC operational)

No load power consumption<0.3W

Isolation class II

Pass LPS (Limited power source)

DC output voltage adjustable

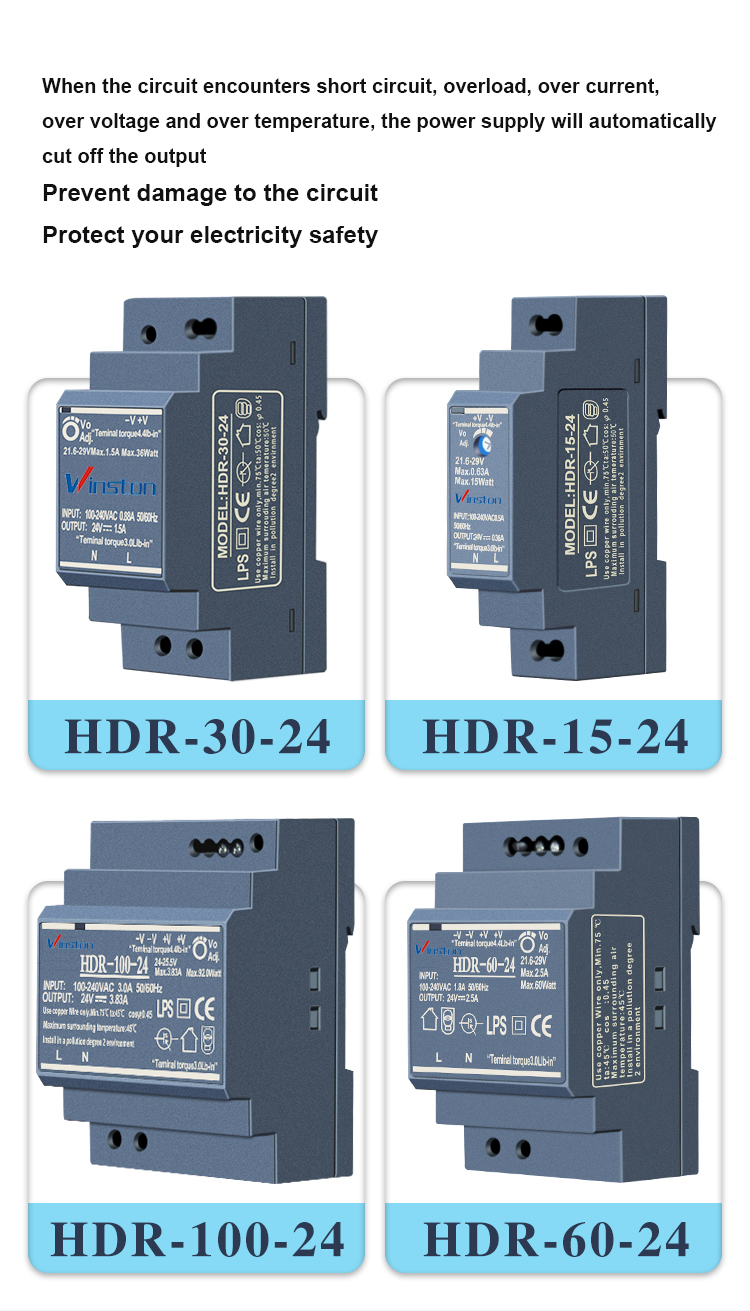

Protections: Short circuit / overload / over voltage

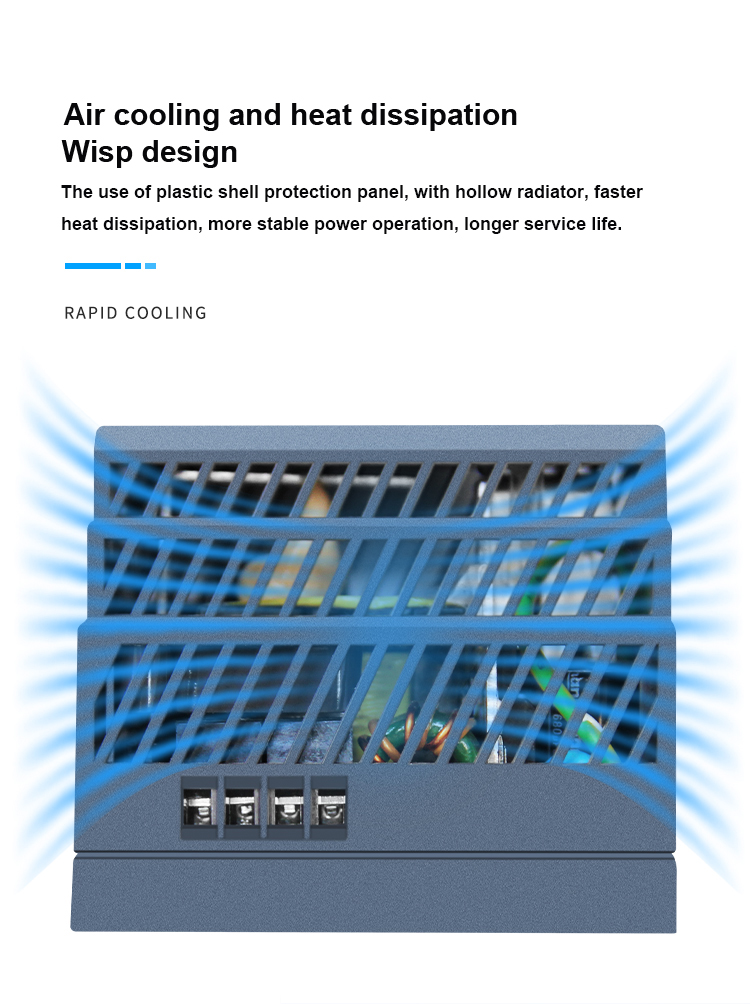

Cooling by free air convection (workin gtemperature: -30~+70C)

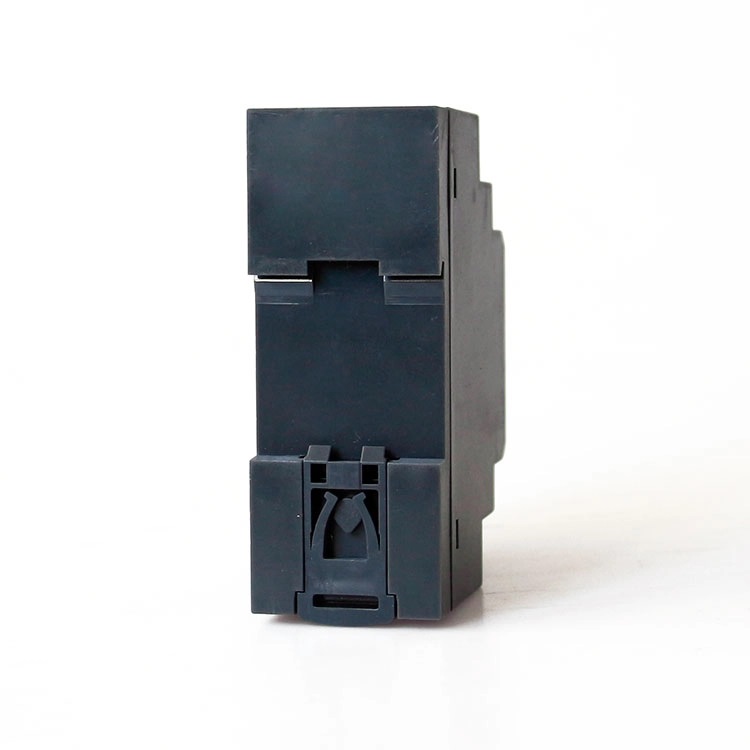

Din rail TS-35/7.5 or 15 mountable

Over voltage category III

LED indicator for power on

3 years warranty

Application

  • Household control system

  • Building automation

  • Industrial control system

  • Factory automation

  • Electro-mechanical apparatus

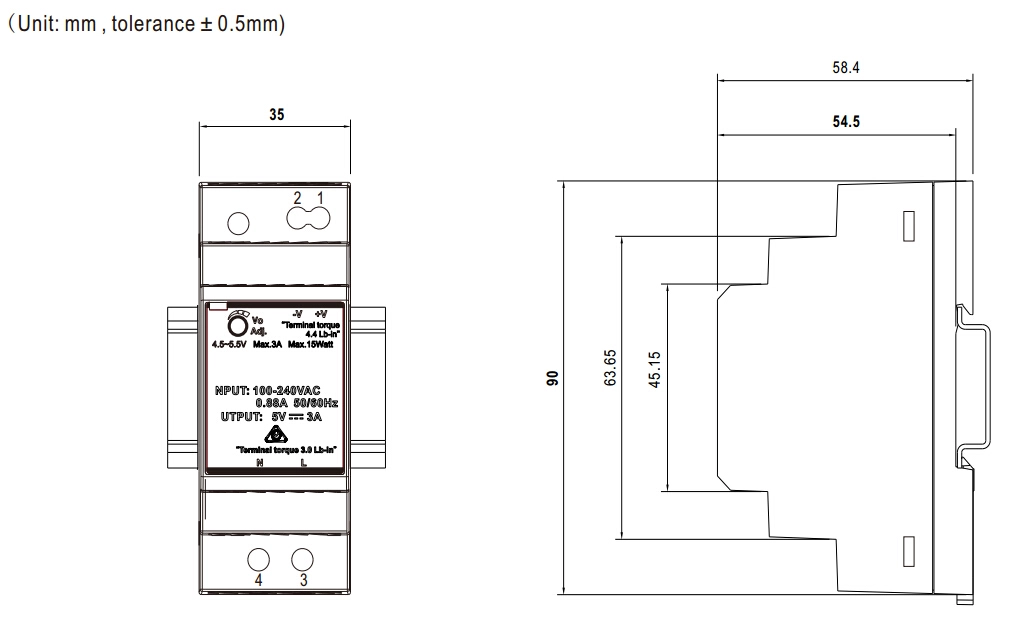

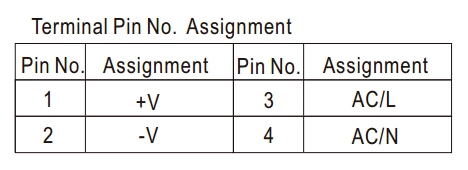

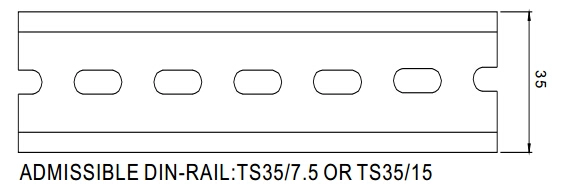

DIMENSION

DIMENSION 2DIMENSION 3

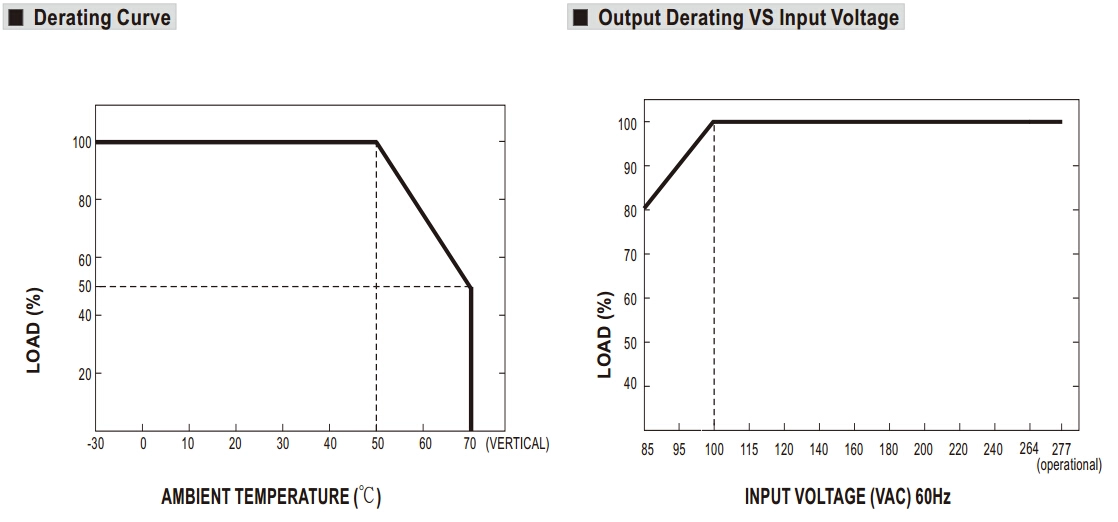

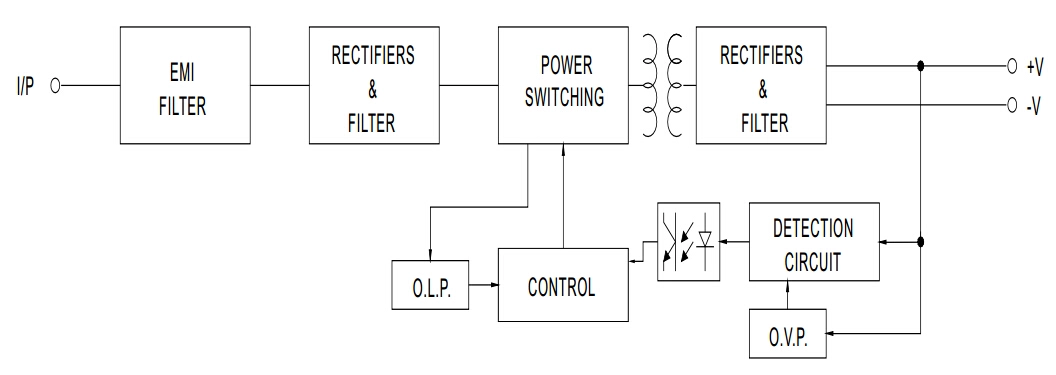

Block diagram

block diagram

block diagram 2
