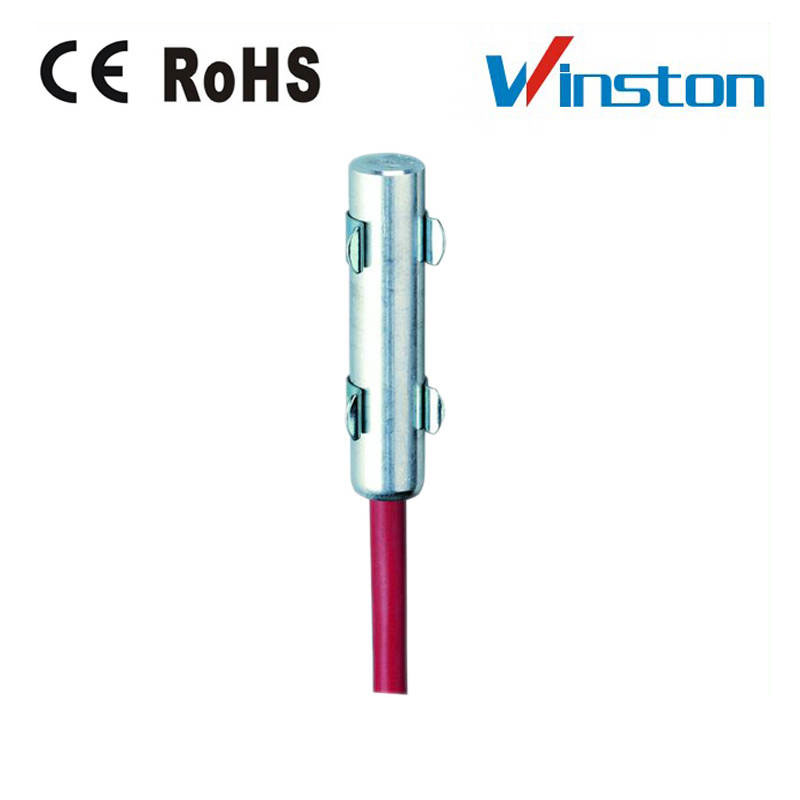

Small semiconductor Heater RCE 016
● Temperature limiting
● Wide voltage range
● Dynamic heating up
● Energy saving
● Compact
Small heaters designed to prevent condensation and to ensure a minimum operating temperature in small enclosures.
Technical Data
|
Operating voltage |
120-240V AC/DC* (min. 110V, max. 265V) |
|
Heating element |
PTC resistor, self regulating and temperature limiting |
|
Heater body |
aluminium |
|
Mounting |
see Accessories |
|
Fitting position |
Variable |
|
Dimensions |
Length 45mm2, 10mm2 |
|
Operating/Storage temperature |
-45 to +70 °C (-49 to +158 °F) |
|
Protection type/Protection class |
IP32 / II (double insulated) |
|
Accessoires |
Mounting clips (see illustration), Art. No. 09008.0-01 |

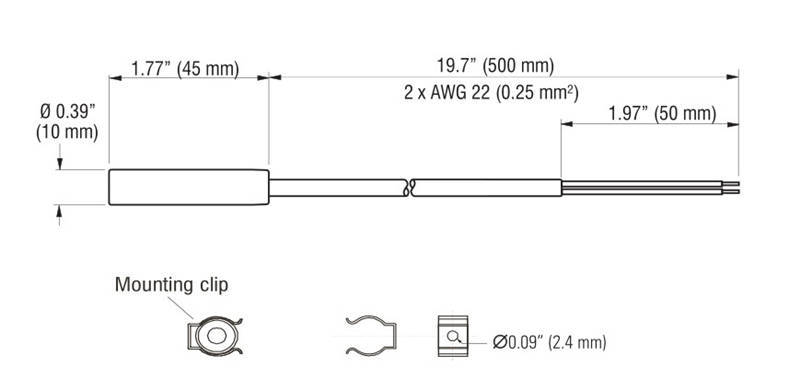

RCE 016 PTC HEATER DRAWING
RCE 016 PTC HEATER SIZE
|
Art. No. |
Heating capacity |
Inrush current max. |
Surface temperature (approx.) |
Connection |
Weight (approx.) |
|
01623.0-00 |
5W |
2.0A |
165℃ |
2×AWG 22 Sheathed cable |
0.3kg |
|
01622.0-00 |
9W |
2.5A |
175℃ |
2×AWG 22 Sheathed cable |
0.5kg |
