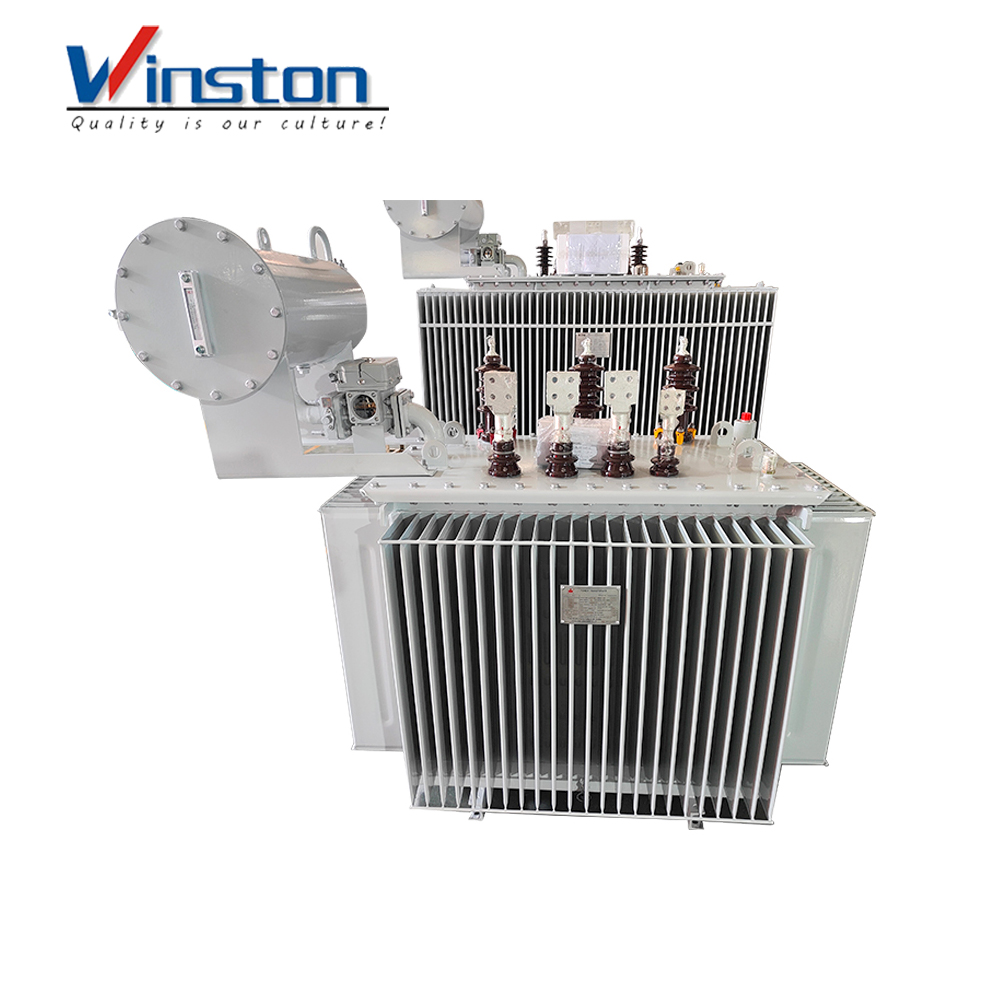

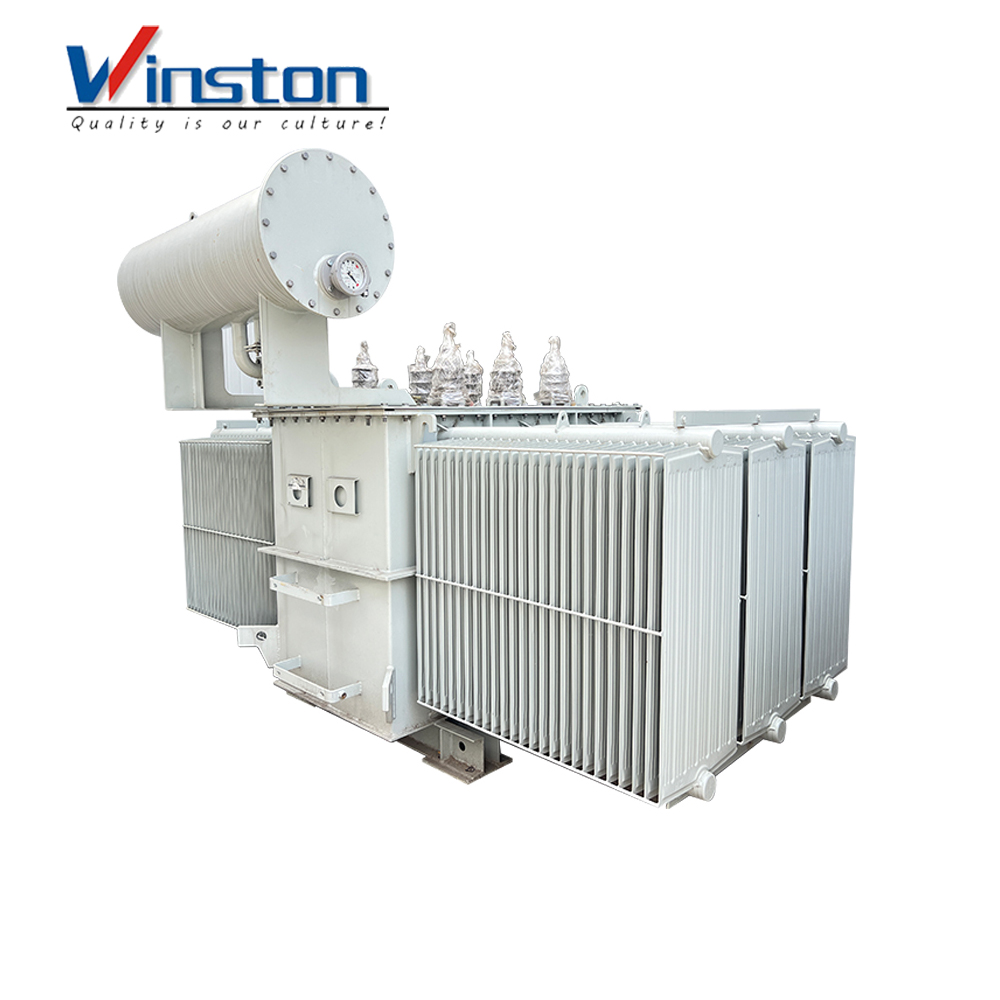

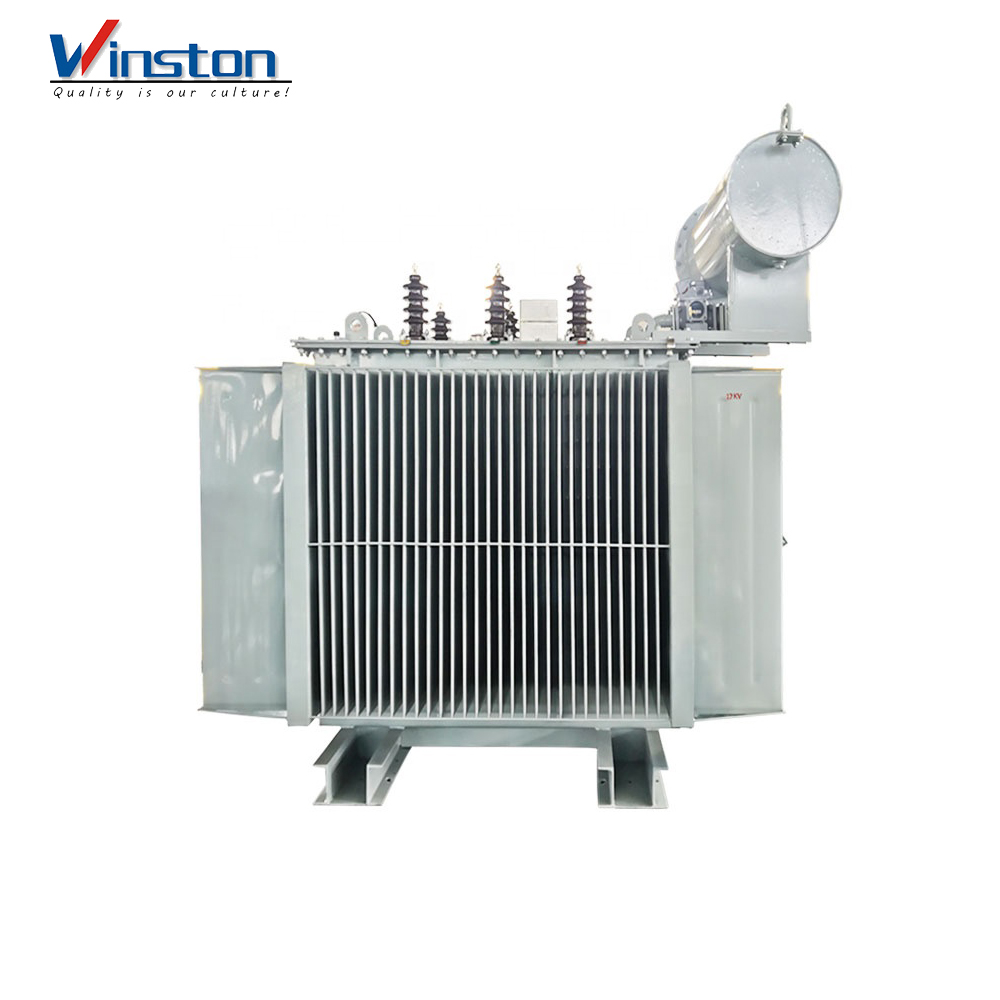

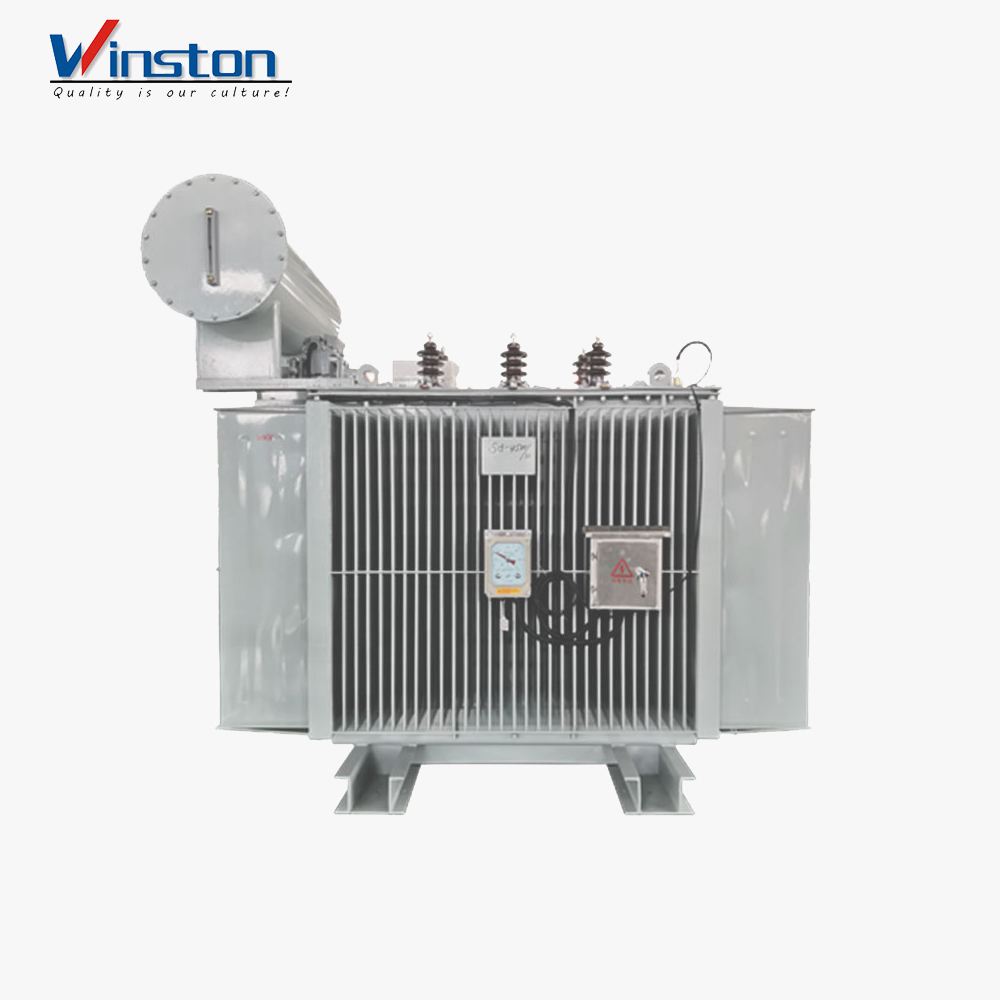

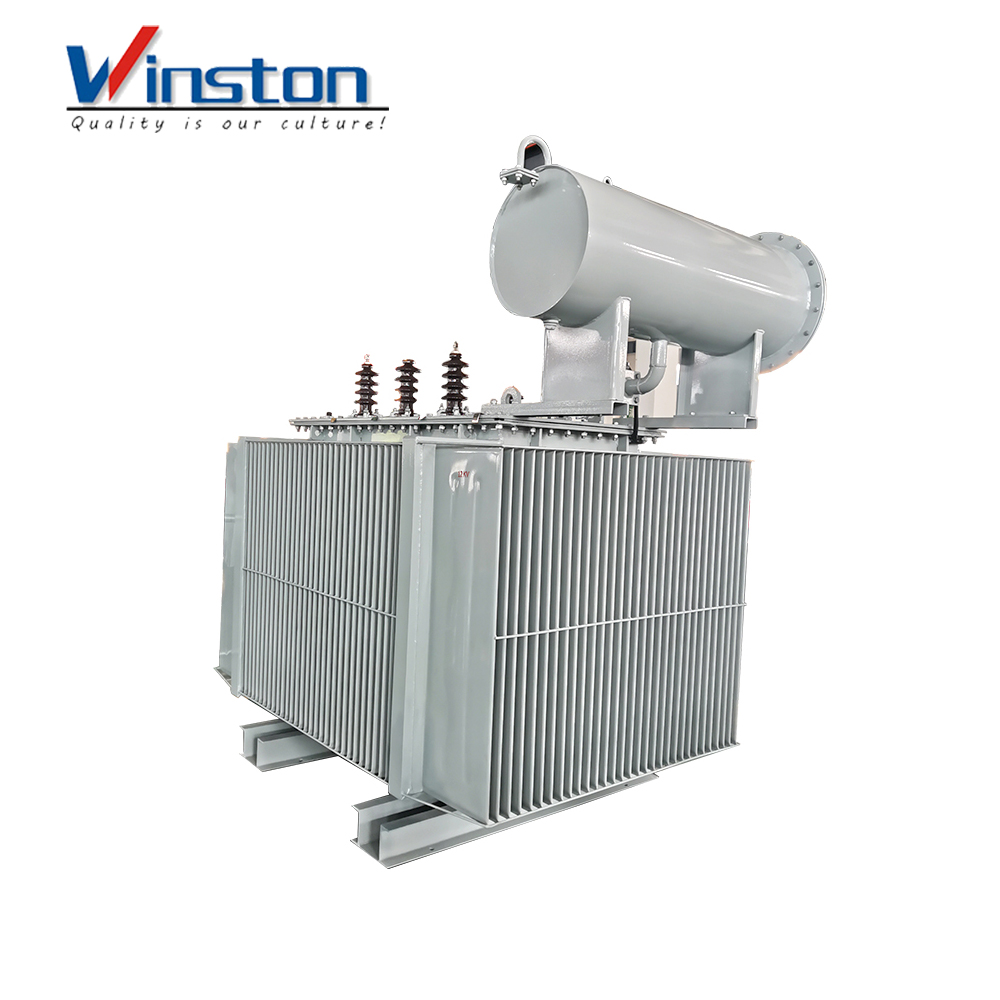

ZS、 ZSS CRYSTALLINE ALLOY IRON-CORE TRANSFORMER

ZS/ZSS CRYSTALLINE ALLOY IRON-CORE TRANSFORMER

Name: ZS/ZSS CRYSTALLINE ALLOY IRON-CORE TRANSFORMER
Brand: Winston
SKU: 02331
Rating: 4.9 (1216 reviews)

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Description
Specifications

ZS/ZSS Rectitier transtormer can convert the three-phase AC voltage from power network to nec-essary certainl phase AC rectitied voltage,and it will change to the necessary current after being rectified by the rectitier components. Rectifier transtormer is widely used in equipments of the chemical industry,the metallurgi- cal industry,the electrolytic industry,DC transmission industry. DC smelting industry. power plant excitation industry.etc.

Ordering instruction

1, installation conditions: outdoor installation

2, altitude: 1200mm

3, seismic intensity; 8 degrees

4, meteorological conditions

4.1, ambient temperature: -35℃-+40℃

4.2, sunshine intensity: wind speed 0.5/s 0.1W/cm

4.3, relative humidity: daily average is not more than 95%, monthly average is not more than 90%(+25℃)

4.4, icing thickness: 25mm

4.5, maximum wind speed: 35m/s

Model and Capacity (KVA)	No-load loss (W)	Load loss (W)	No-load current (%)
ZS-800/6	1.4	9.9	1.1
ZS-1000/6	1.8	11.6	1.1
ZS-1250/6.3	1.736	12.68	0.9
ZS-1450/6	1.852	15.28	0.9
ZS-1600/6.3	2.65	16.5	0.9
ZS-1800/10	2.8	19.6	0.9
ZS-2000/6.3	2.344	10.71	0.9
ZS-2400/10	2.648	24.10	0.9
ZS-2500/6.3	3.091	21	0.9
ZS-2700/6	3.064	24.03	0.9
ZS-3000/6	4.3	26.5	0.9
ZS-3150/10	3.46	28.32	0.9
ZS-3200/6	3.775	28.87	0.9
ZS-3500/6	3.9	33.25	0.7
ZS-3600/6.3	3.86	32.158	0.7
ZS-4000/6.3	5.3	32	0.5
ZSS-5000/10	4.047	22.485	0.5
ZSZ*8300/35	14.25	76.1	0.7
ZSZK-1250/10	2.65	24.6	0.9
ZSF-5000/35	6.50	48.5	0.7
ZSF-6300/35	7.25	56.2	0.7
ZHSFZ-6300/10	1.07	8.35	1.4
ZHSFZ-1000/10	1.50	12.4	1.1
ZHSFZ-1600/10	2.80	20.4	0.9
ZHSFZ-1600/10	3.00	17	0.9
ZHSFZ-2000/35	3.90	26.5	0.9
ZHSFZ-2500/35	4.50	31.5	0.9
ZHSFZ-3100/35	4.85	36	0.7
ZHSFZ-4000/35	5.60	42.5	0.7
ZHSFZ-5000/35	6.00		0.7
ZHSFZ-6300/35	7.20		0.5
ZHSFZ-9000/35	14.2	99.3	0.6
ZHSFZ-125000/35	16.0		0.4
