Name: M12 Inductive proximity switch
Brand: Winston
SKU: 02025
Rating: 4.1 (1063 reviews)

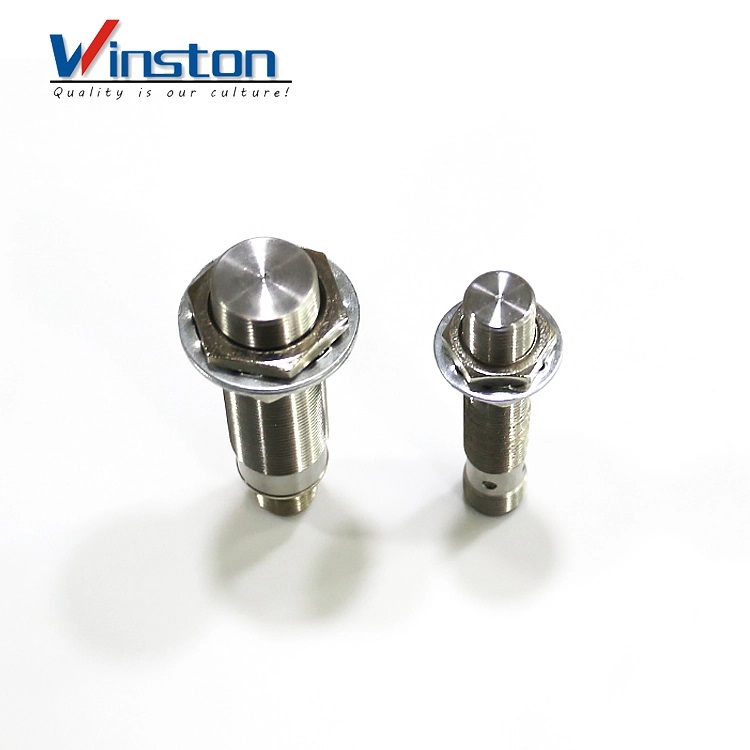

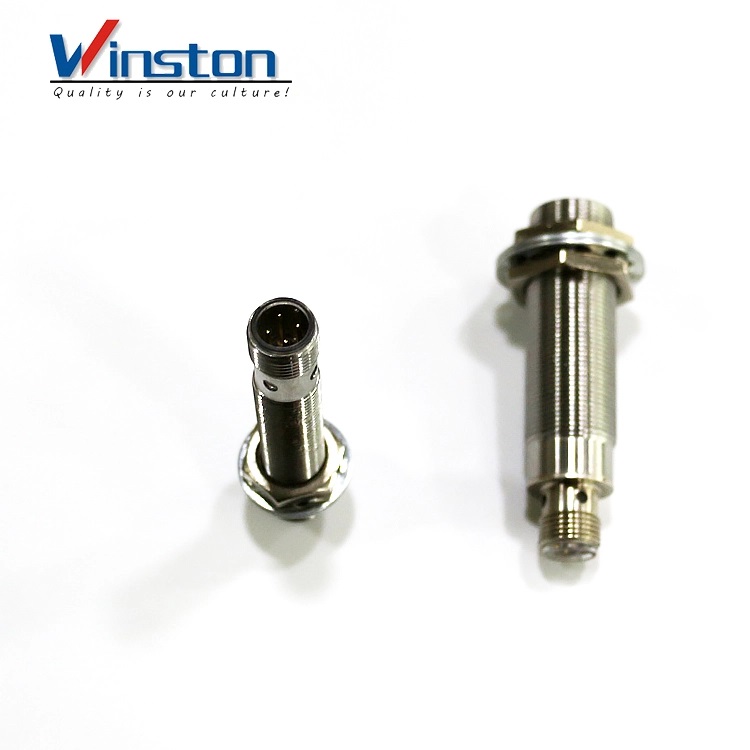

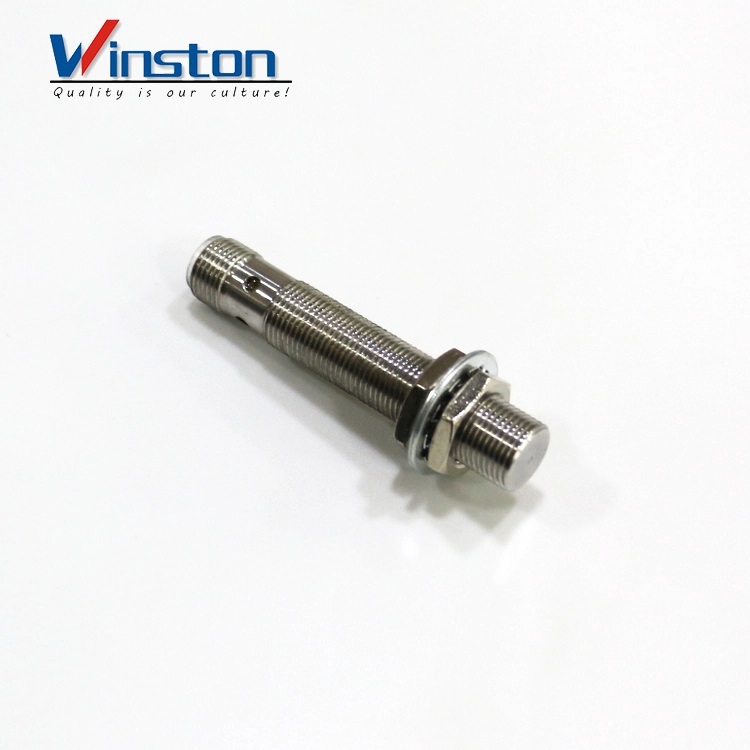

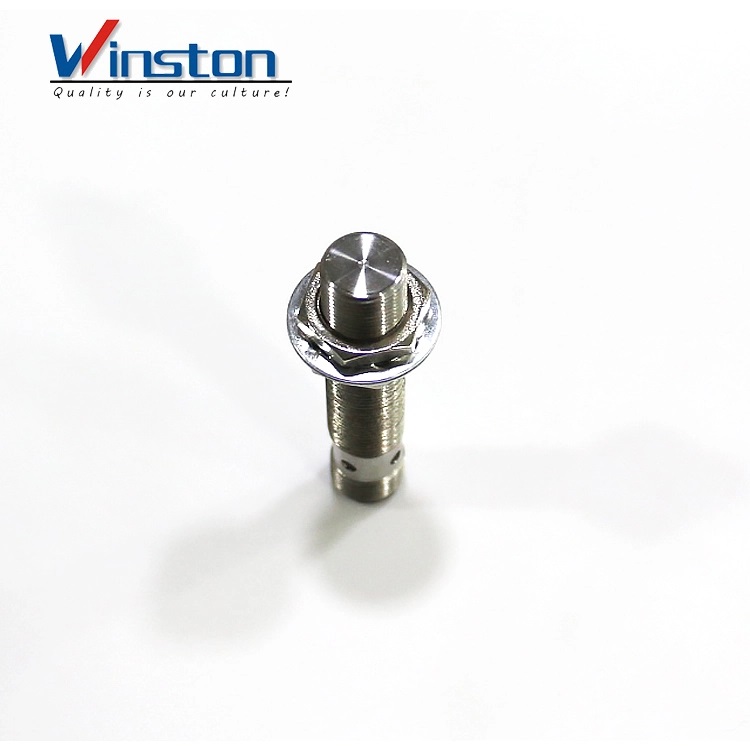

M12 Inductive proximity switch

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Technical Parameters

LM12-T/ LM12-T3	Detection Distance				2mm
	Flush	DC10-30VDC (6-36VDC)	NPN	NO	LM12-3002NAM
				NC	LM12-3002NBM
				NO+NC	LM12-3002NCM
			PNP	NO	LM12-3002PAM
				NC	LM12-3002PBM
				NO+NC	LM12-3002PCM
			Two wire system	NO	LM12-3002LAM
				NC	LM12-3002LBM
		AC90-250VAC	SCR Control-lable silicon	NO	LM12-2002AM
				NC	LM12-2002BM
				NO+NC
			Relay output
	Control output	DC	200mA
		SCR/Relay
	Output vol;tage drop DC/AC		DC (NPN PNP) type 3V or less,Two wire 3.9Vor less, AC 10Vor less DC
	Consumption current		DC (NPN PNP) type 12V 8mA,24V 15mA , AC 10mA or less DC
	standard detected object		12121 (A3 iron)
	Repeated precision		0.01
	DC/AC		400Hz/10Hz
	Working environment temperature		—25℃ ~ + 75 ℃
	Insulation resistance		50MΩ
	Shell material		Metal
	Protection grade		IP67

LM12-T/ LM12-T3	Detection Distance				4mm
	Non-Flush	DC10-30VDC (6-36VDC)	NPN	NO	LM12-3004NAM
				NC	LM12-3004NBM
				NO+NC	LM12-3004NCM
			PNP	NO	LM12-3004NCM
				NC	LM12-3004PAM
				NO+NC	LM12-3004PBM
			Two wire system	NO	LM12-3004PCM
				NC	LM12-3004LAM
		AC90-250VAC	SCR Control-lable silicon	NO	LM12-3004LBM
				NC	LM12-2004AM
				NO+NC	LM12-2004BM
			Relay output
	Control output	DC	200mA
		SCR/Relay
	Output vol;tage drop DC/AC		DC (NPN PNP) type 3V or less,Two wire 3.9Vor less, AC 10Vor less DC
	Consumption current		DC (NPN PNP) type 12V 8mA,24V 15mA , AC 10mA or less DC
	standard detected object		12121 (A3 iron)
	Repeated precision		0.01
	DC/AC		400Hz/10Hz
	Working environment temperature		—25℃ ~ + 75 ℃
	Insulation resistance		50MΩ
	Shell material		Metal
	Protection grade		IP6
