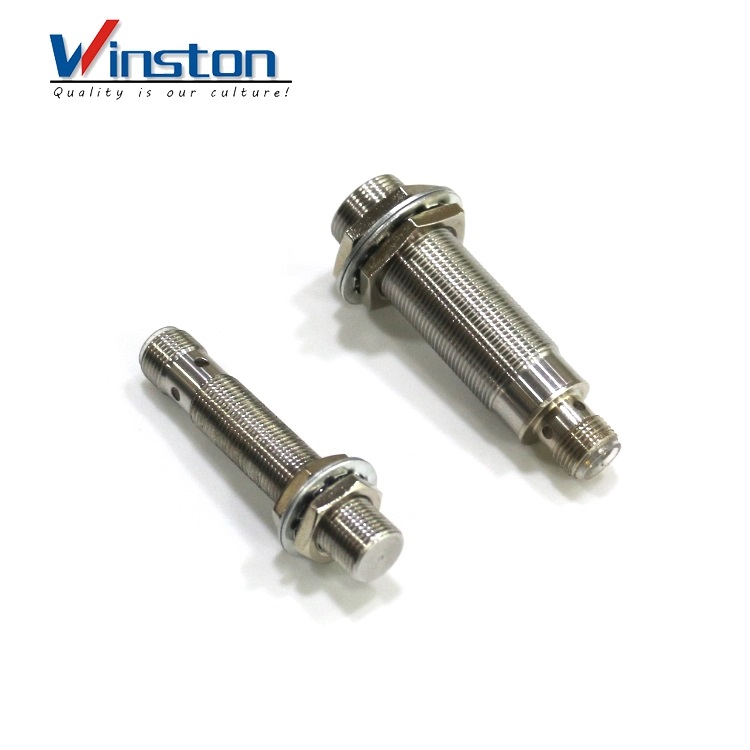

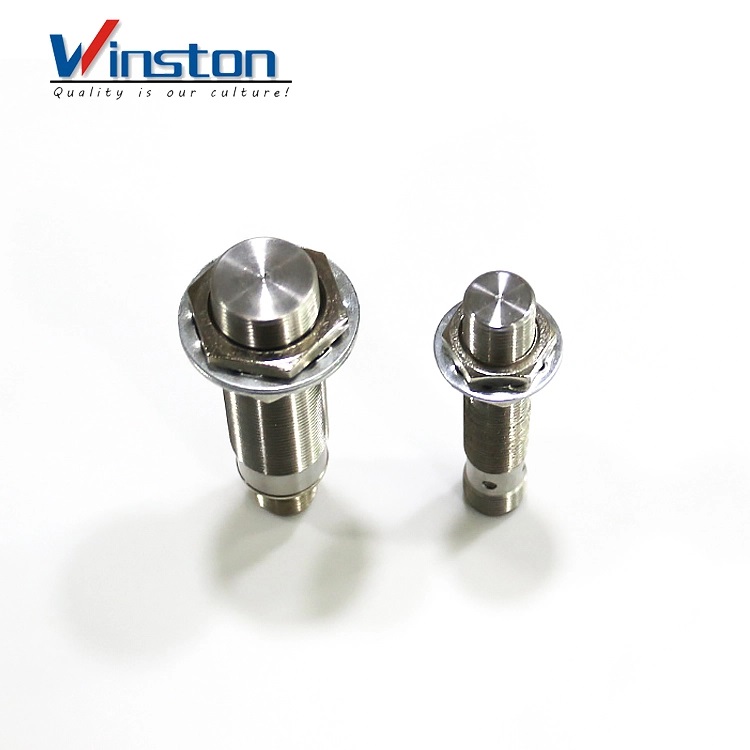

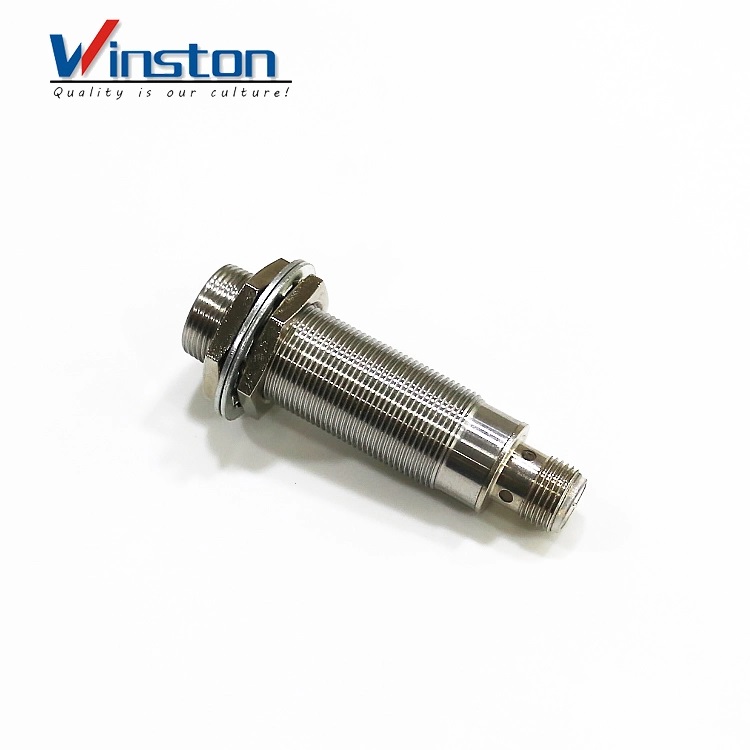

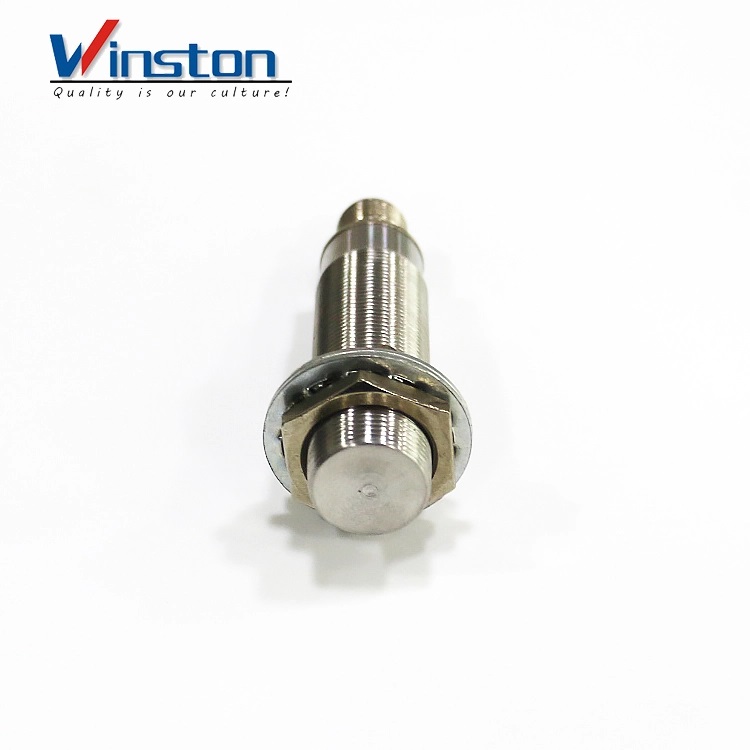

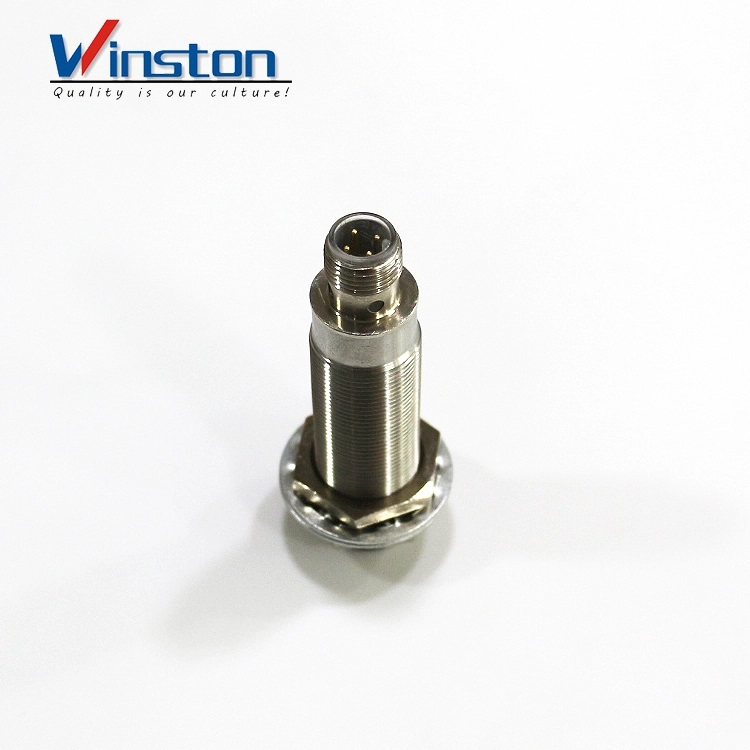

M18 Proximity Senosr
M18 Proximity Senosr
M18 Proximity Senosr
M18 Proximity Senosr
M18 Proximity Senosr
M18 Proximity Senosr

M18 Proximity Senosr

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support
Request a Quote
M18 Proximity Senosr
M18 Proximity Senosr
M18 Proximity Senosr
M18 Proximity Senosr
M18 Proximity Senosr
M18 Proximity Senosr

Technical Parameters





LM18-T / LM8-T3 Detection Distance 5mm
Flush

DC10-30VDC

(6-36VDC)

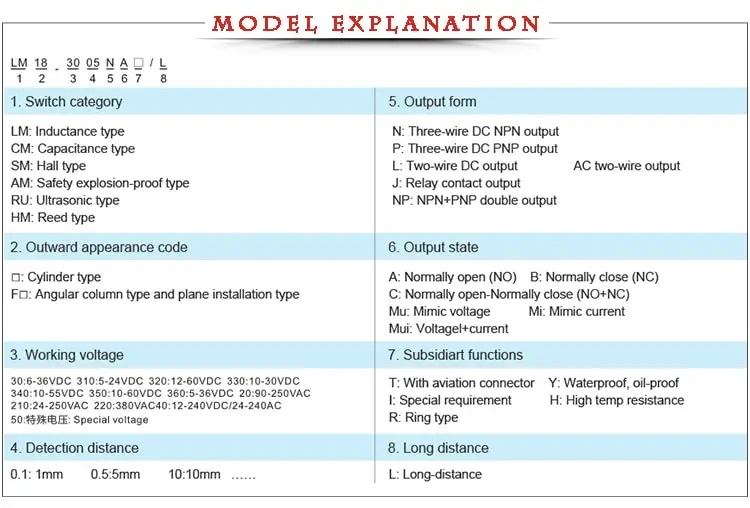

 NPN NO LM18-3005NAM
NC LM18-3005NBM
NO+NC LM18-3005NCM
PNP NO LM18-3005PAM
NC LM18-3005PBM
NO+NC LM18-3005PCM
Two wire system NO LM18-3005LAM
NC LM18-3005LBM
AC90-250VAC SCR Control-lable silicon NO LM18-2005AM
NC LM18-2005BM
NO+NC
Relay output

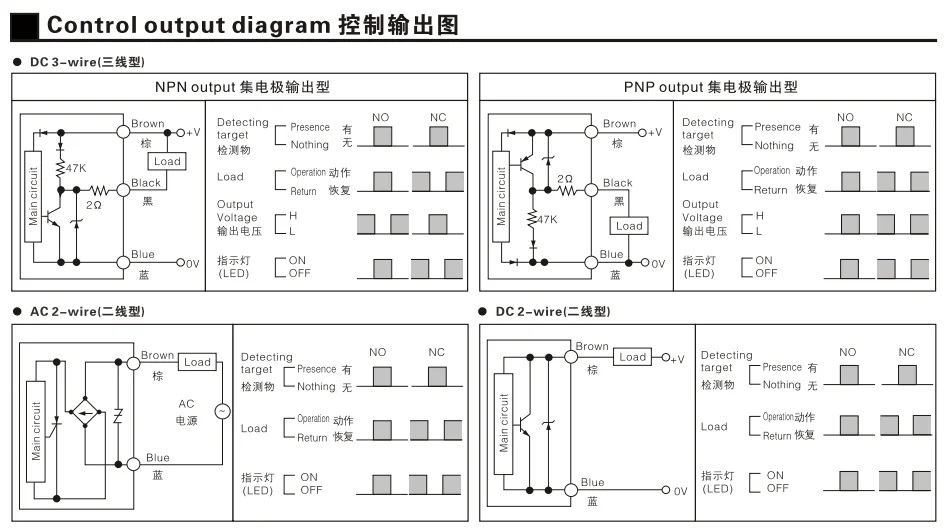

Control  output DC
SCR/Relay 300mA
Output vol;tage drop DC/AC

DC (NPN PNP) type 3V or less,Two wire 3.9Vor less,

AC 10Vor less DC
Consumption current

DC (NPN PNP) type 12V 8mA,24V 15mA ,

AC 10mA or less DC
standard detected object   18*18*1 (A3 iron)
Repeated precision   0.02
DC/AC 200Hz/10Hz
Working environment temperature —25℃ ~ + 75 ℃
Insulation resistance 50MΩ
Shell material Metal
Protection grade IP67
LM18-T / LM8-T3 Detection Distance 8mm
Non-Flush

DC10-30VDC

(6-36VDC)

 NPN NO LM18-3008NAM
NC LM18-3008NBM
NO+NC LM18-3008NCM
PNP NO LM18-3008NCM
NC LM18-3008PAM
NO+NC LM18-3008PBM
Two wire system NO LM18-3008PCM
NC LM18-3008LAM
AC90-250VAC SCR Control-lable silicon NO LM18-3008LBM
NC LM18-2008AM
NO+NC LM18-2008BM
Relay output
Control  output DC
SCR/Relay 300mA
Output vol;tage drop DC/AC

DC (NPN PNP) type 3V or less,Two wire 3.9Vor less,

AC 10Vor less DC
Consumption current

DC (NPN PNP) type 12V 8mA,24V 15mA ,

AC 10mA or less DC
standard detected object   18*18*1 (A3 iron)
Repeated precision   0.02
DC/AC 200Hz/10Hz
Working environment temperature —25℃ ~ + 75 ℃
Insulation resistance 50MΩ
Shell material Metal
Protection grade IP67
