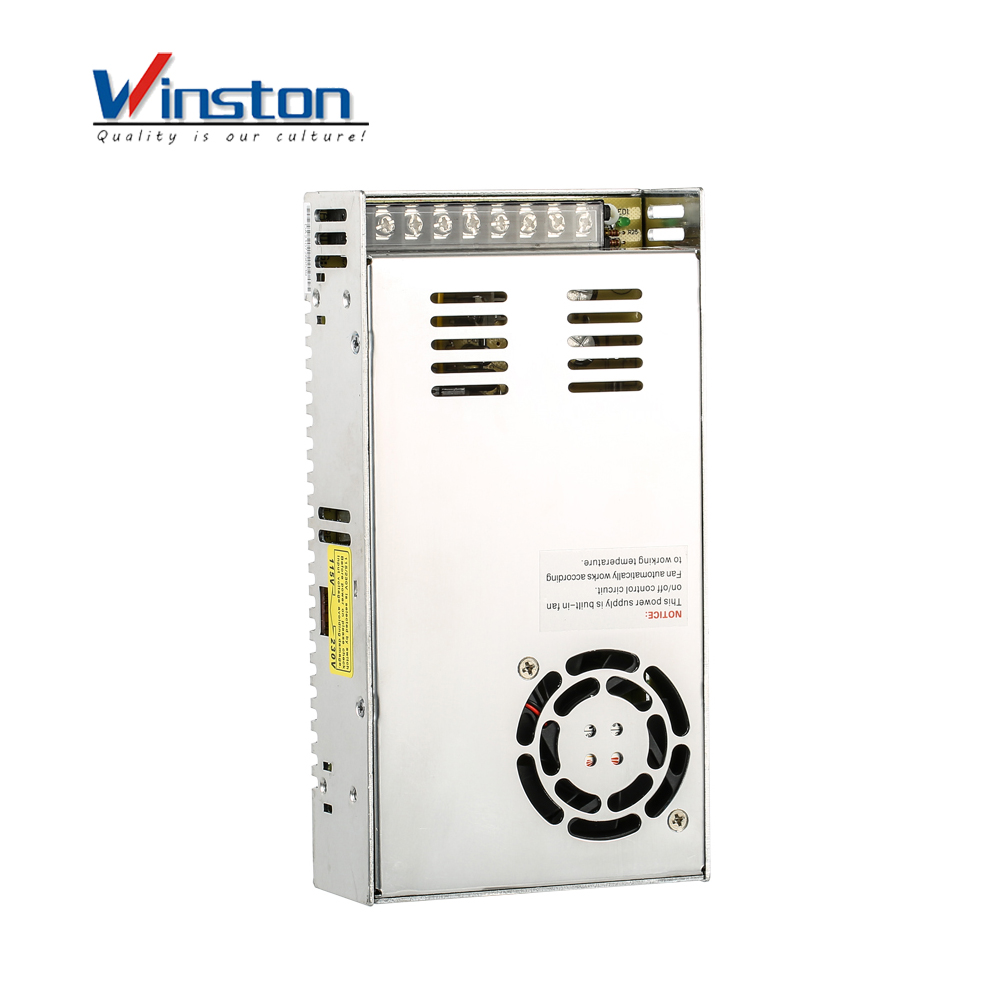

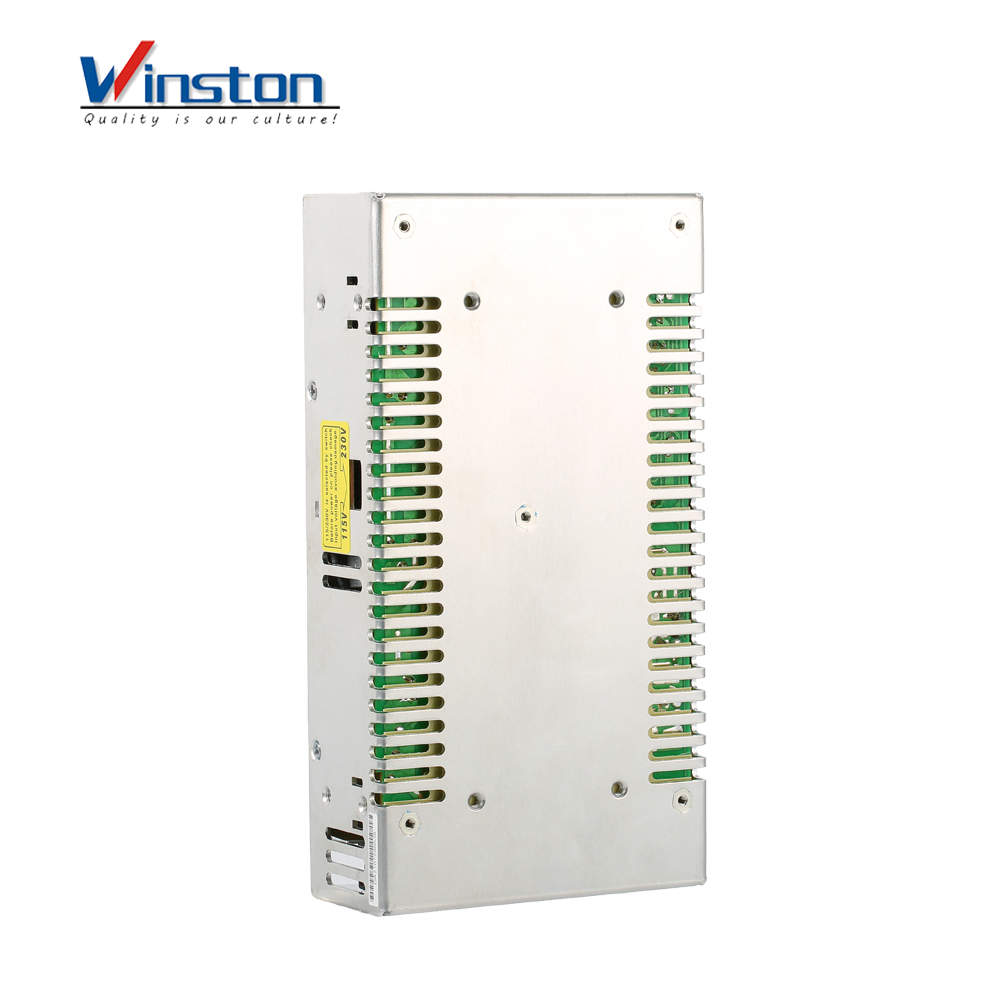

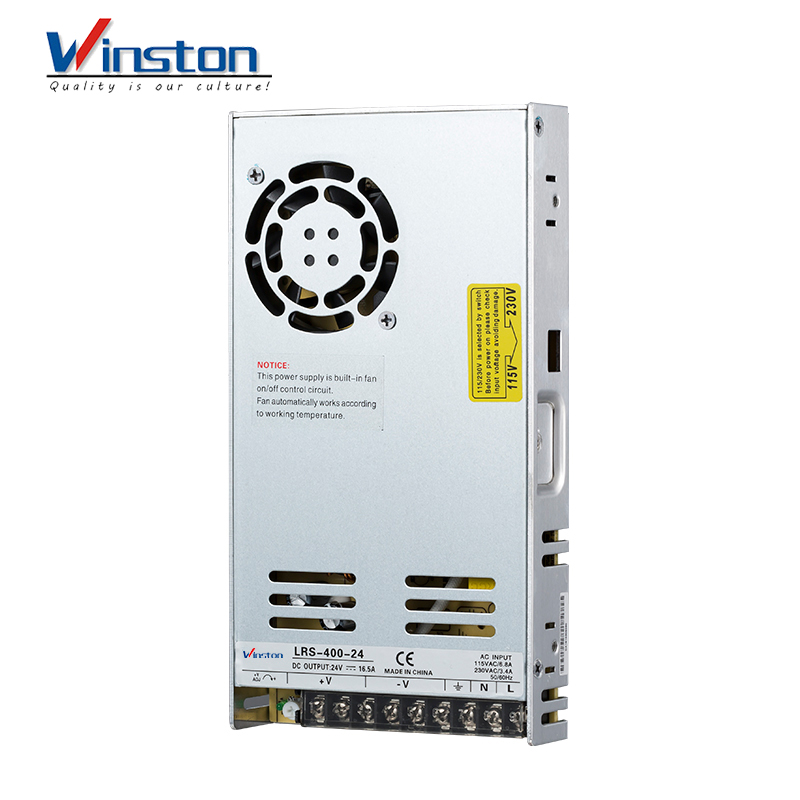

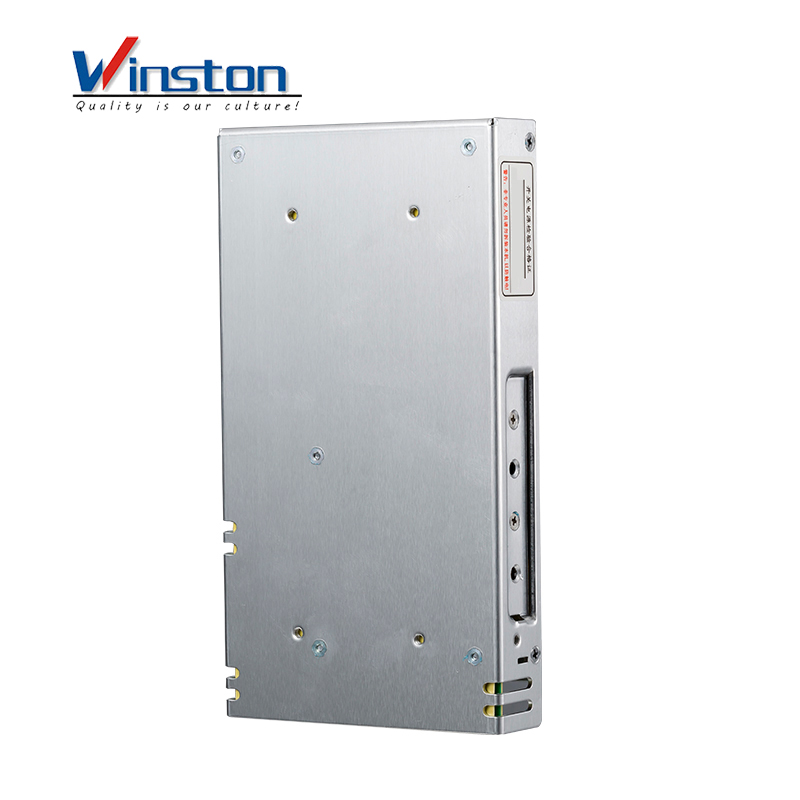

LRS-400 Single Output Switching Power Supply

Model

LRS-400-12

LRS-400-15

LRS-400-24

LRS-400-48

DC output voltage, current

12V 0~33A

15V 0~26.6A

24V 0~16.5A

48V 0~8.3A

Wave and noise

150mVp-p

150mVp-p

150mVp-p

200mVp-p

Inlet wire stability

±0.5%

±0.5%

±0.5%

±0.5%

Load stability

±0.5%

±0.5%

±0.5%

±0.5%

Efliciency

85%

86%

88%

89%

Adjustable range for DC voltage

±10%

±10%

±10%

±10%

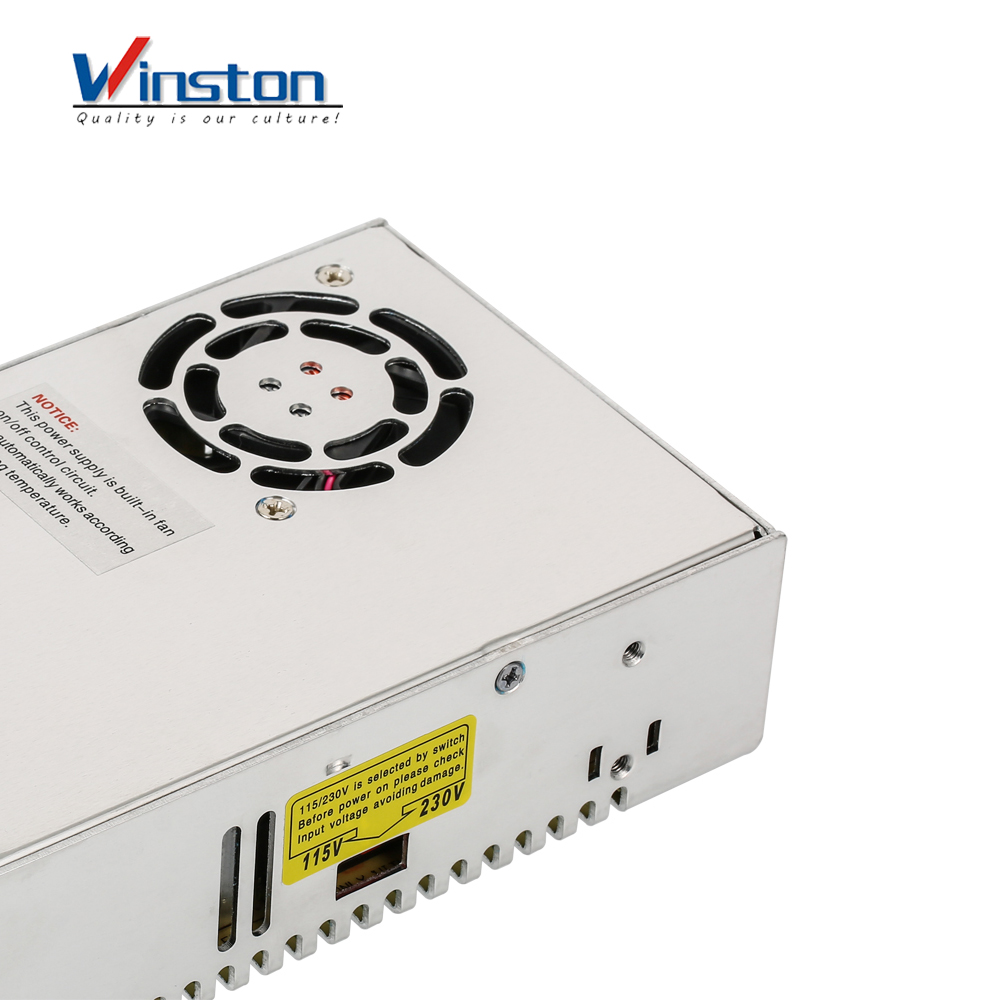

Input voltage range

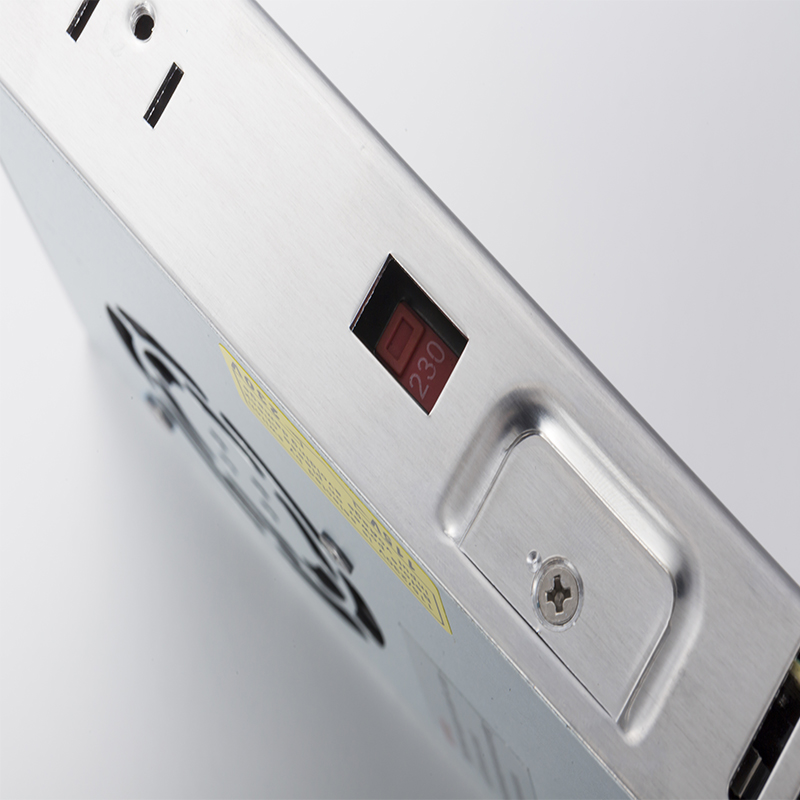

90~132VAC/180~264VACby switch 240~370VDC 47~63Hz

Impact current

Cold start current 60A/230VAC

Overload protection

110%~ 150% cut off the output, automatic recovery

Over voltage protection

115%~ 140% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed

Setup, rise, hold up time

1500ms, 50ms/230VAC 1500ms, 50ms/115VAC

Withstand vollage

I/P-O/P: 1.5kV I/P-FG:1.5kV O/P-FG:0.5kV 1minute

Isolation resistance

I/P-O/P I/P-FG O/P-FG: 100M Ohms /500VDC/25C /70%RH

Working temperature

-20℃~+70 ℃

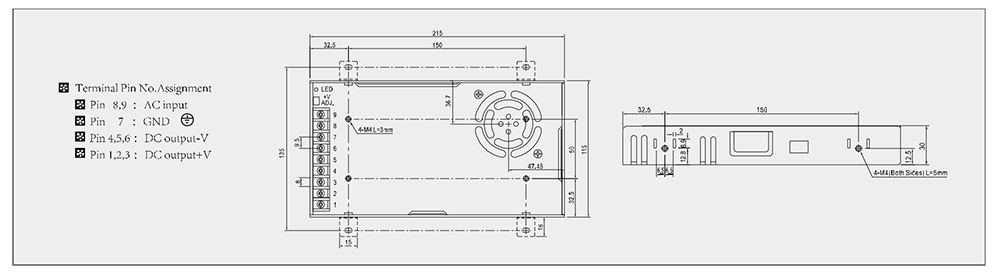

Dimension

215×115×30mm

Weight

0.76kg

Packing

37.5×25×26CM/20PCS/16kg
