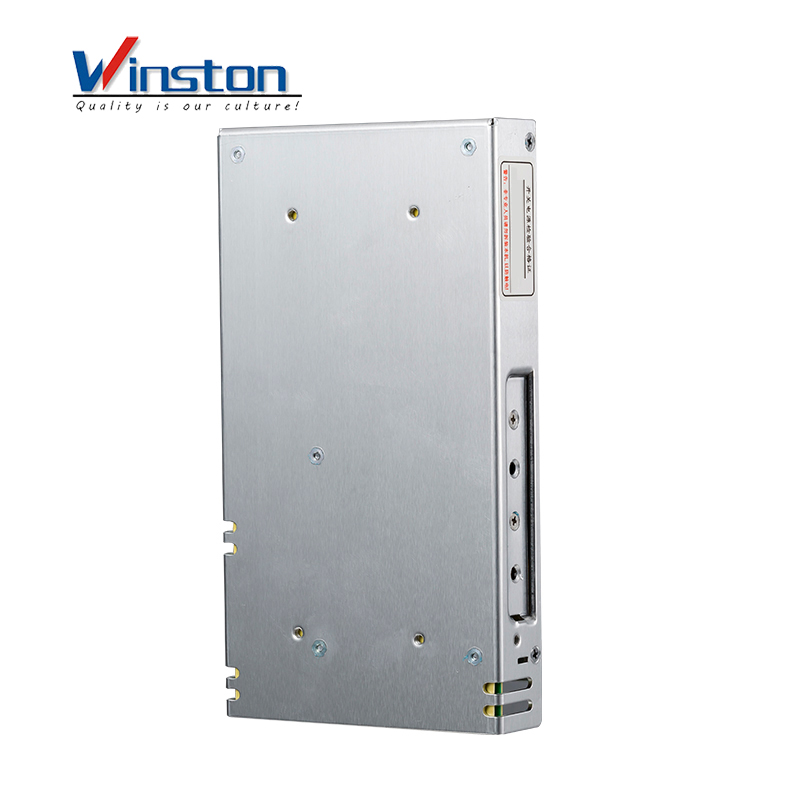

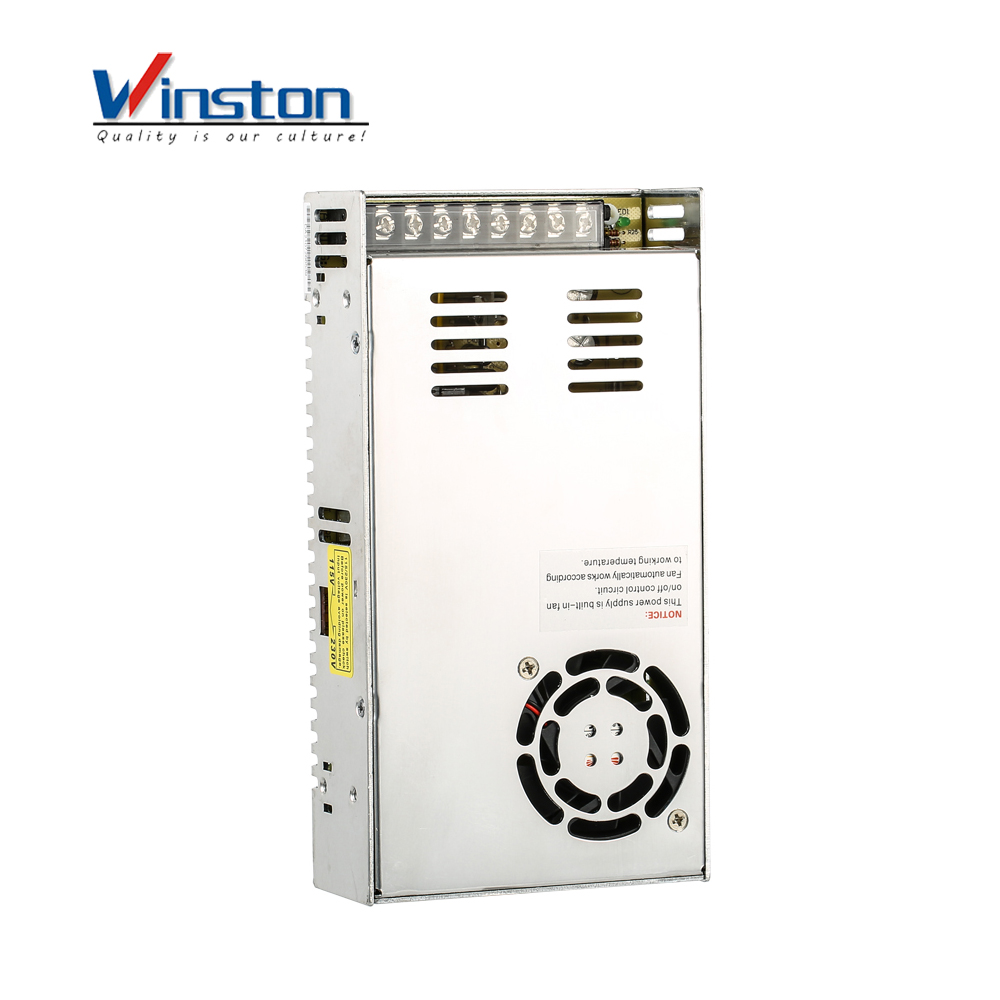

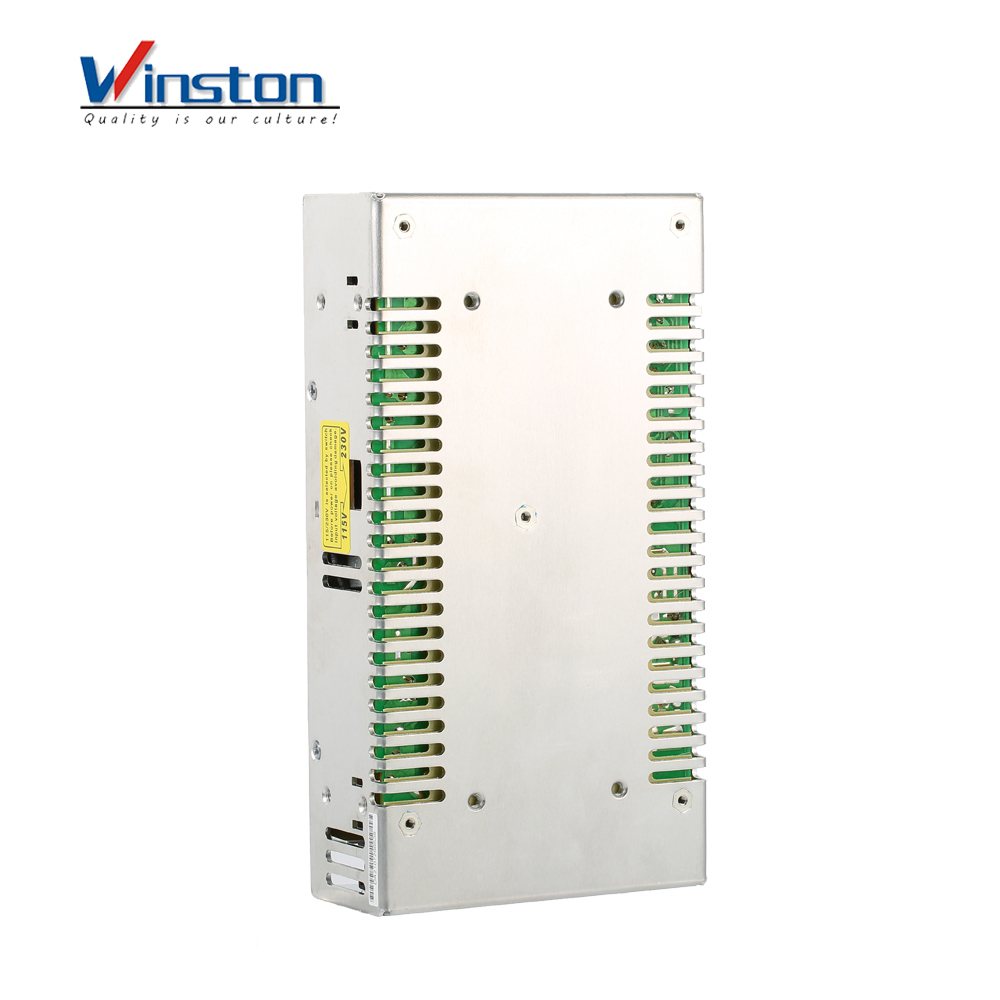

LRS-450 Single Output Power Supply

Model

LRS-450-12

LRS-450-24

LRS-450-36

LRS-450-48

DC output voltage, current

12V 0~37.5A

24V 0~18.7A

36V 0~12.5A

48V 0~9.4A

Wave and noise

150mVp-p

180mVp-p

240mVp-p

240mVp-p

Inlet wire stability

±0.5%

±0.5%

±0.5%

±0.5%

Load stability

±1%

±0.5%

±0.5%

±0.5%

Efliciency

82%

85%

86%

87%

Adjustable range for DC voltage

±10%

±10%

±10%

±10%

Input voltage range

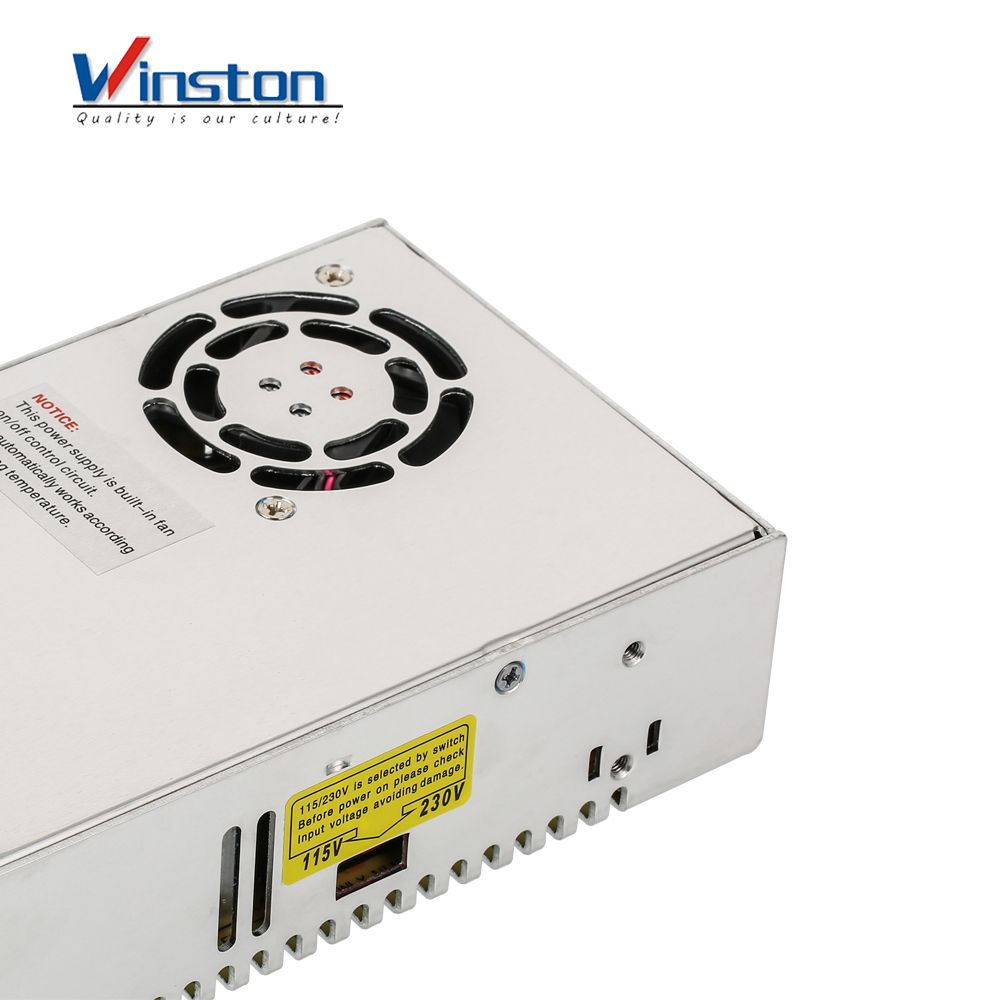

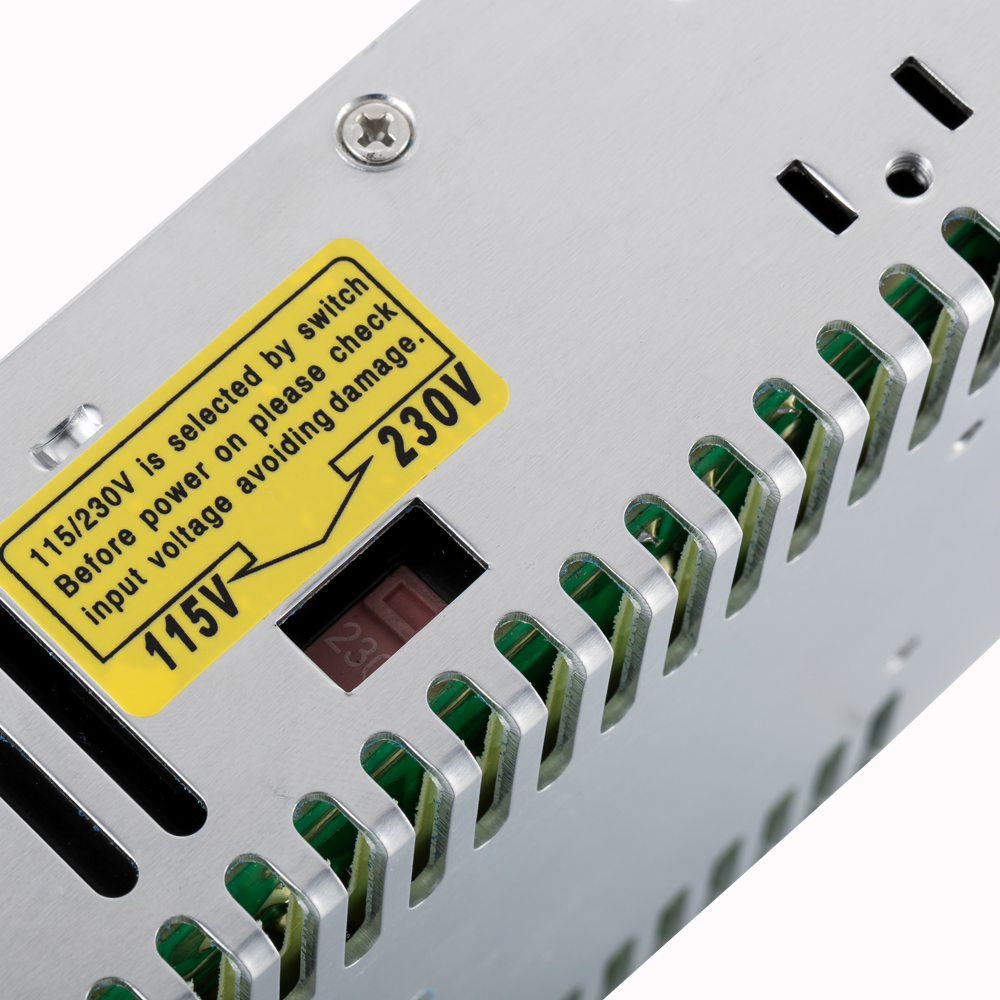

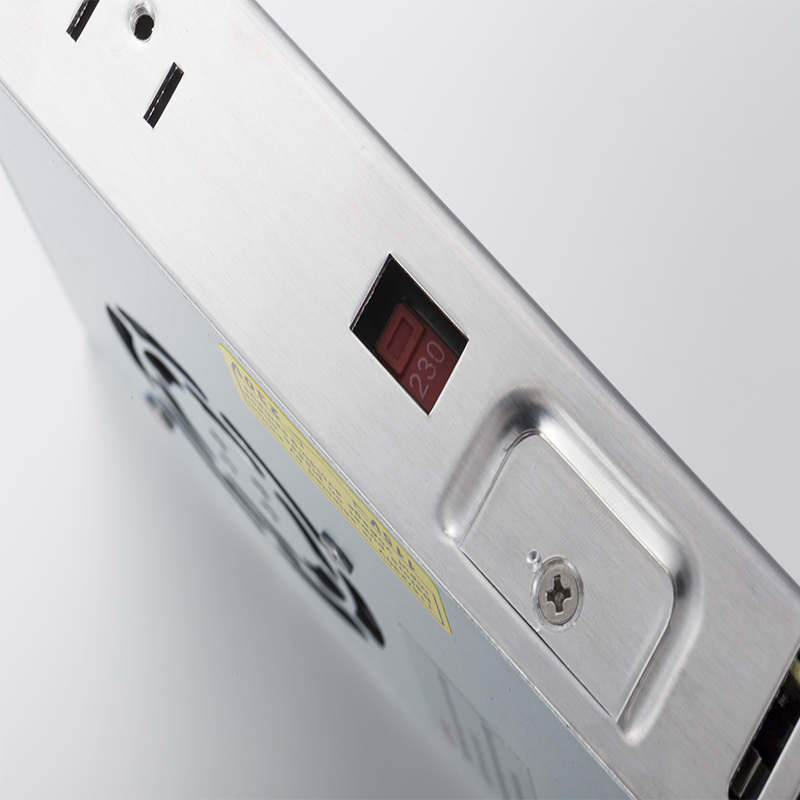

95~132VAC/180~264VACby switch 240~370VDC 47~63Hz

Impact current

Cold start current 35A/115VAC 65A/230VAC

Overload protection

105%~ 150% cut off the output, automatic recovery:Hiccup mode, recovers automatically after fault condition is removed

Over voltage protection

115%~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed

Setup, rise, hold up time

1500ms, 30ms/230VAC 2000ms, 50ms/115VAC at full load

Withstand vollage

I/P-O/P: 1.5kV I/P-FG:1.5kV O/P-FG:0.5kV 1minute

Isolation resistance

I/P-O/P I/P-FG O/P-FG: 100M Ohms /500VDC/25C /70%RH

Working temperature

-10℃~+50 ℃

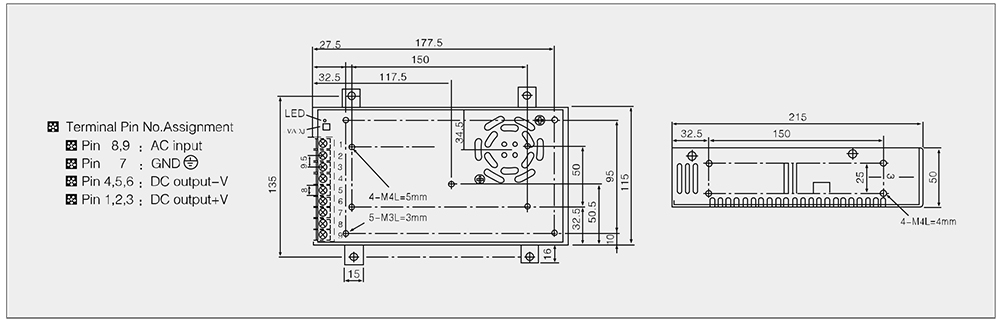

Dimension

215×115×30mm

Weight

1kg

Packing

45.5×31.5×26CM/20PCS/20kg
