LRS-500 Single Output Power Supply

Model

LRS-500-12

LRS-500-24

LRS-500-36

LRS-500-48

DC output voltage, current

12V 0~40A

24V 0~20A

36V 0~14A

48V 0~10A

Wave and noise

150mVp-p

180mVp-p

240mVp-p

240mVp-p

Inlet wire stability

±0.5%

±0.5%

±0.5%

±0.5%

Load stability

±1%

±0.5%

±0.5%

±0.5%

Efliciency

82%

85%

86%

87%

Adjustable range for DC voltage

±10%

±10%

±10%

±10%

Input voltage range

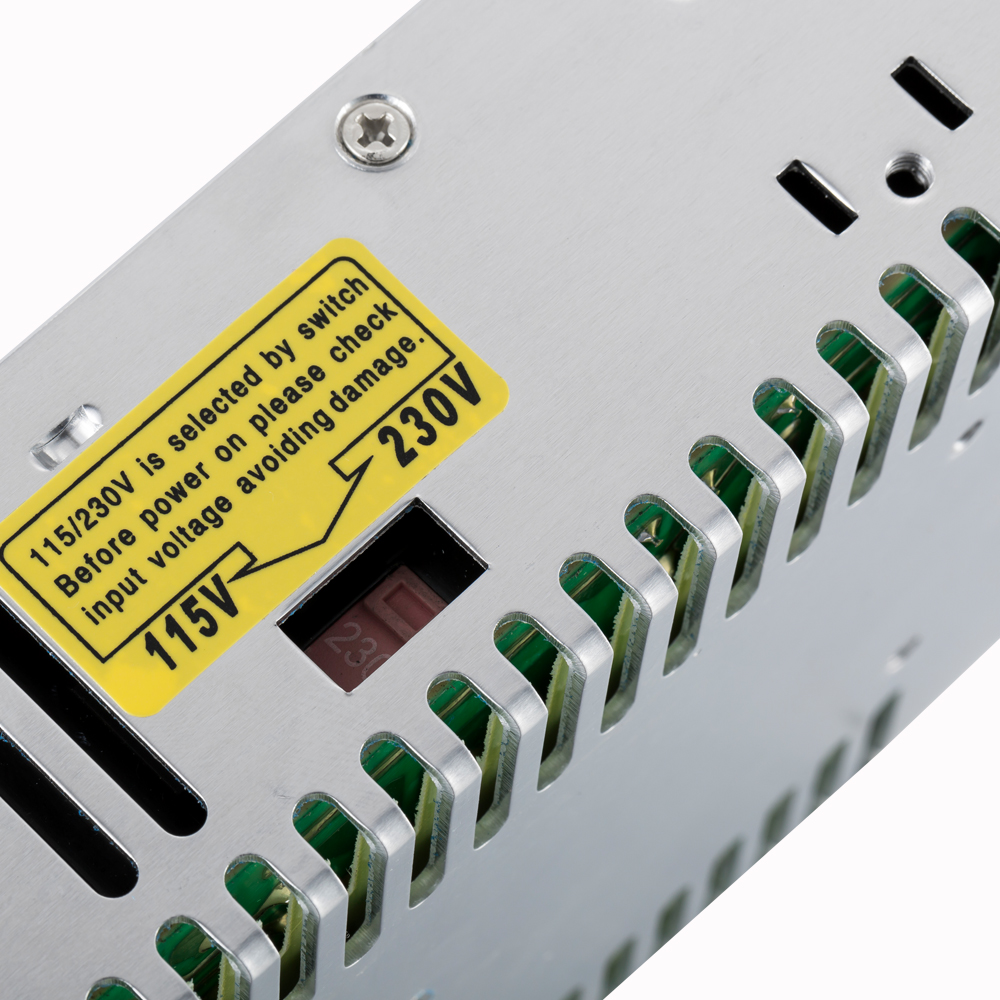

95~132VAC/180~264VACby switch 254~370VDC 47~63Hz

Impact current

Cold start current 35A/115VAC 65A/230VAC

Overload protection

105%~ 150% cut off the output, automatic recovery:Hiccup mode, recovers automatically after fault condition is removed

Over voltage protection

115%~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed

Over temperature protection

Turn off the output and restore normal output after the temperature returns to normal

Setup, rise, hold up time

1500ms, 30ms/230VAC 2000ms, 50ms/115VAC at full load

Withstand vollage

I/P-O/P: 1.5kV I/P-FG:1.5kV O/P-FG:0.5kV 1minute

Isolation resistance

I/P-O/P I/P-FG O/P-FG: 100M Ohms /500VDC/25C /70%RH

Working temperature

-10℃~+50 ℃

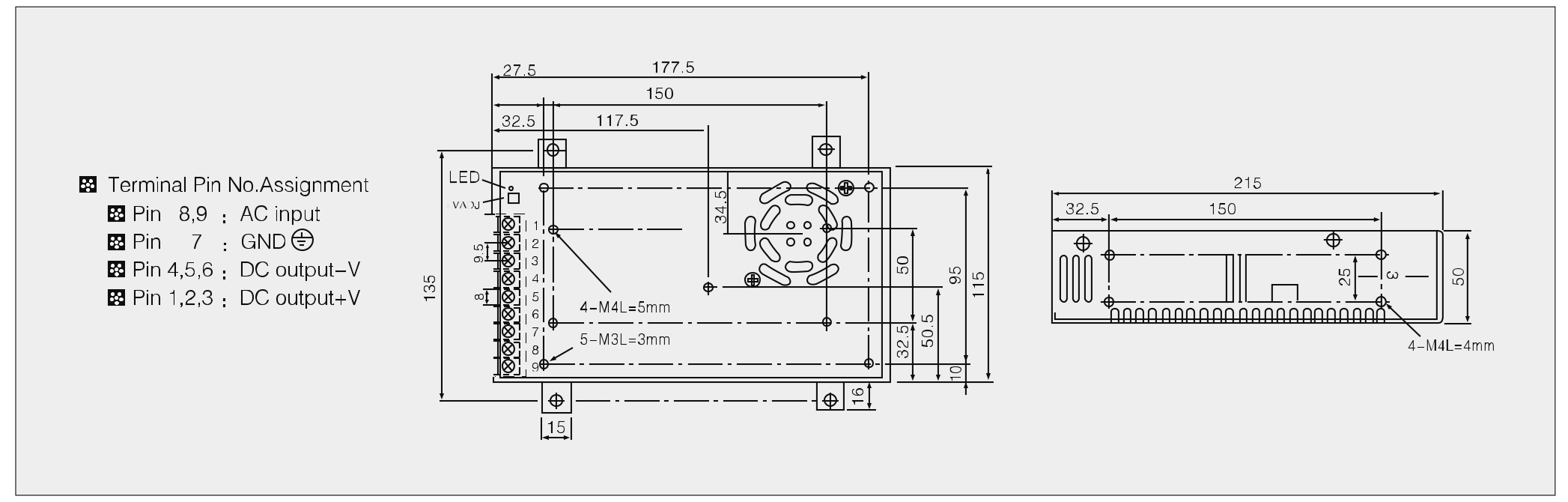

Dimension

215×115×50mm

Weight

1kg

Packing

45.5×31.5×26CM/20PCS/20kg
