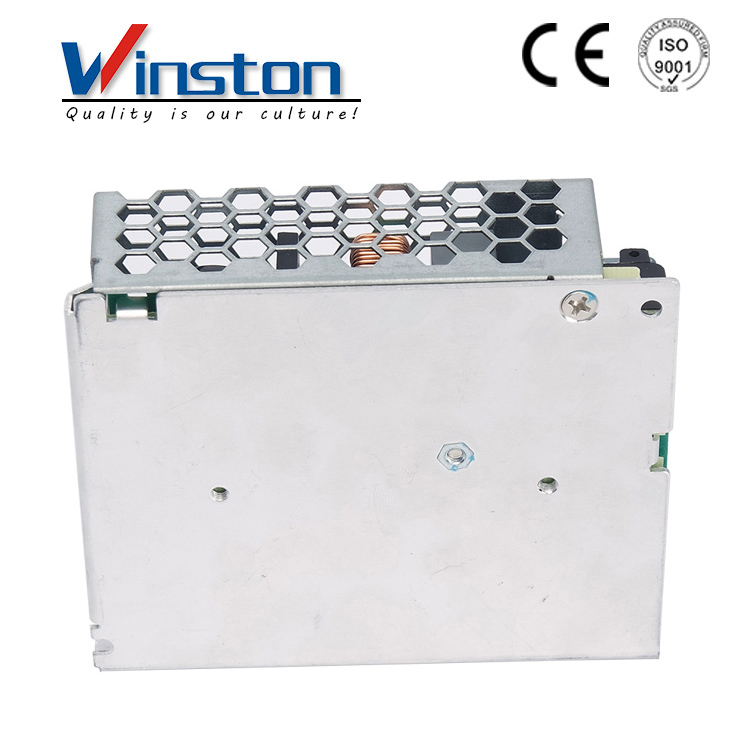

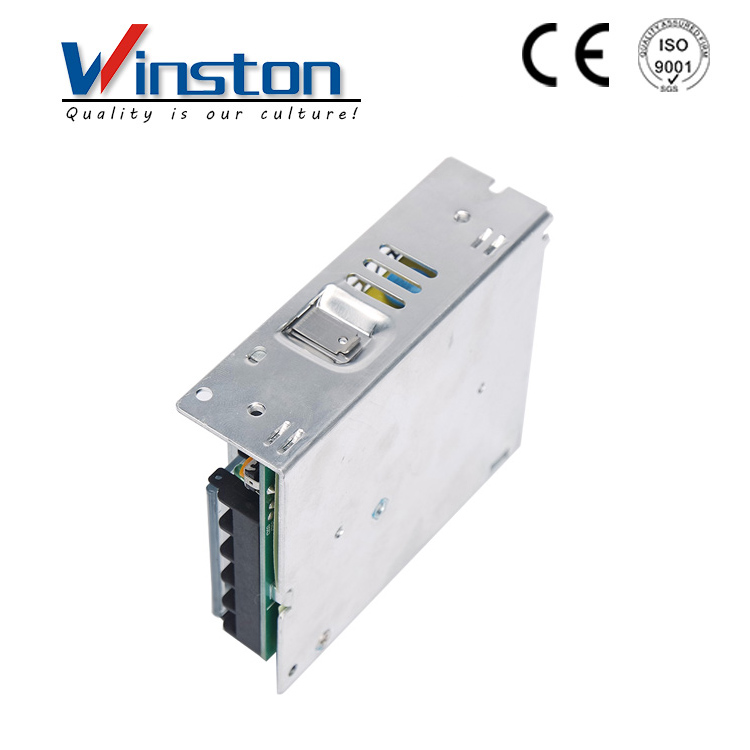

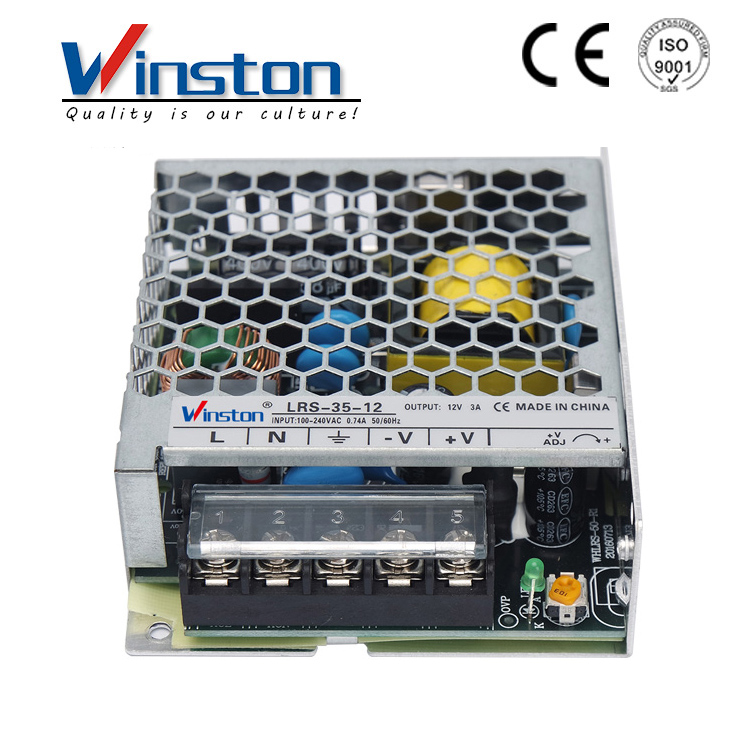

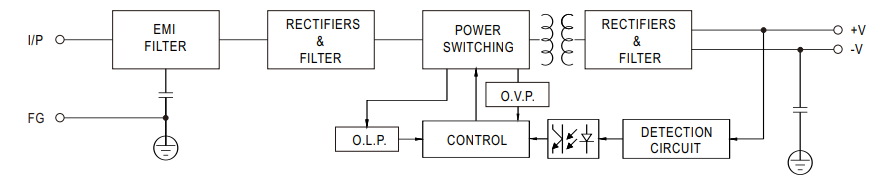

LRS-35 series is a 35W single output enclosed type power supply with 30mm of low profile design. Adoptingthe full range 85~264VAC input, the entire series provides an output voltage line of 5VDC, 12VDC, 15VDC, 24VDC,36VDC and 48VDC.
In addition to the high efficiency up to 89%, the design of metallic mesh case enhances the heat dissipation of LRS-35 that the whole series operates from -30'C through 70'C under air convection without a fan.Delivering an extremely low no load power consumption (less than 0.2W), it allows the end system to easily meet the worldwide energy requirement. it is complied with the international safety regulations. it serves as a high price to performance power supply solution for various industrial applications.
| Model | LRS-35-5 | LRS-35-12 | LRS-35-15 | LRS-35-24 | LRS-35-36 | LRS-35-48 | |
|---|---|---|---|---|---|---|---|
| Output | DC Voltage | 5V | 12V | 15V | 24V | 36V | 48V |
| Rated Current | 7A | 3A | 2.4A | 1.5A | 1A | 0.8A | |
| Current Range | 0~7A | 0~3A | 0~2.4A | 0~1.5A | 0~1A | 0~0.8A | |
| Rated Power | 35W | 36W | 36W | 36W | 36W | 38.4W | |
| Ripple&Noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | |
| VoltageAdj. Range | 4.5 ~ 5.5V | 10.2~ 13.8V | 13.5~18V | 21.6~28.8V | 32.4~39.6V | 43.2~52.8V | |
| Voltage Tolerance | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load Regulation | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Setup,Rise Time | 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load | ||||||
| Hold Up Time | 30ms/230VAC 12ms/115VAC at full load | ||||||
| Input | Voltage Range | 85 ~ 264VAC 120 ~ 373VDC | |||||
| Frequency Range | 47 ~ 63Hz | ||||||
| Efficiency | 82% | 86% | 86% | 88% | 88% | 89% | |
| AC Current | 0.7A/115VAC 0.42A/230VAC | ||||||
| Inrush Current | Cold start 45A/230VAC | ||||||
| Leakage Current | <0.75mA / 240VAC | ||||||
| Protection | Over Load | 110 ~ 150% rated output power | |||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||
| Over Voltage | 5.75~6.9V | 13.8~16.2V | 18.75~21.75V | 28.8~33.6V | 41.4~48.6V | 55.2~64.8V | |
| Protection type: shut down o/p voltage, re-power on to recover | |||||||

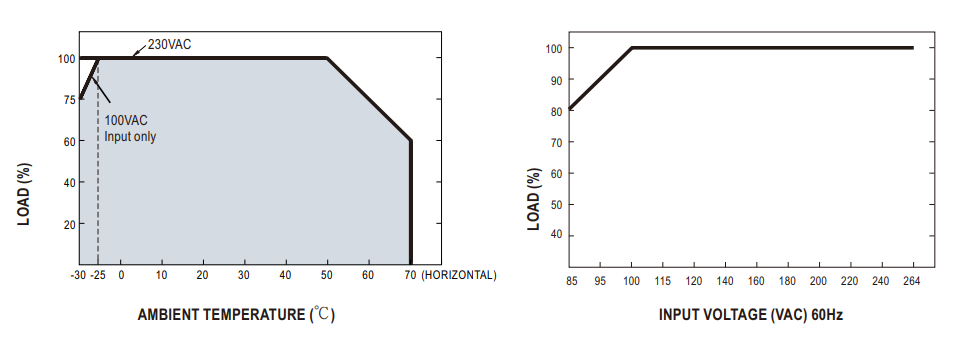

| Environment | Working Temp. | -30 ~ +70℃ (Refer to “derating curve”) | |||||
| Working Humidity | 20 ~ 90% RH non-condensing | ||||||
| StorageTemp., Humidity | -40 ~ +85℃, 10 ~ 95% RH | ||||||
| Temp. Coefficient | ±0.03%/℃ (0 ~ 50℃) | ||||||
| Vibration | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| Safety&EMC | Safety Standards | UL60950-1, TUV EN60950-1, EN60335-1/-2-16, CCC GB4943 approved | |||||
| Withstand Voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | ||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH | ||||||
| EMC Emission | Compliance to EN55022(CISPR22), GB9254 CLASS B, EN55014 EN 61000-3-2,-3 | ||||||
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2), heavy industry level, criteria A | ||||||

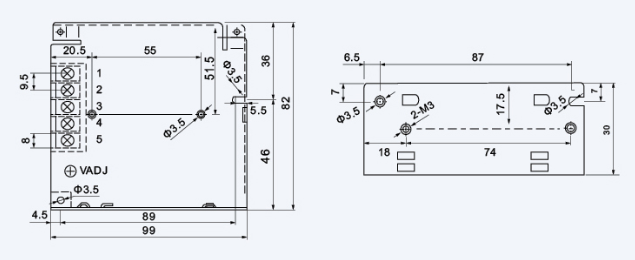

| Others | Dimension | 99*82*30mm (L*W*H) | |||||
| Weight | 0.23Kg | ||||||
| Packing | 60pcs/carton/14.8kg/0.88CUFT | ||||||
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. | ||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||||||
| 3. Tolerance: includes set up tolerance, line regulation and load regulation. | |||||||
| 4. Line regulation is measured from low line to high line at rated load. | |||||||
| 5. Load regulation is measured from 0% to 100% rated load. | |||||||
| 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | |||||||
| 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time. | |||||||
