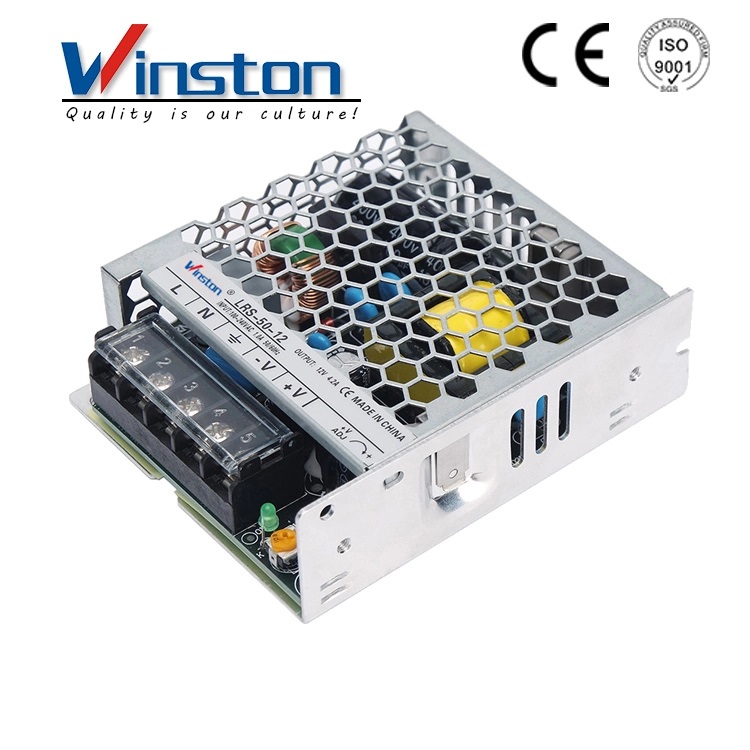

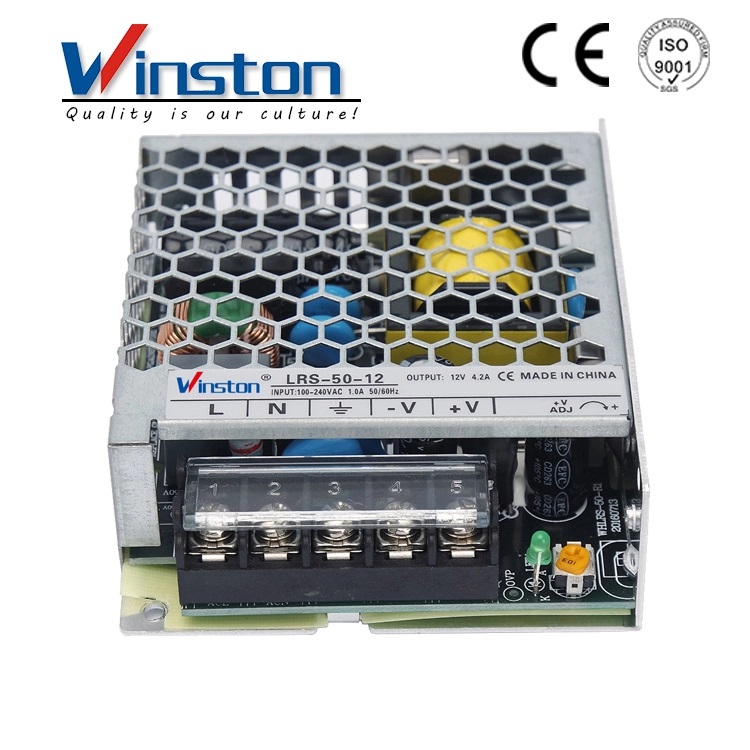

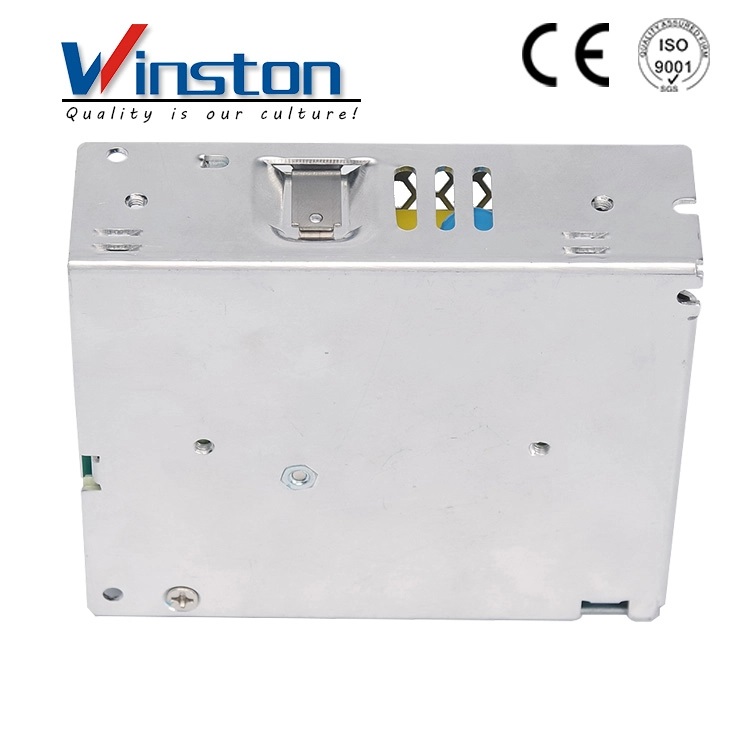

Name: LRS-50 50W Utra thin single output power supply
Brand: Winston
SKU: 02075
Rating: 4.1 (1088 reviews)

LRS-50 50W Utra thin single output power supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

MODEL		LRS-50-5	LRS-50-12	LRS-50-15	LRS-50-24	LRS-50-36	LRS-50-48
OUTPUT	DC Voltage	5V	12V	15V	24V	36V	48V
	Rated Current	10A	4.2A	3.4A	2.2A	1.45A	1.1A
	Current Range	0~10A	0~4.2A	0~3.4A	0~2.2A	0~1.45A	0~1.1A
	Rated Power	50W	50.4W	51W	52.8W	52.2W	52.8W
	Ripple &Noise(max.) Note.2	80mVp-p	120mVp-p	120mVp-p	150mVp-p	200mVp-p	200mVp-p
	Voltange ADJ. Range	4.5~5.5V	10.2~13.8V	13.5~18V	21.6~28.8V	32.4~39.6V	43.2~52.8V
	Voltage Tolerance Note.3	±2.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	Line Regulation Note.4	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	Load Regulation Note.5	±1.0%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	Setup, Rise Time	1000ms, 30ms/230VAC 2000ms,30ms/115VAC at full load
	Hold Up Time (Typ.)	30ms/230VAC 12ms/115VAC at full load
INPUT	Voltage Range	85 ~ 264VAC 120 ~ 373VDC
	Frequency Range	47 ~ 63Hz
	Efficiency (Typ.)	83%	86%	88%	88%	89%	90%
	AC Current (Typ.)	00.95A/115VAC 0.56A/230VAC
	Inrush Current (Typ.)	CCOLD START 45A/230VAC
	Leakage Current	<0.75mA/ 240VAC
Protection	Over Load	110 ~ 150% rated output power
	Over Load	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	Over Voltage	5.9~7.3V	13.8~16.2V	18.75~21.75V	28.8~33.6V	41.4~48.6V	55.2~64.8V
	Over Voltage	Protection type : Shut down o/p voltage, re-power on to recover
Environment	Working Temp.	-20 ~ +70ºC (Refer to "Derating Curve")
	Working Humidity	20 ~ 90% RH non-condensing
	Storage Temp.,Humidity	40 ~ +85 , 10 ~ 95% RH
	Temp.Coefficien	±0.03%/ºC (0~50ºC)
	Vibration	10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
Safety & EMC	Safety Standards	EN60950-1, EN60335-1, EN61558-1 2 16 approved
	Withstand voltage	I/P-O/P:3.0KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
	Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25ºC/70% RH
Others	MTBF	645K hrs min. MIL-HDBK-217F (25ºC)

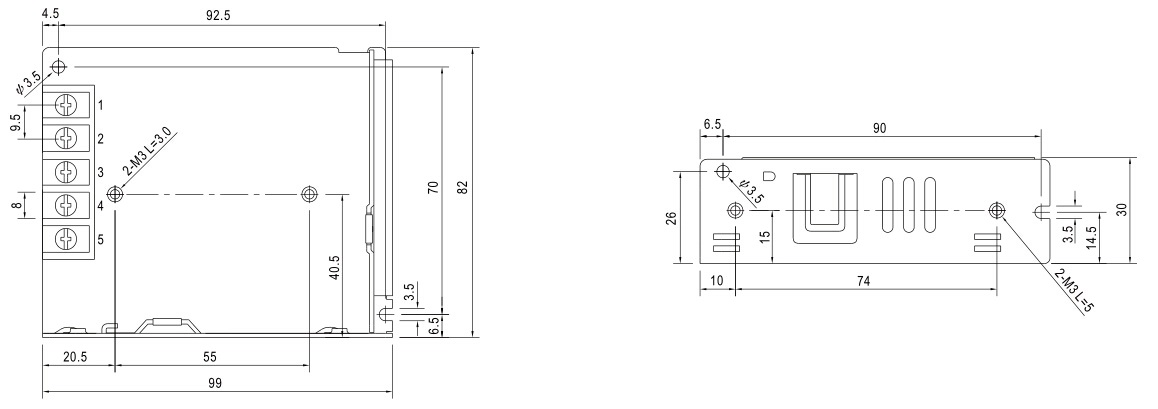

Dimension:

Product Description
