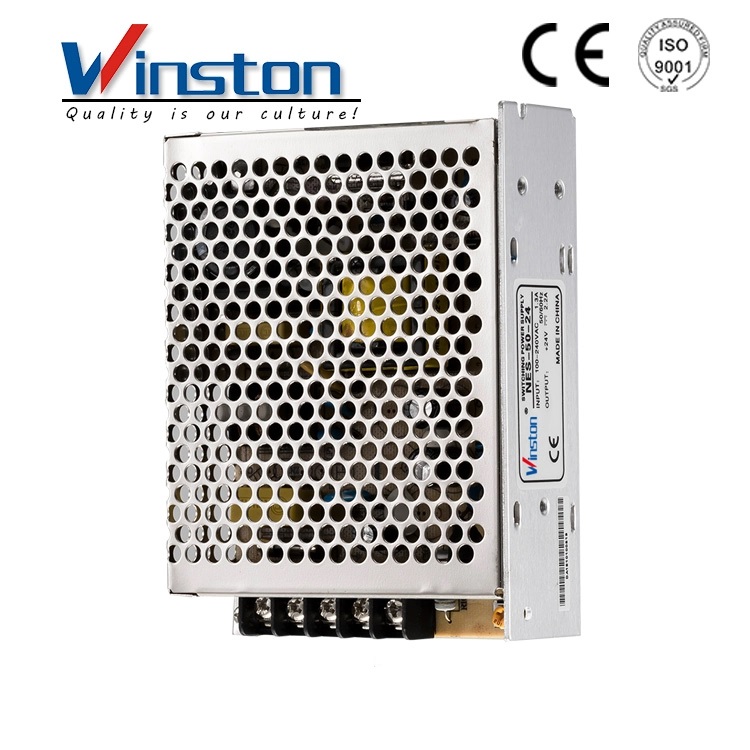

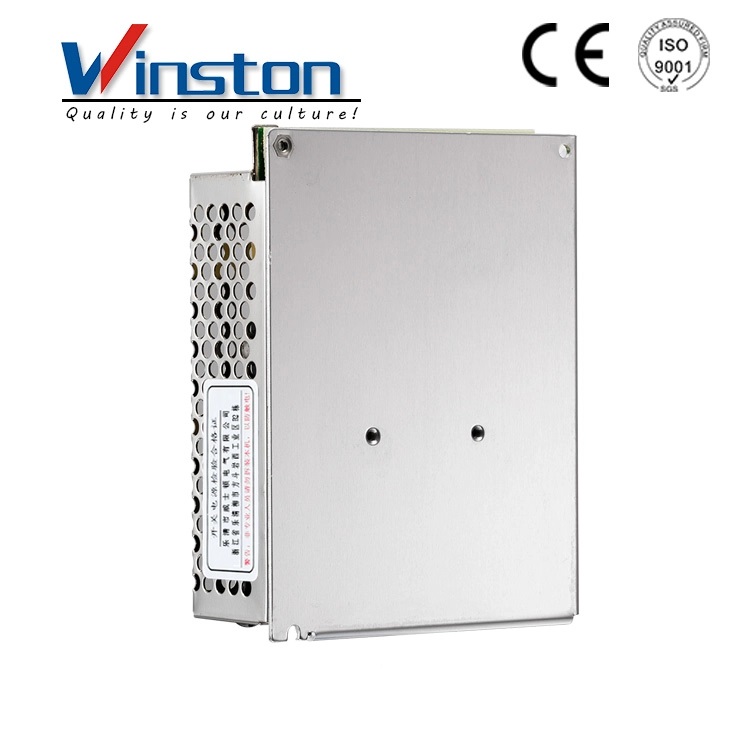

NES-50 50W Industrial Single output power supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Product Description

Packaging & Shipping

FAQ

1.Product Description

1) High Efficiency, High Reliability, Low Cost
2) AC Input Range:85-264VAC 120-370VDC
3) 100% Full Load Burn-In Test
4) Protections: Short Circuit / Over Load/Over Voltage
5) LED Indicator For Power On
6) Cooling By Free Air Convection
7) Approvals: CE RoHS
8) 2 Year Warranty.

2.Specification:

MODEL	NES-50-5	NES-50-12	NES-50-15	NES-50-24	NES-50-48
DC VOLTAGE	5V	12V	15V	24V	48V
CURRENT RANGE	0 ~ 10A	0 ~ 4.2A	0 ~ 3.4A	0 ~ 2.2A	0 ~ 1.1A
EFFICIENCY	79%	82%	83%	86%	87%
WAVE & NOISE	80mVp-p	120mVp-p	150mVp-p	200mVp-p	240mVp-p
ADJUSTABLE RANGE FOR DC VO;LTAGE	±10%	±10%	±10%	±10%	±10%
LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
LOAD REGULATION	±1%	±0.5%	±0.5%	±0.5%	±0.5%
SETUP, RISE HOLD UP TIME	800ms, 60ms,50ms/230VAC at full load
VOLTAGE RANGE	85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE	47 ~ 63Hz
IMPACT CURRENT	Cold start current 45A/230VAC
WORKING TEMP.	-10 ~ +50ºC
OVERLOAD PROTECTION	105%-160% cut off the output , automatic recovery
OVER VOLTAGE PROTECTION	115%-135%shunt down O/P voltage,re-power on to recover
WITHSTAND VOLTAGE	I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute
ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:500VDC/100M Ohms
DIMENSION	1299838mm (LWH)
WERIGHT	0.41kg
PACKING	4332.524cm/45pcs/19kg

NES-50 50W Industrial Single output power supply

1.Product Description

2.Specification:

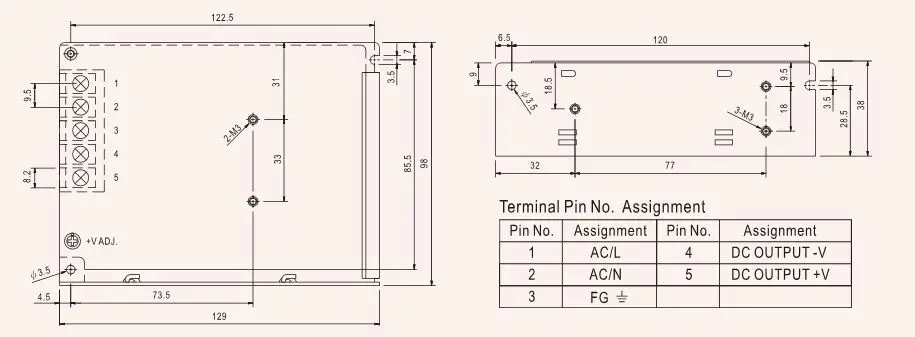

Dimension
