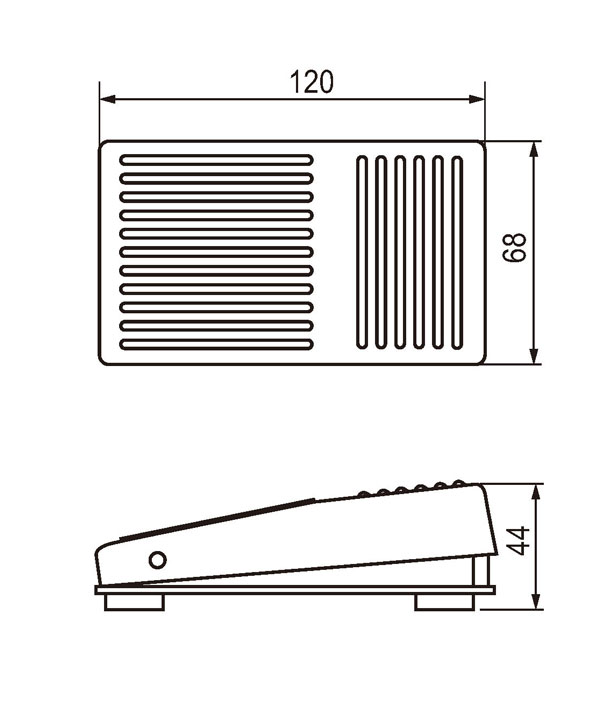

FS-01 Plastic housing foot switch

The FS-01 is a plastic housing foot switch designed for durability and reliability in various industrial applications. Here are some of its key technical specifications and features:

  •  Voltage Rating: AC 250V
  •  Current Rating: 10A
  •  Contact Configuration: SPDT (Single Pole Double Throw)
  •  Contact Resistance: 25mΩ (initial value)
  •  Insulation Resistance: Above 100mΩ DC500V
  •  Withstand Voltage: ≥2000VAC
  •  Mechanical Life: Over 1,000,000 times
  •  Electrical Life: Over 100,000 times
  •  Operating Temperature: -20 to 70ºC
  •  Operating Humidity: ≤85%

The FS-01 foot switch is equipped with a rubber pad on the bottom for skidproofing and a cable lock-in jacket for waterproofing and grease protection. It is widely used for control in industrial automation equipment, transportation, pressing, medical treatment, testing, and more. The switch is designed to be operated with safety boots and includes a stopper to prevent excessive force on the internal switch.

For specific details and to ensure the foot switch meets your requirements, refer to the user manual or technical specifications provided by the manufacturer  .

Brand Winston
Max.Current 10A
Max.Voltage 250VAC
