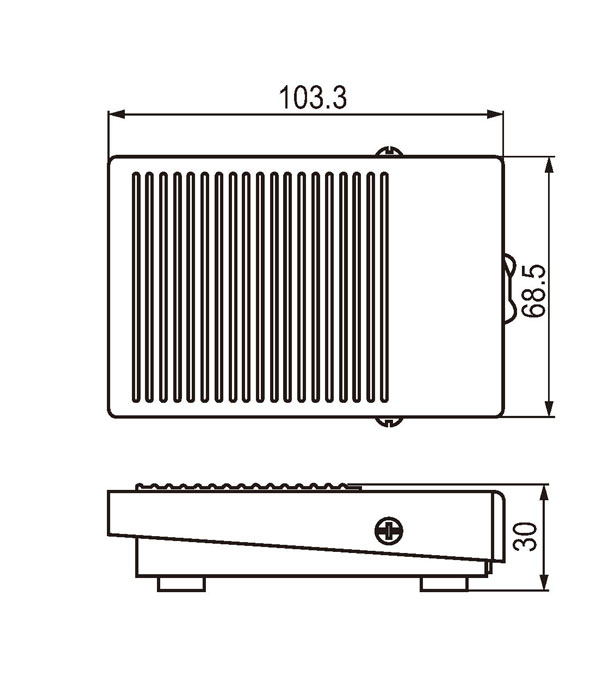

FS-1 Iron housing foot switch

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

The FS-1 iron housing foot switch is a durable and reliable switch designed for various industrial applications. Here are some key features:

1. **Construction**: Made with an iron alloy die-cast for strength and durability.
2. **Operation**: It features a momentary action, which means the switch activates only when pressure is applied.
3. **Contact Configuration**: Typically has a 1c contact configuration with a built-in micro switch.
4. **Protection Level**: The FS-1 has a protective structure that offers a certain level of protection against dust and water.
5. **Voltage and Current Ratings**: It is rated for AC voltage and can handle a specific current, depending on the model.
6. **Design**: Designed to be operated even with safety boots, and it includes a stopper to prevent excessive force on the internal switch.
7. **Applications**: Ideal for use in machinery and electrical control where a sturdy and reliable foot switch is required.

For specific details, refer to the product manual or technical specifications provided by the manufacturer .

The FS-1 iron housing foot switch is an industrial foot switch with the following main technical specifications:

- Rated Operating Voltage (ue): AC 380V, DC 220V
- Rated Operating Current (ie): AC 0.8A, DC 0.1A
- Rated Insulation Voltage (ui): 380V
- Rated Control Capacity (AC): 300VA
- Rated Control Capacity (DC): 300W
- Rated Operating Frequency: 120 cycles/hour
- Agreed Heating Current: 5A
- Protection Level: IP62
- National Standard: GB14048.5

Additionally, the features of the FS-1 foot switch include:
- Housing Material: Iron
- Housing Surface Treatment: Spray plastic, electrophoretic coating
- Color: Black, Blue
- Scope of Application: Medical equipment, stamping equipment, welding equipment, textile equipment, etc.

Please note that these parameters are summarized based on general information provided in the search results, and the technical specifications of the actual product may vary. For actual applications, refer to the detailed technical manual or product specifications provided by the manufacturer.
