Name: SP-320 320W AC to DC Single Output Switching Power Supply With PFC Function
Brand: Winston
SKU: 01986
Rating: 4.1 (1043 reviews)

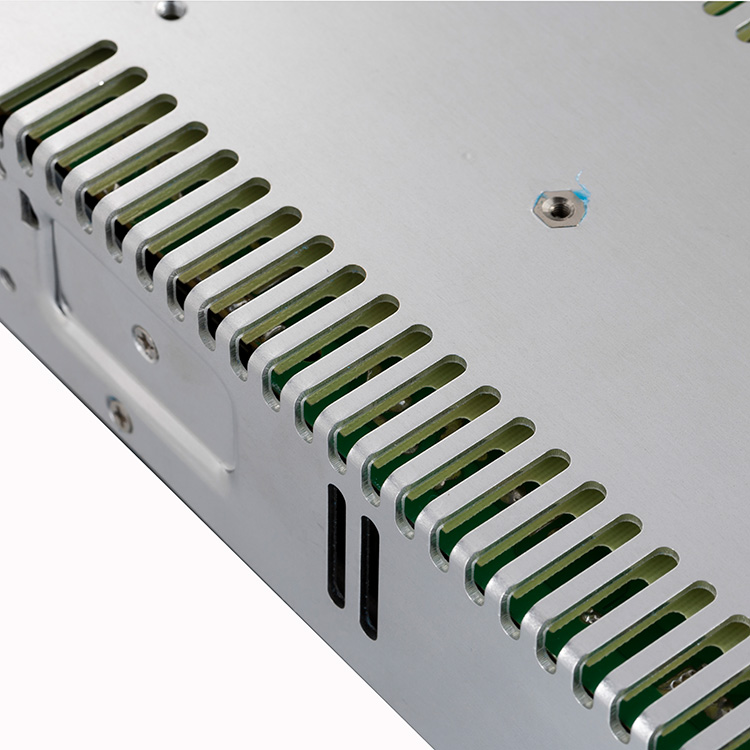

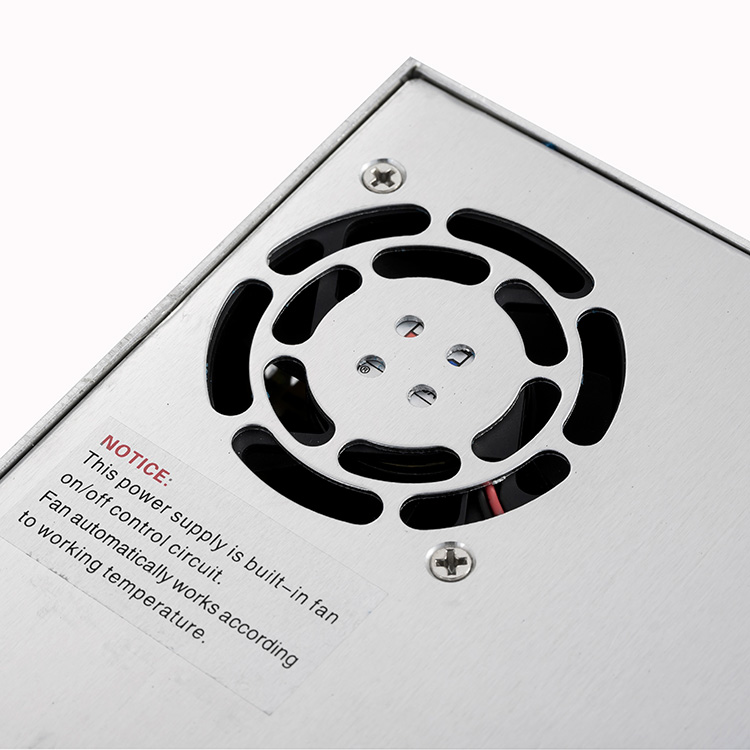

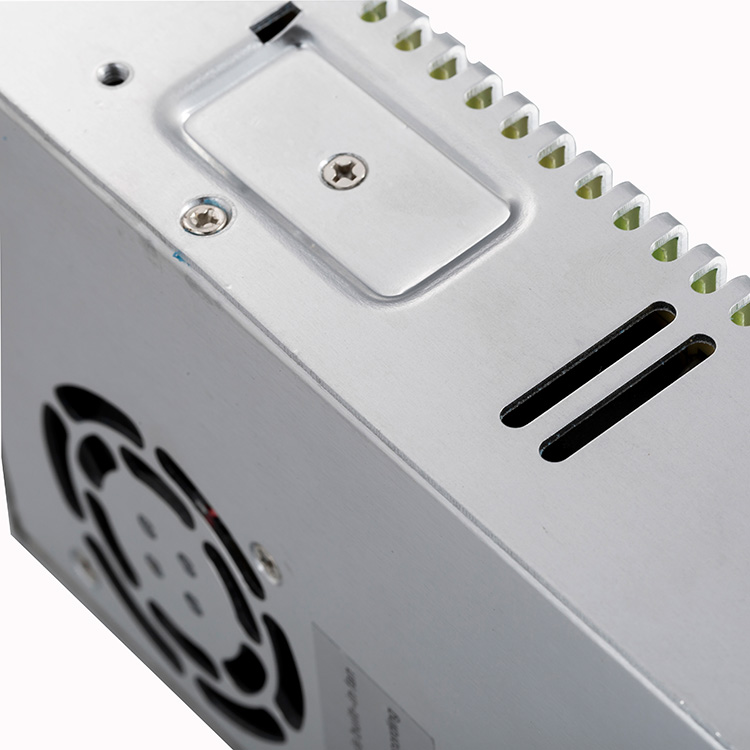

SP-320 320W AC to DC Single Output Switching Power Supply With PFC Function

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

OUTPUT
Model	SP-320-5	SP-320-7.5	SP-320-12	SP-320-13.5	SP-320-15	SP-320-24	SP-320-27	SP-320-48
DC Voltage	5V	7.5V	12V	13.5V	15V	24V	27V	48V
Rated Current	55A	40A	25A	22A	20A	13A	11.7A	6.7A
Current Range	0-55A	0-40A	0-25A	0-22A	0-20A	0-13A	0-11.7A	0-6.7A
Rated Power	275W	300W	300W	297W	300W	312W	315.9W	321.6W
Ripple&Noise	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p	240mVp-p
DC Adjustment Range	±10%	±20%	-16%,+10%	±11%	-10%,+20%	-16%,+10%	-4%,+18%	-15%,+17%
Voltage Tolerance	±2%	±2%	±2%	±2%	±2%	±1%	±1%	±1.0%
Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Setup,Rise,Hold Up Time	800ms,50ms,16ms/230VAC2500ms,50ms,16ms/115VAC at full load
INPUT
Voltage Range	88～264VAC120～370VDCfrequency:47～63 Hz
AC Current	4A/115 VAC2A/230VAC
Power Factor	PF>0.95/230VAC,PF>0.98/115VAC at full load
Efficiency	79%	83%	86%	86%	86%	87%	88%	89%
Inrush Current	22A/115VAC40A/230VAC
Leakage Current	＜1 mA/240VAC
PROTECTION
Over Load	105%-150%
Over Load	Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage(V)	115%~135%
Over Voltage(V)	Protection type: Shut down o/p voltage, re-power on to recover
Over Temp.	TSW1 (Power transistor) When Temp. in 80±5 ℃(70℃±5 ℃5V), shut down o/p voltage,
Over Temp.	Temp.＜65±5 ℃ (55℃±5 ℃5V), O/I auto-recovery.
ENVIRONMENT
Working Temp.Humidity	-20℃～+65℃; 20%～90 %RH
Storage Temp.Humidity	-40℃～+85℃; 10%～95 %RH
Temp.Coefficient	±0.03%/℃(0～50℃)
Vibration	10～500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage	I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC
STANDARD
Safety Standard	Design refer to UL1950,TUV EN60950
EMCStandard	Designrefer toEN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024
OTHERS

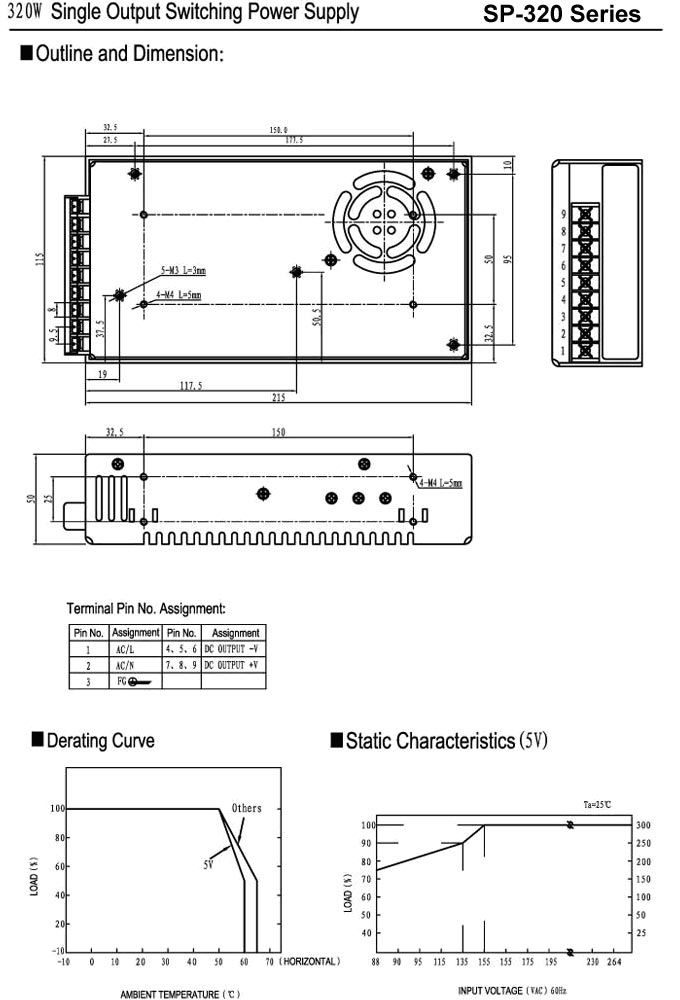

Dimension	21511550mm （LWH）
Weight	1.1Kg/pc
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
	3. Tolerance: includes set up tolerance, line regulation and load regulation.
	4. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
