55.02,55.04,55.32 General purpose relay

Name: 55.02,55.04,55.32 General purpose relay
Brand: Winston
SKU: 02374
Rating: 4.1 (1237 reviews)

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Description
Technical Parameters

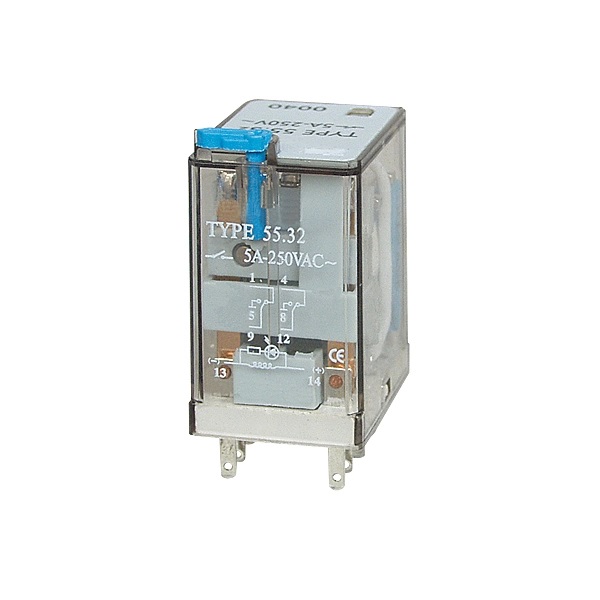

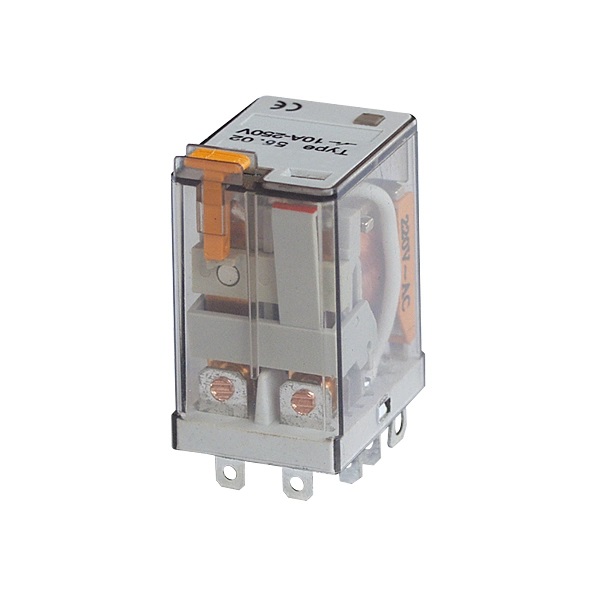

55.02,55.04,55.32 General purpose relay

Specifications Model		55.02	55.04	55.32
Terminal layout		2Z	4Z	2Z
Contact capacity	AC	10A 250V	5A 250V	5A 250V
Contact capacity	DC	10A 30V	5A 30V	5A 30V
Contact resistance(mΩ)		≤50mΩ	≤50mΩ	≤50mΩ
Insulation resistance(MΩ)		≥100MΩ	≥100MΩ	≥100MΩ
Dielectric strength	BOC	1000VAC	1000VAC	1000VAC
Dielectric strength	BCC	1500VAC	1500VAC	1500VAC
Coil nominal voltage	AC	6 to 240V	6 to 240V	6 to 240V
Coil nominal voltage	DC	6 to 110V	6 to 110V	6 to 110V
Coil nominal power	AC	0.9VA to 1.2VA	0.9VA to 1.2VA	0.9VA to 1.2VA
Coil nominal power	DC	≤0.9W	≤0.9W	≤0.9W
Electrical life(OPS)		105	105	105
Mechanical life(OPS)		107	107	107
Operating temperature(^oC)		-40~+60	-4~+60	-40~+60
Weight(g)		≤35	≤35	≤35
Mounting methods		Printed-circuit board, Flange, Outlet	Printed-circuit board, Flange, Outlet	Printed-circuit board, Flange, Outlet
