KG316T DIN Rail Mounting Programmable Mechanical Time Control Switch

KG316T Time Control Switch

Name: KG316T Time Control Switch
Brand: Winston
SKU: 01699
Rating: 4.1 (900 reviews)

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

KG316T DIN Rail Mounting Programmable Mechanical Time Control Switch

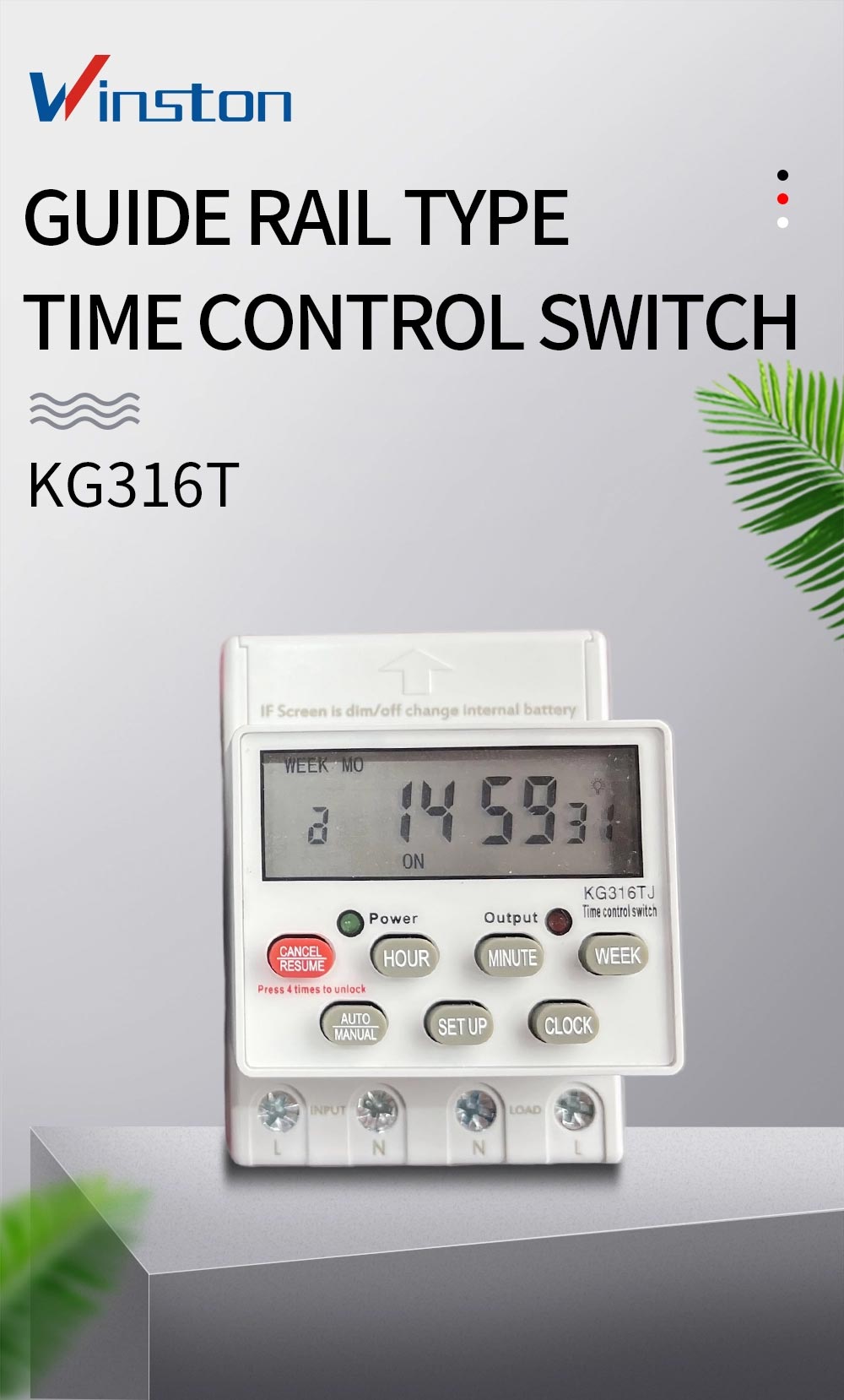

KG316T_01 KG316T_02

Products Description

This product is based on user set time, electrical equipment automatic open and close a variety. Control object can be a street lamp, lamp box, neon lamp, production equipment, farming, warehouse ventilation dehumidification. automatic preheating control products, radio and television equipment and so on, high precision, strong anti-nterference industrial chip.

Working voltage	187-242VAC 50~60Hz
Power consumption	＜1W
Control power	6KW
Rated voltage	220V
Timer range	1 minutes~168 hours
Time error	≤ 2S / Day 25℃
External battery	1.5V （Available for 10 years）
Regular times	16 times ON/OFF (Day/Week)

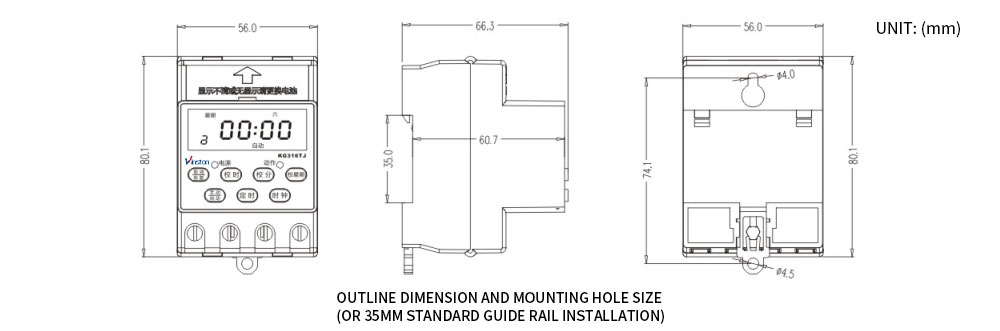

Dimension	80.1×50×66.3 mm
Installation	Screwed with M3、 2pcs

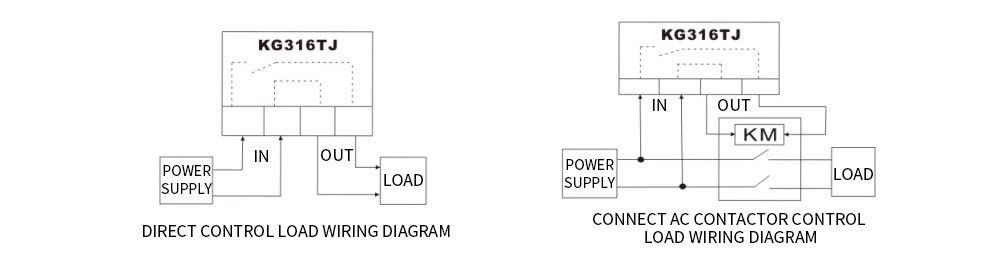

接线图

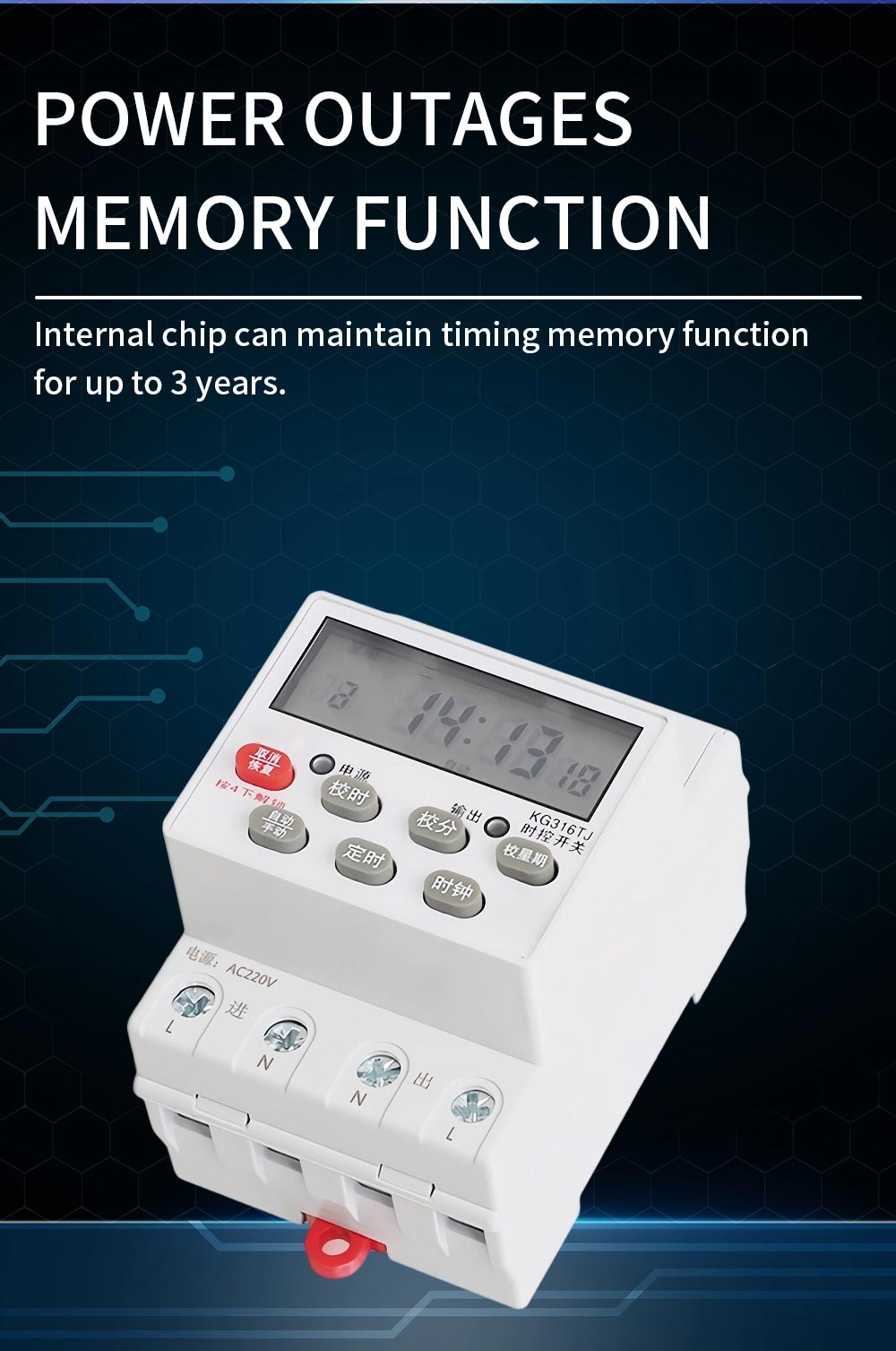

KG316T_03
