OUTPUT |
|
||||
|
Model |
S-120-12 |
S-120-13.8 |
S-120-15 |
S-120-24 |
S-120-48 |
|
DC Voltage |
12V |
13.8V |
15V |
24V |
48V |
|
Rated Current |
10A |
8.7A |
8A |
5A |
2.5A |
|
Current Range |
0-10A |
0-8.7A |
0-8A |
0-5A |
0-2.5A |
|
Rated Power |
120W |
120W |
120W |
120W |
120W |
|
Ripple & Noise |
120mVp-p |
120mVp-p |
125mVp-p |
150mVp-p |
150mVp-p |
|
Voltage Adj. Range |
±10% |
±10% |
±10% |
±10% |
±10% |
|
Voltage Tolerance |
±1% |
±1% |
±1% |
±1% |
±1% |
|
Inlet Stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Load Stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Setup, Rise, Hold Up Time |
200s,50ms,20ms at full load |
||||
|
INPUT |
|
||||
|
Voltage Range |
88~132VAC/180~264VAC selected by switch 47~63Hz; 255~370VDC |
||||
|
AC Current |
2.6A/115V 1.3A/230V |
||||
|
Efficiency |
80% |
81% |
82% |
83% |
84% |
|
AC Inrush Current |
Cold-start current 30A/115V 60A/230V |
||||
|
Leakage Current |
<1mA/240VAC |
||||
|
PROTECTION |
|
||||
|
Over Load |
105%~150% |
||||
|
Protection type: plusing hiccup shutdown Reset: auto recovery |
|||||
|
ENVIRONMENT |
|
||||
|
Working Temp., Humidity |
-10℃~+60℃(Refer to output derating curve),20%~90%RH |
||||
|
Storage Temp., Humidity |
-20℃~+85℃, 10%~95%RH |
||||
|
Temp. Coefficient |
±0.03%/℃(0~50℃) |
||||
|
Vibration |
10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes |
||||
|
SAFETY |
|
||||
|
Withstand Voltage |
I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
||||
|
STANDARD |
|
||||
|
Safety Standard |
Design refer to UL1012TUV EN60950(IEC950,UL1950) |
||||
|
EMC Standard |
CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification |
||||
|
OTHERS |
|
||||
|

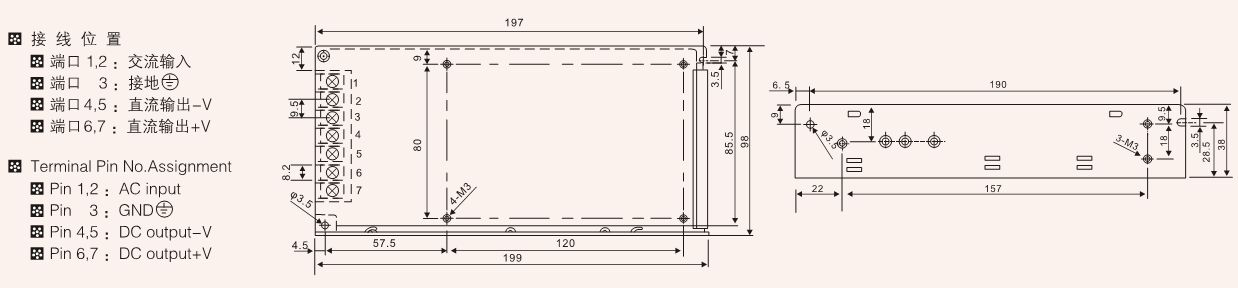

Dimension |
199*98*38mm(L*W*H) |
||||
|
Weight |
0.66Kg |
||||
