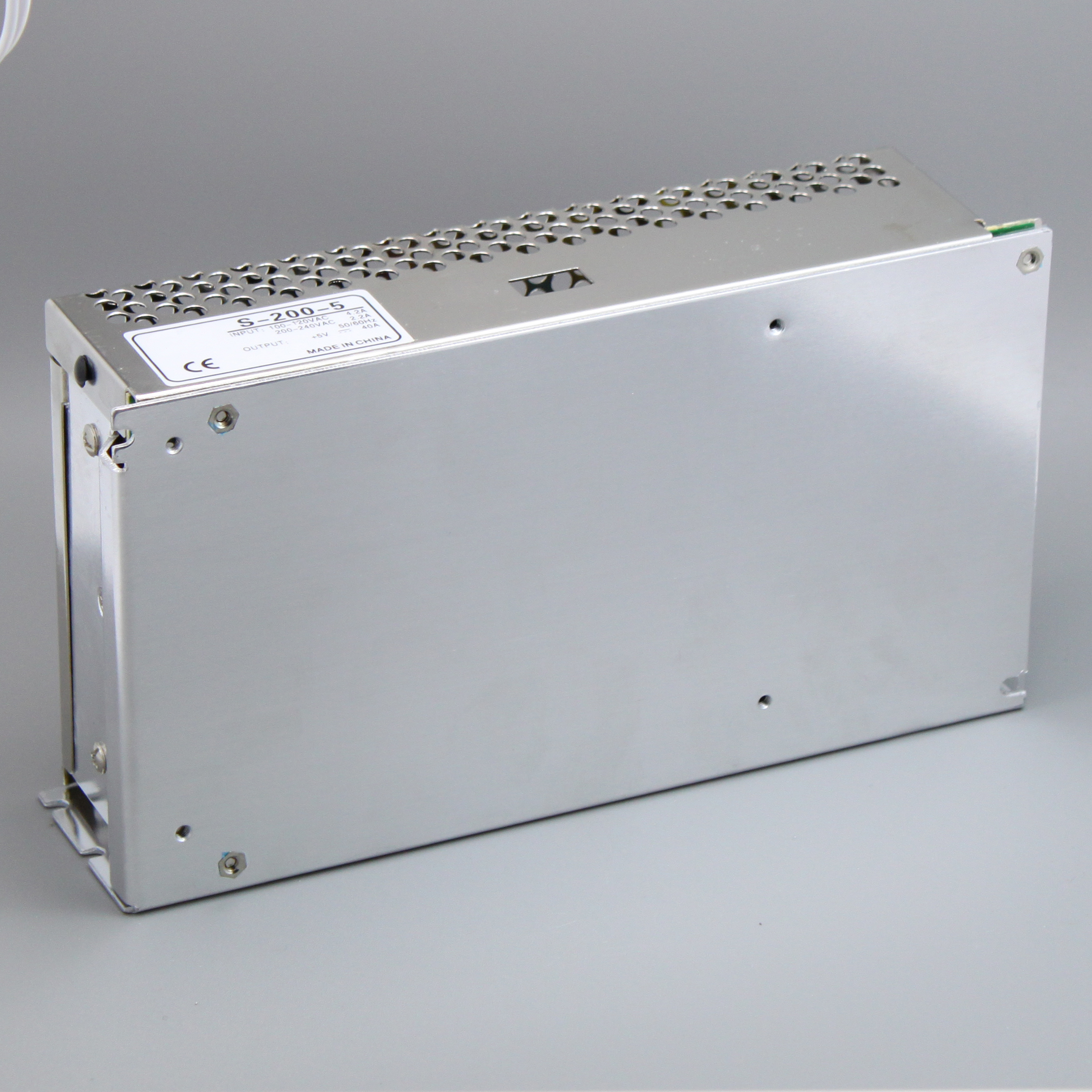

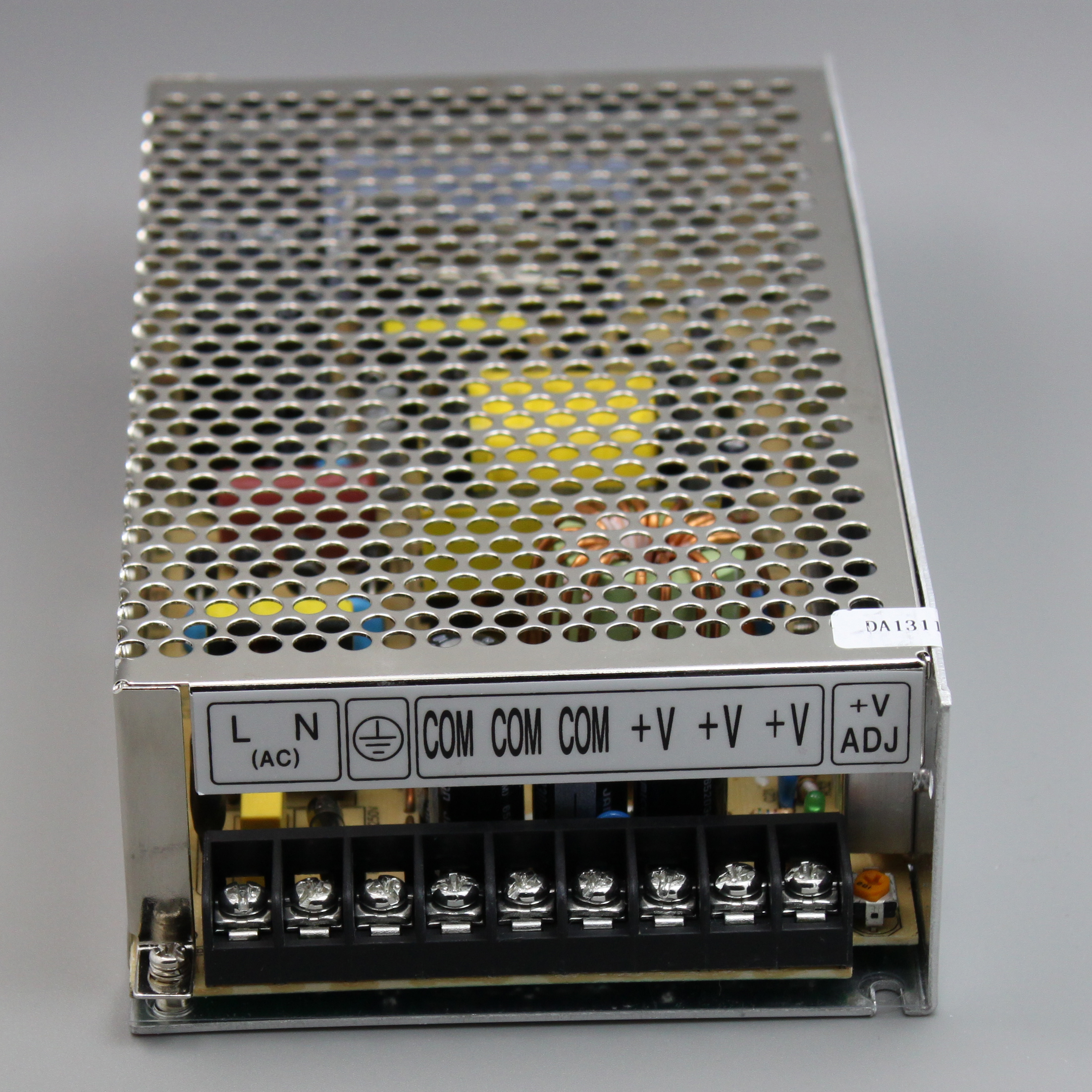

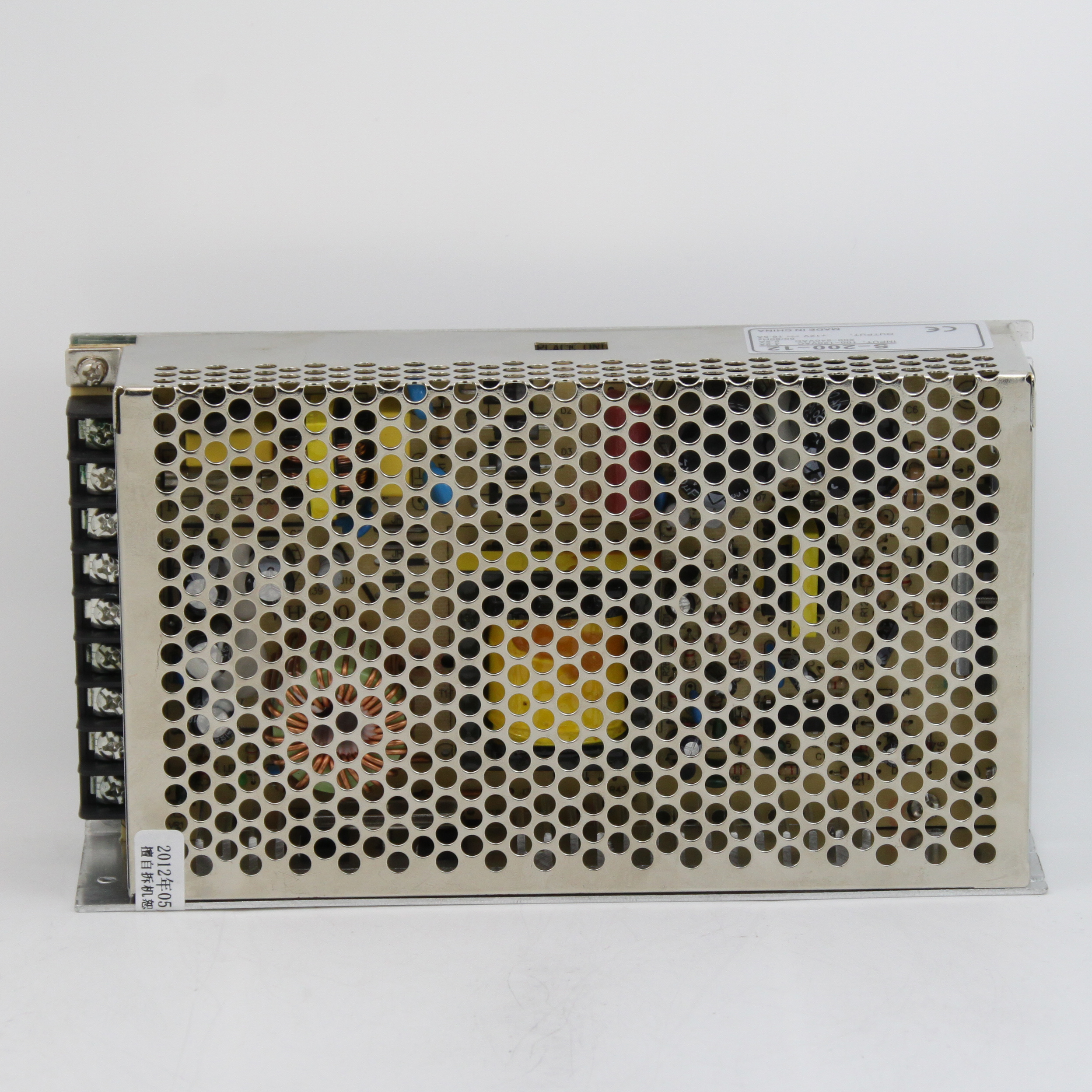

S-200 200W Single Output Switching Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Model	S-200-5	S-200-7.5	S-200-12		S-200-13.5	S-200-15	S-200-24	S-200-27	S-200-48
DC Voltage	5V	7.5V	12V		13.5V	15V	24V	27V	48V
Rated Current	40A	26.5A	16.5A		14.7A	13A	8.3A	7.4A	4.2A
Current Range	0-40A	0-26.5A	0-16.5A		0-14.7A	0-13A	0-8.3A	0-7.4A	0-4.2A
Rated Power	200W	198.75W	198W		198.45W	198W	199.2W	199.8W	201.6W
Ripple & Noise	180mVp-p	180mVp-p	120mVp-p		120mVp-p	120mVp-p	120mVp-p	150mVp-p	240mVp-p
Voltage Adj. Range	4.5~5.6V	6~9V	10~13.2V		12~15V	13.5~18V	20~26.4V	26~32V	41~56V
Voltage Tolerance	±2%	±2%	±1%		±1%	±1%	±1%	±1%	±1%
Inlet stability	±0.5%	±0.5%	±0.5%		±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±1%	±1%	±0.5%		±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Voltage Range	88~132VAC/176~264VAC selected by switch 47~63Hz; 248~370VDC
AC Current	4.5A/115V 2.5A/230V
Efficiency	75%	75%	79%	79%	80%	81%	82%	84%
Inrush Current	30A/115V 60A/230V
Leakage Current	<3.5mA/240VAC
Over Load	105%~160%
Over Load	Protection type: plusing hiccup shutdown Reset:auto recovery
Working Temp., Humidity	-10℃~+60℃(Refer to output derating curve),20%~90%RH
Storage Temp., Humidity	-20℃~+85℃, 10%~95%RH
Temp. Coefficient	±0.03%/℃(0~50℃)
Vibration	10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes
Safety Standard	Design refer to UL1950
EMC Standard	Design refer to FCC Part 15J class A

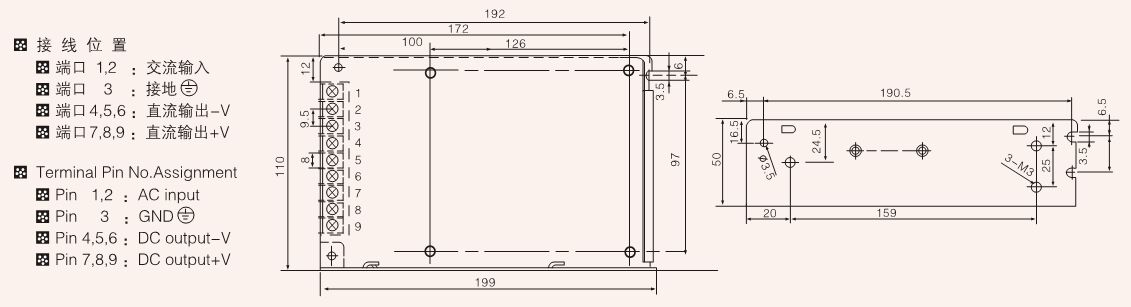

Dimension	19911050mm(LWH)
Weight	0.72Kg/pc
