Name: S-201 201W Single Output Switching Power Supply
Brand: Winston
SKU: 02006
Rating: 4.9 (1053 reviews)

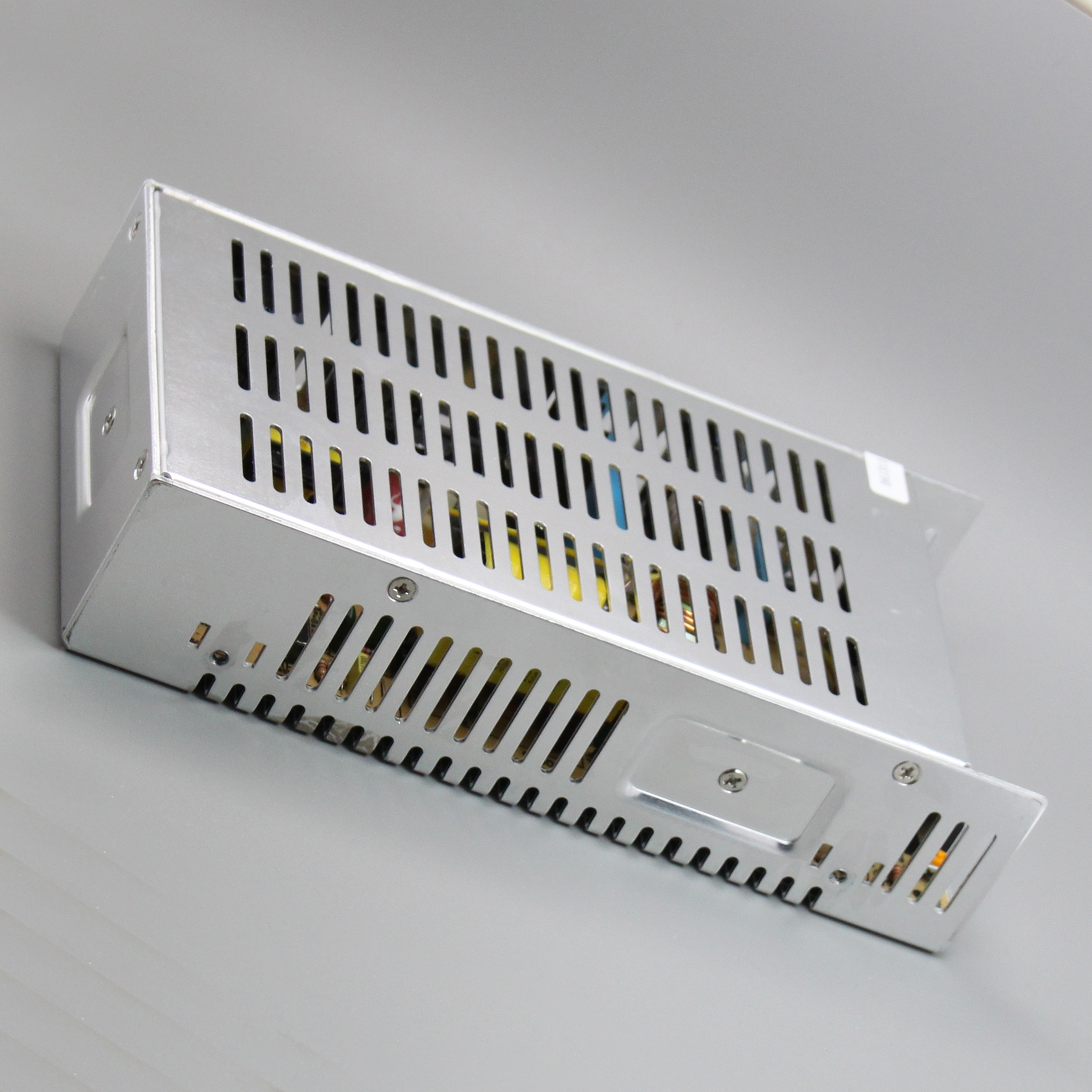

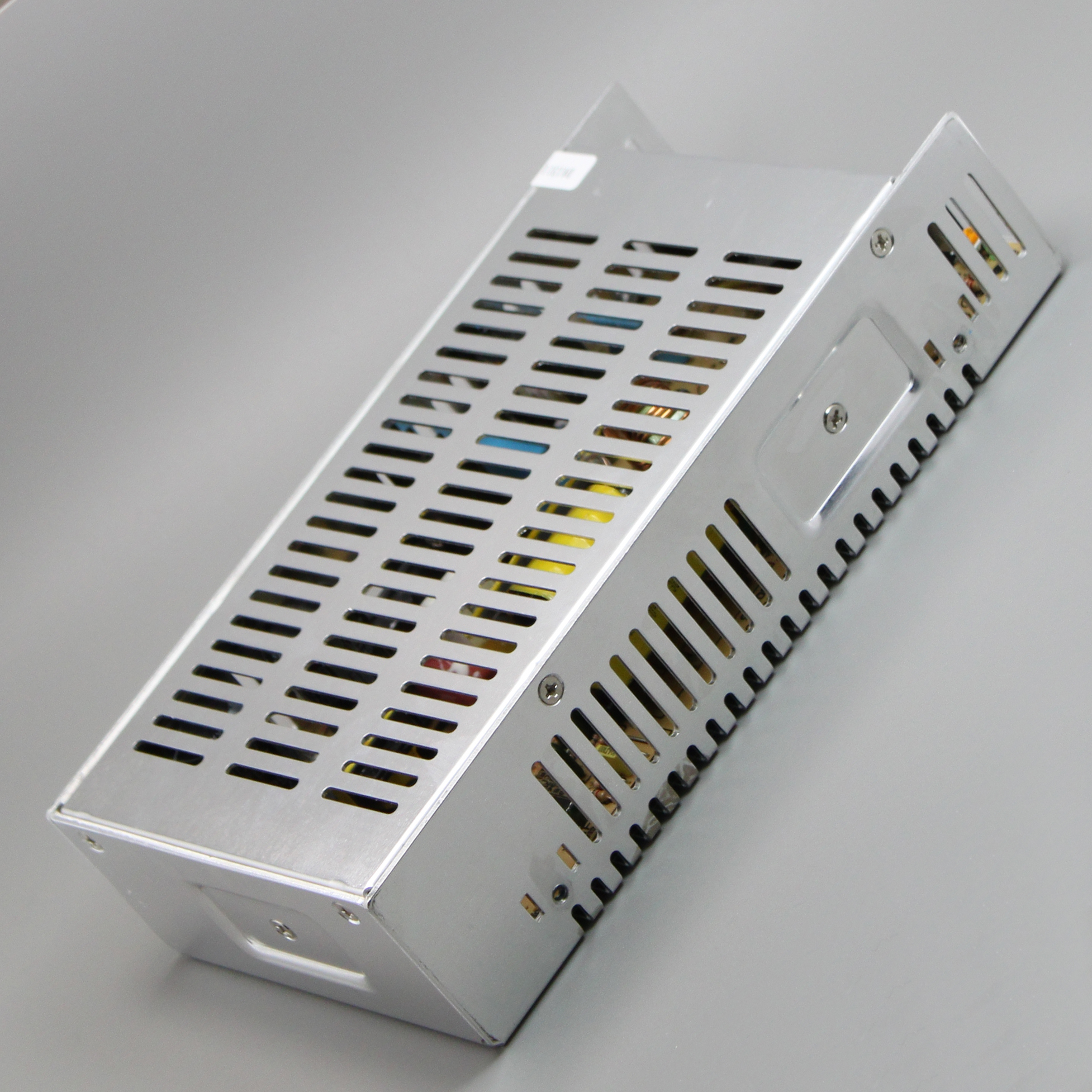

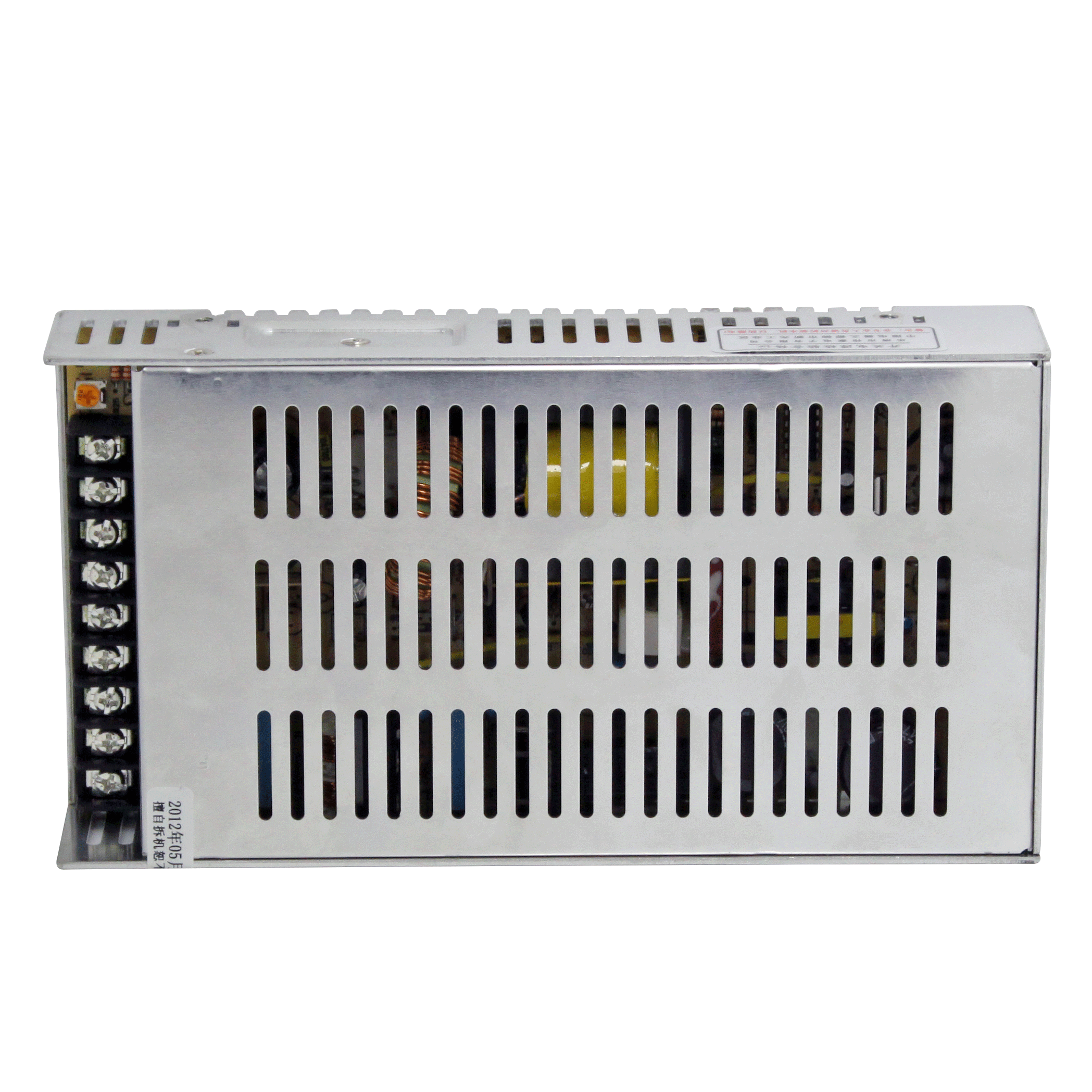

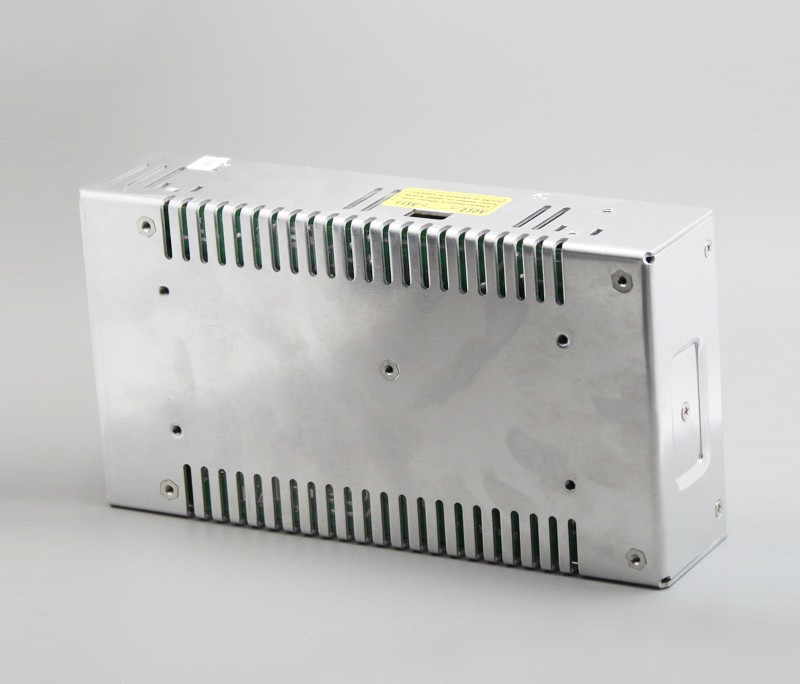

S-201 201W Single Output Switching Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

OUTPUT
Model	S-201-5	S-201-7.5	S-201-12	S-201-13.5	S-201-15	S-201-24	S-201-27	S-201-48
DC Voltage	5V	7.5V	12V	13.5V	15V	24V	27V	48V
Rated Current	40A	26.5A	16.5A	14.7A	13A	8.3A	7.4A	4.2A
Current Range	0-40A	0-26.5A	0-16.5A	0-14.7A	0-13A	0-8.3A	0-7.4A	0-4.2A
Rated Power	200W	198.75W	198W	198.45W	198W	199.2W	199.8	201.6W
Ripple & Noise	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p	240mVp-p
Voltage Adj. Range	-10%,+12%	±20%	-16%,+10%	-12%,+11%	-10%,+20%	-16%,10%	-4%,+18%	-15%,+17%
Voltage Tolerance	±2%	±2%	±1%	±1%	±1%	±1%	±1%	±1%
Setup, Rise, Hold Up Time	200ms,100ms,20ms at full load
INPUT
Voltage Range	90~132VAC/180~264VAC selected by switch 47~63Hz; 254~370VDC
AC Current	4.5A/115V 2.5A/230V
Efficiency	74%	79%	80%	80%	81%	83%	83%	84%
Inrush Current	50A/115V 50A/230V
Leakage Current	<3.5mA/240VAC
PROTECTION
Over Load	115%~135%
Over Load	Protection type: shut down o/p voltage, recovers automatically after fault condition is removed
Over Voltage	115%~135%
Over Voltage	Protection: hiccup mode, recovers automatically after fault condition is removed
Over Temp.	RTH3≥90℃, shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
Working Temp., Humidity	-10℃~+50℃; 20%~90%RH
Storage Temp., Humidity	-20℃~+85℃; 10%~95%RH
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
STANDARD
Safety Standard	Design refer to UL1950
EMC Standard	Design refer to FCC Part15 J Conduction Class A
OTHERS

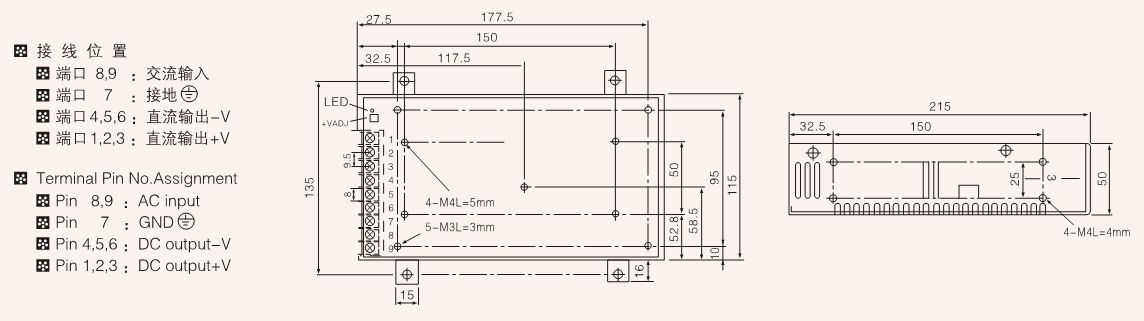

Dimension	21511550mm(LWH)
Weight	0.76Kg
Packing	20pcs/16Kg
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation
