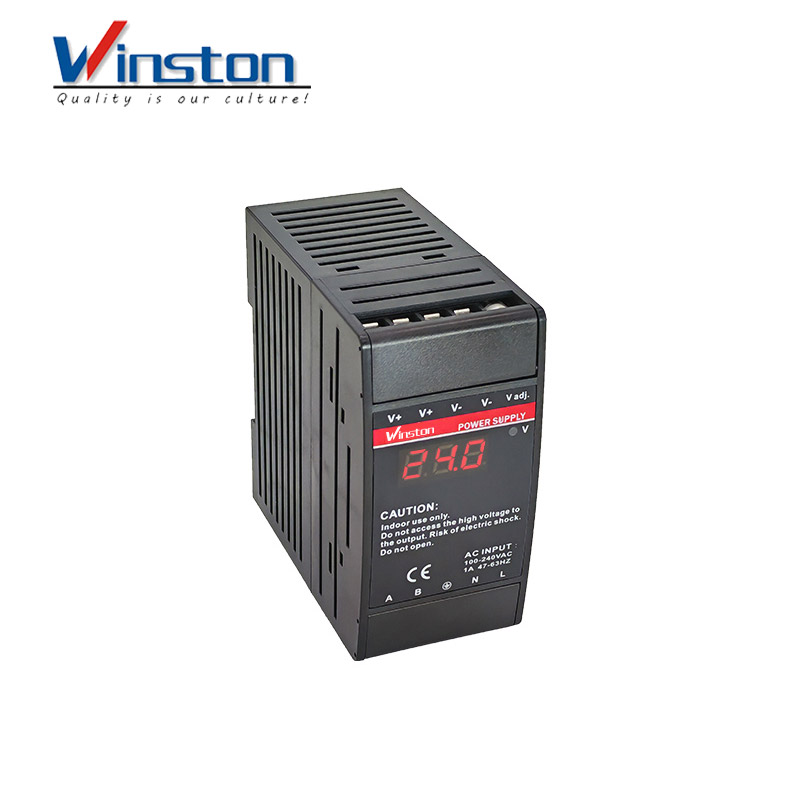

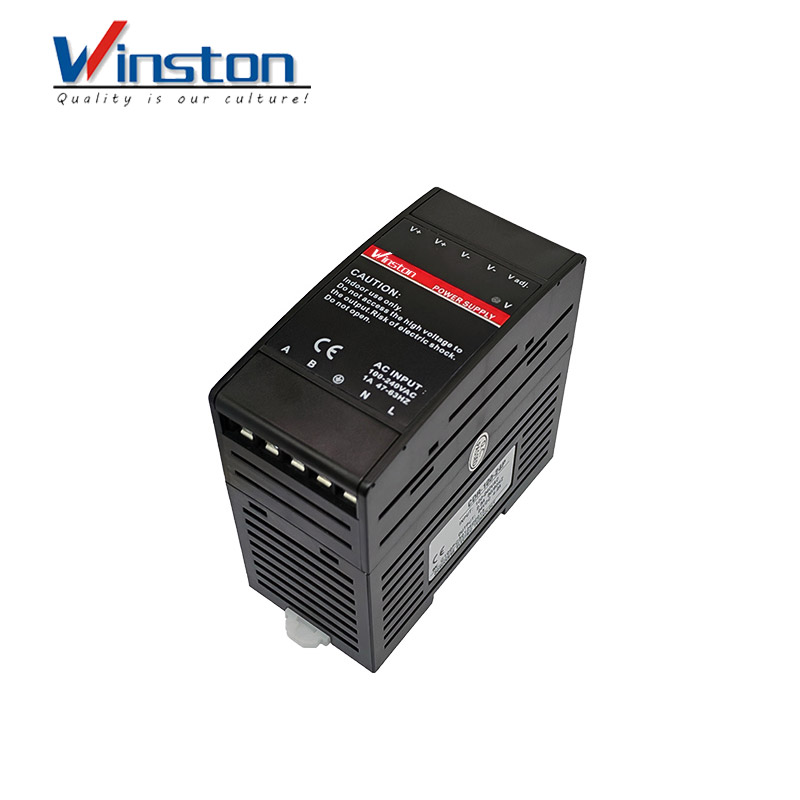

CDR Series PLC Professional Type DIN Rail Industrial Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

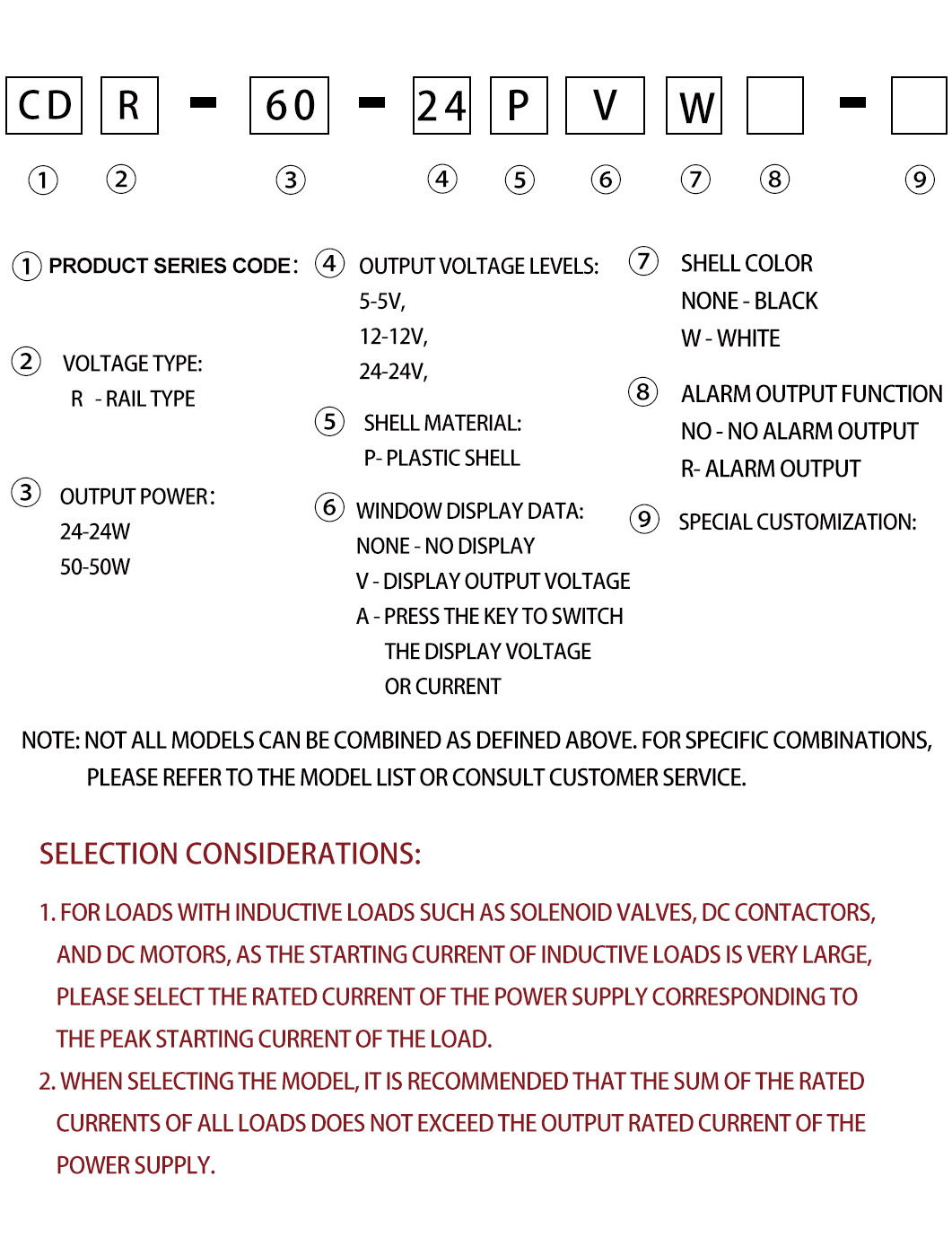

Model Explanation

Features

• Power: 20W-100W, full power.

• Smaller, beautiful appearance, novel design.

• Consistent with the appearance of PLC module, more suitable for PLC power supply.

• Modular design, high efficiency, high reliability.

• Soft-start current, reducing the current impact.

• Built-in EMI filter circuit, ripple and noise smaller.

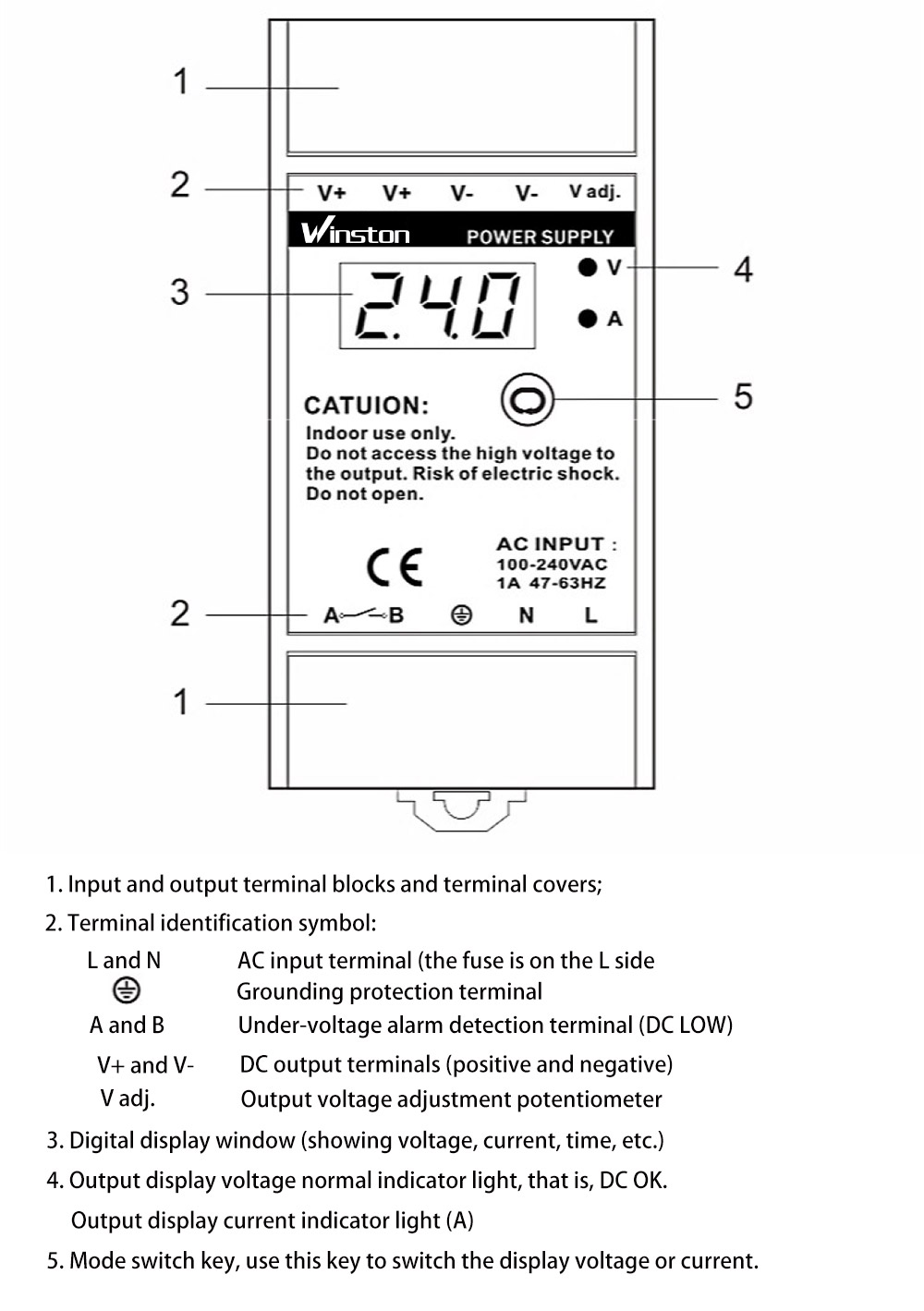

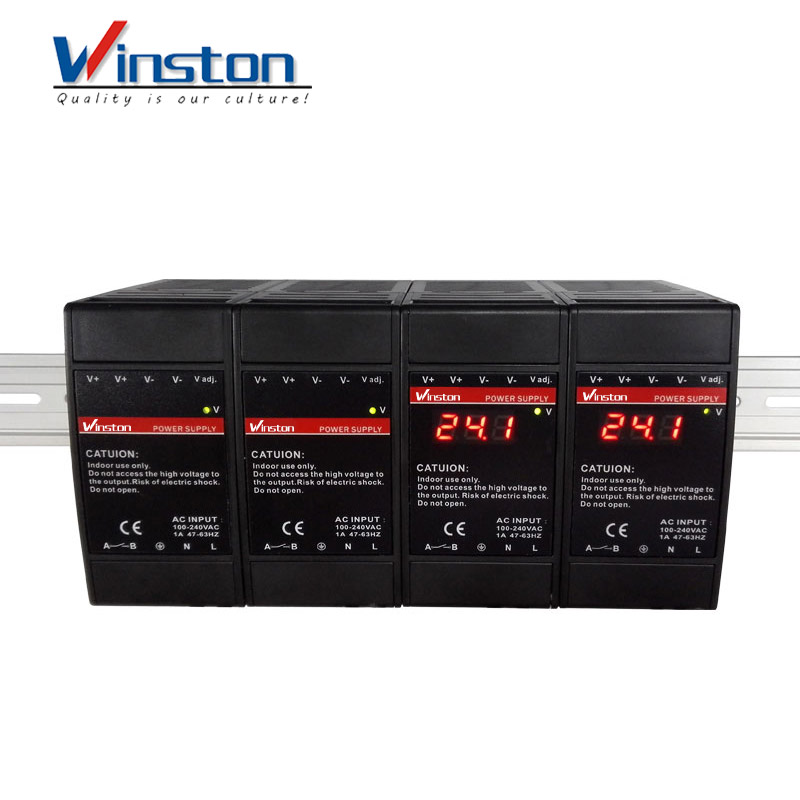

• DIN rail 35mm mounting, upper and lower terminal wiring.

• Short circuit,overload, overheating, overvoltage protection.

• With suppression of grid surges, anti-lightning function.

• Using international brand power IC chip, stable performance.

• With output voltage/current/peak current/Working time data monitoring function to choose.

• RS485 communication function and fault alarm function to choose.

• Factory 100% full load aging test.

• Low temperature rise, natural cooling.

• Good price, warranty period of three years.

Power	20W	24W	35W	40W	50W	60W	72W	100W
Shell material	Plastic, Flame retardant
AC input	100~240VAC 50/60HZ
Electrie shock	Cold start,<30A at 220VAC
Input leakage current	<0.5mA
Output voltage	See each model for details (Rated output voltage ± 10% adjustable)
Voltage regulation	<±1%
Load Regulation	<±1%
Monitor parameters	Non-Standard, Optional:Output voltage、Load current、Peak current、Cumulative working hours
RS485 communication	Non-Standard, Optional RS485 function
Fault alarm	Non-Standard, Optional fault alarm function
Overload protection	115%~150%, Automatic recovery
Overvoltage protection	115%~140%, Irreversible after proteetion
Over temp. protection	Shut down output voltage, recovers automatically after temperature goes down
Cooling method	Free air cooling
Withstand pressure	I/P-O/P:3KVA, I/P-FG: 1.5KVA, O/P-FG: 0.5KVA, 1min
Working environment	-10-+50℃ (100%load); Humidity 10%~90%, No condensation.
Storage environment	-10-+80℃; Humidity 5%-95%, No condensation
Safety standard EMC	CE-EN60950,UL508,UL60950,TUV-60950
EMC standard	EN55011,EN55022,EN61000-4-2,3,4,5,6,8,11,EN61000-6-2
Design life	Room temperature 25 hours at 100,000 hours

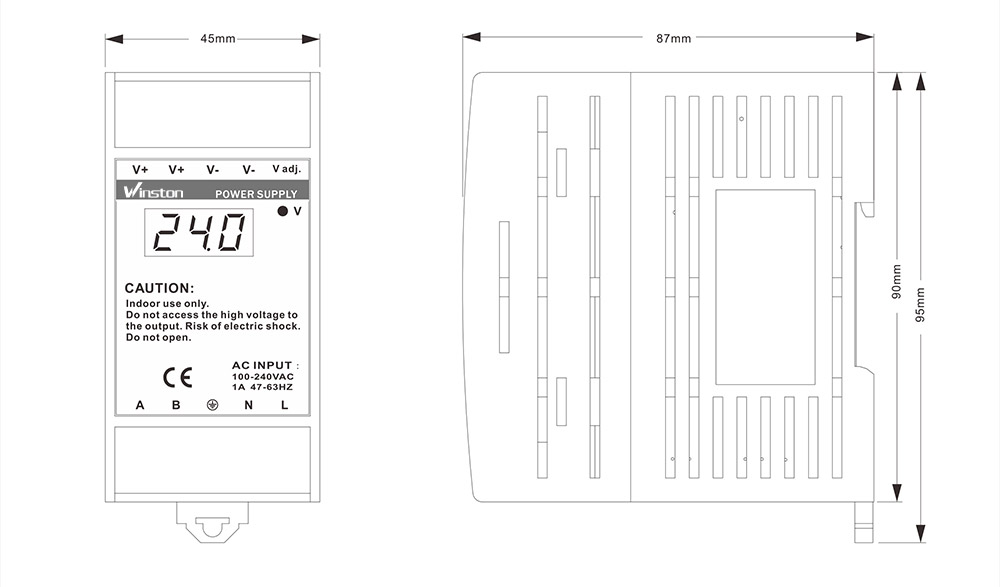

Dimensions	45mm ×90mm × 87mm
