RSP-3000 24V Enclosed Type Flat Panel Industrial Switching Power Supply
RSP-3000 24V Enclosed Type Flat Panel Industrial Switching Power Supply

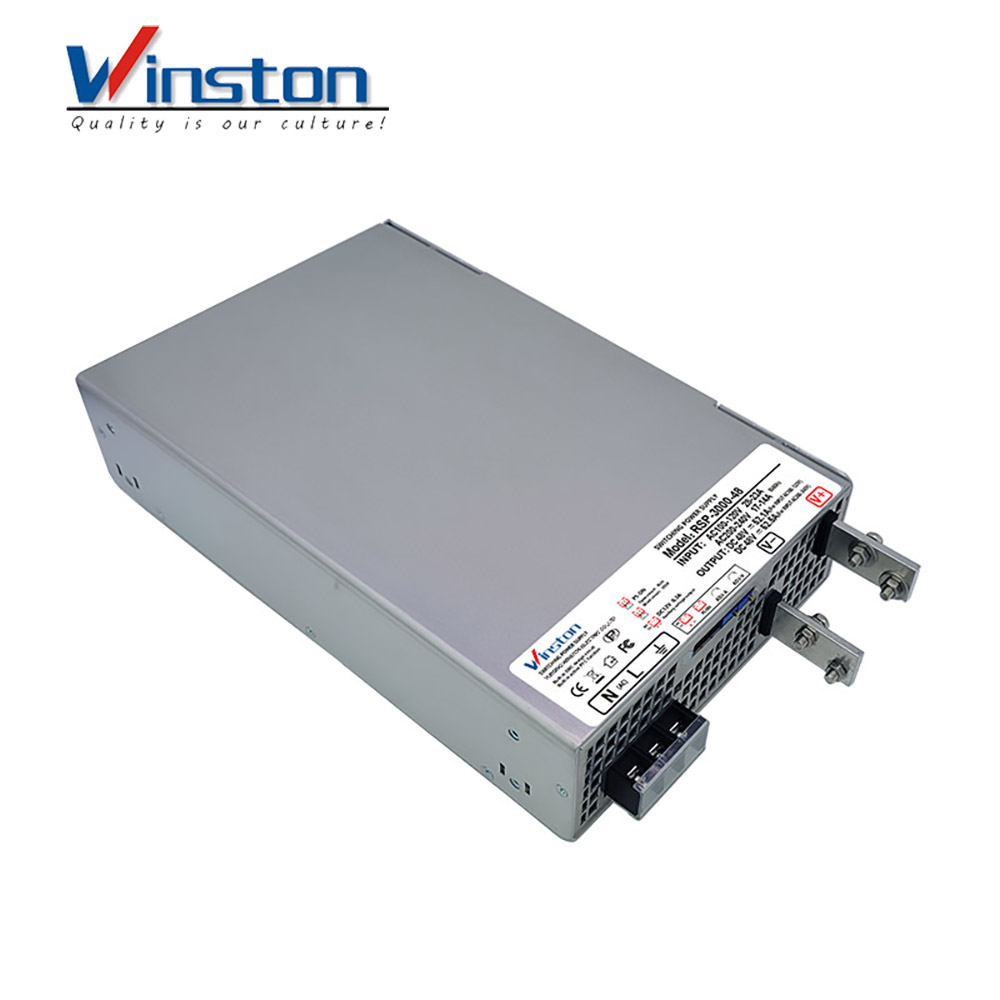

    RSP-3000 is a 3KW single output enclosed type AC/DC power supply. This series operates for 180-264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 70C. Moreover, RSP-30oo provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc.

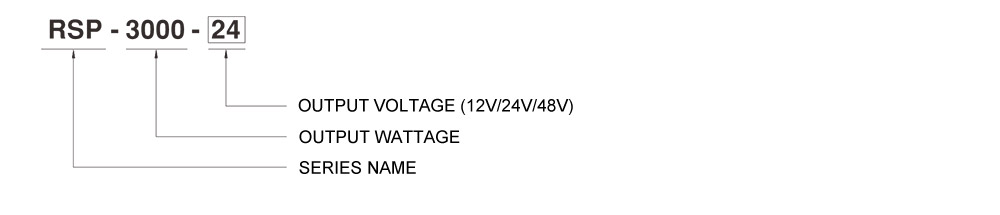

Model Explanation

Features

• AC input 180-264VAC

• Built-in active PFC function

 • High efficiency up to 91.5%

• Forced air cooling by built-in DC fan

 • Output voltage programmable

 • Active current sharing up to 9000W (2+1)

• Built-in remote ON-OFF control/remote sense/ auxiliary power/DC OK signal

 • Protections: Short circuit/Overload / Over voltage /Over temperature

 • Optional conformal coating



Application

 • Factory control or automation apparatus

 • Test and measurement instrument

 • Laser related machine

 • Burn-in facility

 • RF application





Model number

RSP-3000-24

RSP-3000-36

RSP-3000-48

RSP-3000-60

RSP-3000-72

RSP-3000-110

DC output voltage

24V

36V

48V

60V

72V

110V

AC220V Rated output current

125A

83.3A

62.5A

50A

41.6A

27A

AC220V Rated output power

3000W

3000W

3000W

3000W

3000W

3000W

AC110V Rated output current

104A

69.4A

52A

41.6A

34.7A

22.7A

AC110V Rated output power

2500W

2500W

2500W

2500W

2500W

2500W

Efficiency (at full load)

89%

91.2%

91.8%

92%

92%

93.4%

Ripple (maximum value)

160mv

200mv

220mv

260mv

280mv

330mv



Equipped with active PFC power factor correction function

Input voltage

Communication: 110 - 240V (Wide voltage automatic adaptation, no need for switching)

Power factor (PF value)

PF value >=0.98/110VAC (at 100% full load)



PF value >=0.97/220VAC (at 100% full load)

AC input current

3000W rated output. 16A when input is AC 220V

2500W rated output, 26A when input is AC 110V

Explanation: When the input voltage is 110V, the power drops to 2500W.

Idle power consumption without load

10W

Output overload protection

The overload protection mode is a constant current limiting mode. The output current value is locked and does not increase. The output voltage decreases as the load increases.

Overheat protection

When the temperature of the PWM transistor heat sink reaches 85°C ± 5%, the output voltage is turned off. Once the temperature drops to 75°C ± 5%, it automatically resumes.

Output short-circuit protection

Self-recovery type, resumes output after short circuit is removed

Output overvoltage protection

The overvoltage point is 130% of the nominal voltage. Once overvoltage occurs, the protection mechanism will lock and will not automatically recover. It needs to be powered off and then powered on again.

Insulation characteristics

Input terminal and output terminal: 3000VAC

Input terminal and casing terminal: 1500VAC

Environmental working temperature

-30℃ to +35℃. If the temperature exceeds this range, the load must be reduced for use.

Heat dissipation method

Temperature-controlled automatic speed-regulating fan (blows inward, with 2 fans)

Weight

3.3 kg (excluding accessories and packaging)

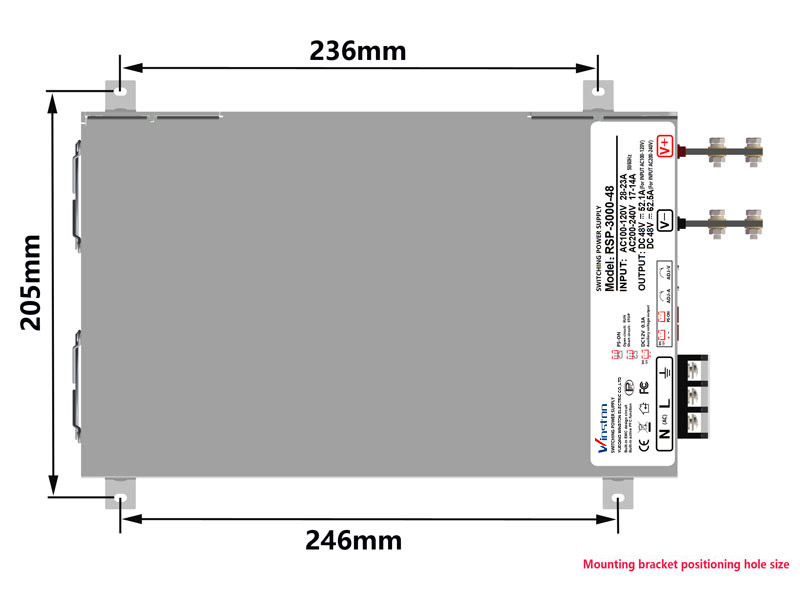

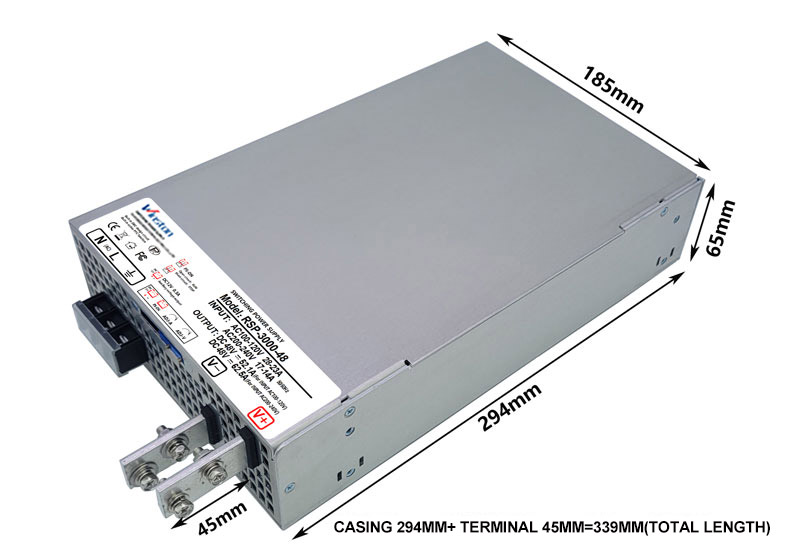

Case size

294*185*65mm

The length of the copper terminals for the positive and negative poles is 45mm, and the total length of the entire machine is 339mm.
