MS-15W Mini Size LED Switching Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Low price and high reliability
105°C output capacitor
AC input power suitable for the world
Hight efficiency and low operation temperature
Compact size,light weight
100% full-load burning test
Installed with EMI filter,minimum wave

Model		MS-15-5	MS-15-12	MS-15-15	MS-15-24
Output	DC Voltage	5V	12V	15V	24V
	Current Range	0~3A	0~1.3A	0~1A	0~0.7A
	Wave & Noise	60mVp-p	80mVp-p	100mVp-p	100mVp-p
	Voltage Adj.Range	±10%	±10%	±10%	±10%
	Line wave stability	±0.5%	±0.5%	±0.5%	±0.5%
	Load stability	±1.0%	±0.5%	±0.5%	±0.5%
	Setup,Rise time	300ms, 50ms/230VAC 800ms, 50ms/115VAC at full load
	Hold time	90ms/230VAC 12ms/115VAC at full load
Input	Voltage Range	85 ~ 264VAC 120 ~ 370VDC 47~63HZ
	Efficiency	68%/115VAC	71%/115VAC	72%/115VAC	75%115VAC
	Impact Current	Cold Start Current 30A/230VAC
	Leakage Current

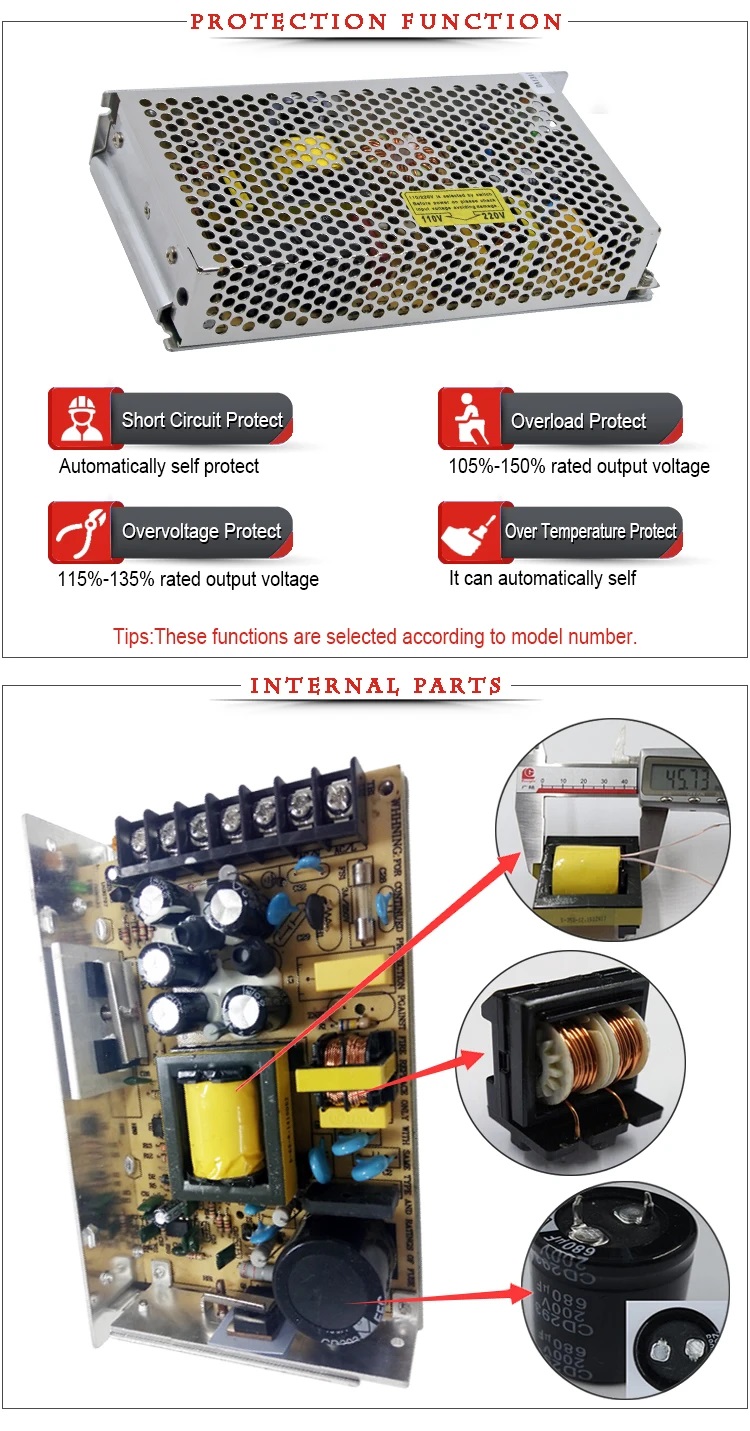

Protection	Over Load	105 ~ 150% Cut off the output, Automatic Recovery
Environment	Working Temperature	-10 ~ +50°c (Refer to "Derating Curve" )
	Working Humidity	20~90% RH Non-condensing
	Temp. coefficient	±0.03%/°C (0~50°C)
Safety	Withstand Voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Safety	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/ 25°c / 70% RH
Others	Dimension	845838mm (LWH)
Others	Packing	383524CM/100PCS/21Kg
