MS-50 5V ~24V  ac dc LED Light Driver Power Supply

MS-50 5V ~24V ac dc LED Light Driver Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote
MS-50 5V ~24V  ac dc LED Light Driver Power Supply



Product Description







Universal AC input / Full range,Constant DC output
Soft-start current can reduce the AC input impact effecticly

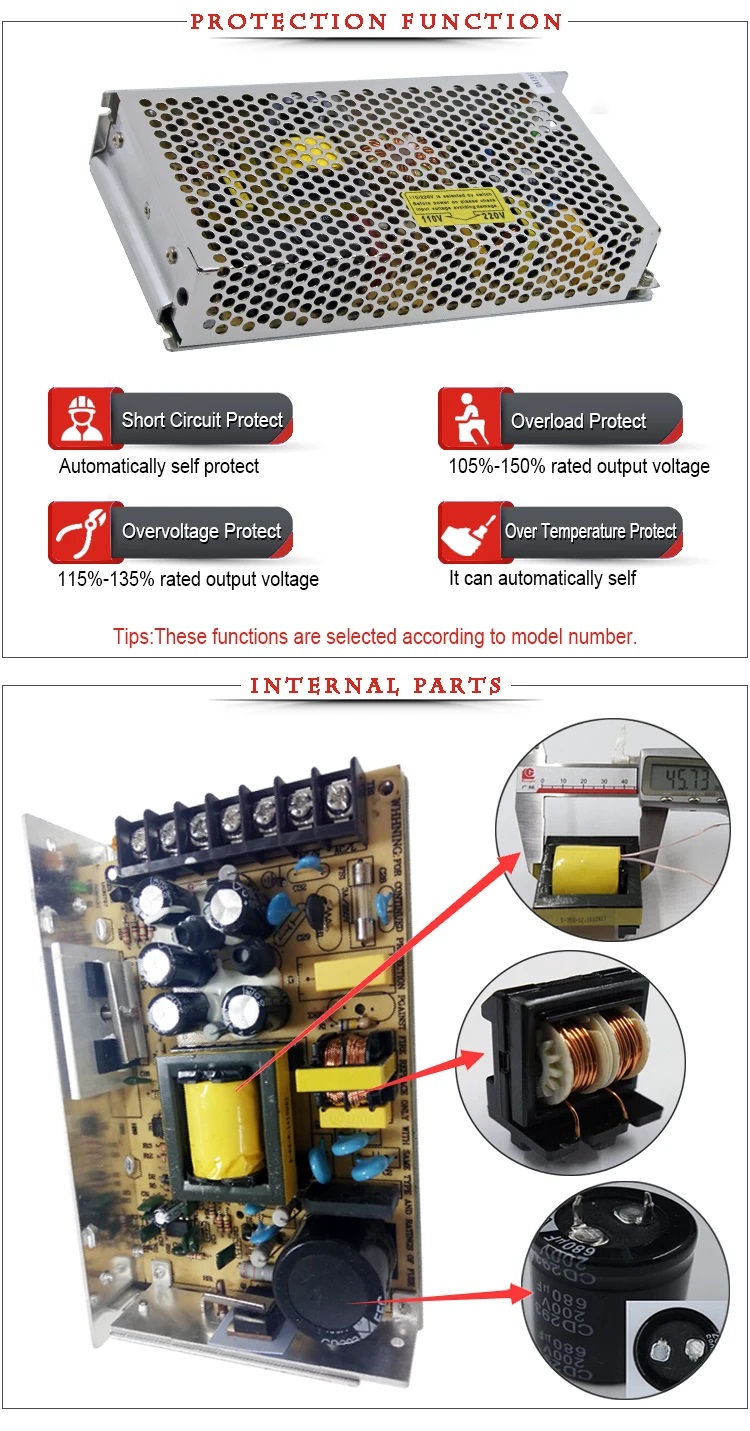

With Short-circuit and overload protection
Compact size,light weight
100% full-load burning test
2 years warranty



Model MS-50-5 MS-50-12 MS-50-15 MS-50-24
DC Output Voltage, Current  5V 0 ~ 10A 12V 0 ~ 4.2A 15V 0~3.4A 24V 0 ~ 2.1A
Wave and Noise 75mVp-p 100mVp-p 100mVp-p 100mVp-p
Adjustable Range for DC Voltage ±10% ±10% ±10% ±10%
Inlet Wire Stability ±0.5% ±0.5% ±0.5% ±0.5%
Load Stability ±1% ±0.5% ±0.5% ±0.5%
Setup, Rise, Hold Time 200ms, 50ms, 20ms/230VAC at full load
Input Voltage Range  85 ~ 264VAC  120 ~ 370VDC  47 ~ 63HZ
Efficiency 80% 82% 82% 84%
AC Current 0.5A/115VAC 0.25A/230VAC
Impact Current Cold Start Current  30A/230VAC
Overload Protection 105 ~ 135% Rated Output Power, automatic recovery
Working Temperture -10 ~ +50ºC (Refer to output load derating curve)
Working Humidity 20 ~ 90% RH non-condensing
Storage Temperture, Humidity -20 ~ +85ºC , 10 ~ 95% RH
Temperture Coeficient ±0.02%/ºC (0 ~ 50ºC)
Withstand Voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation Resistance I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

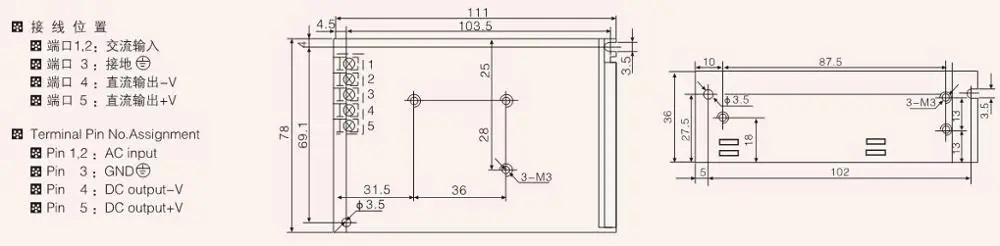

Dimension 111*78*36mm (L*W*H)
Weight 0.3kg
Packing 42*35*25cm/80pcs/22kg
