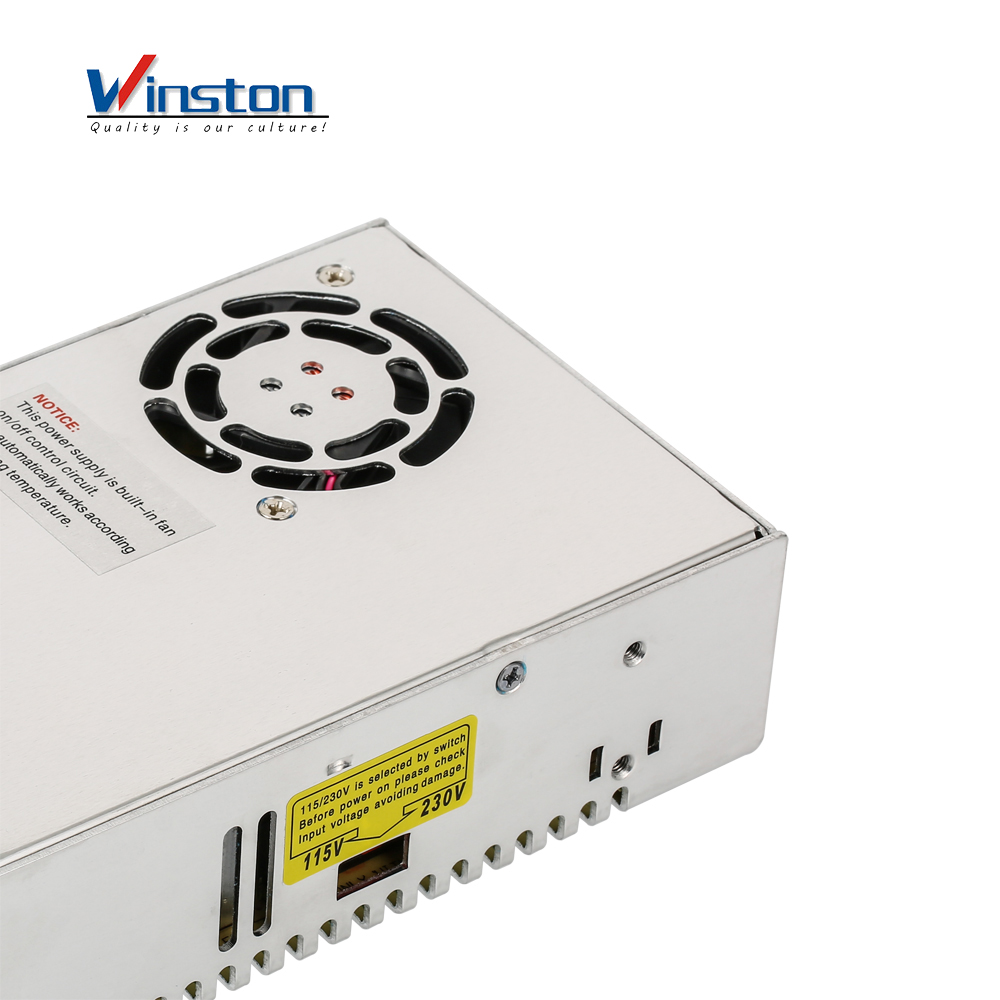

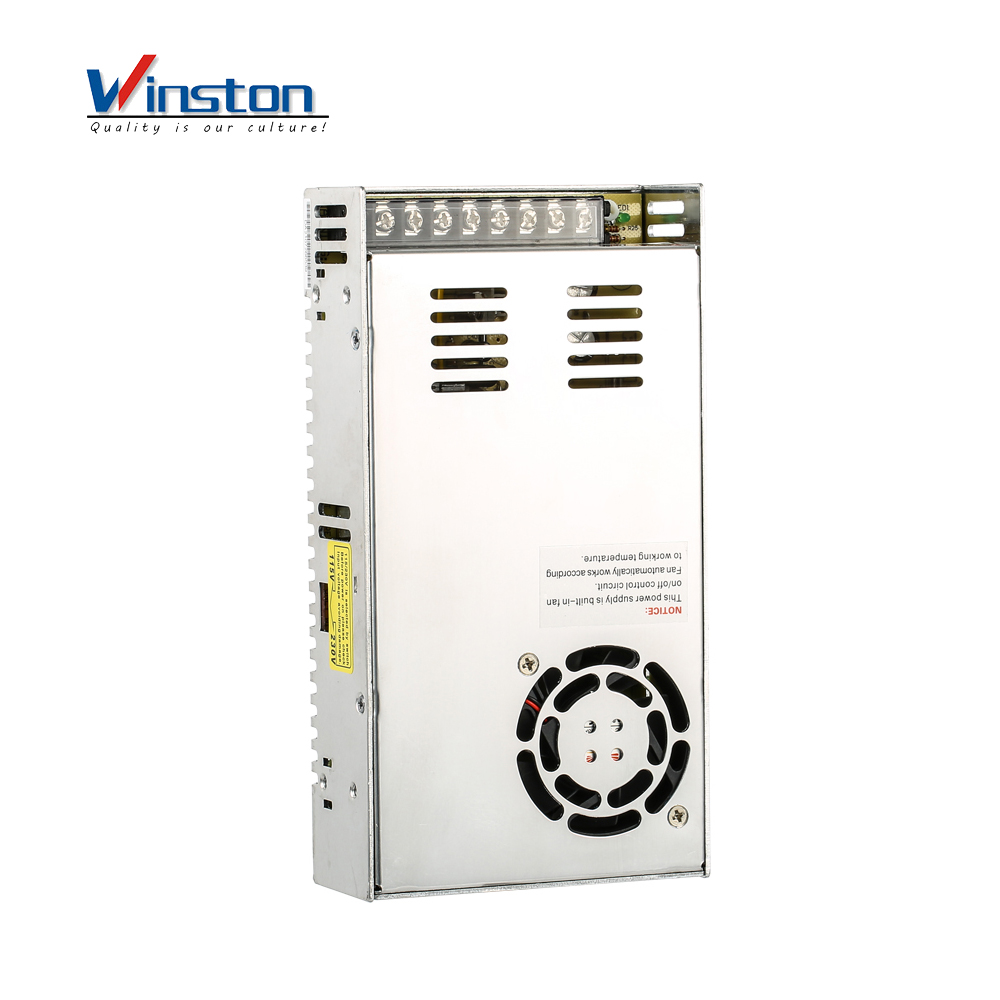

MS-600 Single Output LED Driver

Model

MS-600-24

MS-600-27

MS-600-36

MS-600-48

DC output voltage, current

24V 0~25A

27V 0~22A

36V 0~16.5A

48V 0~12.5A

Wave and noise

180mVp-p

200mVp-p

200mVp-p

240mVp-p

Inlet wire stability

±0.5%

±0.5%

±0.5%

±0.5%

Load stability

±1%

±0.5%

±0.5%

±0.5%

Efliciency

88%

89.5%

90%

90%

Adjustable range for DC voltage

±10%

±10%

±10%

±10%

Input voltage range

180~264VAC 254~370VDC 47~63Hz

Impact current

Cold start current 65A/230VAC

Overload protection

110%~ 135% cut off the output, automatic recovery:Hiccup mode, recovers automatically after fault condition is removed

Over voltage protection

115%~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed

Over temperature protection

Turn off the output and restore normal output after the temperature returns to normal

Setup, rise, hold up time

600ms, 50ms/230VAC

Withstand vollage

I/P-O/P: 1.5kV I/P-FG:1.5kV O/P-FG:0.5kV 1minute

Isolation resistance

I/P-O/P I/P-FG O/P-FG: 100M Ohms /500VDC/25C /70%RH

Working temperature

-20℃~+60 ℃

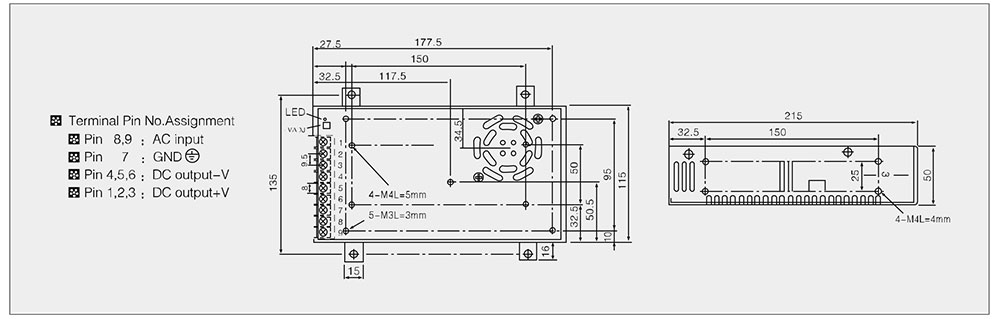

Dimension

215×115×50mm

Weight

1.1kg

Packing

45.5×31.5×26CM/20PCS/22kg
