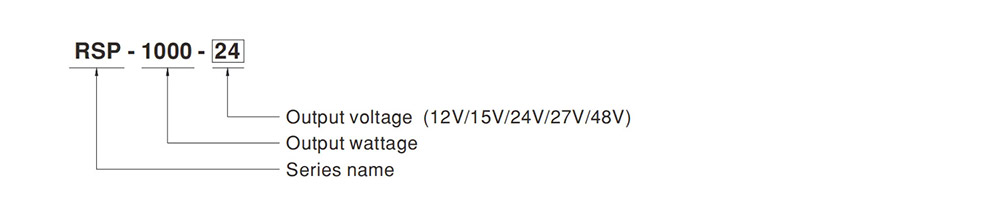

Model Explanation
Features
• Power: 750W-2000W, full power.• Universal AC input 85-264VAC.
• 1U low profile (41mm height only), high efficiency.
• Built-in active PFC function.
• Built-in EMI filter circuit, ripple and noise smaller.
• DIN rail 35mm mounting, upper and lower terminal wiring.
• Short circuit, overload, overheating, overvoltage protection.
• With suppression of grid surges, anti-lightning function.
• Operating altitude up to 5000 meters.
• Terminals have protective covers for greater safety.
• Withstand 5G vibration test.
• Forced air cooling by built-in DC fan.
• Good price, warranty period of three years.
|
Power |
750W |
1000W |
1600W |
2000W |
|
Shell material |
Aluminum+iron |
|||
|
AC input |
100 - 240VAC 50/60HZ |
|||
|
Electric shock |
Cold start, 40A at 230VAC |
Cold start, 50A at 230VAC |
||
|
Input leakage current |
<0.5mA |
|||
|
Output voltage |
See each model for details ( Rated output voltage ± 10% adjustable ) |
|||
|
Voltage regulation |
<±1% |
|||
|
Load Regulation |
<±1% |
|||
|
Monitor parameters |
Non-Standard, Output voltage |
|||
|
Overload protection |
115% -150%, Automatic recovery |
|||
|
Overvoltage protection |
115% ~140%, Automatic recovery |
|||
|
Over temp. protection |
Shut down output voltage, recovers automatically after temperature goes down |
|||
|
Cooling method |
Forced air cooling |
|||
|
Withstand pressure |
I/P-O/P:3KVA, I/P-FG: 2KVA, O/P-FG: 1.25KVA, 1min |
|||
|
Working environment |
-30- +60℃ (100%load) ; Humidity 10% -90%, No condensation. |
|||
|
Storage environment |
-10~ +80℃; Humidity 5% ~95%, No condensation. |
|||
|
Safety standard EMC |
UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, |
|||
|
EMC standard |
EN55011,EN55022,EN61000-4-2,3,4,5,6,8,11,EN61000-6-2 |
|||
|
Design life |
Room temperature 25 hours at 1000,000 hours |
|||
|

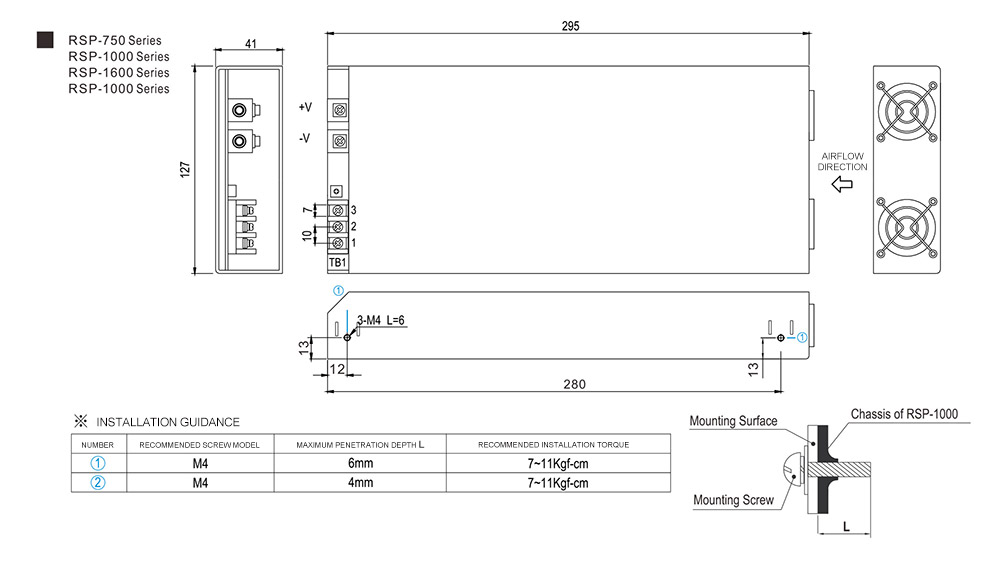

Dimensions |
127× 295 × 41mm |
|||
