Name: S-350 350W Single Output Switching Power Supply
Brand: Winston
SKU: 02009
Rating: 4.1 (1055 reviews)

S-350 350W Single Output Switching Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Model	S-350-5	S-350-7.5	S-350-12	S-350-13.5	S-350-15	S-350-24	S-350-27	S-350-48
DC Voltage	5V	7.5V	12V	13.5V	15V	24V	27V	48V
Rated Current	50A	40A	29A	25.8A	23.2A	14.6A	13A	7.3A
Current Range	0-50A	0-40A	0-29A	0-25.8A	0-23.2A	0-14.6A	0-13A	0-7.3A
Rated Power	250W	300W	348W	348.3W	348W	350.4W	351W	350.4W
Ripple & Noise	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p	240mVp-p
Voltage Adj. Range	-10%,+12%	±20%	-16%,+10%	-12%,+11%	-10%,+20%	-16%,10%	-4%,+18%	-15%,+17%
Voltage Tolerance	±2%	±2%	±1%	±1%	±1%	±1%	±1%	±1%
Setup, Rise, Hold Up Time	200ms,50ms,20ms at full load
INPUT

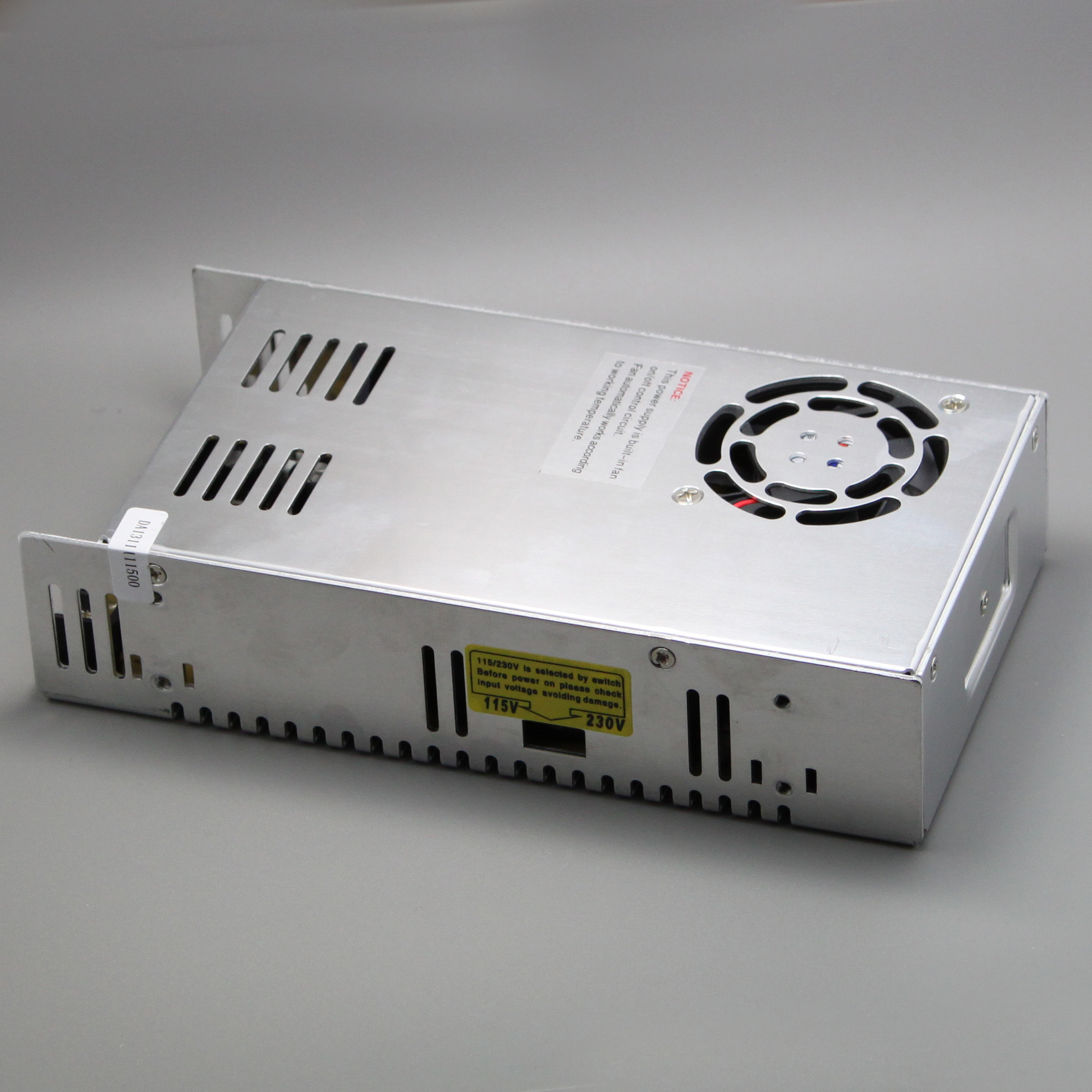

Voltage Range	90~132VAC/180~264VAC selected by switch 47~63Hz; 254~370VDC
AC Current	6.5A/115V 4A/230V
Efficiency	73%	76%	74%	79%	78%	81%	82%	83%
Inrush Current	Cold start 50A/115V 50A/230V
Leakage Current	<3.5mA/240VAC
PROTECTION
Over Load	105%~135%
Over Load	Protection type: Fold back current limiting, recovers automatically after fault condition is removed.
Over Voltage	115%~135%
Over Voltage	Protection type: hiccup mode, recovers automatically after fault condition is removed.
Over Temp.	RT3≥55℃ Fan On, ≤45℃ Fan Off, ≥80℃ Output Shutdown (5~7.5V)
	RT3≥65℃ Fan On, ≤55℃ Fan Off, ≥80℃ Output Shutdown (12~15V)
	RT3≥70℃ Fan On, ≤60℃ Fan Off, ≥85℃ Output Shutdown (24~48V)
ENVIRONMENT
Working Temp., Humidity	-10℃~+50℃; 20%~90%RH
Storage Temp., Humidity	-20℃~+85℃; 10%~95%RH
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
STANDARD
Safety Standard	Design refer to UL1950
EMC Standard	Design refer to EN55022, EN55024, EN61000
OTHERS

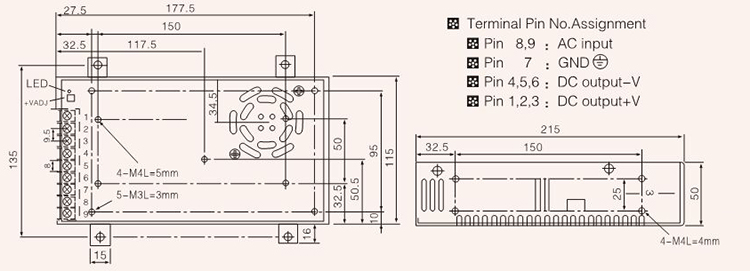

Dimension	21511550mm(LWH)
Weight	1Kg
Packing	20pcs/20Kg
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation
