SM14 Hall sensor
SM series Hall sensor is a kind of magnet-sensitive sensor consisting of voltage regulator, Hall voltage generator, differential amplifier, Schmidt trigger and the output pole of collector open circuit. Its input is the magnetic flux density. The output is adigital voltage signal.

Features:
1.Wide mains voltage range
2.High frequency
3.Long service life,compact volume and convenient installation
4.Directly connect to transistor and logic circuit port like, TTL.MOS

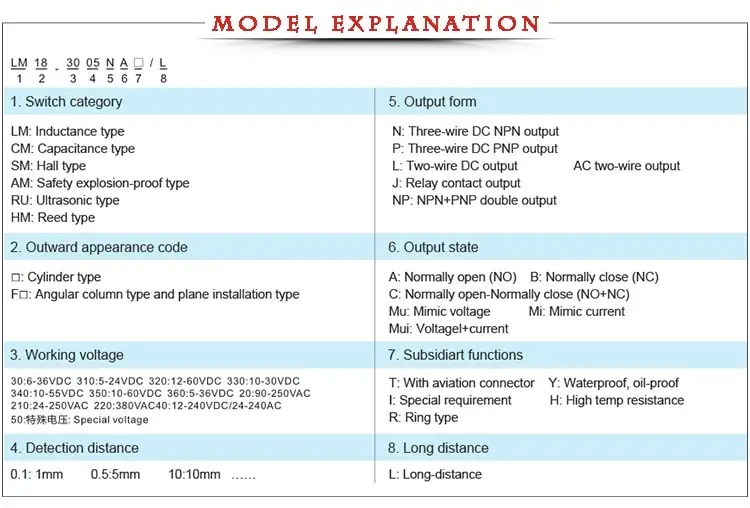

1.Switch category:

LM:inductance type

CM:capacitance type

SM:Hall type

AM:safte explosion-proof type

XM:Mini linear type

HM:Reed type

RU:Ultrasonic type

5.Output form:

N:Three wire dc NPN output

P:Three wire dc PNP output

L:Two wire dc output

:Two wire ac output

J:Relay contact output

NP:NPN+PNP double output

2.Outward appearance code:

C:Cylinder type;

F:Angular column type and plane installation type)

6.Output state:

A:Normally open(NO) B:Normally close(NC)

C:Normally open(NO)+Normally close(NC)

MU:Mimic voltage MI:Mimic current

MUI:Voltage and current double output

3.Working voltage:

30:6~36VDC 310:5~24VDC 320:12~60VDC

330:10~30VDC 340:10~55VDC 350:10~60VDC

360:5~36VDC 20:90~250VAC 210:24~250VAC

220:380VAC 40:12~240VDC/24~240VAC

50:Special voltage

7.Subsidiart functions:

T:with aviation connector

Y:water proof,oil proof

I:Special requirement

H:High temperature resistance

R:Ring type

4.Detection distance:

01:1mm 05:5mm

10:10mm ......

8.Long distance

L:Long distance
