Current: 0.5-400A
Voltage: 24-440V
All models feature the same compact dimensions to prolide a uniform mounting pitch
Built-in MOV effectively absorbs extermal surges
Operation indicaor (red LED) enables monitoring operation
Protective cover for greater saftey
Conform to IEC international electrical committee standard
DC and AC, AC and AC, DC and DC, AC and DC input versions available
Typical Applications
Universal switch and thermal control
Industrial automatic control
Numerial-controlled machinery, remote-control system

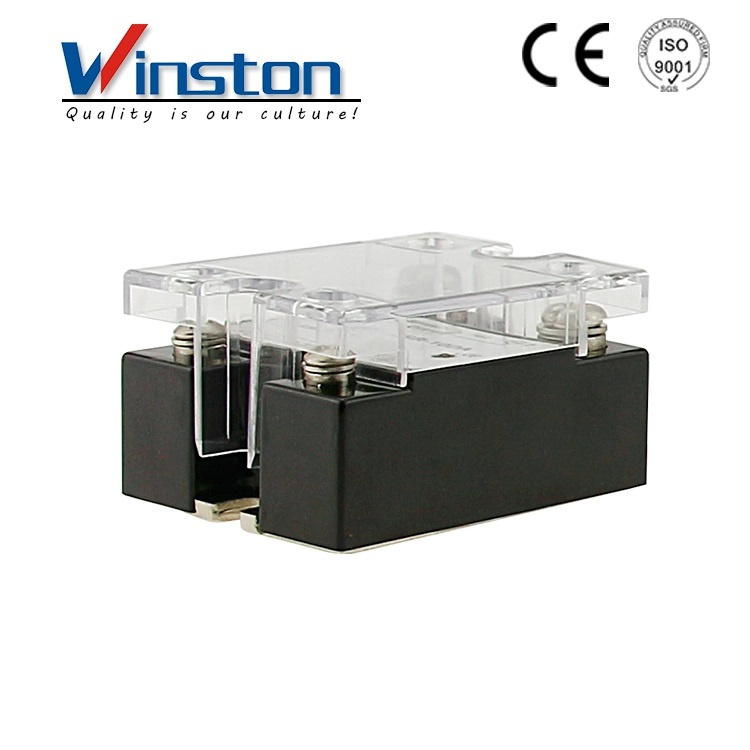

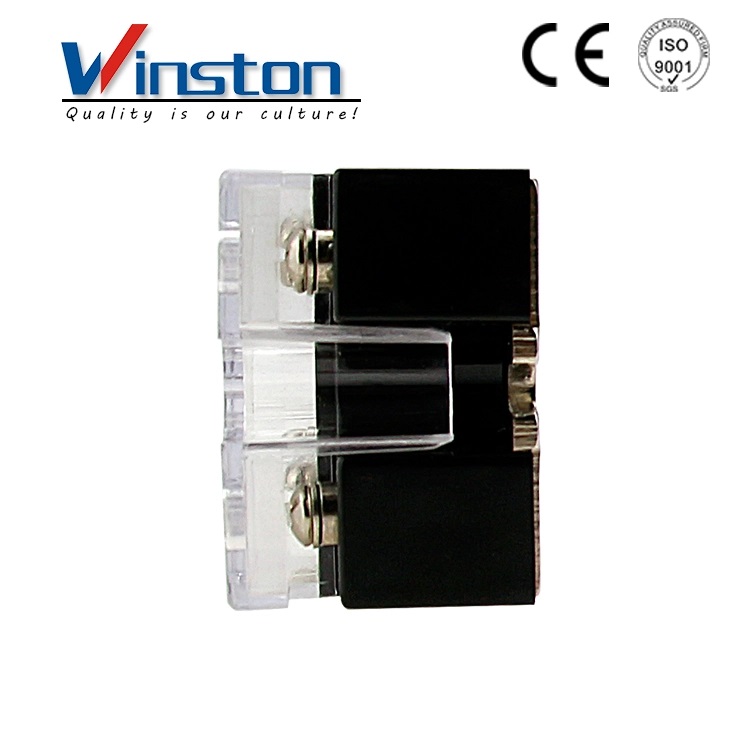

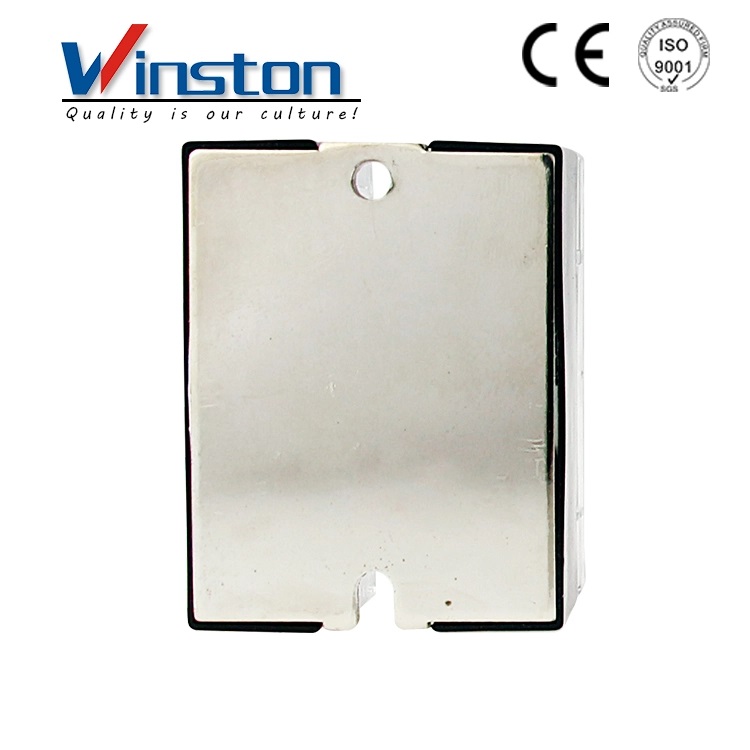

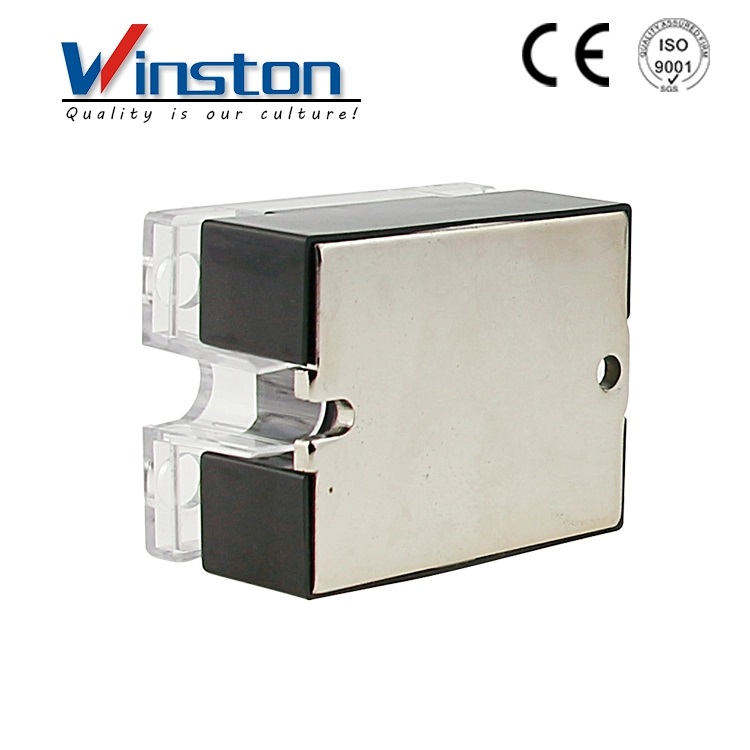

1)DC to AC Single Phase Solid State Relays
Single phase can 10A-90A.
Three phase can 10A-90A
|
(Series Name or) |

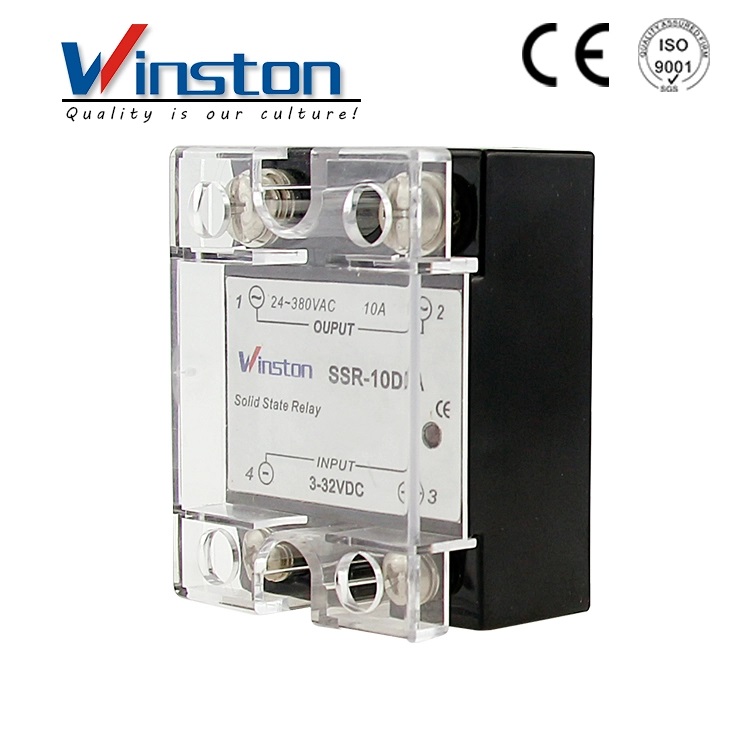

SSR-10DA |
SSR-10DA-H |
|
Specifications/Dimensions |
||
|
L x W x H |
57 x 42 x 24 mm |
57 x 42 x 24 mm |
|
Ref. L1 x W1 |
43.8 x 27 mm |
43.8 x 27 mm |
|
Ref. L2 x W2 |
46.3 x 12 mm |
46.3 x 12 mm |
|
Ref. Diameter (Ø) |
5 mm |
5 mm |
|
Electrical Specifications |
||
|
Max. Load Current |
10 A |
10 A |
|
Control Method |
Zero Cross |
Zero Cross |
|
Input Operating Voltage |
4~32 VDC |
4~32 VDC |
|
Input Current |
20mA@ 32 VDC |
20mA@ 32 VDC |
|
Must Turn Off Voltage |
0~2.5 VDC |
0~2.5 VDC |
|
Output Load Voltage Range |
24~280 VAC |
90~480 VAC |
|
Max. One Circle Peak Surge |
120 A |
120 A |
|
Min. Blocking Voltage |
600 V |
600 V |
|
Turn On & Turn Off Time |
< 1/2 AC circle |
< 1/2 AC circle |
|
Isolate Impedance |
50 M / 500 VDC |
50 M / 500 VDC |
|
Max. On-State Voltage Drop |
1.6 V / 25oC |
1.6 V / 25oC |
|
Materials |
||
|
Body Materials |
PBT |
|
|
Color |
White |
|
