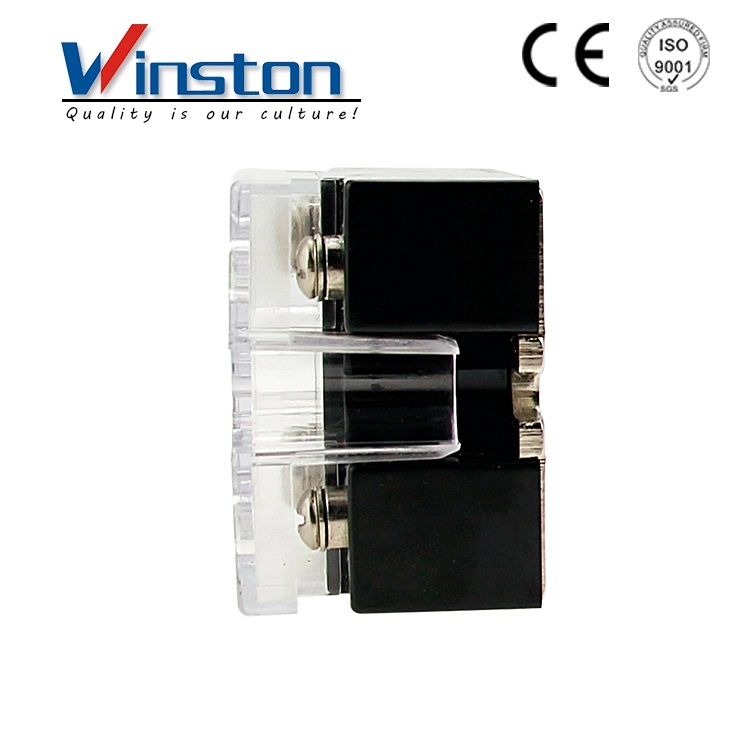

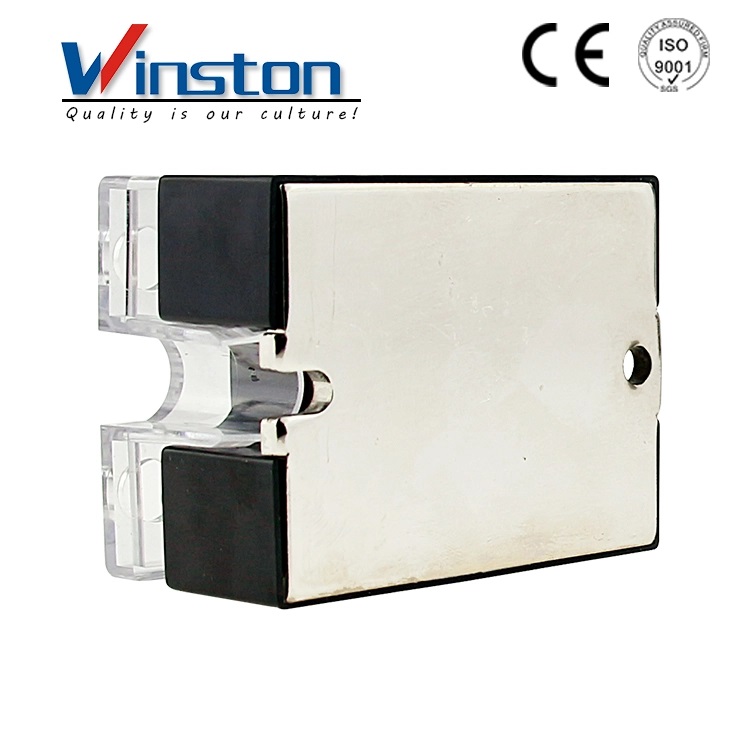

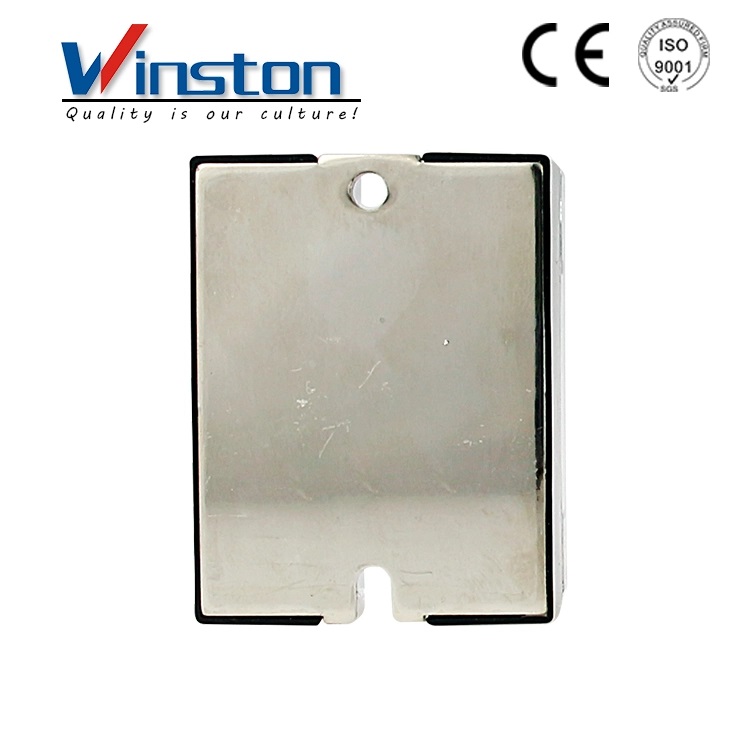

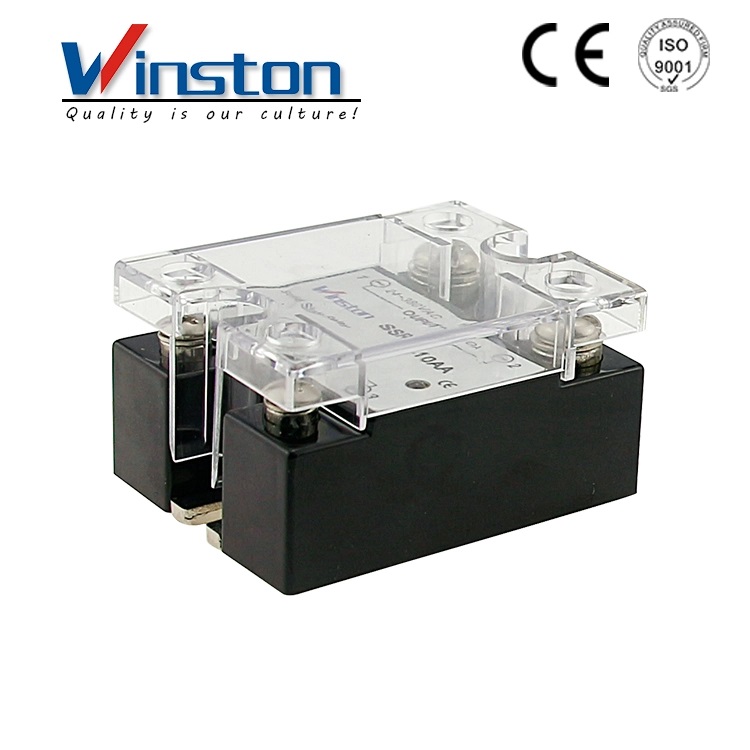

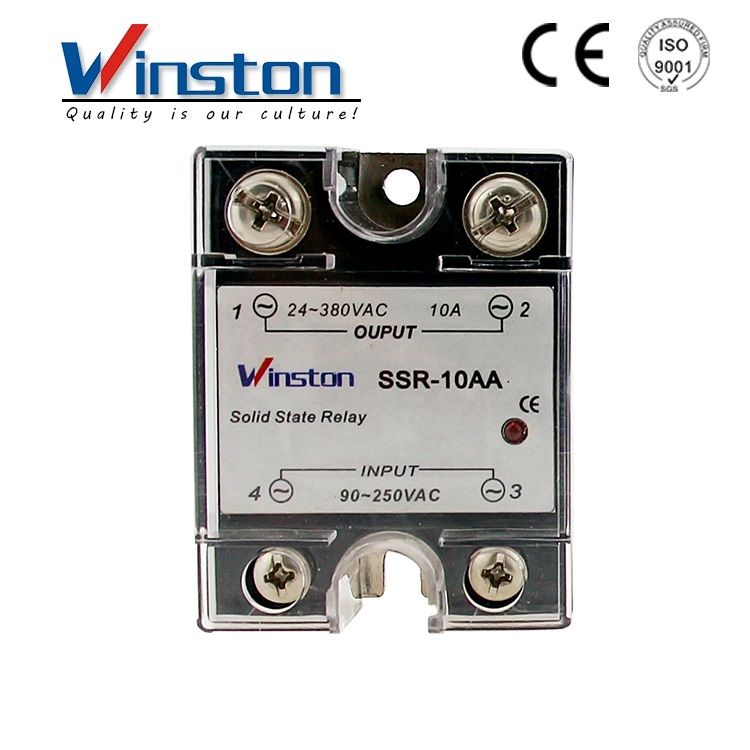

SSR- 10AA electronics solid state relay circuit

Name: SSR- 10AA electronics solid state relay circuit
Brand: Winston
SKU: 02441
Rating: 4.1 (1271 reviews)

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Description
Technical Data Sheet

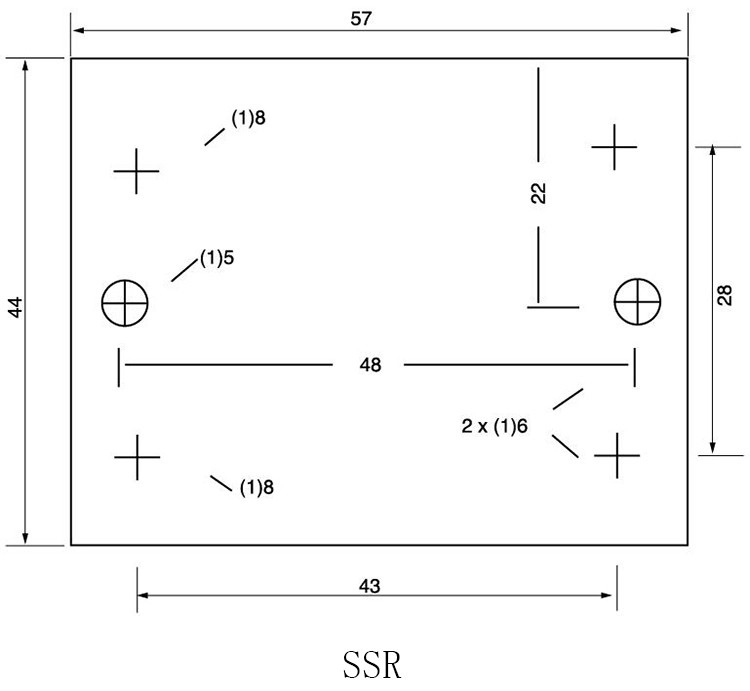

Dimension	57.5L44.8W31.5H
Load Voltage	24V~280VAC/380VAC/480VAC,5-60VDC(DD)
Load Current	5-90A
Input Voltage	A,D,R,DD
Dielectric Strength	2500VAC
Insualtion Resistance	≥50M
On Voltage	≤1.6V
Off Leakage Current	≤5mA
On-off Time	≤10mS
Ambient Temperature	-30℃~+70℃
Huminity	35%~85%
Weight	≈125g

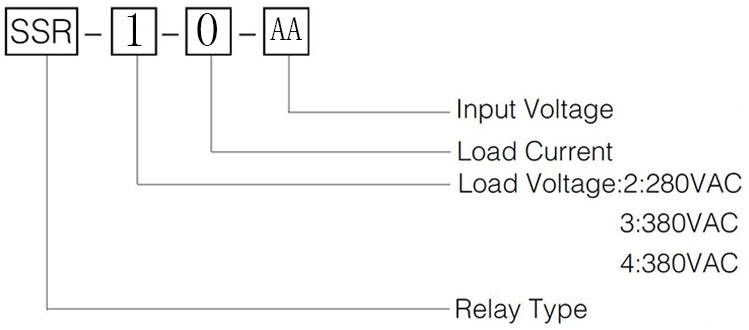

Input Voltage

SSR-AA(A)	80-250VAC
SSR-DA(D)	3-32VDC
SSR-VA(R)	470KΩ/2W
SSR-DD(DD)	3-32VDC
