ZG3NC-640B solid state relay

Name: ZG3NC-640B solid state relay
Brand: Winston
SKU: 02443
Rating: 4.1 (1272 reviews)

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

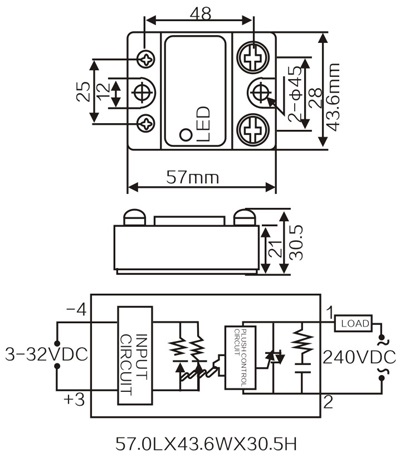

Description

Size (mm)	Load voltage	660VAC
	Load current	10A,15A,20A,25A,30A,40A,50A, 60A,75A,80A,90A,100A,120A
	Control voltage	3-32V
	Control current	DC3-25mA
	On voltage	≤1.5V
	Off leading current	≤2mA
	On-off time	≤10ms
	Dielectric strength	2500VAC
	Insulation resistance	1000mΩ/500VDC
	Ambient temperature	-35~+70℃
	Mounting methods	Screw
	The working methods	LED
	Weight	135g for up 45A
