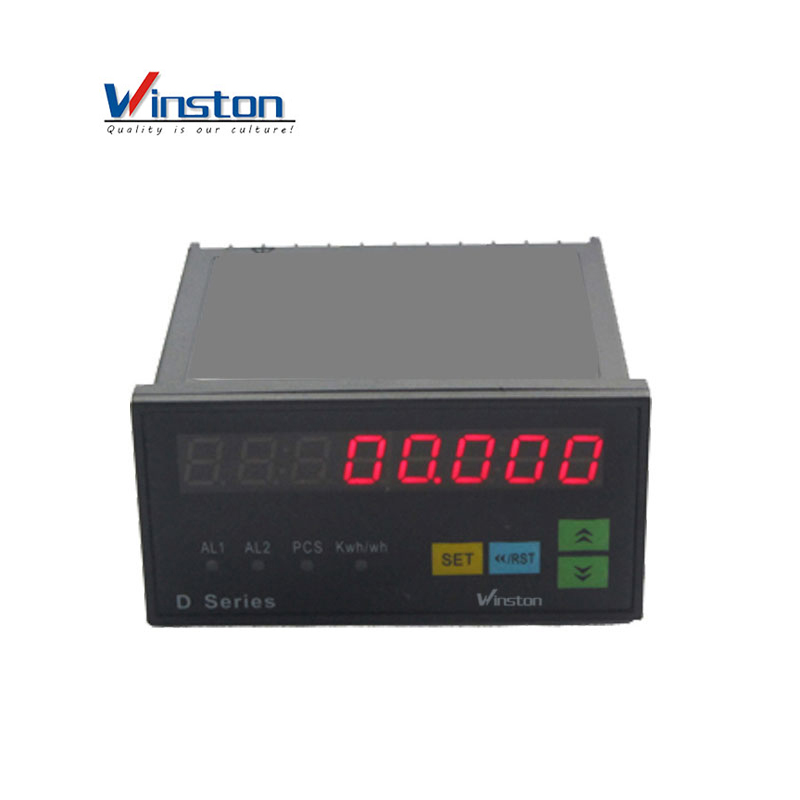

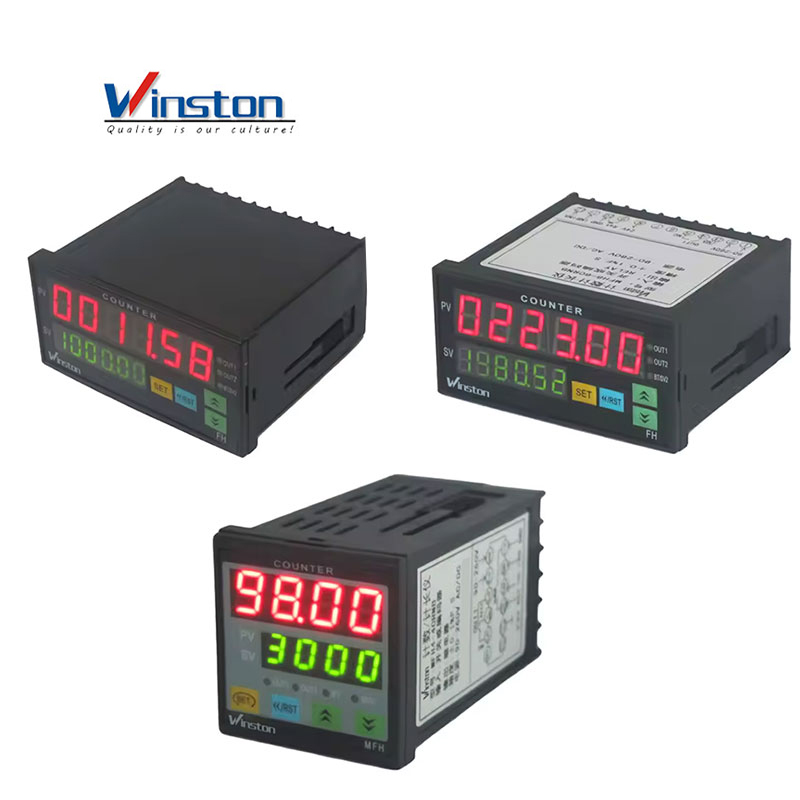

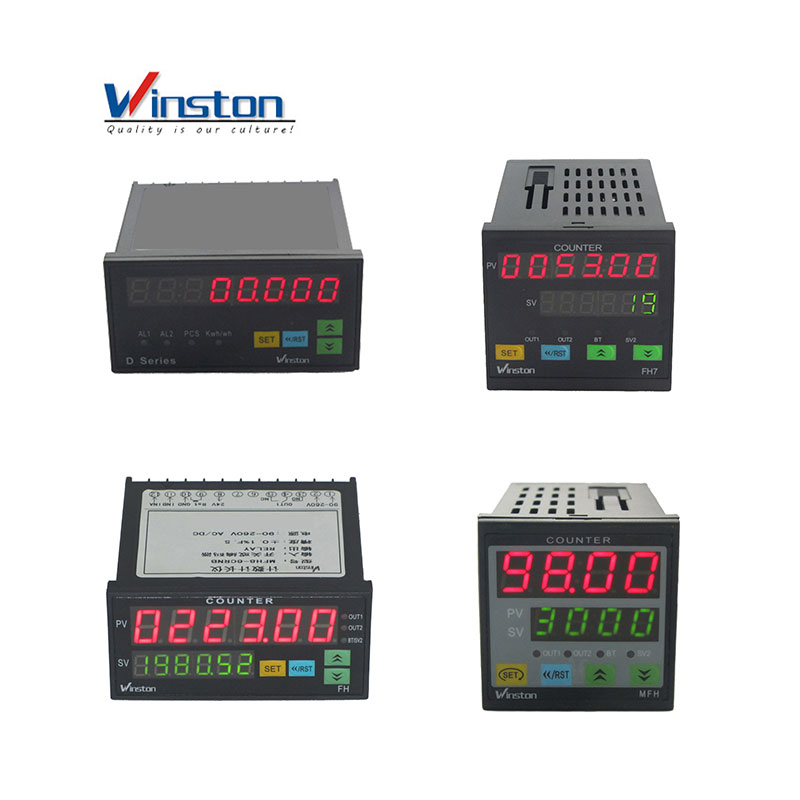

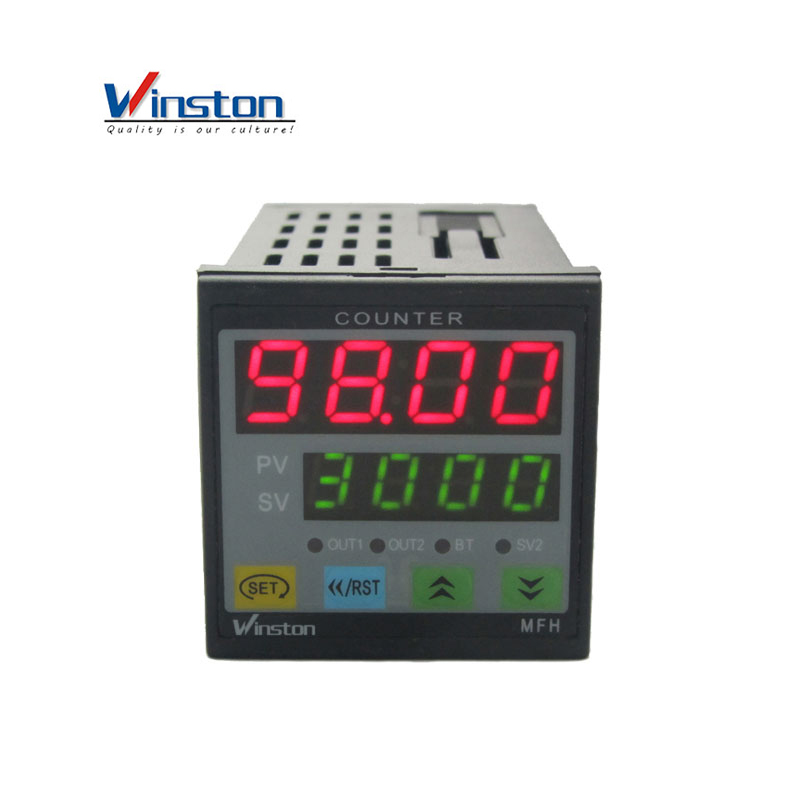

Features
◼ Widely used in Machinery/Electronic/Food/Package industry for counting,length,batch counting. Receive signals from various switches/encoder for height.position.angle.etc measurement. Countl no. /length value presetable. When for batch counting,Accumulate counte value/current batch count value & batch no. will displays at the same time. Several outputs settable.
◼ Accuracy:0.01%, dual line 4/6/8 digit display. Resolution 0.0001. Photo isolation for input & output,Strong interference
◼ Input: 4 modes (add counting, substract counting, add & substract counting, phase difference input for various waveform pulse/raster/proximity switch/ photoelectrical switch/contact switch/encoder(PNP/NPN) ,etc.)
◼ Output: 8 modes. Up to 3 alarm outputs with various control modes for selection
◼ Communication:standard RS232/RS485 interface,MODBUS RTU protocol, realize remote control by direct connection with PC/PLC/other equipment.
Application
1 Can be used as counter / lenght, counting meter / yard /angle / position, total count or batch count or current count
2 input: contact / proximity photoelectric switches / encoder, sine wave / Square wave / triangle wave etc voltage pulses
3 display : 4 / 6 / 8 digital LED duble row , range 0.0001-99999999
4 Multi-preset output: Relay \ SSR\Buzz\4-20mA output etc.
5 power-down data saving for at least 10 years (EEPROM). .
6 communication interface: RS485 RS232 LAN RJ45(MODBUS-RTU) .

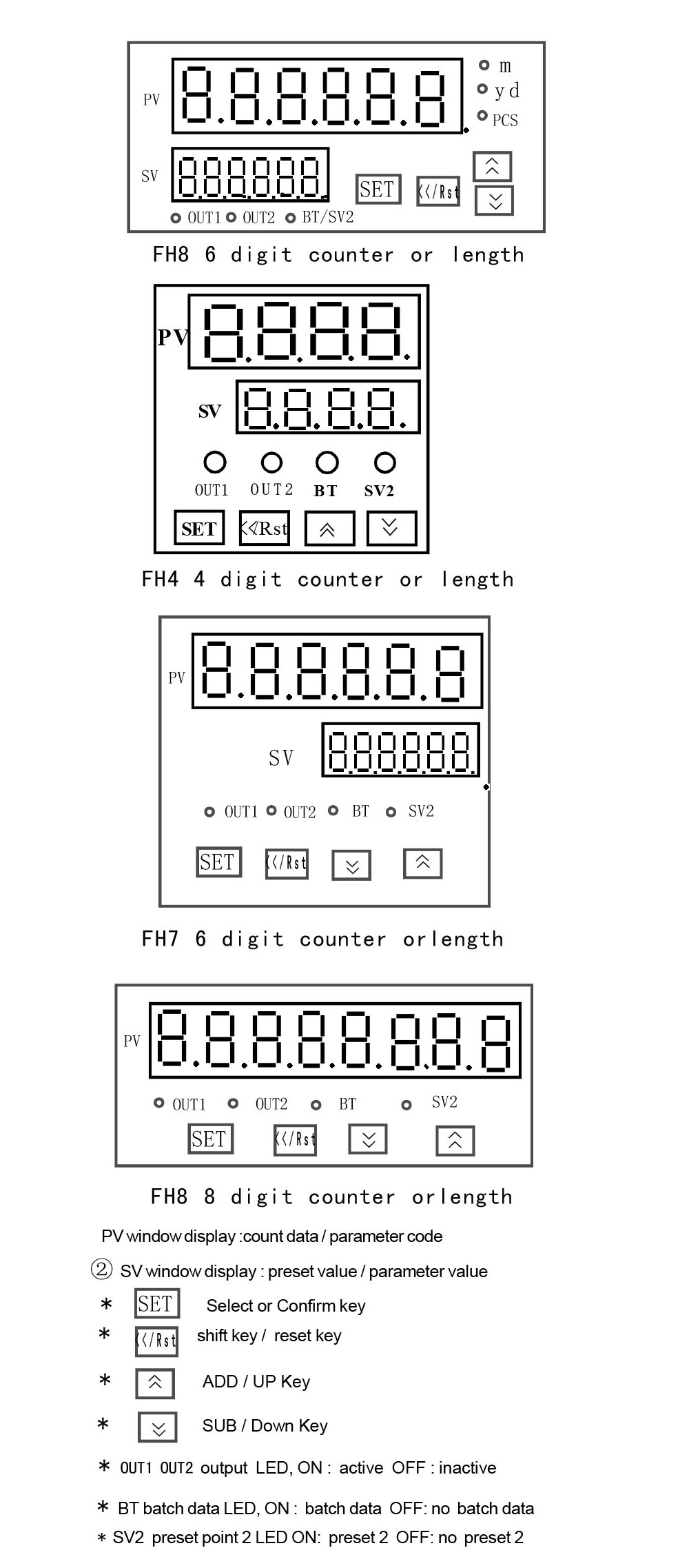

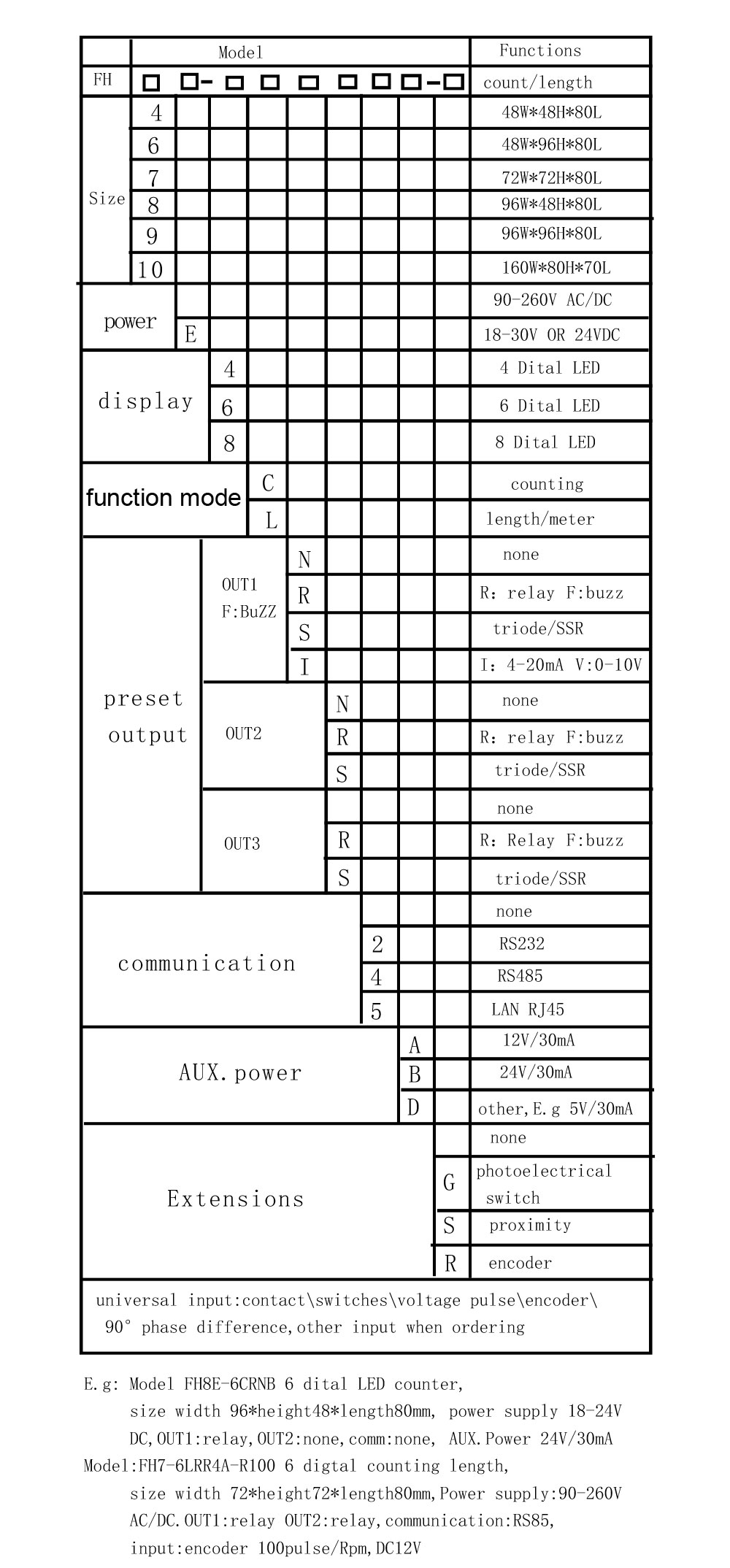

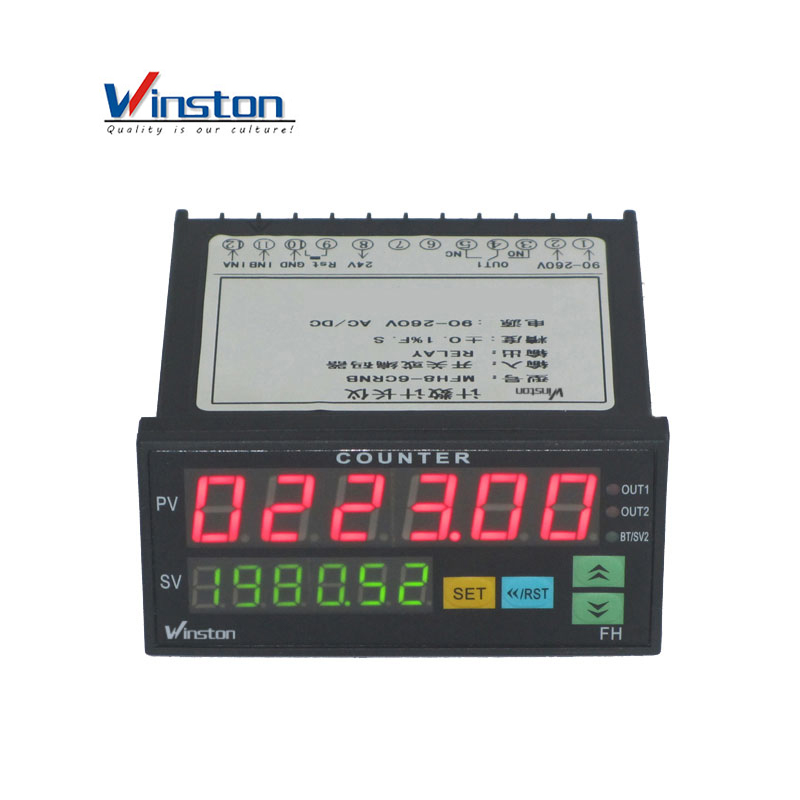

Model Explanation
|
Power |
90-260V AC 50/60Hz or 18-30V AC/DC， cmsp ≤5VA |
|
input |
sine, square, triangle wave pulse etc.5V ≤ H ≤ 30V，0 ≤ L ≤ 2V，up edge trogger Input impedance ≥ 20K Ω |
|
speed |
switch/pulse ≤5000CPS，encoder ≤2000CPS |
|
range |
4 digit 0-9999 6 digit 0-999999 8 digit 0-99999999 |
|
output |
Relay: normal open 250VAC 3A / 30VDC 3A resistive load SSR: DC 12V / 24V 30mA,Triode: 60V / 30mA |
|
AUX.Power |
DC 24V or /12V Max 40mA |
|
comm |
RS232、RS485 RJ45，MODBUS RTU protocol |
|
Enviroment |
temperature: 0-50℃ humidity: 30-85%RH |
|
Weight |
< 350g |

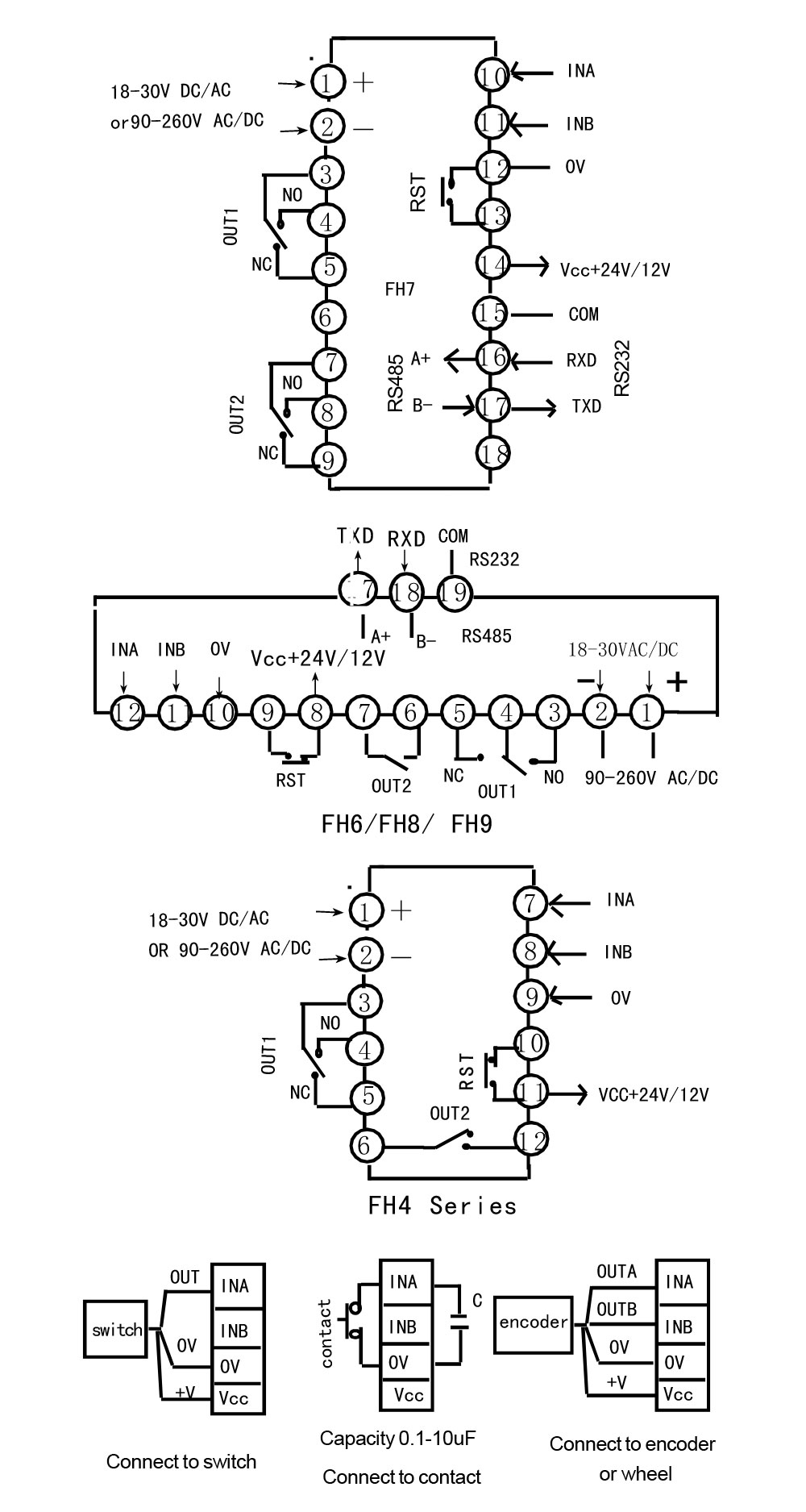

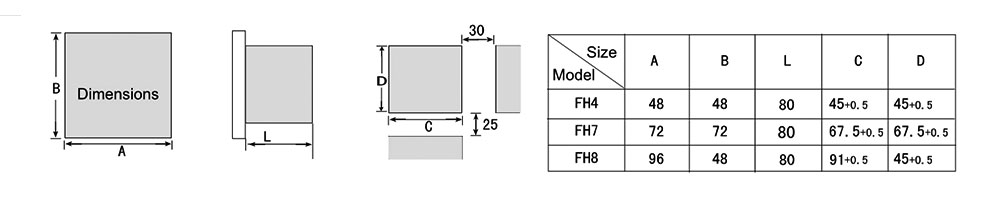

Dimension
