Features
◼ Work with loadcell /other sensors,the instrument has function of clearing zero & PV modification, and various control modessuch as Pause.Stop,Slow/Fast motion.etc..Rapid response,high precision,steady performance and easy to operate.Except for weight control,auto accumat/mean for up/down batch control can be applied in the industries of land weight/cement/food pakage/ chemical ingredients.
◼ Input:1-4 loadcells. Aux.power: DC 5V/80mA
◼Analog output:0-10V/4-20mA,etc.,output range adjustable by software.
◼ Communication:standard RS232/RS485 interface,MODBUS RTU protocol,realizeremote control by direct connection with PC/PLC/other equipment.
Application
1 Weight measurement and control *Mixed Batching control
2 Direct Load :1-4 PCS loadcells, 24 Bits A / D
3 Digital Input: Start / Stop and Clear Tare
4 Output::4-20mA / 0-10V , Relay / SSR / Logic output
5 Data Peak value holding function for choice.
6 Communication : RS485 RS232,RJ45(LAN) MODBUS-RTU protocol.

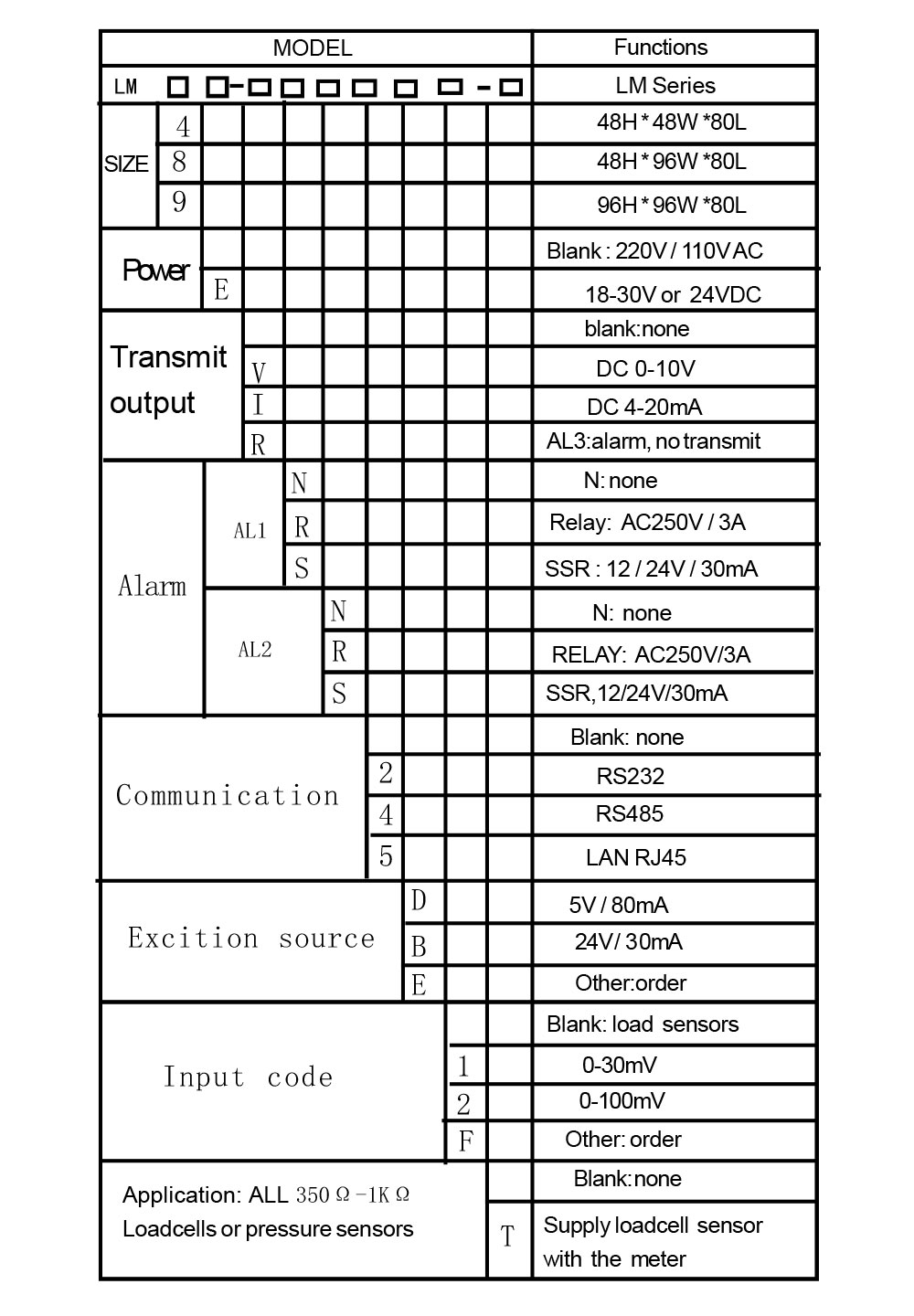

Model Explanation
|
Power |
220V/110V AC 90-260V AC/DC or 24V AC/DC |
|
Consumpsion |
≤5VA |
|
Accuracy |
0.1%F.S±2digit |
|
Sampling speed |
≤16times/sec |
|
output |
Relay: Normal Open AC 250V 3A or DC 30V 5A Resistive load ;SSR:12V/24V,MAX30mA |
|
Input |
1-4 PCS Loadcells Others:mA / V (special order) |
|
Tramsmit output |
DC 4-20mA / 0-10V etc. |
|
Communication |
RS232 / RS485 RJ45 MODBUS RTU protocol |

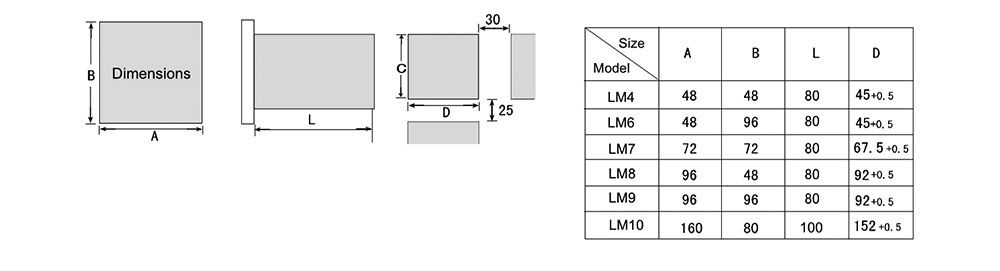

Dimension
