Features
◼ 6 digit high precise measurement,rapid response,high precision,steady performance and easy to operate.Work with loadcell /other sensors,the instrument has function of clearing zero & PV modification, and various control modessuch as Pause.Stop,Slow/Fast motion.etc..Except for weight control,auto accumat/mean for up/down batch control can be applied in the industries of land weight/cement/food pakage' chemical ingredients.
◼ Input:1/4 loadcell, or other signals such as 4-20mA. 0-10V. 0-75mV. etc..
◼ Analog output:0-10V/4-20mA,etc. ,output range adjustable by software.
◼ Digit output: up to 6 lines output for various ingrediants & weight control. Aux. power:+12V/40mA,+12V/150mA,2-wire 24V/30mA (for option).
◼ Communication:standard RS232/RS485 interface,MODBUS RTU protocol,realize remote control by direct connection with PC/PLC/other equipment.
Application
1 High precision Weight indicator and control Mixed Batching control
2 Drive 1-4 PCS load cells,24 bits A/D converter
3 Digital Input: START/STOP and TARE (Reset)
4 UP to 6-Relay / SSR outputs: high / low alarm or fast / slow control
5 Transmit Output: 4-20mA / 0-10V/0-5V etc.
6 Data/Peak value holding function for choice.
7 communication :RS485 RS232 LAN(MODBUS-RTU).
8 Other funtion can be ordered

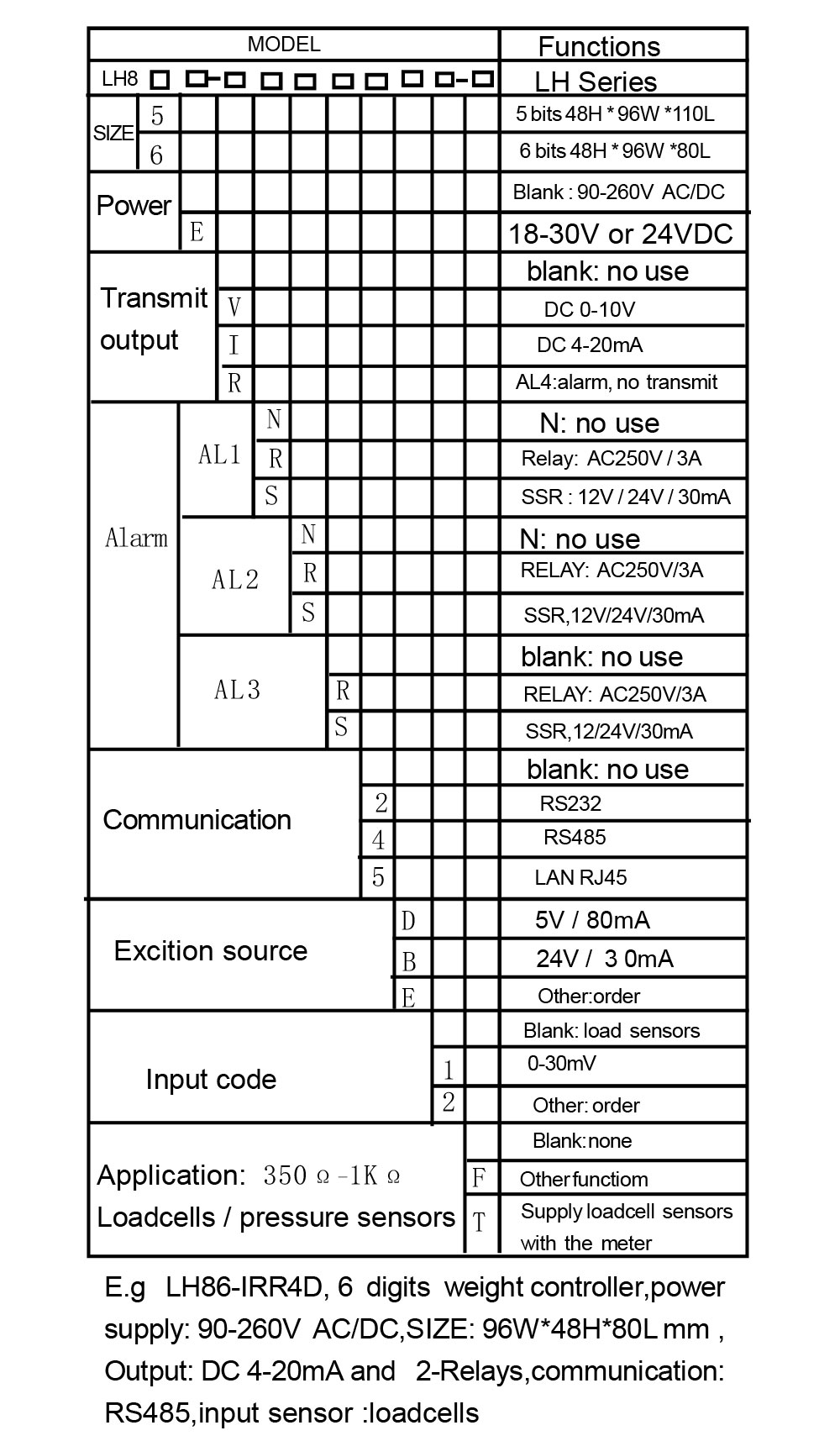

Model Explanation
|
Power |
90-260V AC/DC OR 15-30V AC/DC |
|
Power Consump |
≤ 5VA |
|
Accuracy |
0.02-0.05%F.S ± 2digit |
|
Relay output |
250V AC 3A or 30V DC 3A resistive load |
|
Sampling speed |
16-128 times/sec |
|
Input |
0-30mV(1-4 loadcells), or 4-20mA,0-10V |
|
transmit Output |
0-10V or 4-20mA , Accuracy:0.3% |
|
Aux. Power |
5V/80mA for Loadcells |
|
Communication |
RS232 RS485,LAN Modbus RTU protocol |

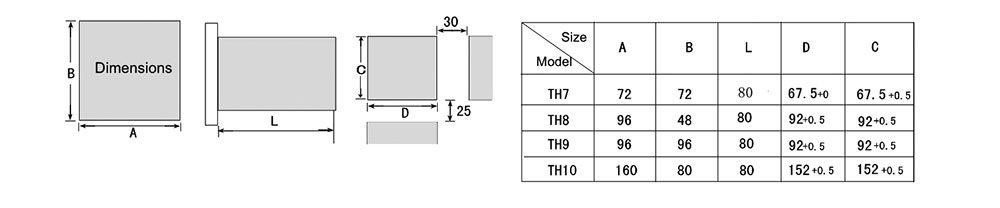

Dimension
