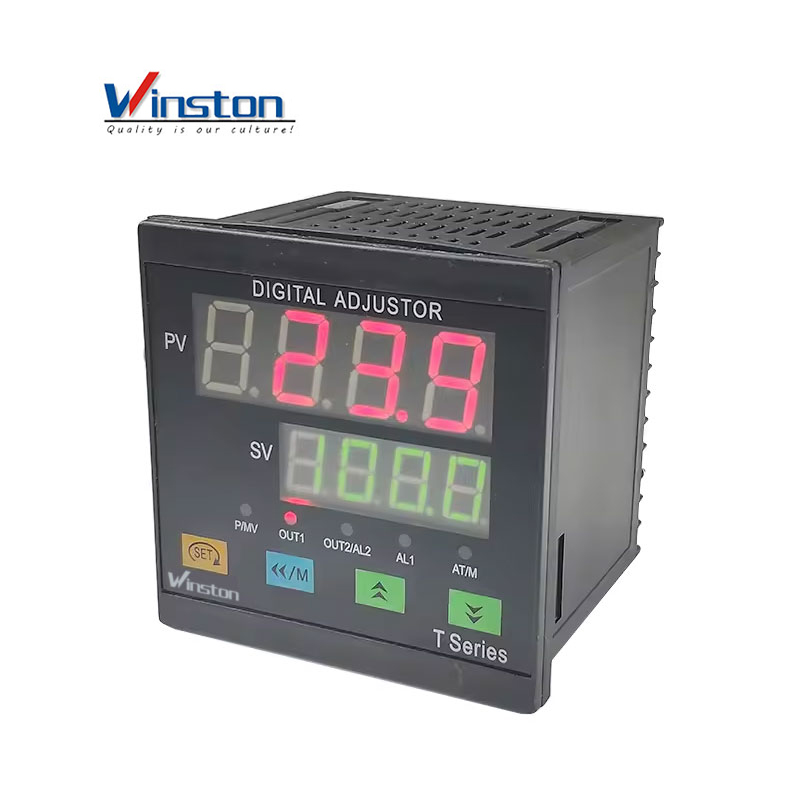

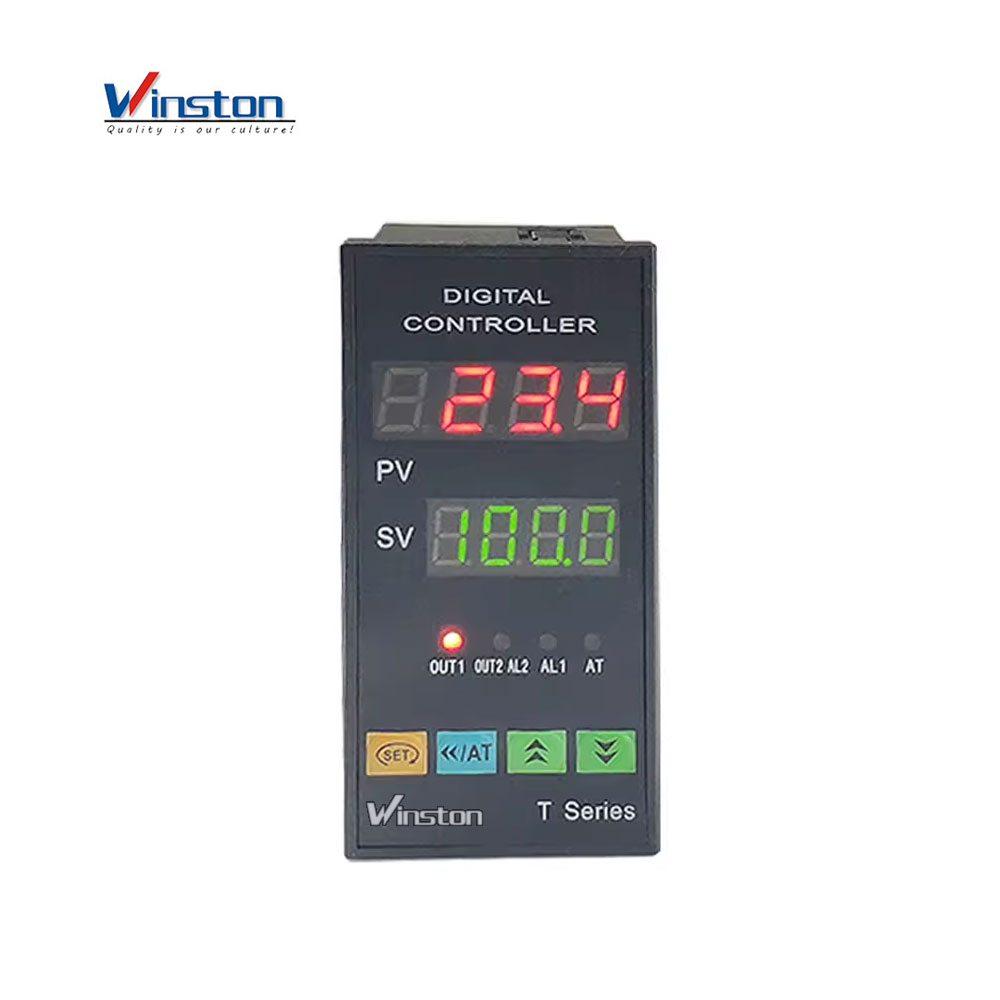

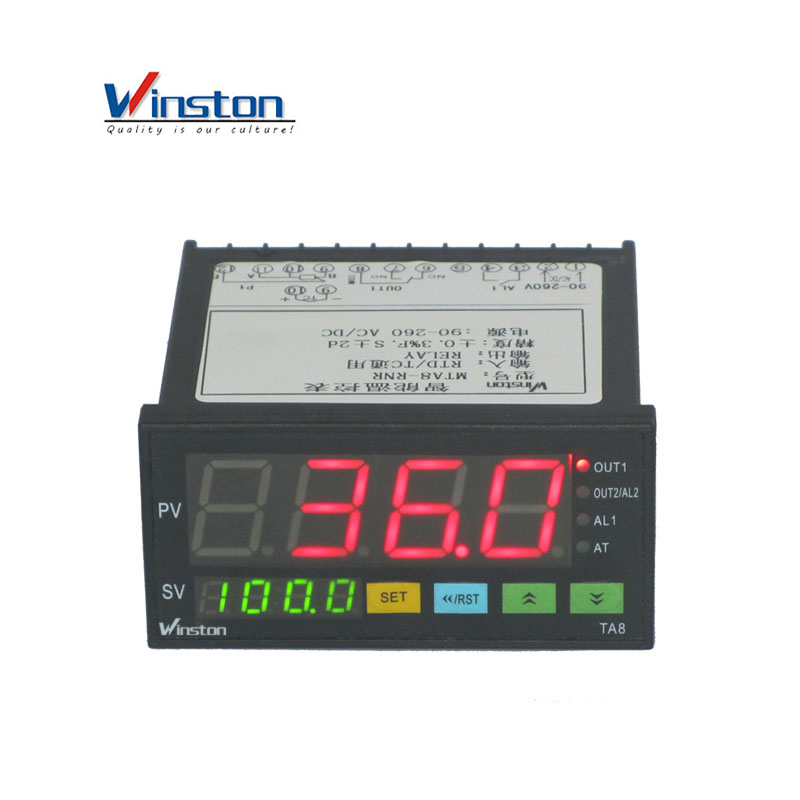

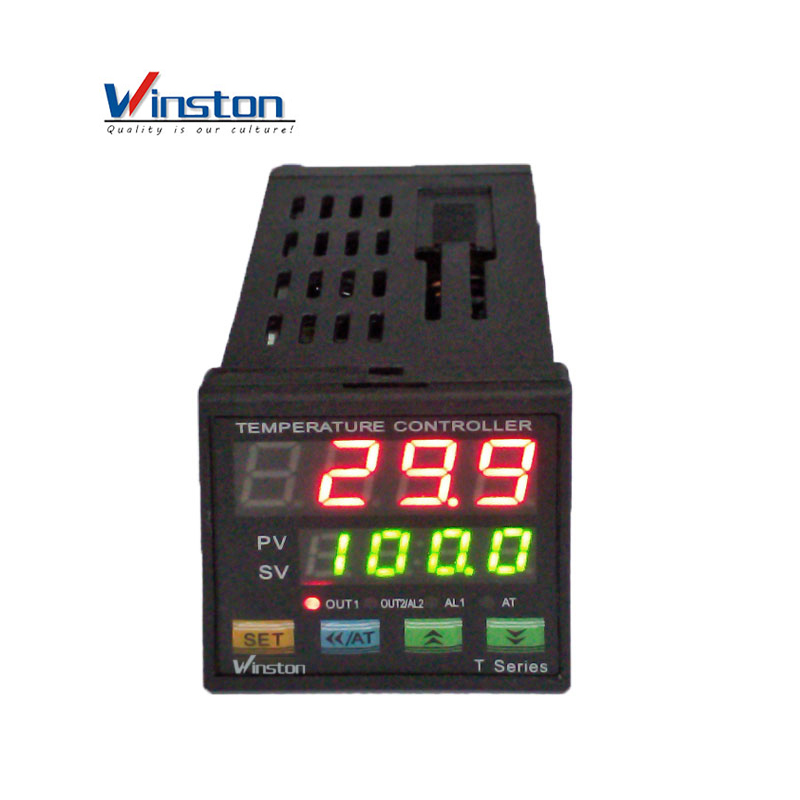

TA Series Pid Temperature Controller

Name: TA Series Pid Temperature Controller
Brand: Winston
SKU: 02950
Rating: 4.9 (1525 reviews)

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Features

◼ Apply with step control, 2 independent PID control for heating/cooling over temperature,pressure,level,flowm,etc..Widely used in auto system in line of light industry,chemistry,machine, metallurgy,ceramics,pertrification industry, or temperature control and adjust system of food & beverage;oven ;furnance,plastic extruder heating process etc;

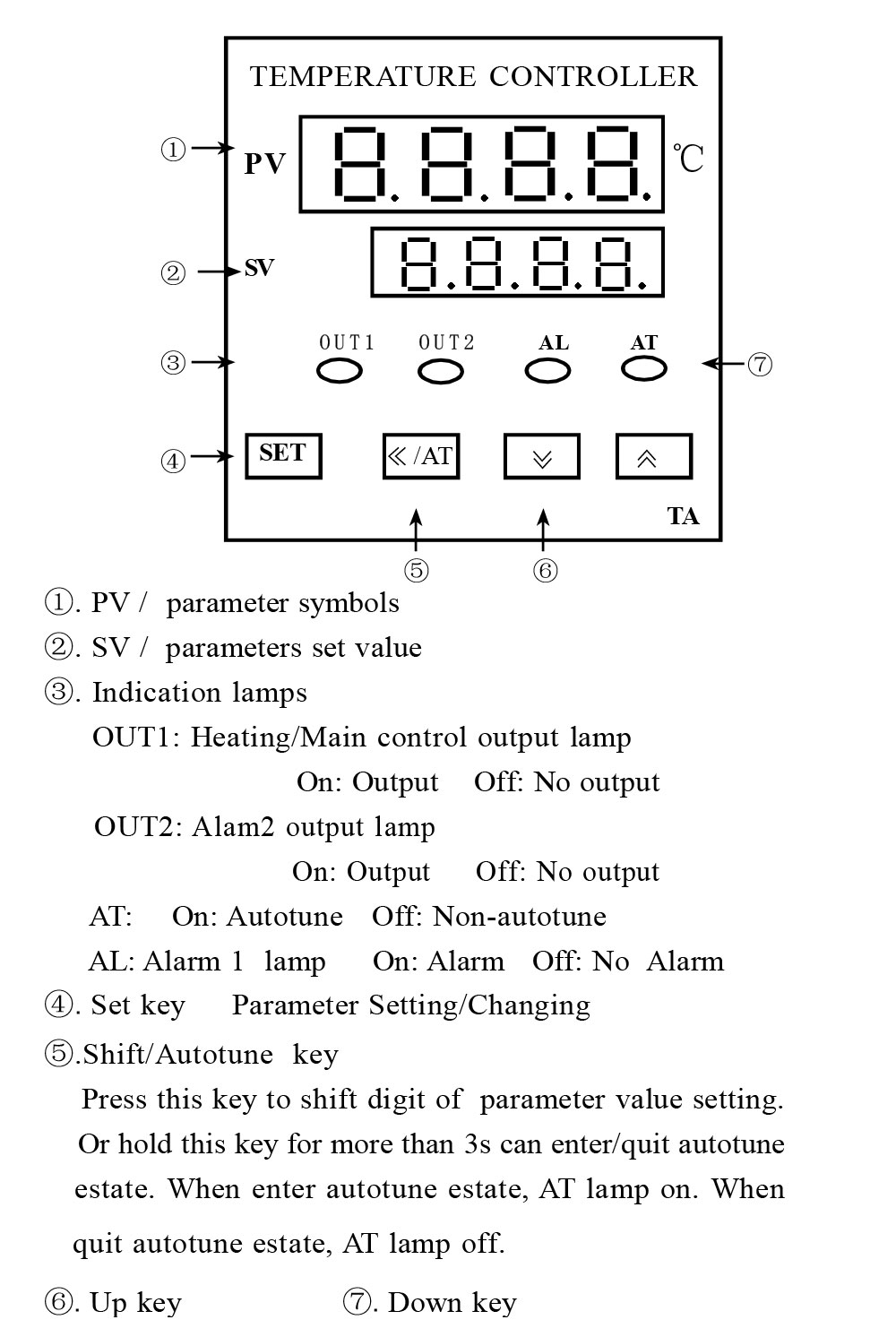

◼ One key operation, Auto-tuning PID/ Fuzzy PID control.Easy operation,Reliable performance

◼ Input: TC (K. JS. E. T. R. B)/RTD (Pt100. CU50) universal input, or 4-20mA/0-10V signal from standard pressure/level transmitter,(24V/30mA supply available for standard transmitter)

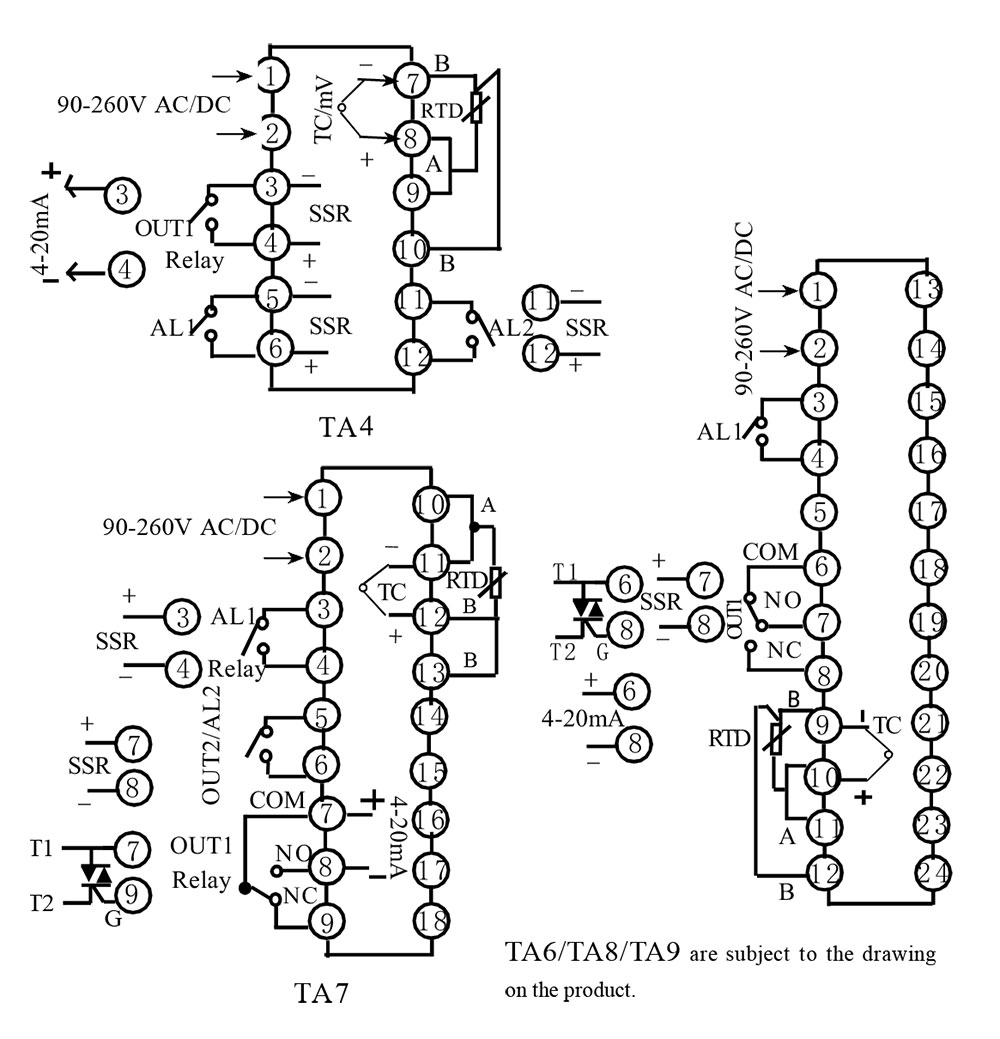

◼ Control output: RELAY SSR SCR 4-20mA 0-10V (If 4-20mA output,you can choose PID control or analog output) Alarm output: 2 lines output,7 kinds of alarm mode: high/low/high deviation/low deviation/ interval/out of interval/breakage alarm

Application

TA series of temperature controller is available for many TC or RTD input, adopt some advanced techonology such multi digital filter circuit, autotune PID, fuzzy PID that make it is very precise, stable, strong anti-interference and simple operation. The instrument is widely applied to automation systems of mechanism, chemical industrial, chinaware, light industrial, metallurgy and petroleum chemical industrial. It is also applied to the production line of foodstuff, packing, printing, dry machine, metal heat process equipment to control the temperature.

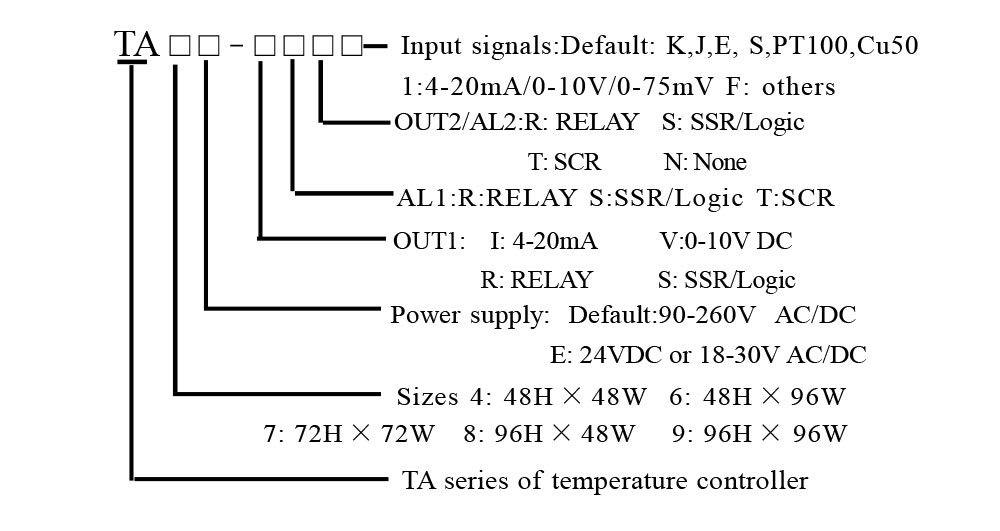

Model Explanation

Power	90-260V AC/DC 50/60Hz
Consumption	≤ 5VA
Display range	-199～1800℃
Accuracy	0.3%F.S ± 2digit
Sampling cycle	≤ 300ms
Main output	RELAY:normal open AC 250V/5A DC 30V/5A COS￠=1 SSR/LOGIC:24V DC ± 2V/ 20mA
Alarm	RELAY: normal open AC 250V/5A DC 30V/5A COS￠=1 SSR/LOGIC:24V DC ± 2V/ 30mA
Input	T/C	K	0~1200℃(negtive temp customized)
		J	0~1200℃(negtive temp customized)
		T	-150~400℃ (customized only)
		S	0~1600℃
		E	0~1600℃
	Rt	Pt100	-199~600℃
		Cu50	-50~150℃
	Others Please mention when ordering
Withstand voltage strength		1500V Rms (Between power terminal and the housing)
Insulation resistance		Min 50MΩ(500VDC)(Between power terminal and the housing)
Environment temperature		0~50℃
Storage temperature		-10~60℃
Environment humidity		35~85%RH
Weight		≤ 350g

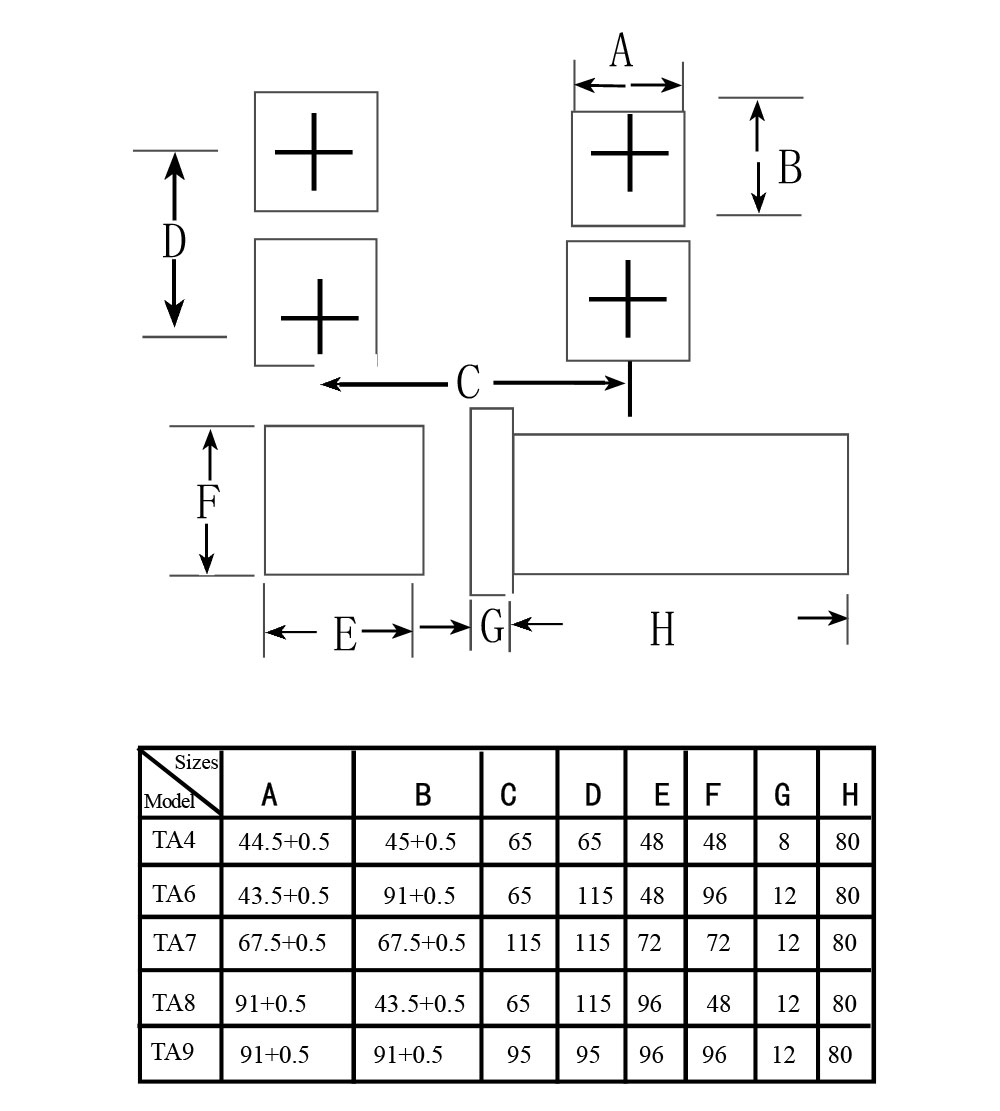

Dimension
