UB1000-30GM-E5-V1 Ultrasonic sensor

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Brife introduction of ultrasonic sensor

Ultrasonic sensors present the ideal solution for non-contact position and distance measurement in all industrial areas where environmental conditions such as dust, smoke or steam may affect the sensors. Objects consisting of a variety of materials can be detected to within millimeters regardless of color or shape.

The ultrasonic sensor produces a data carrier utilizing very high frequencies that are outside the human’s audible range. The time it takes for that ultrasonic wave to pass between the sensor and the object is the value for the distance or the position.

Ultrasonic sensors have proven their reliability and precision in many industries and applications, including:

lumber and furniture
construction materials and equipment
farming equipment
level control applications

Technical data

General Specifications

Sensing distance: 65…1000mm

Adjustment range: 70…1000mm

Unusable area: 0…65mm

Standard target plate: 100mm×100mm

Transducer frequency: About 175 kHz

Response delay: About 65ms

Indicators/Operating means

LED blue Power on

LED yellow indication of the switching state

Flashing:program function object detected

LED red permanently red: Error Red,flashing:program function,object not detected

Electrical specifications

Operating voltage UB: 10…30VDC,ripple10%ss

No-load supply current: ≤45mA

Output

Output type : 1 analogue output 0…10V

Resolution: 0.11mm at max.sensing range

Deviation of the characteristic

curve ±1% of full-scale value

Repeat accuracy : ±0.1% of full-scale value

Load impedance >1k Ohm

Temperature influence: ±1.5% of full-scale value

Ambient conditions

Ambient temperature: -25…70°C

Storage temperature: -40…85°C

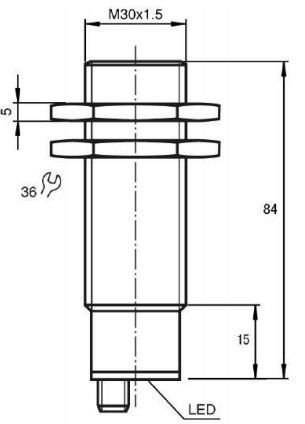

Mechanical specifications

Protection grade: IP67

Connection: Connector M12x1,4-PIN

Material

Housing: brass,nickel-plated

Transducer epoxy resin/hollow glass sphere mixture;

Polyurethane foam

Weight 60g

Electrical Connection

Pinout
