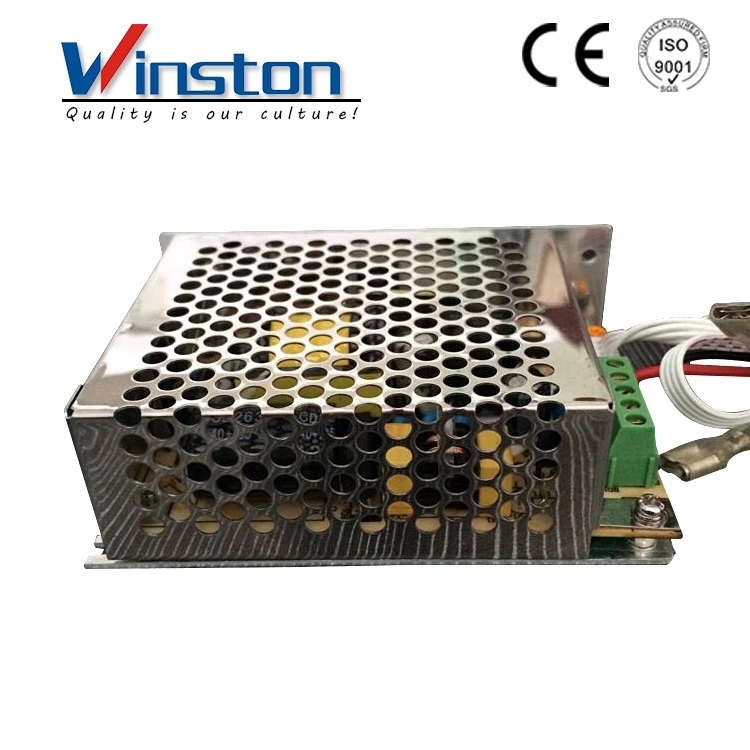

Product Description
Features:
·UPS function Battery Charge Power Supply

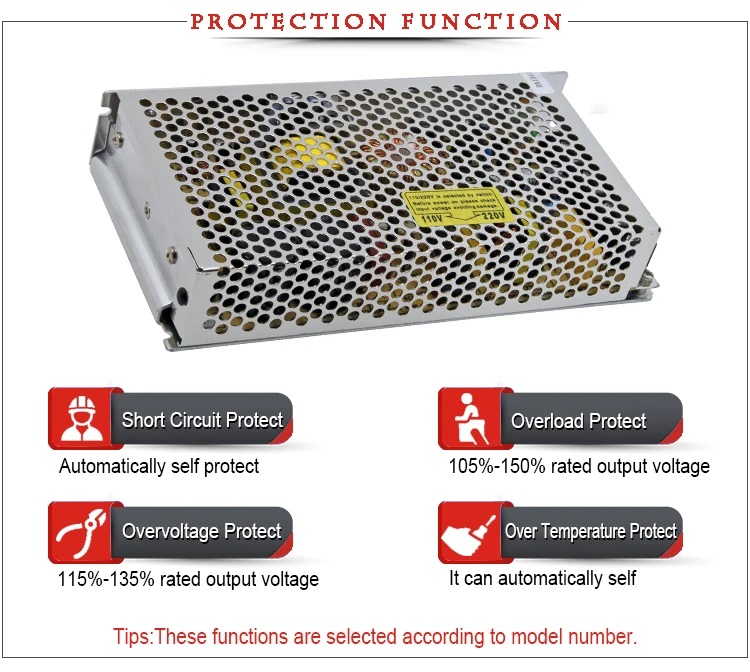

·Protections:short circuit/over load/over voltage
.Low weight,high efficiency
·Cooling by free air convection

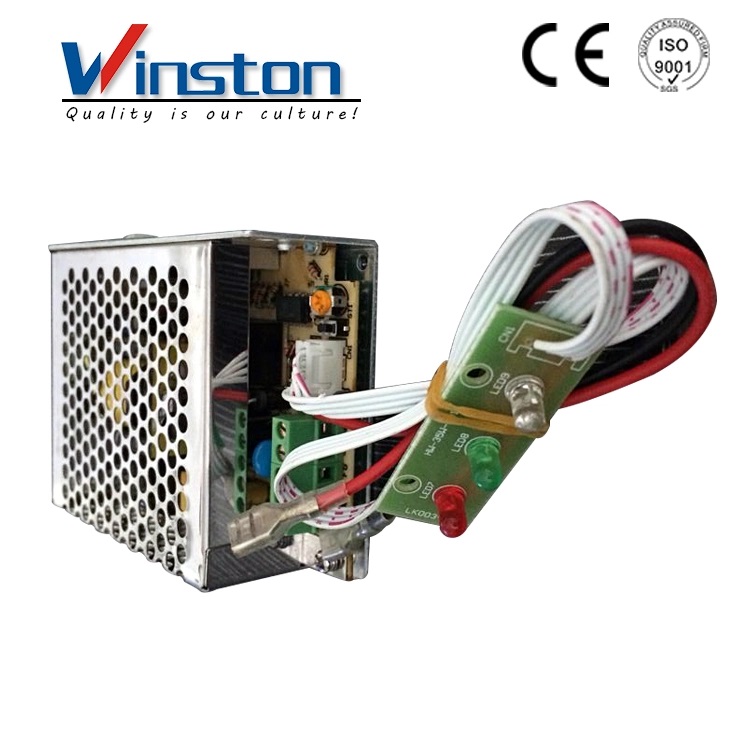

·LED indicator for power on
·100% Full load burn-in test
·2 Year warranty

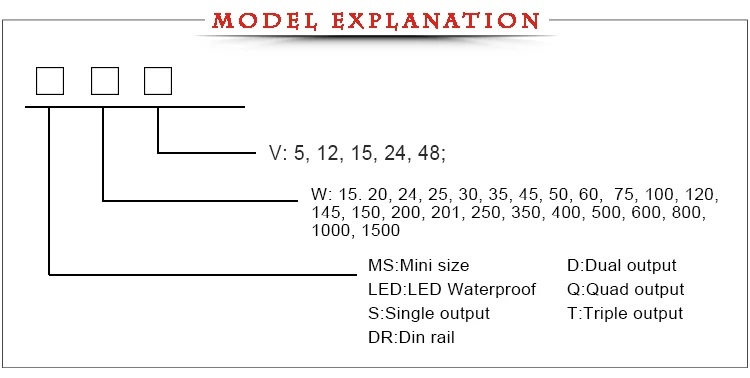

| Model | SC-35-12 | SC-35-24 | |||
| Output | DC voltage | CH1:13.8V | CH1:13.4V | CH1:27.6V | CH2:26.5V |
| Voltage tolerance | ±2% | ----- | ±1% | ----- | |
| Rated current | 2.0A | 0.5A | 1.0A | 0.3A | |
| Current range | 0~2.0A | ----- | 0~1.0A | ----- | |
| Rated power | 34.3W | 35.6W | |||
| Ripple&noise | 120mvp-p | ----- | 120mvp-p | ----- | |
| DCvoltage ADJ.range | CH1:11.3~14.9V | CH1:21.3~29.8V | |||
| Setup,rise,hold time | 800ms,50ms,80ms/230VAC, 1600ms,50ms,16ms/115VAC | ||||
| Voltage range | 90~264VAC,127~370VDC | ||||
| frequency | 47~63HZ | ||||
| Input | AC current | 0.9A/115VAC,0.45A/230VAC | |||
| efficiency | 81% | 83% | |||
| Inrush current | Cold start current 25A/115VAC,45A/230VAC | ||||
| Leakage current | < 1mA/240VAC | ||||
| Protection | Over load | Rated output power110%~150% start over load protection | |||
| Protection mode: AC charging mode:hiccup mode auto-recovery after fault Condition is removed | |||||
| Battery protection | 9.5~11V | 20~22V | |||
| At low voltage | Protection mode: cut off The output | ||||
| Function | UPS introduction |
Long-term online floating charge to battery, high charging efficiency, battery can saturate to more than 90% , cauto-stop harging when it's full, prevent over charging. Effectively extend battery life, AC/battery auto switch, no switch time, no need human guard, cold-start, when there is no AC input ,can use battery start UPS, Meet the user's emergency needs |
|||
| Environment | Working temp,humidity | -10°C~+60°C,20%~90%RH | |||
| Storagetemp,humidity | -20°C~+85°C,10%~95%RH non-condensing | ||||
| Withstand vibration | 10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes | ||||
| Safety | Withstand voltage | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
| Isolated resistance | I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC | ||||

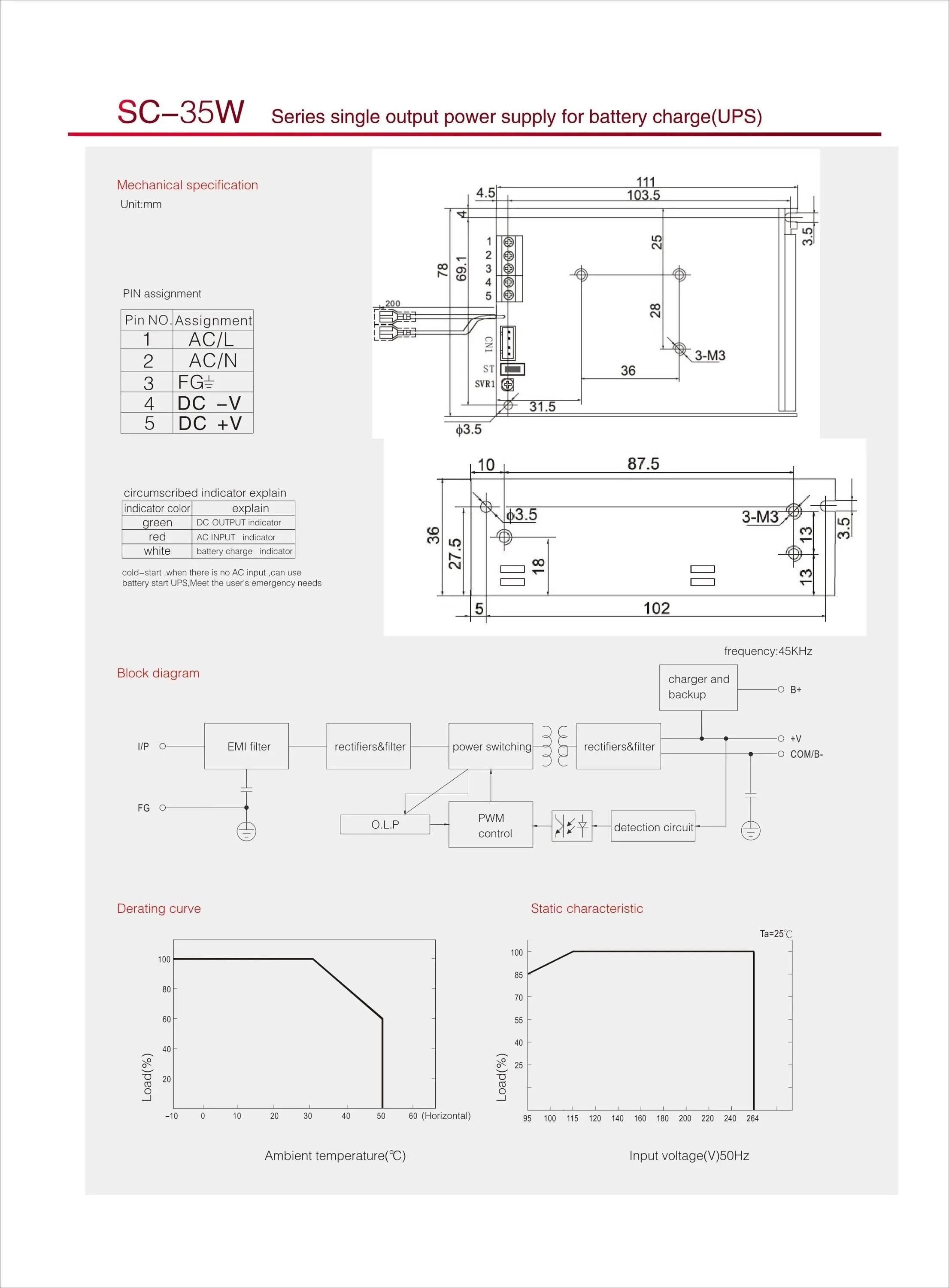

| Others | Dimension | 111*78*36mm (L*W*H) | |||
| Weight/packing | 43*34*24cm/45pcs/13.5kg | ||||
| Note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25°Cof ambient temperature. |
||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||||
|
3. Tolerance : includes set up tolerance, line regulation and load regulation. |
|||||
