SC-60 60W UPS Function Monitor Power Supply

Model

SC-60-12

SC-60-24

Output

DC voltage

CH1:13.8V

CH1:13.4V

CH1:27.6V

CH2:26.5V

Voltage tolerance

±1%

-----

±1%

-----

Rated current

4.0A

0.35A

2.0A

0.25A

Current range

0~4A

-----

0~2A

-----

Rated power

59.9W

61.8W

Ripple&noise

100mvp-p

-----

100mvp-p

-----

DCvoltage ADJ.range

CH1:11.3~14.9V

CH1:21.3~29.8V

Input

Voltage range

90~264VAC,  127~370VDC

frequency

47~63HZ

AC current

1.6A/115VAC, 0.8A/230VAC

Efficiency

81%

83%

Inrush current

Cold start current  25A/115VAC,45A/230VAC

Leakage current

< 1mA/240VAC

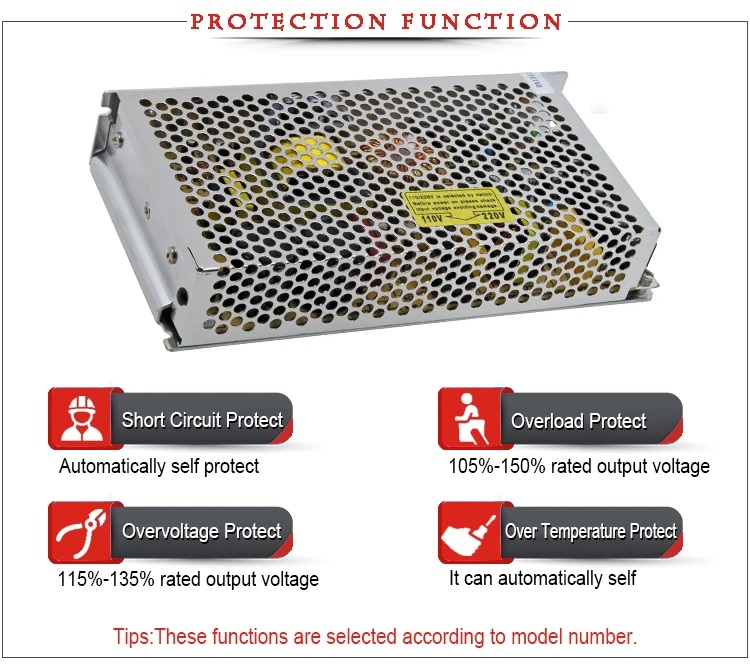

Protection

Over load

Rated output power110%~150%  start over load protection

Protection mode: AC charging mode: hiccup mode auto-recovery after fault condition is removed

Battery protection

At low voltage

9.5~11V

20~22V

Protection mode: cut off the output

Function

UPS introduction

long-term online floating charge to battery, high charging efficiency,battery can saturate to more than 90% ,cauto-stop harging when it's full,prevent over charging. Effectively extend battery life,AC/battery auto switch,no switch time,no need human guard, cold-start ,when there is no AC input ,can use battery start UPS, Meet the user's emergency needs

Environment

Working temp,humidity

-10°C~+60°C,20%~90%RH

Storagetemp,humidity

-20°C~+85°C,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

Safety

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Others

Dimension

129*98*38mm(L*W*H)

Weight/packing

0.52kg/45pcs/24kg/0.034m⊃3;/1.2CUFT

Note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25°Cof ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
