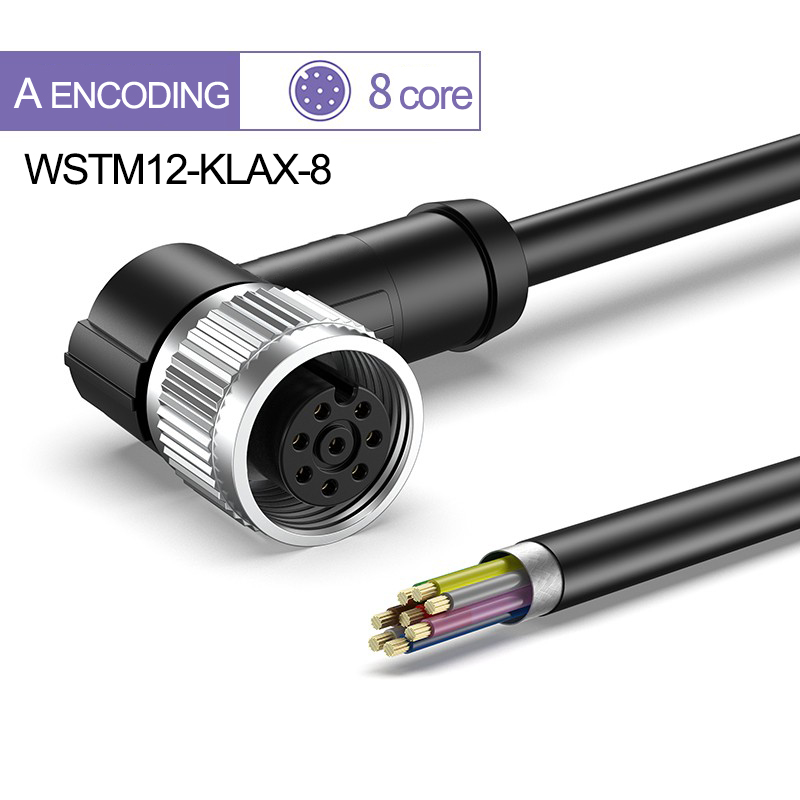

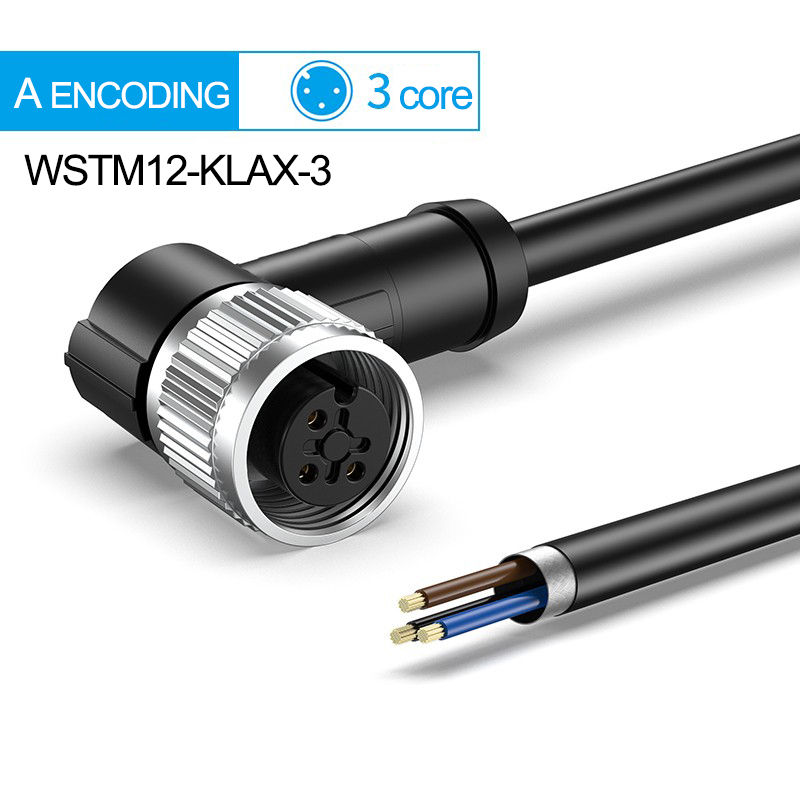

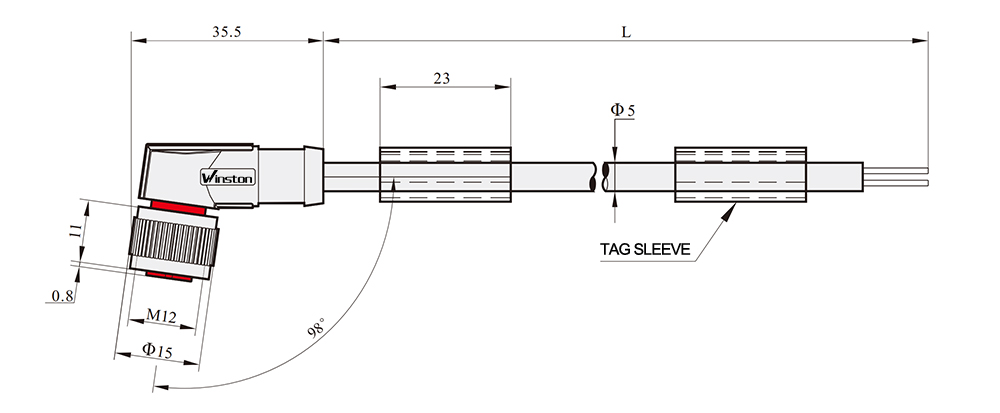

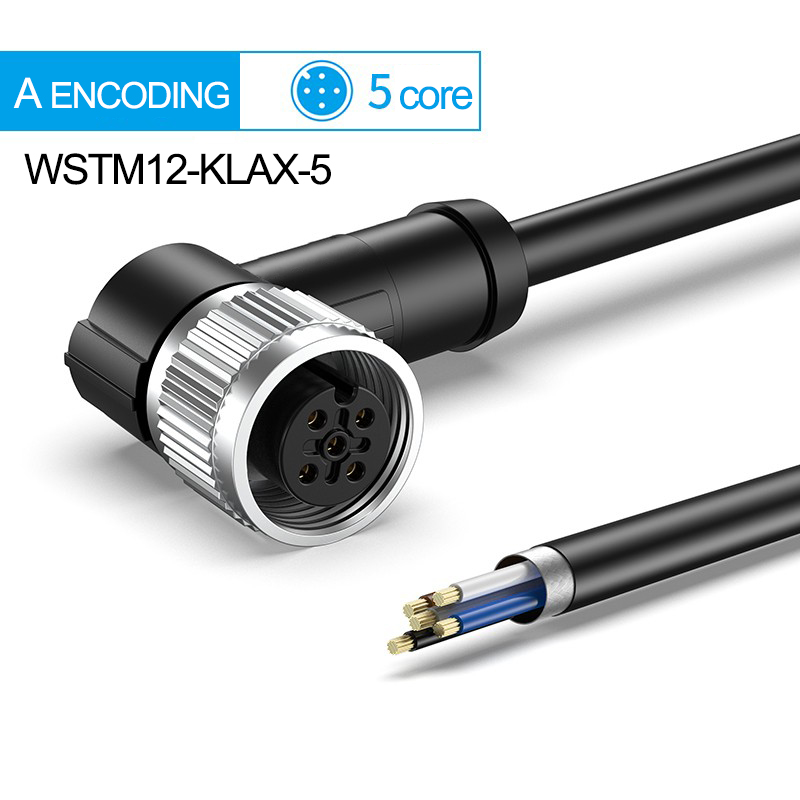

M12 Pin straight head A coding + free outlet end
Sensor/actuator cable
2m-PVC/PUR[Shielding]

General data
Number of cores 3  4  5  8   12  17
Rated current (40°C) 4A 2A  1.5A
Rated voltage                 250V       60V           30V  30V
Conductor cross section 0.34mm2 [AWG22] 0.25mm2 [AWG24]  0.14mm2 [AWG26]
Contact resistance ≤ 5 mΩ
Insulation resistance ≥ 100 MΩ
Cable length 2.0m
Strip length of the free outlet end of the cable 35mm
Net weight per piece 0.090kg 0.093kg  0.095kg 0.115kg   0.126kg  0.145kg
Ambient temperature (operating) -25 °C ... 90 °C
Technical characteristics
Technical standard/specification IEC61076-2-101 ；IEC60947-2
Anti-insertion coding A- Standard
Surge voltage Class Ⅱ
Pollution Level 3
Protection Level IP65/IP67 protection class
Insert/remove period ≥100
Torque 0.4Nm
Contact material CuSn
Material contact surface Ni/Au
Core end material PA66
Coated material TPE
Lock nut Copper H59 nickel plated
O-ring material  NBR
Cable technical parameters
Number of cores 3  4  5  8  12  17
Cable sheath material PVC               PUR             PVC[Shielding]                 PUR[Shielding]
Core wire cross-sectional area 0.34mm2 [AWG22] 0.25mm2 [AWG24] 0.14mm2 [AWG26]
AWG signal cable                      22  24   26
Jacket color black
Core color See Wiring Diagram for details.
Insulation resistance ≥100MΩ*km(20℃)
Wire resistance ＜58Ω/km(20℃) ＜78Ω/km(20℃) ＜142Ω/km(20℃)
Core structure 42/0.10±0.008mm 32/0.10±0.008mm  18/0.10±0.008mm
Cable outer diameter OD 5.0±0.10 5.5±0.10  6.0±0.10  7.0±0.10
Minimum bending radius, fixed installation 22mm 23.5mm  25mm 48mm 70mm 85mm
Minimum bending radius, mobile installation       44mm      47mm      50mm 60mm 85mm 100mm
Bending times 4000000  2000000
Lateral trajectory  10m
Lateral speed 3m/s
Acceleration 10m/s2
Flame retardation Conforms to DIN UL2464/UL20549
halogen-free  In accordance with DIN VDE 0472 Chapter 815
Ambient temperature -40 °C ... 80 °C(Fixed mounting)
-25 °C ... 80 °CMovable mounting) -5 °C ... 80 °C(Movable mounting)
