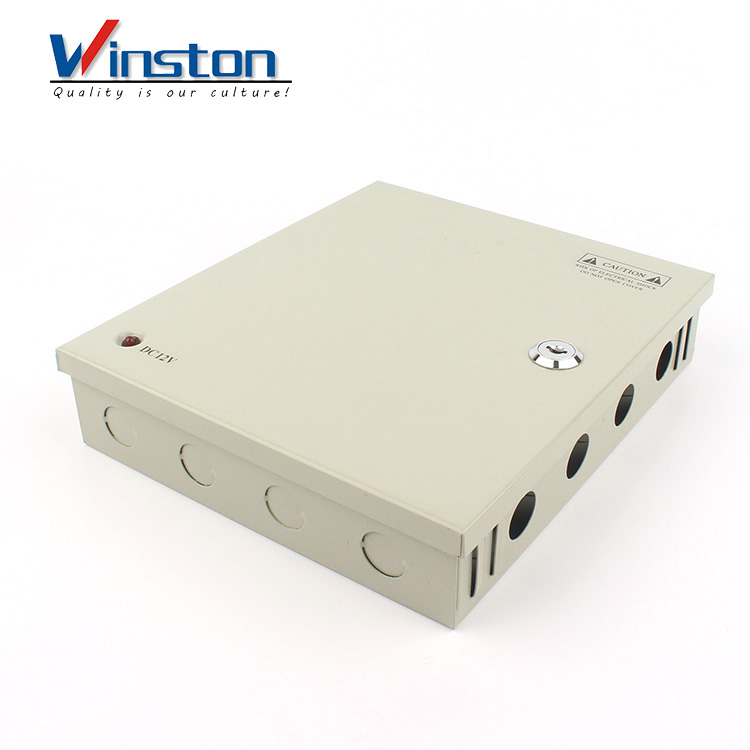

CCTV-60 CCTV Power Supply

MODEL

CCTV-60-12-4CH

CCTV-60-12-9CH

CCTV-60-12-18CH

OUTPUT

DC VOLTAGE

12V

12V

12V

OUTPUT POWER

60W

60W

60W

CURRENT RANGE

0-1.25Amp(Each channel) , Total 0-5Amp for 4 channels

0-0.55Amp(Each channel) , Total 0-5Amp for 9 channels

0-0.28Amp(Each channel) , Total 0-5Amp for 18 channels

RIPPLE & NOISE(max.)

120mVp-p

VOLTAGE ADJ. RANGE

±10%

LINE REGULATION

±1.0%

LOAD REGULATION

±2.0%

VOLTAGE TOLERANCE

±2.0%

SETUP,RISE TIME

800ms, 50ms at full load

HOLD UP TIME

60ms

INPUT

VOLTAGE RANGE

110VAC or 220V AC selected

AC CURRENT(Typ.)

1.3A/115V    0.65A/230V

FREQUENCY RANGE

47-63Hz

EFFICIENCY(Typ.)

78%

INRUSH CURRENT(Typ.)

COLD START 18A/115VAC   36A/230VAC

LEAKAGE CURRENT

<1.0mA/240VAC

PROTECTION

OVER LOAD

115%~135% of rated power; Pulsing hiccup shut down

OVER VOLTAGE

Rated output voltage of 105%~150% start overvoltage protection

Protection: burst mode,load of abnormal conditions removed the automatic recovery

SHORT CIRCUIT

voltage off and reset input for recovers

ENVIRONMENT

WORKING TEMP.

-0°C ~ +45°C (Refer to output load derating curve)

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP.,HUMIDITY

-20°C ~ +85°C 10~95% RH

TEMP. COEFFICIENT

±0.05%/°C

COOLING METHOD

BY FREE AIR CONVECTION

SAFTY & EMC

SAFTY STANDARDS

CE EN60950-1 Approved

WITHSTAND VOLTAGE

I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC

EMI CONDUCTION

Compliance to EN55022

HARMONIC CURRENT

Compliance to EN61000-3-2,-3

EMS IMMUNITY

Compliance to EN55024

Other

Application

1.Digital and electronic products
2.LED, CCTV supervisory system
3.CCTV monitoring camera
