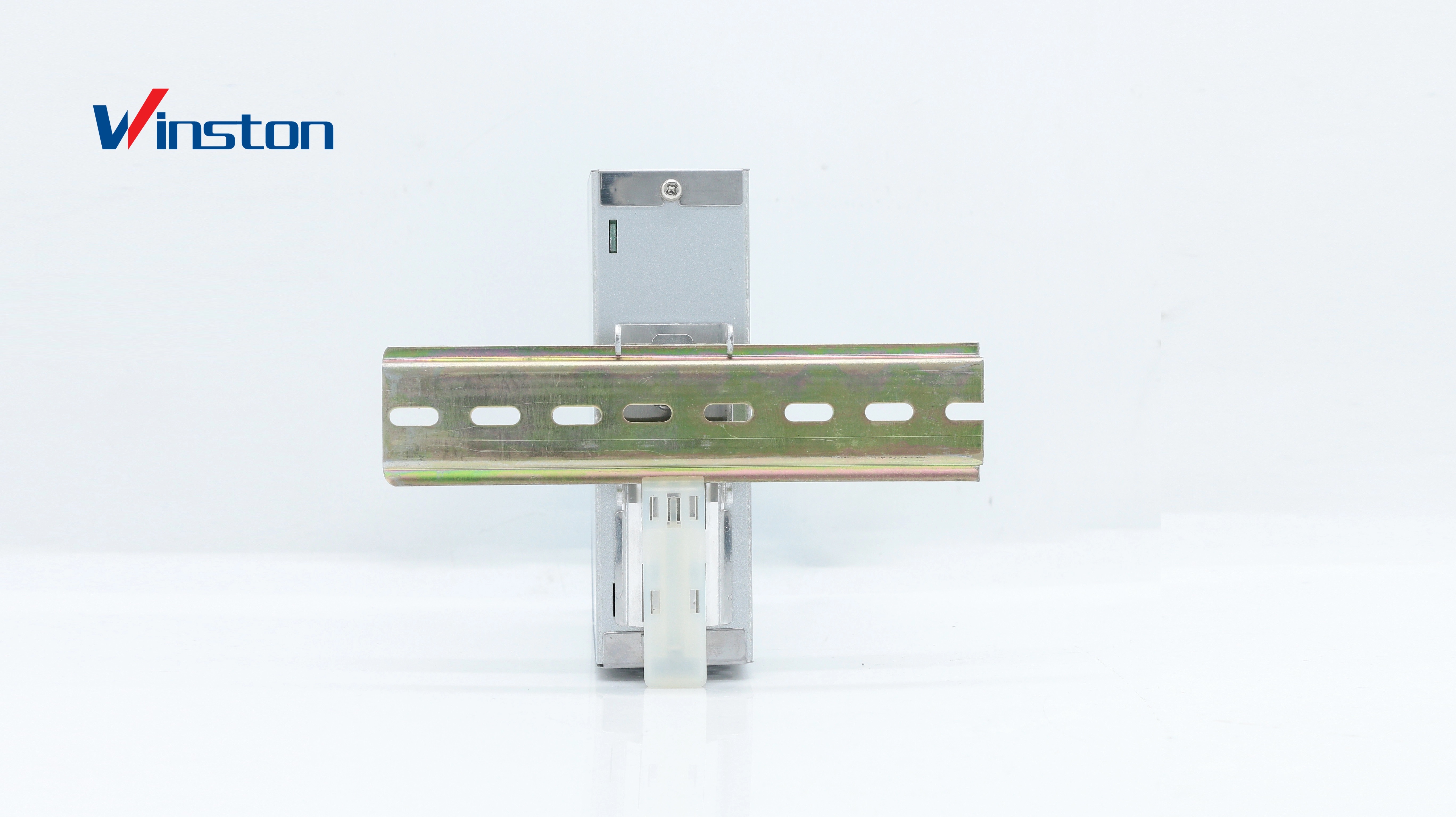

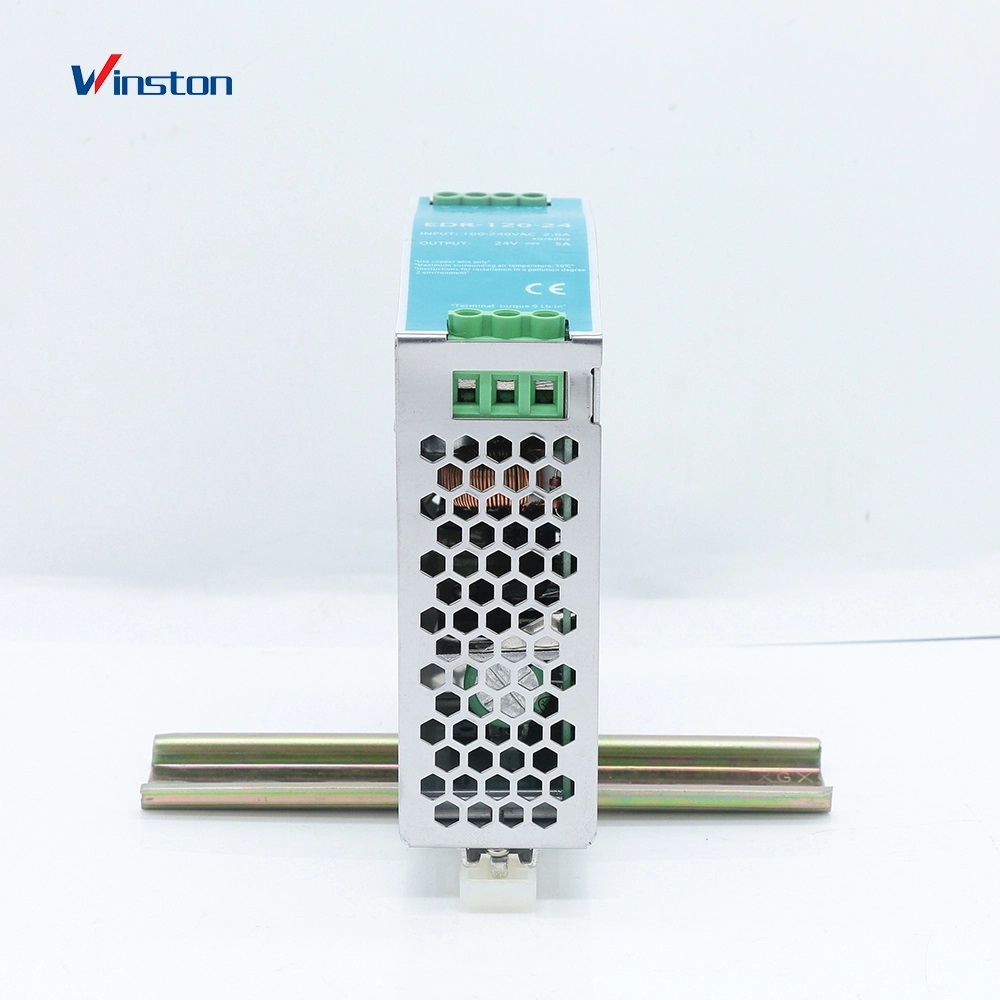

EDR-120 220v to 24 led driver switch power supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

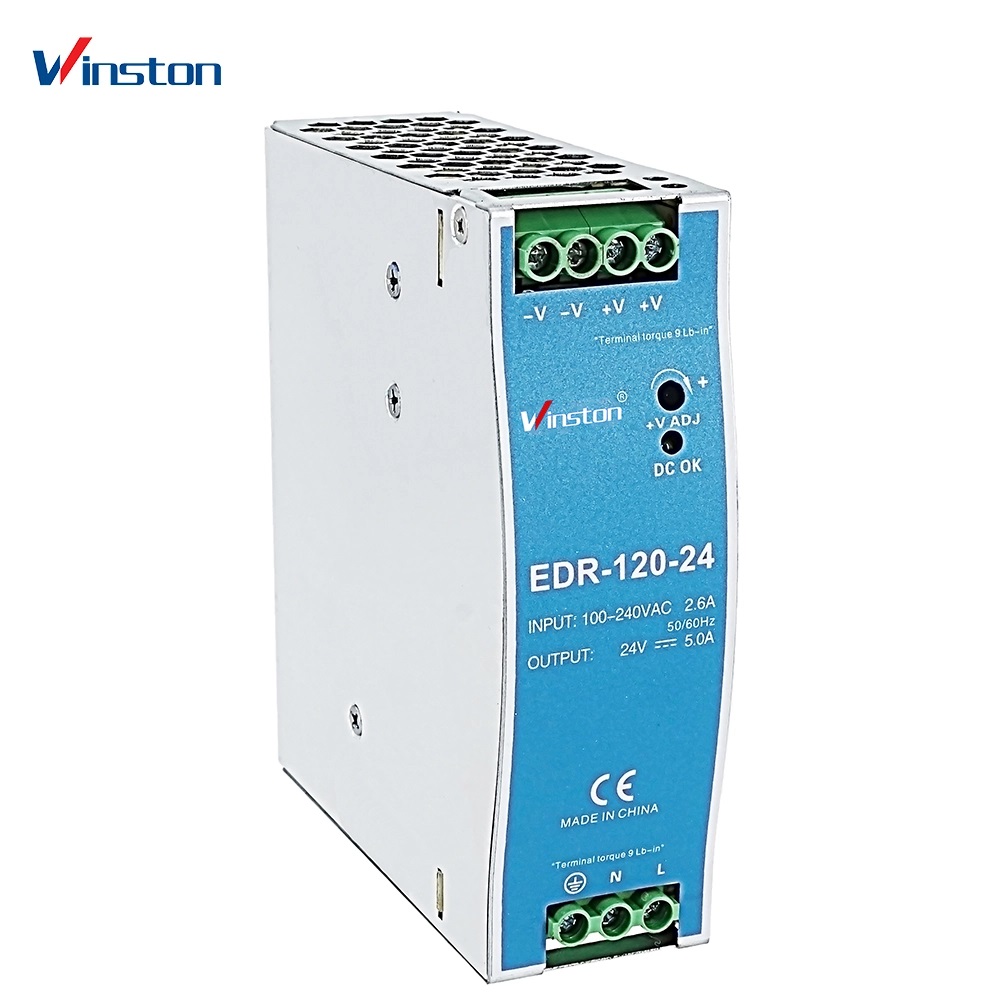

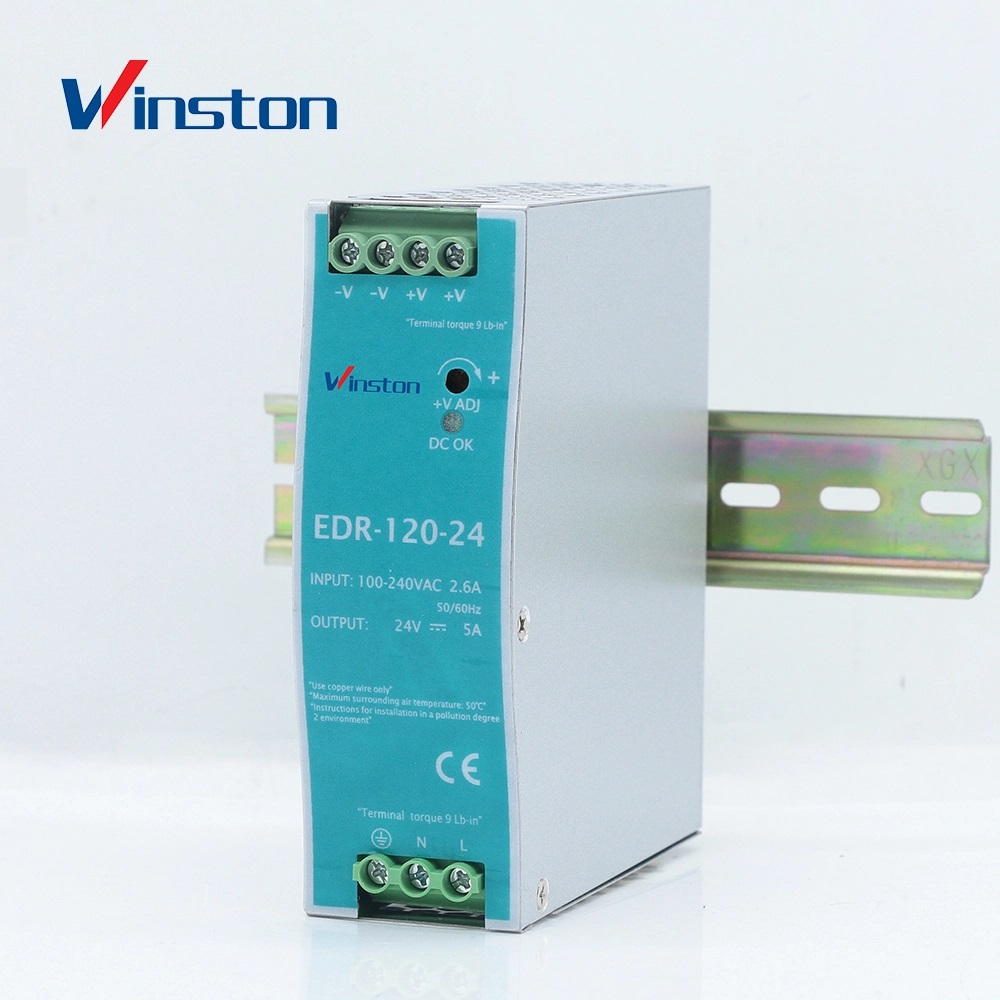

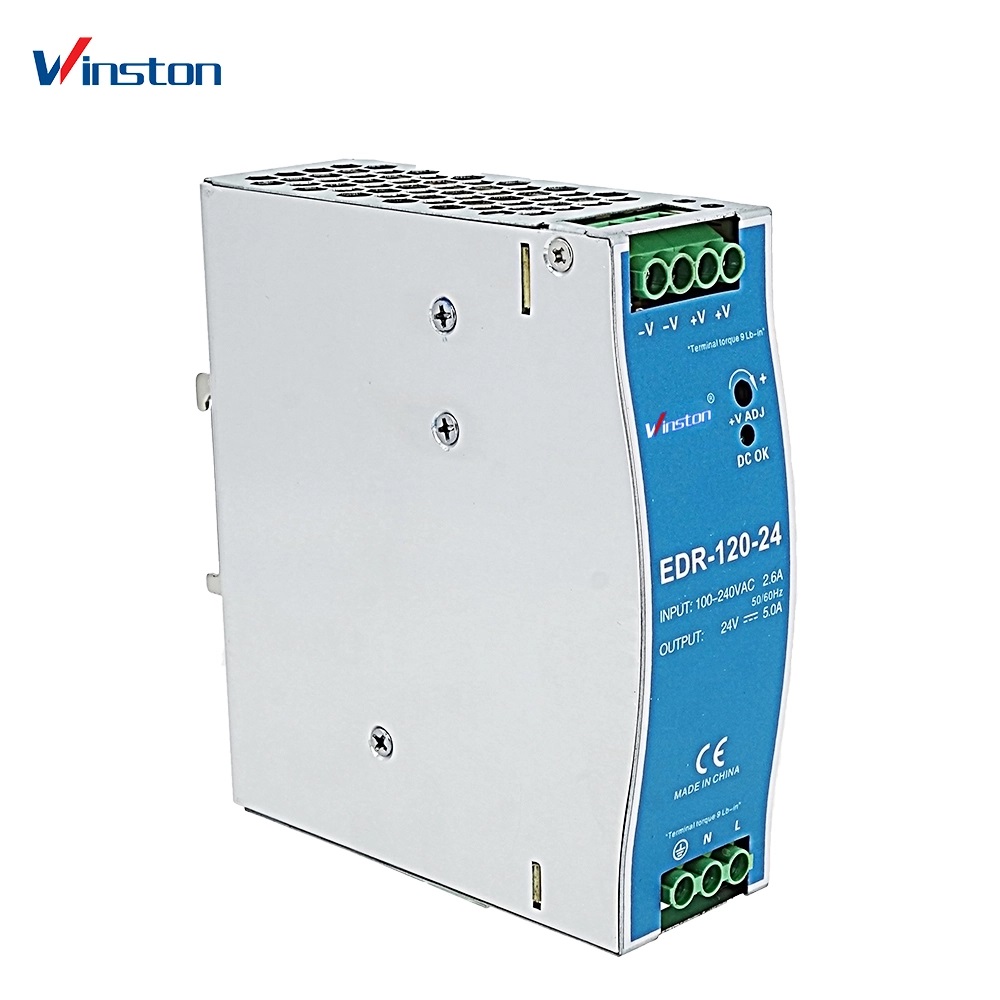

EDR-120 220v to 24 led driver switch power supply 12v

Features

• Universal AC input / Full range

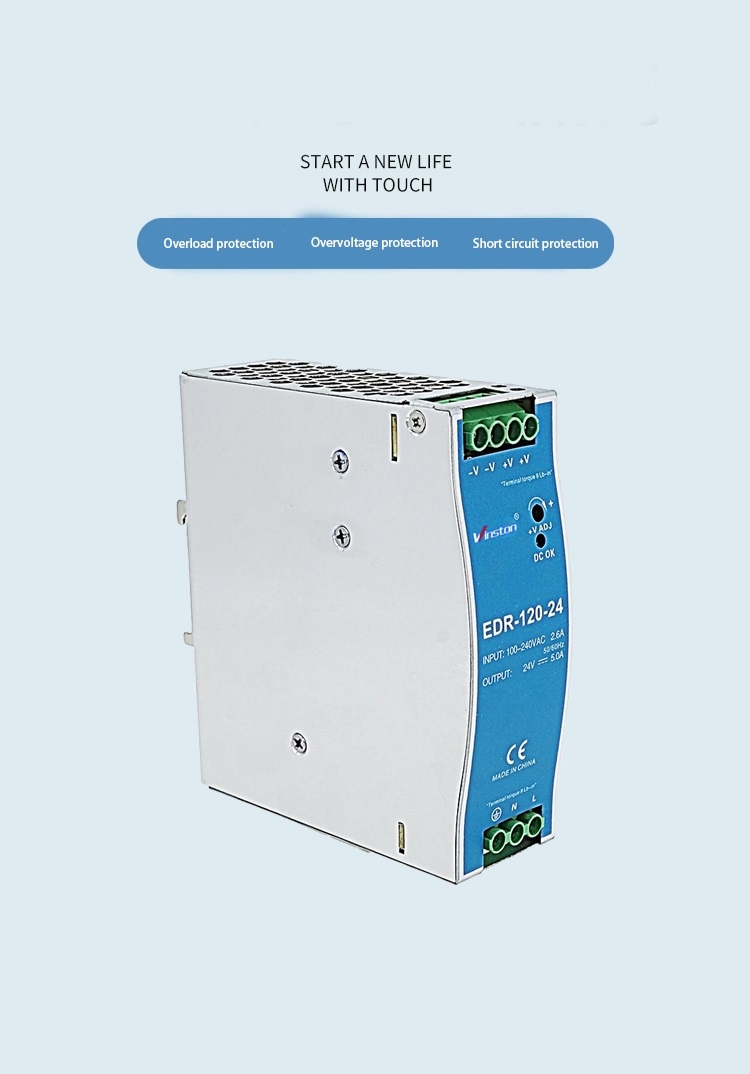

• Protections:Short circuit/ Overload/ Over voltage / Over temperature

• Cooling bu free air convection

• Can be (industrial control equipment) listed

• EN61000-6-2 (EN50082-2) industrial immunity level

• 100% full load burn-in test

• Low cost

• 2 years warranty

Functioning

AC input voltage range	90-264VAC;127-370VDC
AC inrush current (max.)	Cold start,35A at 230VAC
DC adjustment range	12V:12-14V:24-28V,48V:48-55V
Overload protection Range	105%~130%
Overload protection Type	Constant current limiting, auto-recovery
Over voltage protection Range	12V:14-17V,24V:29-33V ,46V:56-65V
Over temperature protection Type	Shut down o/p voltage,re-power on to recover
Over temperature protection	Shut down o/p voltage,re-power on to recover
Withstand voltage	I/P-O/P:3kVAC,I/P-FG:2kVAC,O/P-FG:0.5kVAC
Working temperature	-20~+60℃(refer to output dorating curve)
Safety standards	UL508, TUV EN60950-1 approvred
EMC standards	EN55022 classA, EN61000-3-2(125W for EDR-150) ΕN61000-4-2,3,4,5,6,8,11,EN61000-6-2(EN0082-2)
Connection(screw DIN terminal)I/P	3 poles ,O/P:4 poles
Temperature, humidity	-20 ℃ ~ +70 C(NDR-75, NDR-120) -20 ℃~+70 ℃(NDR-240, NDR-480)

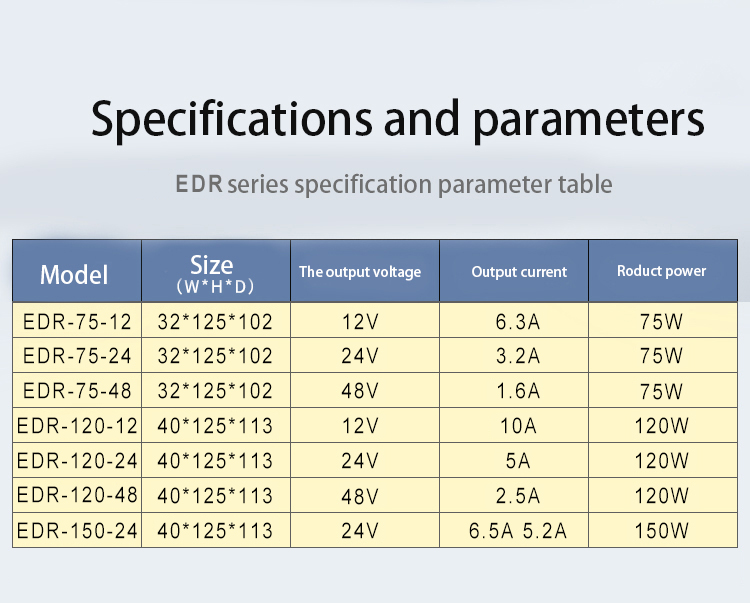

EDR-120, Dimension	(W x H x D) mm 40 x 125.2 x 113.5mm
