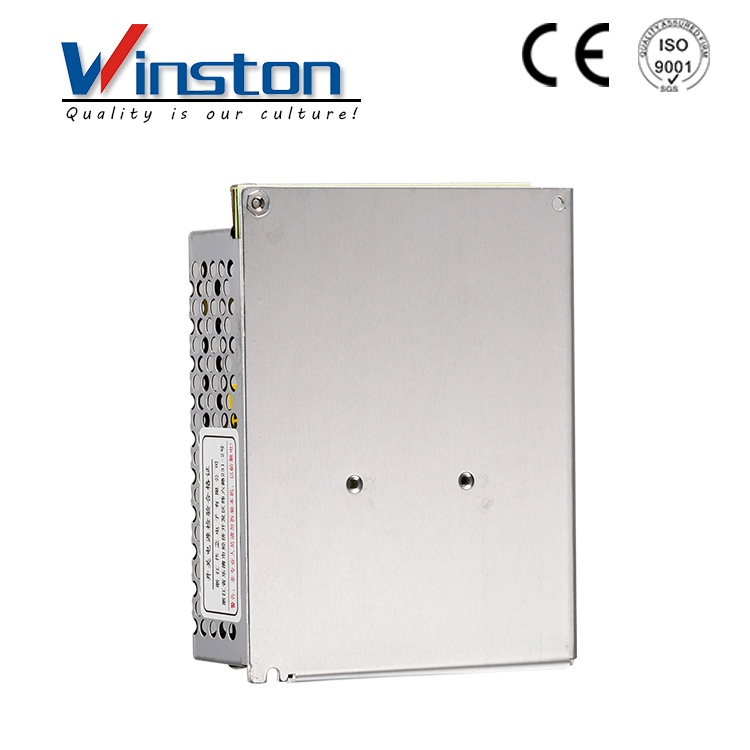

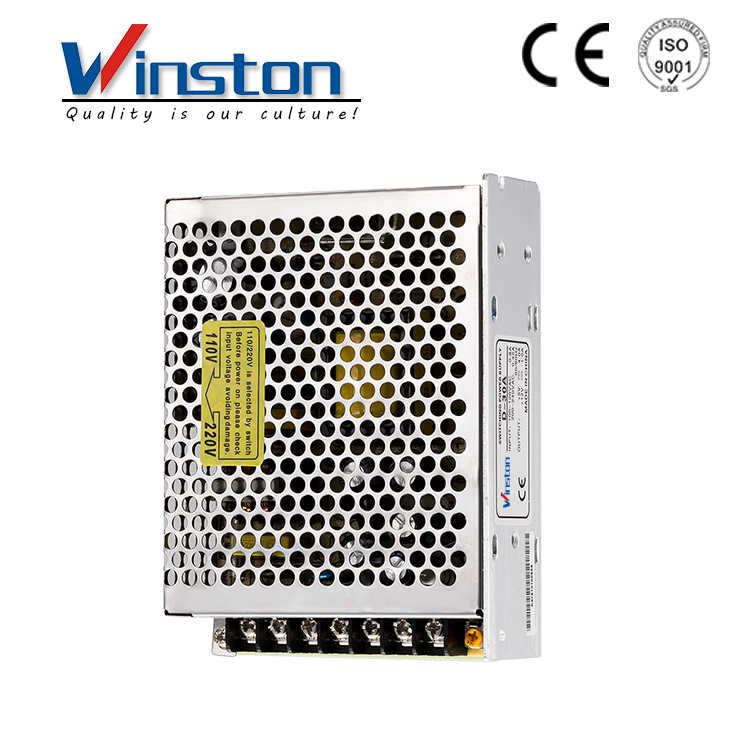

Name: D-30 30W Dual Output Switching Power Supply
Brand: Winston
SKU: 01989
Rating: 4.1 (1045 reviews)

D-30 30W Dual Output Switching Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

OUTPUT
Model	D-30A		D-30B
Output number	CH1	CH2	CH1	CH2
DC Voltage	5V	12V	5V	24V
Rated Current	4A	1A	2.2A	1A
Current Range	0.5-4A	0.1-1A	0.5-2.2A	0.1-1A
Rated Power	32W		35W
Ripple & Noise	50mVp-p	100mVp-p	50mVp-p	100mVp-p
Voltage Adj. Range	CH1: -5%, +10%		CH1: -5%, +10%
Voltage Tolerance	±2%	+3%,-7%	±2%	+3%,-5%
Setup,Rise,Hold Up Time	200ms,50ms,30ms at full load
INPUT
Voltage Range	85~132VAC/170~264VACselected by switch47~63Hz; 240~370VDC
AC Current	0.8A/115V0.45A/ 230V
Efficiency	72%		74%
Inrush Current	Cold start 18A/115V36A/230V
Leakage Current	<1mA/240VAC
PROTECTION
Over Load	105%~150%
	Protection type: Constant current limiting, recovers automatically after fault condition is removed
ENVIRONMENT
Working Temp., Humidity	-10℃~+60℃; 20%~90%RH
Storage Temp., Humidity	-20℃~+85℃; 10%~95%RH
Temp. Coefficient	±0.03%/℃(0~50℃)
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage	I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
STANDARD
Safety Standard	Design refer to UL1012
EMC Standard	Design refer to FCC Part15 J Conduction Class A
OTHERS

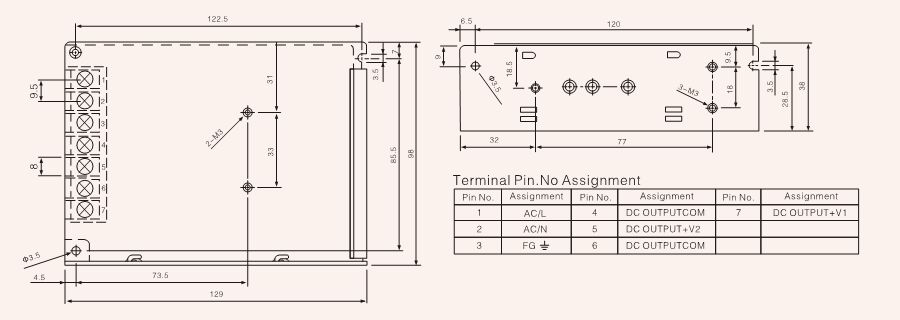

Dimension	1299838mm(LWH)
Weight	0.41Kg
Packing	30pcs/13.4Kg/0.86CUFT
NOTE
