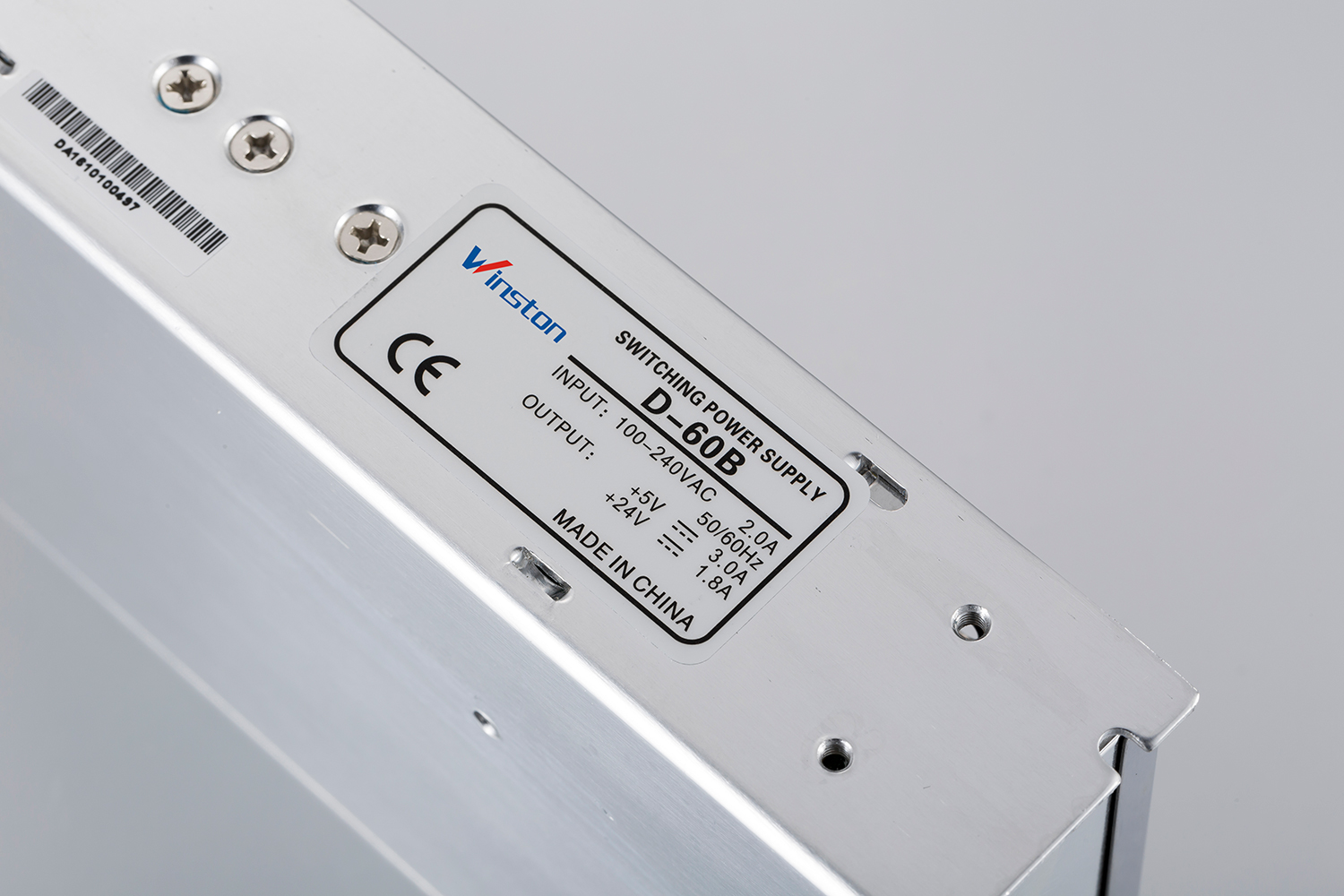

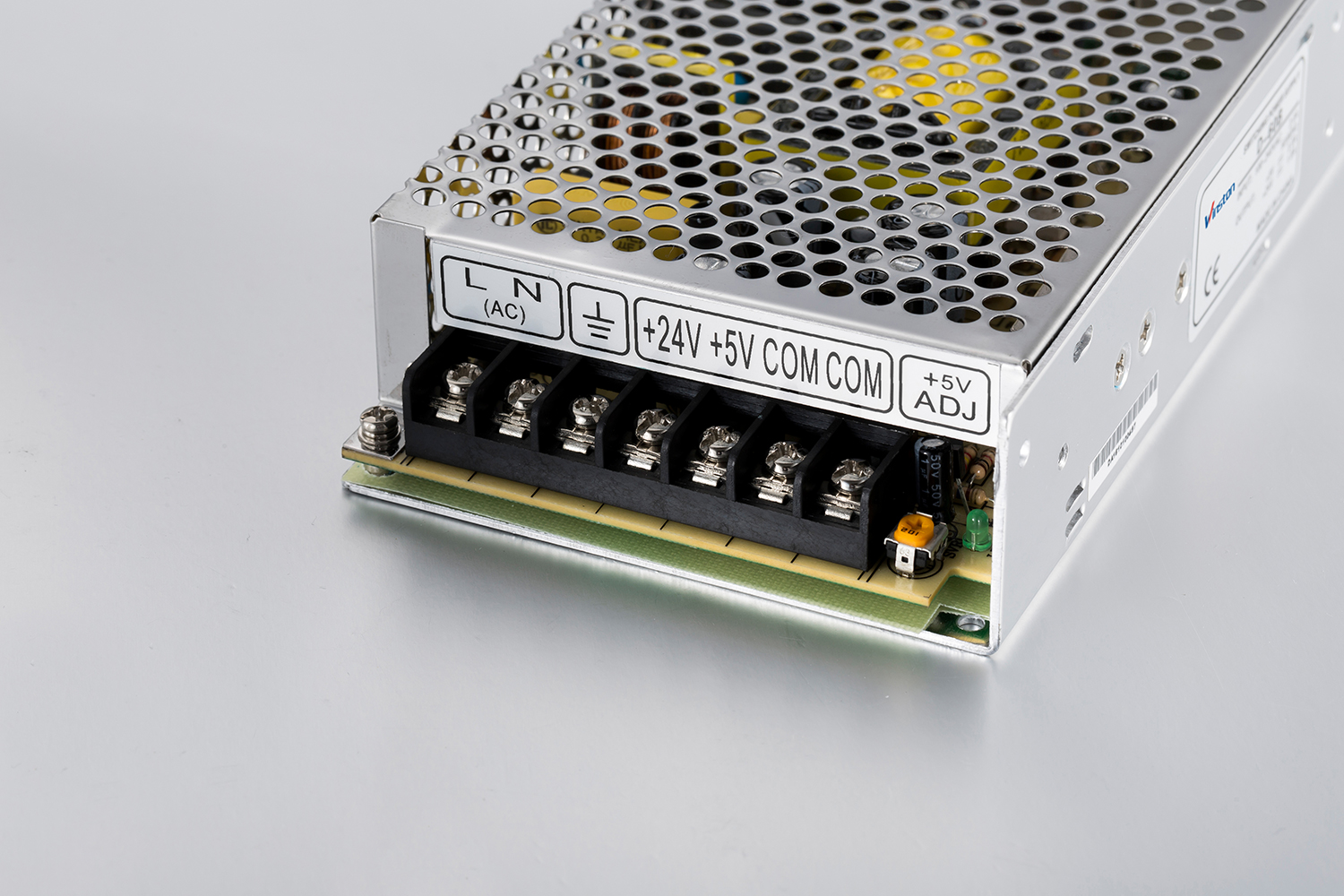

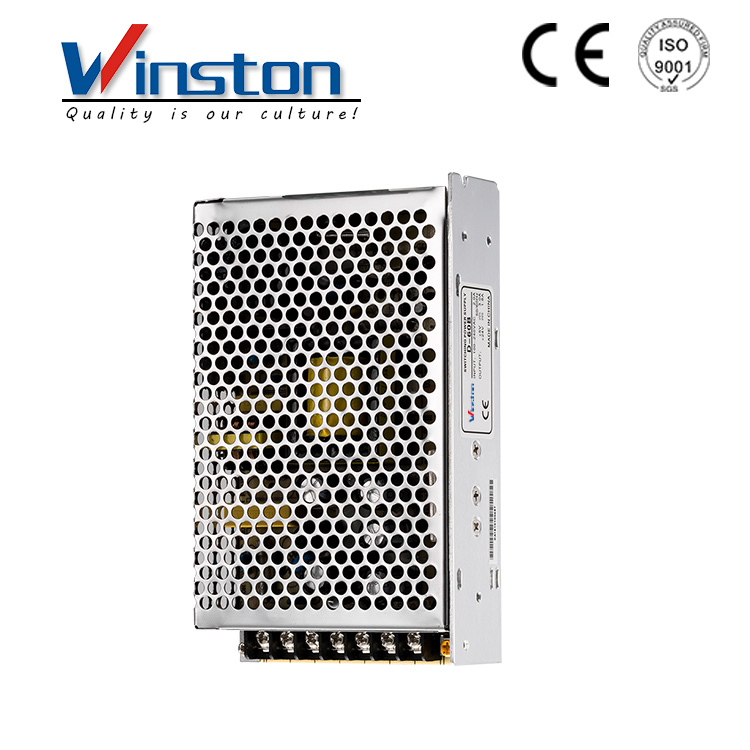

Name: D-60 60W Dual Output Switching Power Supply
Brand: Winston
SKU: 01990
Rating: 4.1 (1045 reviews)

D-60 60W Dual Output Switching Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

OUTPUT
Model	D-60A		D-60B		D-60C
Output number	CH1	CH2	CH1	CH2	CH1	CH2
DC Voltage	5V	12V	5V	24V	15V	-15V
Rated Current	4A	3A	2A	2A	2.5A	2.5A
Current Range	0.3-6A	0.2-3A	0.3-2A	0.2-2A	0.3-3A	0.2-3A
Rated Power	56W		58W		75W
Ripple & Noise	75mVp-p	150mVp-p	75mVp-p	150mVp-p	75mVp-p	150mVp-p
Voltage Adj. Range	CH1: -5%,+10%		CH1: -5%,+10%		CH1: -5%,+10%
Voltage Tolerance	±2%	±6%	±2%	±5%	±2%	±5%
Setup,Rise,Hold Up Time	800ms,50ms,10ms/115VAC300ms,50ms,80ms/230VACat full load
INPUT
Voltage Range	85~132VAC/170~264VACselected by switch47~63Hz; 240~370VDC
AC Current	2A/115V1A/230V
Efficiency	73%		76%		78%
Inrush Current	Cold start 18A/115V 36A/230V
Leakage Current	<1mA/240VAC
PROTECTION
Over Load	105%~150%
	Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed
Over Voltage	115%~135%
	Protection type: hiccup mode, auto-recovery
ENVIRONMENT
Working Temp., Humidity	-10℃~+60℃; 20%~90%RH
Storage Temp., Humidity	-20℃~+85℃; 10%~95%RH
Temp. Coefficient	±0.03%/℃(0~50℃)
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage	I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
STANDARD
Safety Standard	Design refer to UL1012, UL60950,EN60950
EMC Standard	Design refer to EN55022(CLSPR22),EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024
OTHERS

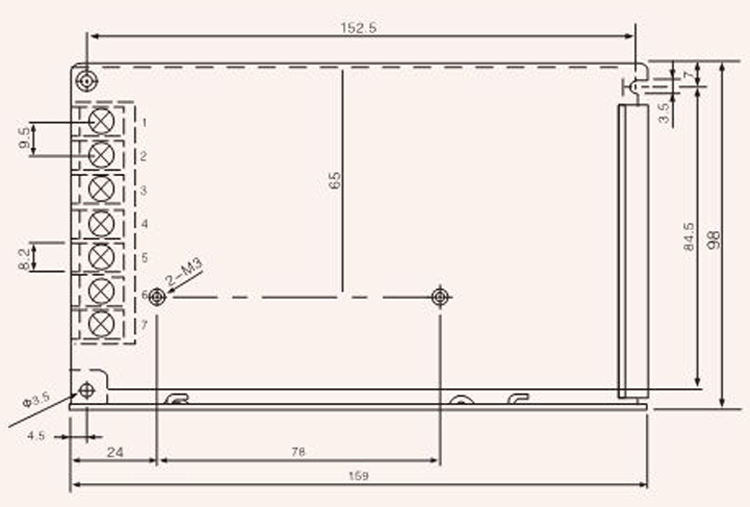

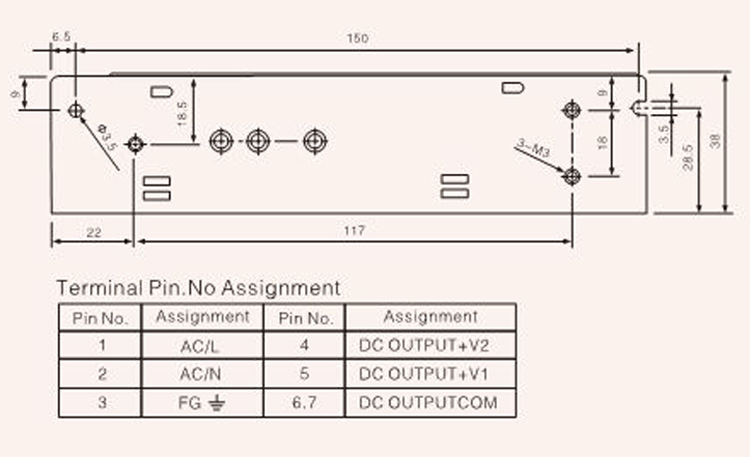

Dimension	1599738mm(LWH)
Weight	0.54Kg
Packing	24pcs/13.8Kg/0.75CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1μ &47μparallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a finalequipment. The final equipment must be re-confirmed that it still meets EMC directives.
