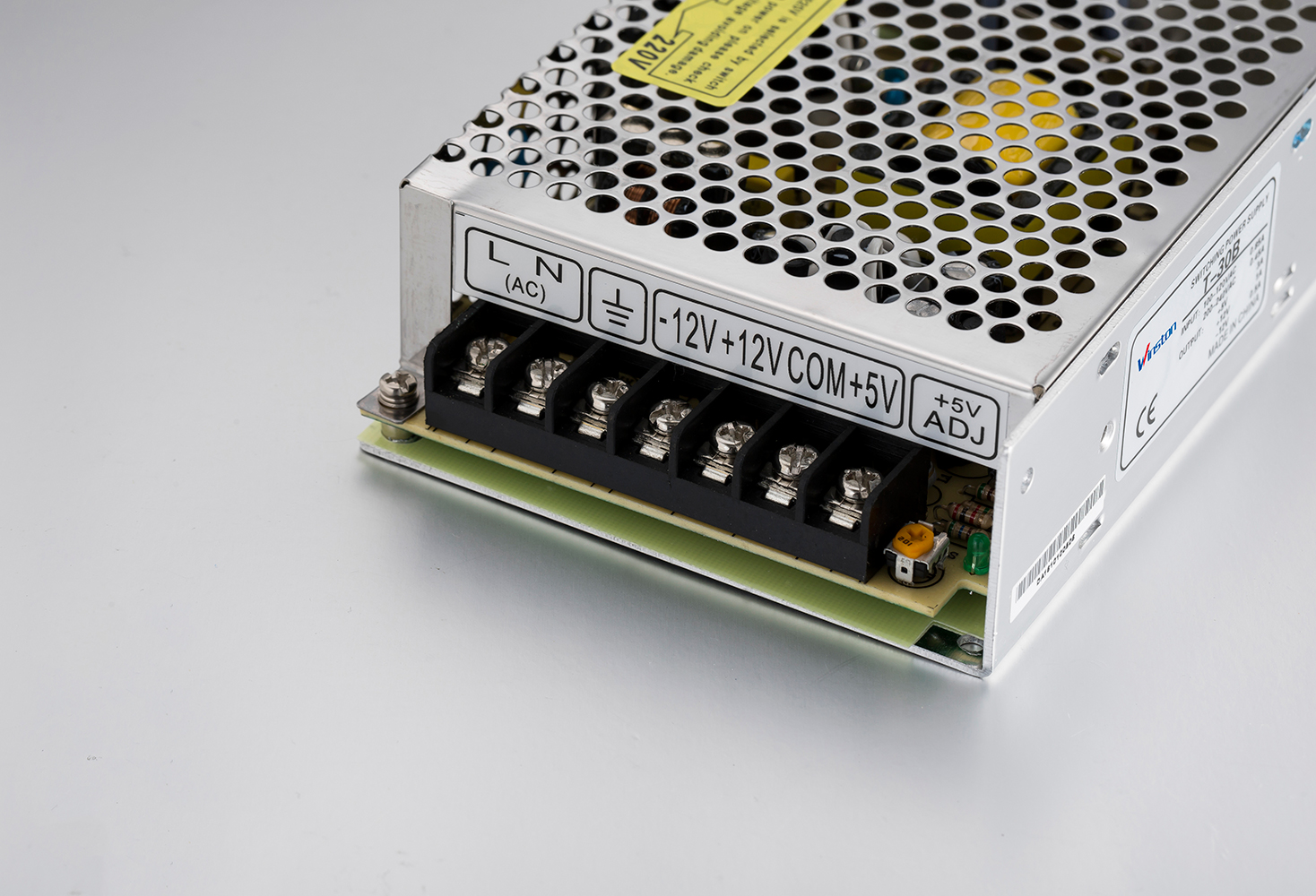

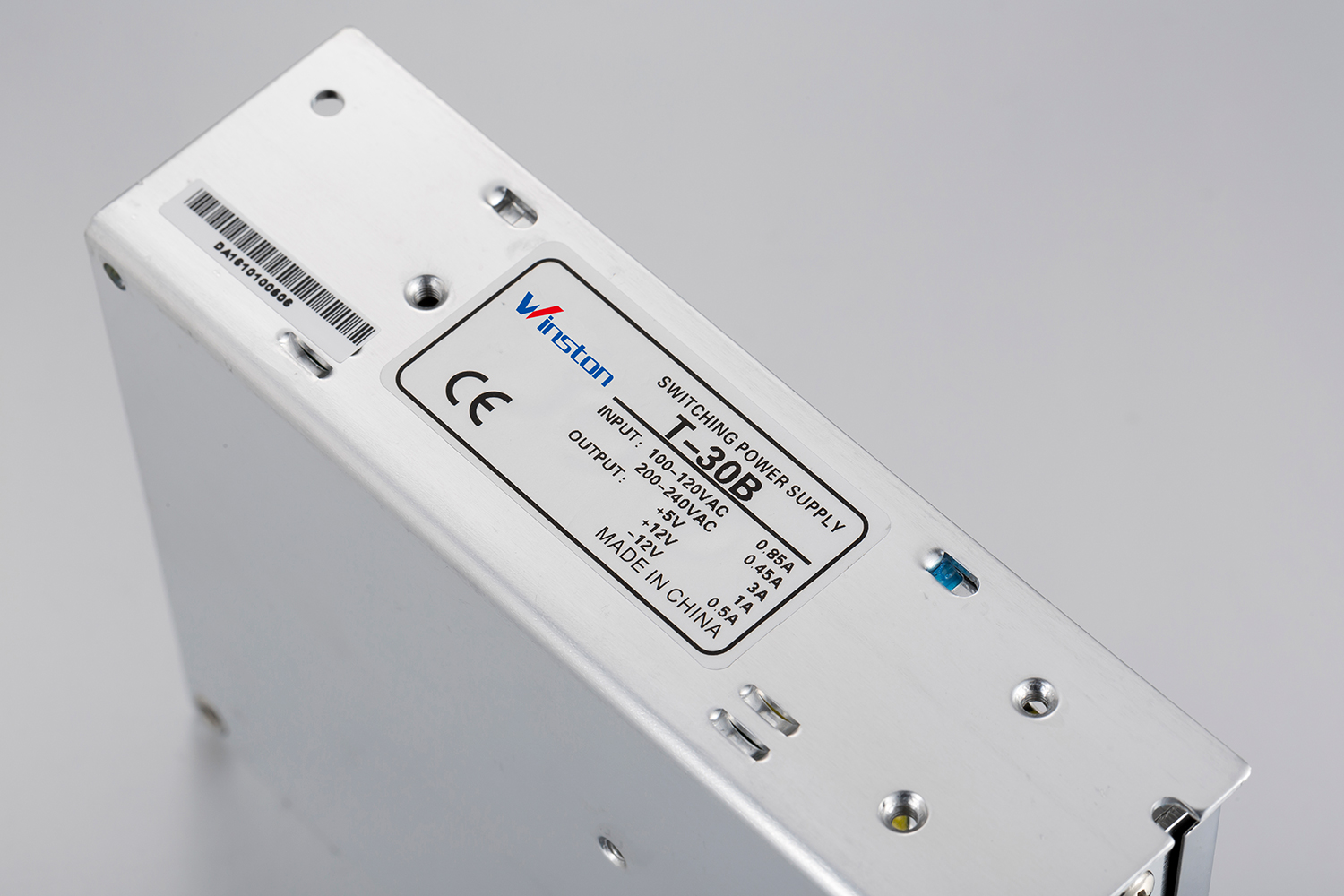

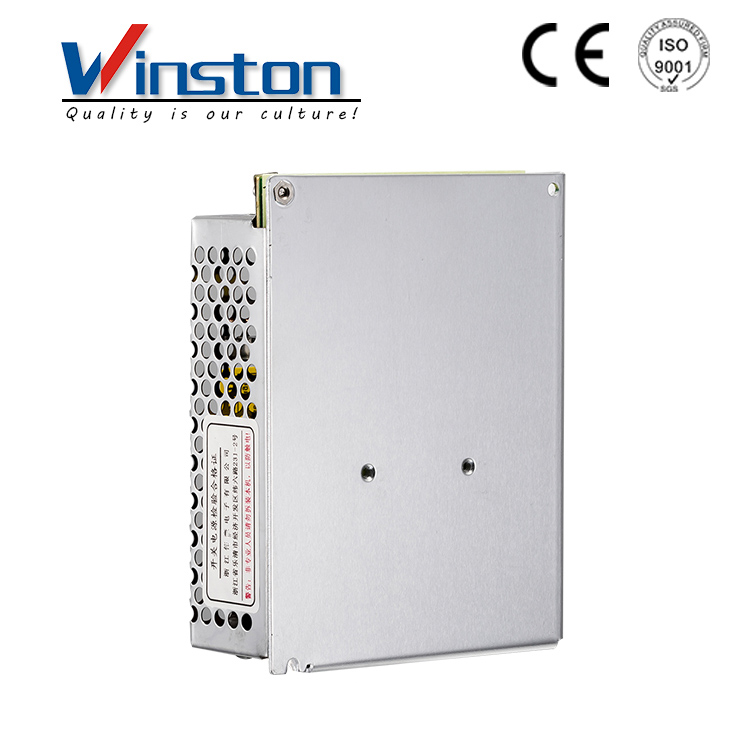

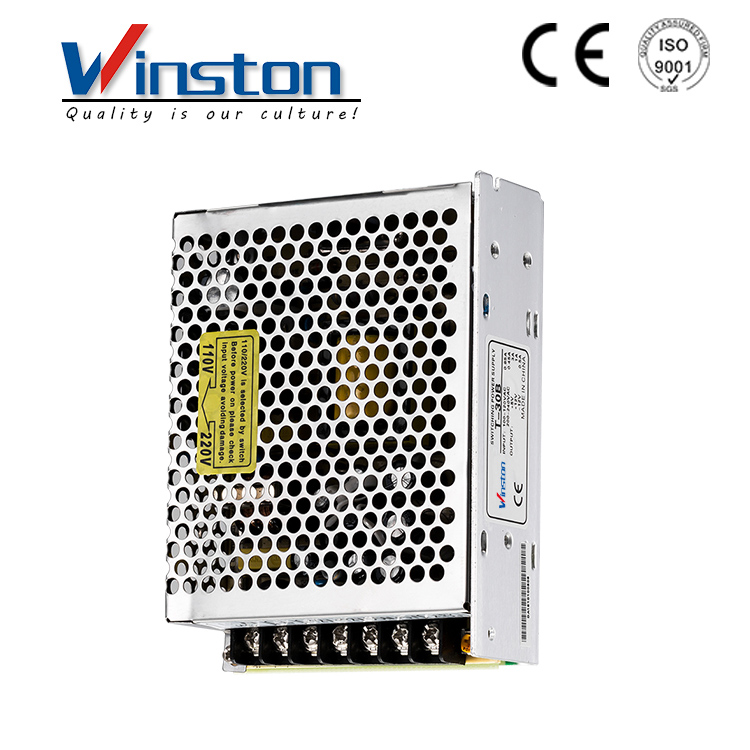

T-30 30W Triple Output Switching Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

High efficiency, high reliability, low cost

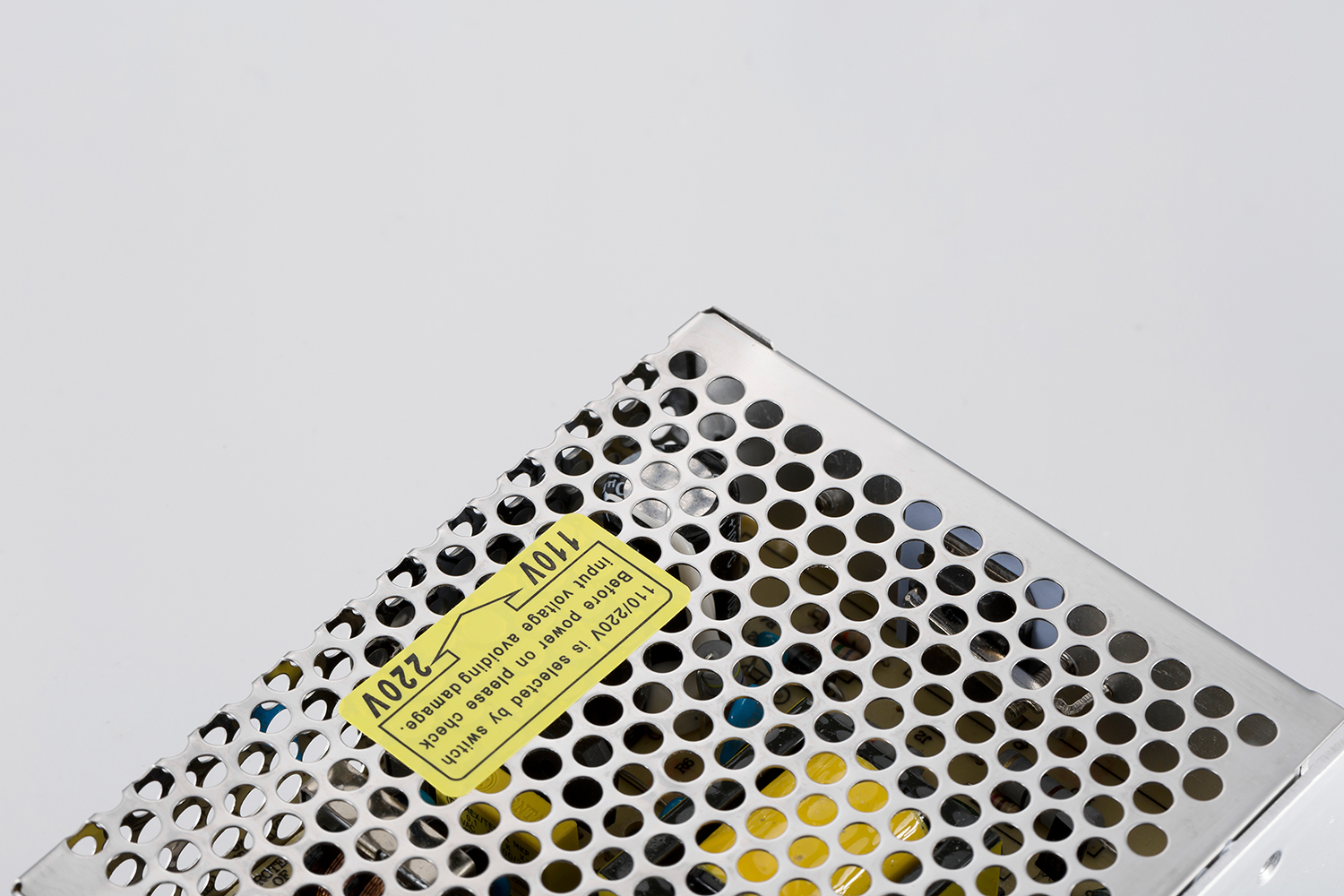

AC input range selected by switch
Protections: Short circuit/ Over load
Cooling by free air convection
LED indicator for power on
Fixed switching frequency at 23KHz
3 years warranty

MODEL

T-30A

T-30B

T-30C

T-30D

DC VOLTAGE

5V

12V

-5V

5V

12V

-12V

5V

15V

-15V

5V

12V

24V

RATED CURRENT

0~
3A

0~
1A

0~
0.5A

0~
3A

0~1A

0~
0.5A

0.5~
3A

0~
0.5A

0.1-0.5A

0.5~
3A

0.1~
0.5A

0.1~
0.5A

RIPPLE&NOISE

50m
Vp-p

100m
Vp-p

50m
Vp-p

50m
Vp-p

100m
Vp-p

100m
Vp-p

50m
Vp-p

100m
Vp-p

100m
Vp-p

50m
Vp-p

100m
Vp-p

150m
Vp-p

EFFICIENCY

70%

72%

72%

72%

ADJUSTABLE
RANGE FOR DC VOLTAGE

±10%

±5%

±5%

±10%

±5%

±5%

±10%

±5%

±5%

±10%

±5%

±5%

LINE REGULATION

±0.5%

±1%

±1%

±0.5%

±0.5%

±1%

±0.5%

±1%

±1%

±0.5%

±1%

±1%

LOAD REGULATION

±0.5%

±5%

±5%

±0.5%

±5%

±5%

±1%

±4%

±4%

±1%

±4%

±4%

SETUP,RISE,HOLD
UP TIME

200ms,100ms,30ms/230VAC at full load

VOLTAGE
RANGE

90-132VAC/180-264VDC by switch 254-370VDC

FREQUENCY
RANGE

47-63HZ

IMPACT CURRENT

Cold start current 18A/115VAC 36A/230VAC

OVERLOAD
PROTECTION

105-150% cut offtheoutput, automatic recovery

OVER VOLTAGE PROTECTION

CH1:115-135% shut down O/P voltage ,re-power on to recover.

WORKING TEMP

-10~ +50°C

WITHSTAND
VOLTAGE

I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

ISOLATION
RESISTANCE

I/P-O/P,I/P-FG,O/P-FG:500VDC/100M Ohms

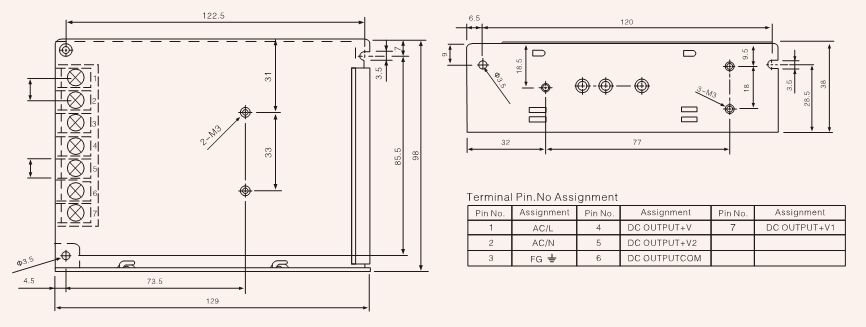

DIMENSION

129*98*38mm

WEIGHT

0.4kg

PACKING

43*32.5*24cm/45pcs18kg
