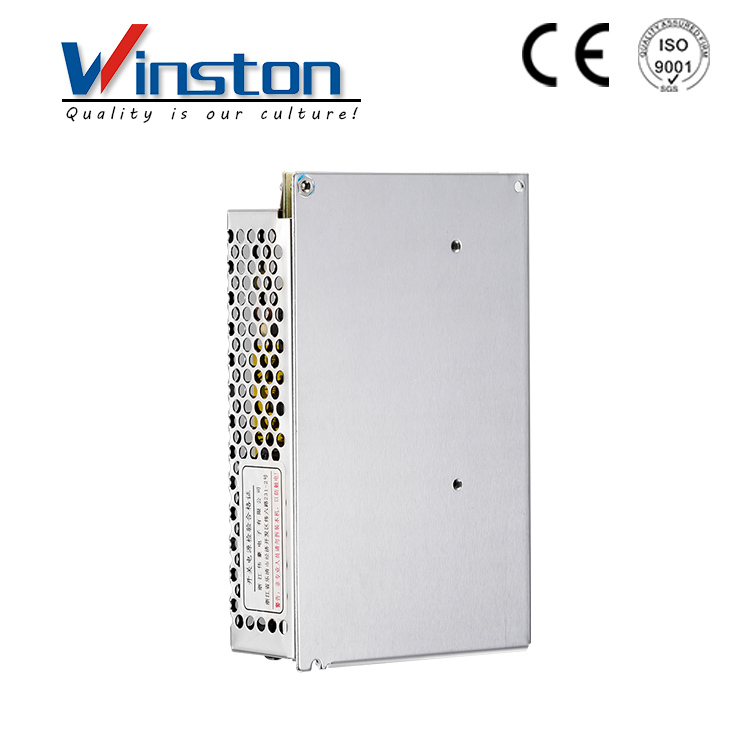

Name: T-60 60W Triple Output Switching Power Supply
Brand: Winston
SKU: 01997
Rating: 4.9 (1049 reviews)

T-60 60W Triple Output Switching Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Model Specification	T-60A			T-60B			T-60C
Model Specification	CH1	CH2	CH3	CH1	CH2	CH3	CH1	CH2	CH3
DC output voltage	5V	12V	-5V	5V	12V	-12V	5V	15V	-15V
Output voltage error (Note:2)	±2%	±6%	±6%	±2%	±6%	±6%	±2%	±6%	±6%
Rated output current	5A	2.5A	0.5A	5A	2.5A	0.5A	5A	2.5A	0.5A
Output current rage	0.5-7A	0.2-3.5A	0-0.1A	0.5-7A	0.2-3.5A	0-0.1A	0.5-7A	0.2-3.5A	0-0.1A
Wave and noise(Note ：3）	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(Note ：4）	±0.5%	±1%	±0.5%	±0.5%	±1%	±0.5%	±0.5%	±1%	±0.5%
DC output power	57.5W			61W			62.5W
Efficiency	72%			72%			72%
Adjustable range for DC voltage	CH1;+10,-5%			CH1:+10,-5%			CH1:+10,-5%
AC input voltage range	85-264VAC 47-63Hz；120-370VDC
Input current	2A/115V 1A/230A
AC INnrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<1mA/240VAC
Overload proctection	105%-150%Type:Foldback:current limiting reset:auto recovery
Over-voltage protection	CH1:5.75-6.75V
High-temperature protection	…………
Temperature coefficient	±0.03%/℃（0-50℃）ON+5V
Setup rise hold up time	800ms,50ms,10ms/115VAC 300ms.50ms,80ms/230VAC
Vibration	10-500Hz,2G 10min,/1cycle，Period for60min，Each axes
Withstand voltage	Input and output internal：1.5KVAC,Input and enclosure：1.5KVAC,Output and enclosure：0.5KVAC
Isolation resistance	Input and output internal:Input and enclosure,Output and enclosure：500VDC/100MΩ
Working temperature and humidity	-10℃~+60℃（Refer to output derating curve），20%~90%RH
Store temperature and humidity	-20℃~+85℃。10%~95%RH

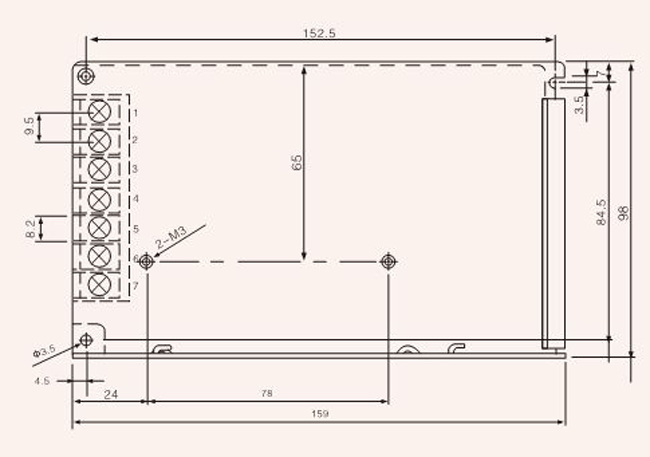

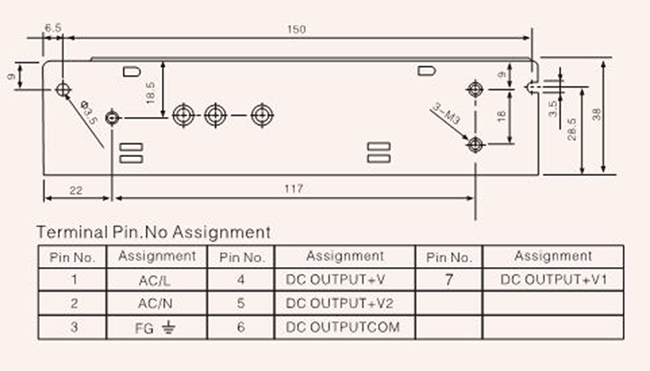

Overall dimension	159×97×38mm
Weight	0.56Kgs
Safety standards	UL 1012 TUV EN60950(IEC950,UL1950)
EMC standards	CISPR22(EN55022),class B,IEC801-2,-3,-4,IEC555-2 Verification
Note： 1.The testing condition for the paramenter above is :230VAC input,rated load,25℃70% RH.Humidity. 2.Error.include the setting error,line stability and load stability.(Note:5). 3.Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting. 4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage. 5.Load stability test:the load is from 0% to 100%. 6.Total output canbe maximum Current,total load can not exceed the maximum output power. 7.C₂₃must be knocked down.
