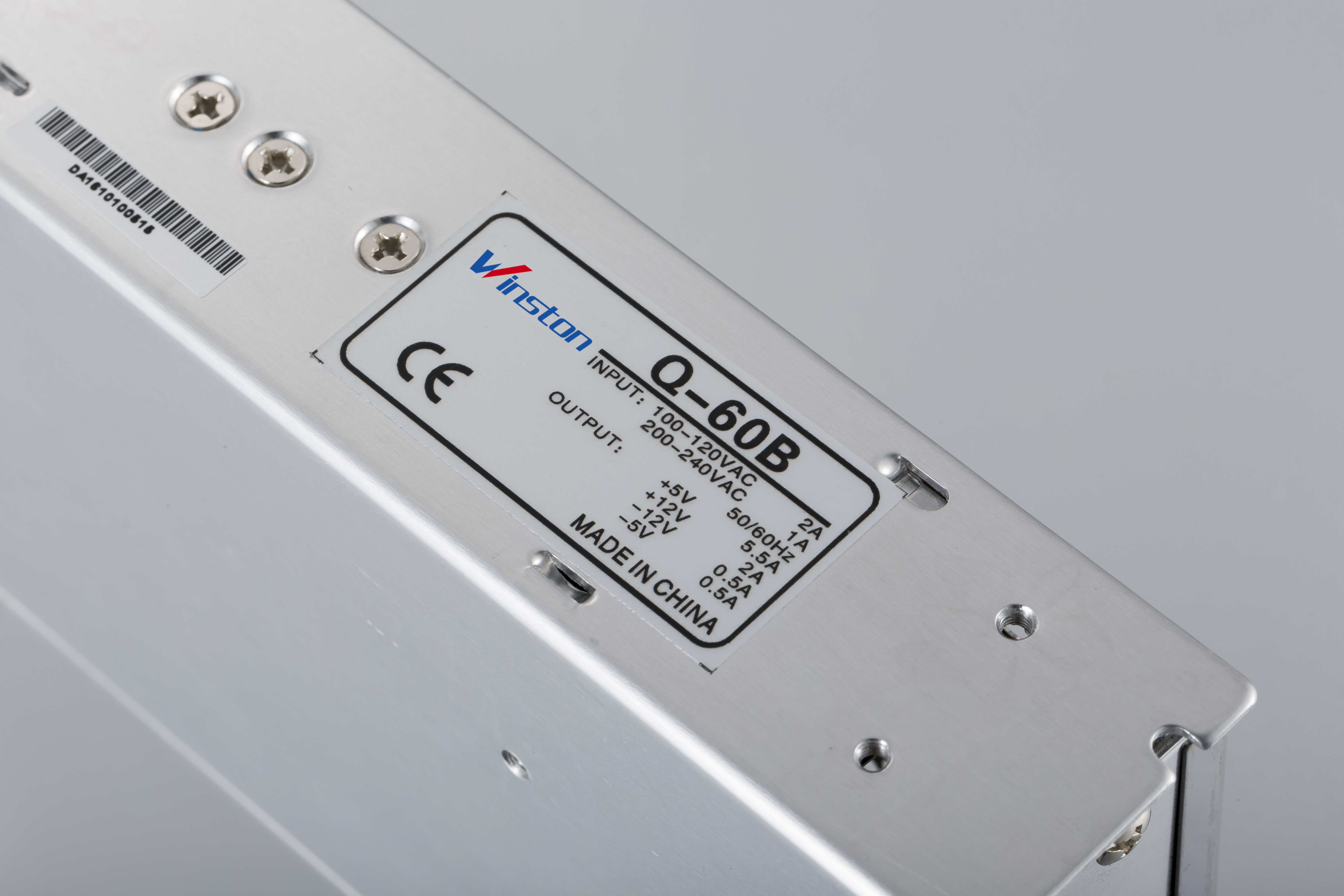

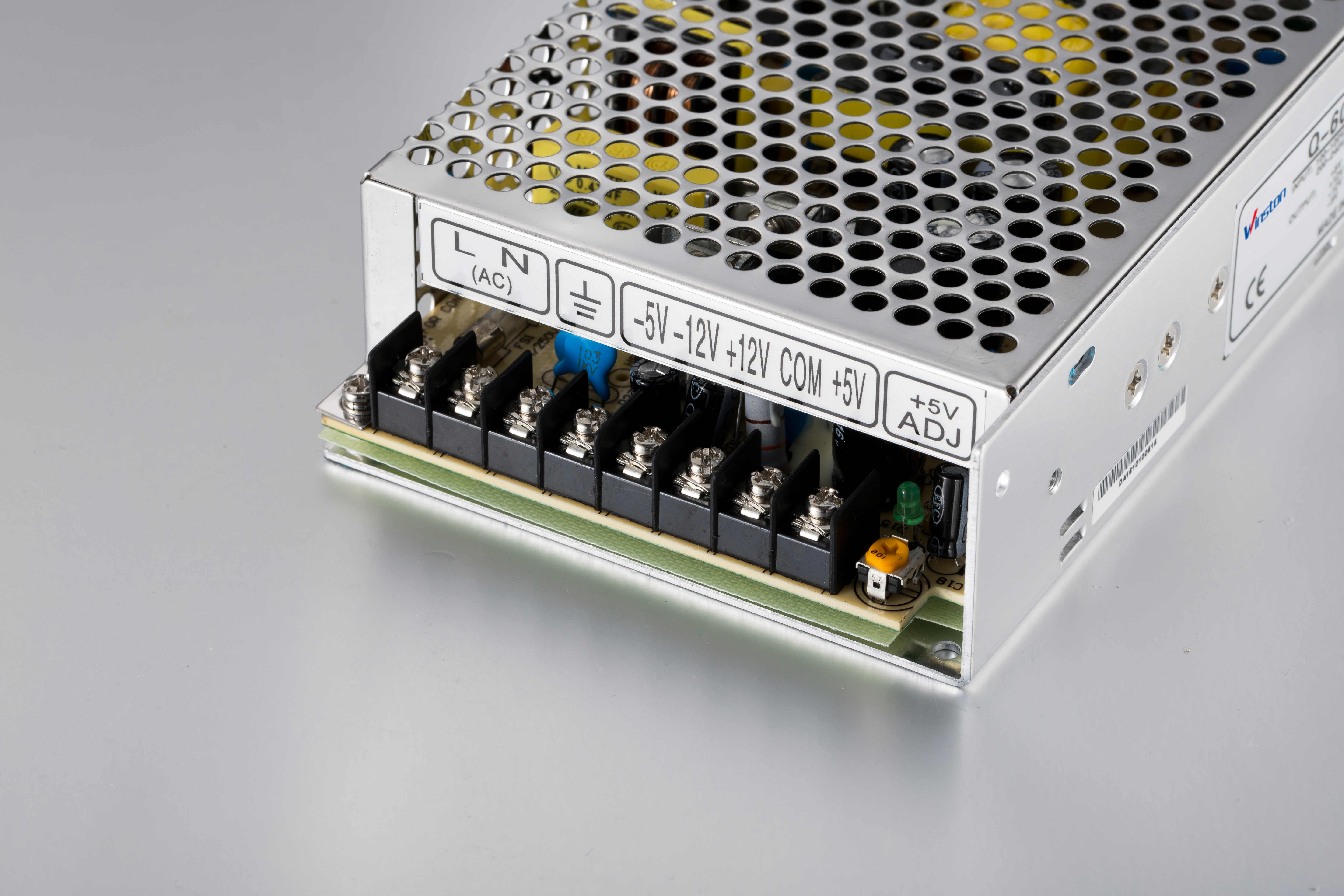

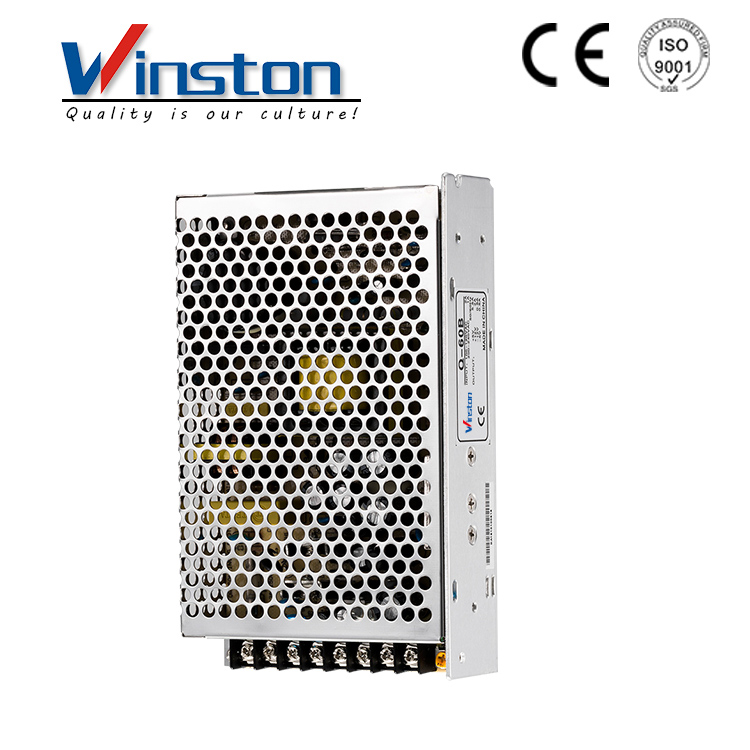

| OUTPUT | ||||||||||||
| Model | Q-60B | Q-60C | Q-60D | |||||||||
| Output number | CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH4 |
| DC Voltage | 5V | 12V | -5V | -12V | 5V | 15V | -5V | -15V | 5V | 12V | 24V | -12V |
| Rated Current | 5.5A | 2A | 0.5A | 0.5A | 5.5A | 1.5A | 0.5A | 0.5A | 4A | 1A | 1A | 0.5A |
| Current Range | 0.5-8A | 0.1-3A | 0-1A | 0-1A | 0.5-8A | 0.1-3A | 0-1A | 0-1A | 0.5-8A | 0.1-3A | 0.1-1.5A | 0-1A |
| Rated Power | 60W | 60W | 60W | 60W | 60W | 60W | 60W | 60W | 60W | 62W | 62W | 62W |
| Ripple & Noise | 100mVp-p | 120mVp-p | 100mVp-p | 120mVp-p | 100mVp-p | 120mVp-p | 100mVp-p | 120mVp-p | 100mVp-p | 120mVp-p | 150mVp-p | 120mVp-p |
| Voltage Adj. Range | CH1: -5%, +10% | CH1: -5%, +10% | CH1: -5%, +10% | |||||||||
| Voltage Tolerance | ±2% | ±6% | ±5% | ±5% | ±2% | 8% -4% | ±5% | ±5% | ±2% | ±6% | 8% -4% | ±5% |
| Setup,Rise,Hold Up Time | 1600ms,20ms,12ms/115VAC800ms,20ms, 60ms/230VAC at full load | |||||||||||
| INPUT | ||||||||||||
| Voltage Range | 85~264VAC47-63Hz; 120~370VDC | |||||||||||
| AC Current | 2A/115V0.8A/230V | |||||||||||
| Efficiency | 70% | 72% | 75% | |||||||||
| Inrush Current | Cold start 18A/115V36A/230V | |||||||||||
| Leakage Current | <1mA/240VAC | |||||||||||
| PROTECTION | ||||||||||||
| Over Load | 105%~150%/115VAC | |||||||||||
| Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed | ||||||||||||
| Over Voltage | 5V:115%~135% | |||||||||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||||||||||||
| ENVIRONMENT | ||||||||||||
| Working Temp., Humidity | -10℃~+60℃; 20%~90%RH | |||||||||||
| Storage Temp., Humidity | -20℃~+85℃; 10%~95%RH | |||||||||||
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | |||||||||||
| SAFETY | ||||||||||||
| Withstand Voltage | I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC | |||||||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | |||||||||||
| STANDARD | ||||||||||||
| Safety Standard | Design refer to UL60950 | |||||||||||
| EMC Standard | Design refer to EN55022,EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204 | |||||||||||
| OTHERS | ||||||||||||

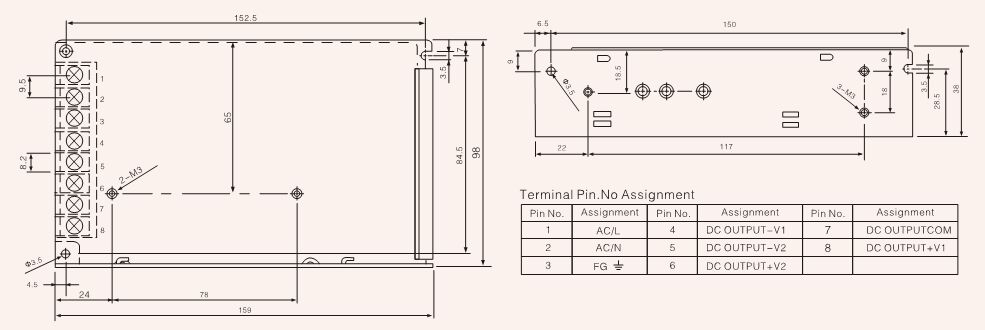

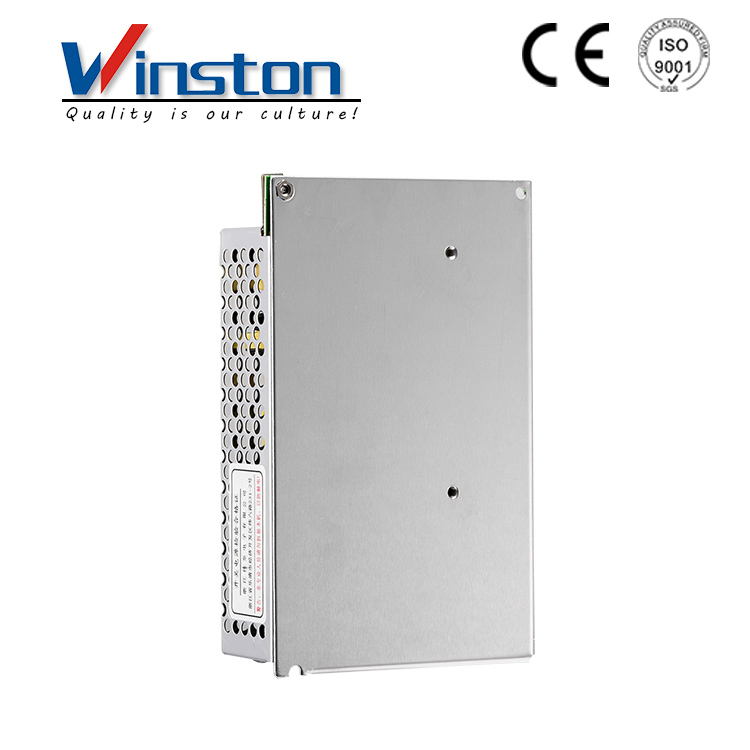

| Dimension | 159*97*38mm(L*W*H) | |||||||||||
| Weight | 0.56Kg | |||||||||||
| Packing | 24pcs/14.4Kg/0.75CUFT | |||||||||||
| NOTE | ||||||||||||
| 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1μ &47μparallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
||||||||||||
