| MODEL | T-120A |
T-120B |
T-120C |
T-120D |
||||||||
DC VOLTAGE |
5V |
12V |
-5V |
5V |
12V |
-12V |
5V |
15V |
-15V |
5V |
12V |
24V |
RATED CURRENT |
2~11A |
0.5~5A |
0.2~1A |
2~11A |
0.5~ 4.5A |
0.2~1A |
2~10A |
0.5~ 3.5A |
0.1-1A |
2~12A |
0.2~ 0.5A |
0.2~ 2A |
RIPPLE&NOISE |
80m Vp-p |
150m Vp-p |
150m Vp-p |
80m Vp-p |
150m Vp-p |
150m Vp-p |
80m Vp-p |
150m Vp-p |
150m Vp-p |
80m Vp-p |
120m Vp-p |
180m Vp-p |
EFFICIENCY |
77% |
77% |
76% |
80% |
||||||||
| ADJUSTABLE RANGE FOR DC VOLTAGE |
±10% |
±5% |
±5% |
±10% |
±5% |
±5% |
±10% |
±5% |
±5% |
±10% |
±5% |
±5% |
LINE REGULATION |
±0.5% |
±1% |
±1% |
±0.5% |
±1% |
±1% |
±0.5% |
±1% |
±1% |
±0.5% |
±1% |
±1% |
LOAD REGULATION |
±1% |
±5% |
±5% |
±1% |
±5% |
±5% |
±1% |
±6% |
±6% |
±0.5% |
±5% |
±5% |
SETUP,RISE,HOLD UP TIME |
200ms,50ms,16ms/230VAC at full load |
|||||||||||
VOLTAGE RANGE |
90-132VAC/180-264VAC by switch 254~370VDC |
|||||||||||
FREQUENCY RANGE |
47-63HZ |
|||||||||||
IMPACT CURRENT |
Cold start current 30A/115VAC 60A/230VAC |
|||||||||||
OVERLOAD PROTECTION |
105-150% cut offtheoutput, automatic recovery |
|||||||||||
OVER VOLTAGE PROTECTION |
CH1:115-135% shut down O/P voltage ,re-power on to recover. | |||||||||||
WORKING TEMP |
-10~ +50°C |
|||||||||||
WITHSTAND VOLTAGE |
I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute |
|||||||||||
ISOLATION RESISTANCE |
I/P-O/P,I/P-FG,O/P-FG:500VDC/100M Ohms |
|||||||||||

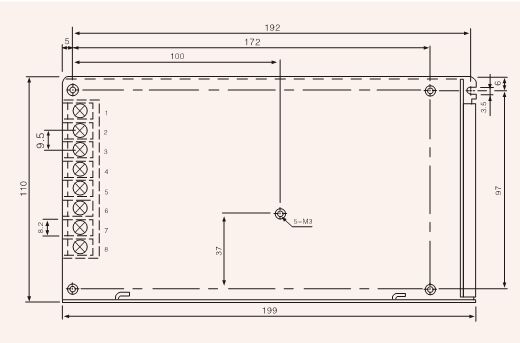

DIMENSION |
199*110*50mm |
|||||||||||
WEIGHT |
0.9kg |
|||||||||||
PACKING |
42*31.5*26cm/20pcs/18kg | |||||||||||
