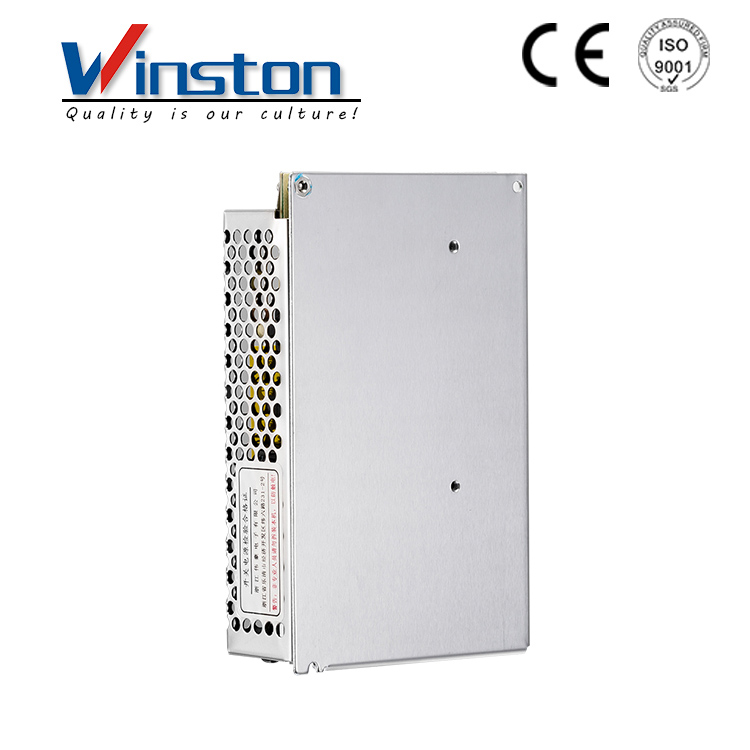

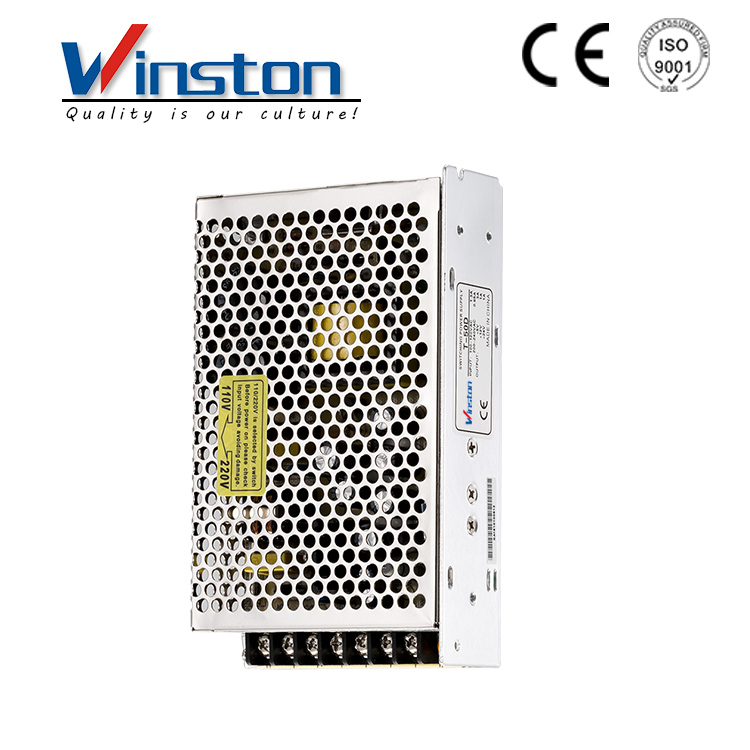

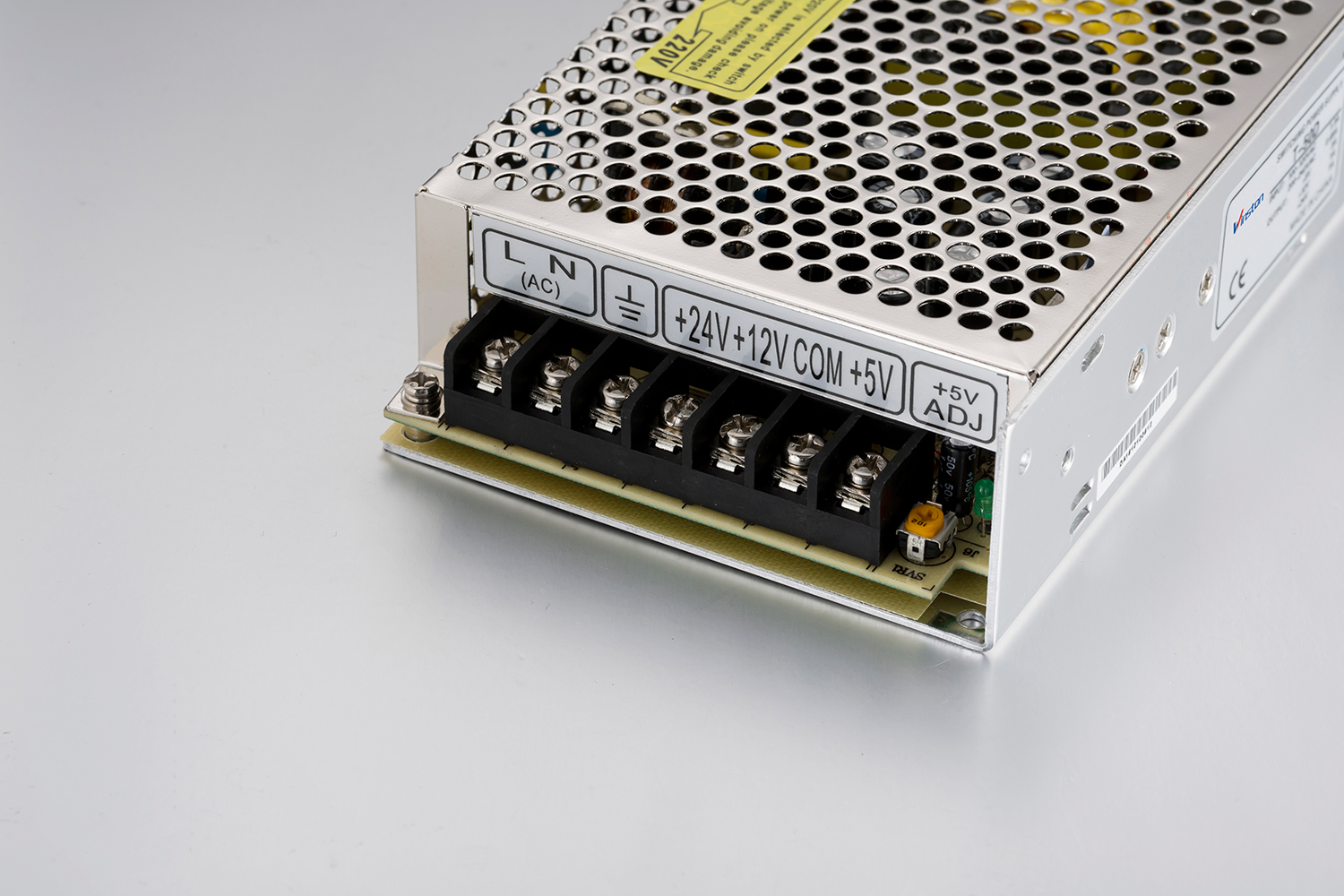

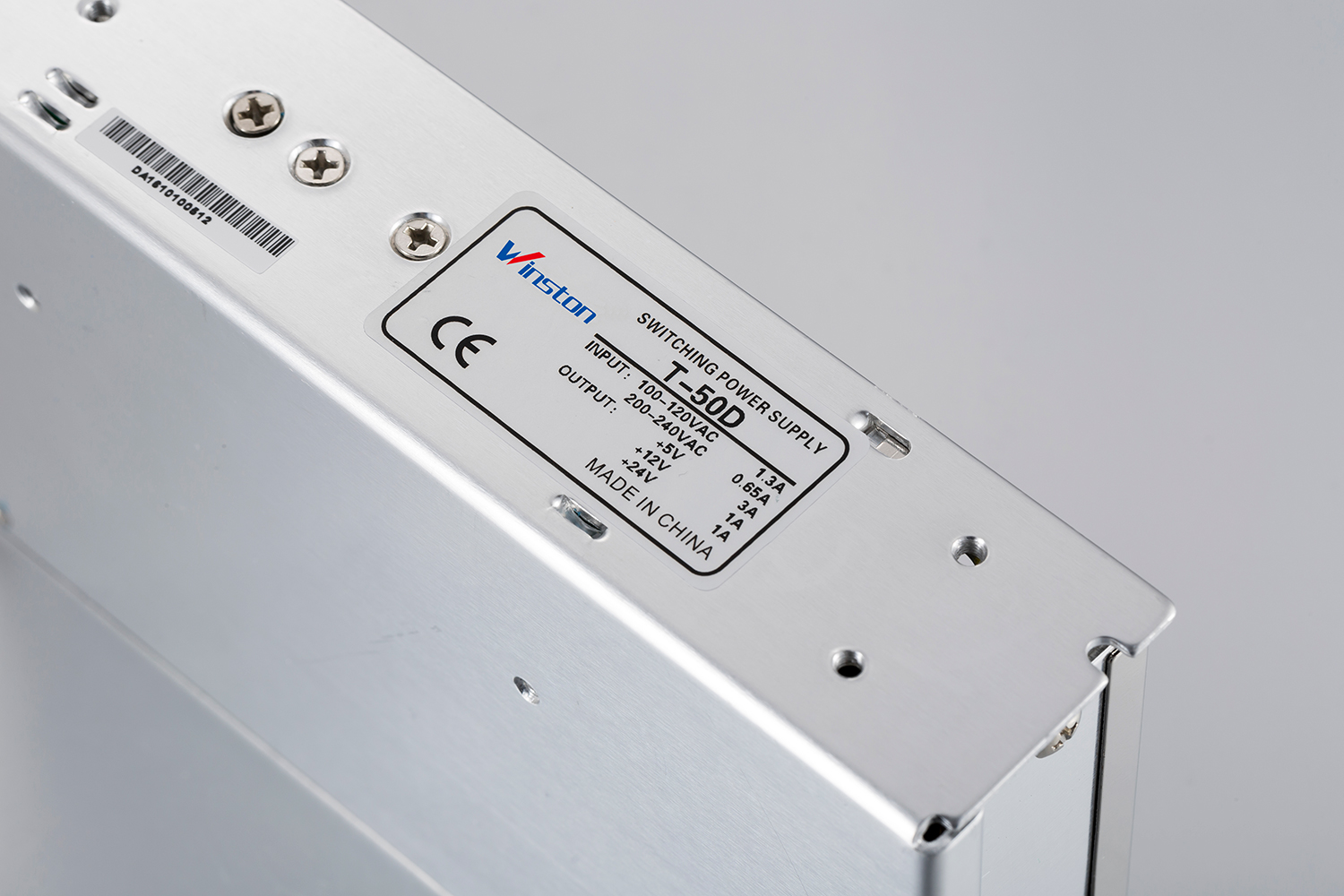

T-50 50W Triple Output Switching Power Supply

OUTPUT

Model

T-50A

T-50B

T-50C

T-50D

Output number

CH1

CH2

CH3

CH1

CH2

CH3

CH1

CH2

CH3

CH1

CH2

CH3

DC Voltage

5V

12V

-5V

5V

12V

-12V

5V

15V

-15V

5V

12V

24V

Rated Current

7A

1A

1A

5A

1A

1A

4A

1A

1A

3A

1A

1A

Current Range

0.6-7A

0.2-1A

0.2-1A

0.6-5A

0.2-1A

0.2-1A

0.6-4A

0.2-1A

0.2-1A

0.6-4A

0.2-1.2A

0.2-1.2A

Rated Power

52W

52W

52W

49W

49W

49W

50W

50W

50W

51W

51W

51W

Ripple & Noise

100mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

50mVp-p

120mVp-p

100mVp-p

Voltage Adj. Range

CH1: -5%, +10%

CH1: -5%, +10%

CH1: -5%, +10%

CH1: -5%, +10%

Voltage Tolerance

±2%

±5%

±5%

±2%

±5%

±5%

±2%

±5%

±5%

±2%

±6%

±6%

Setup,Rise,Hold Up Time

200ms,100ms,16ms at full load

INPUT

Voltage Range

85~132VAC/170~264VACselected by switch 47-63Hz; 240~370VDC

AC Current

1.6A/115V0.8A/230V

Efficiency

66%

69%

71%

72%

Inrush Current

Cold start 20A/115V40A/230V

Leakage Current

<0.5mA/240VAC

PROTECTION

Over Load

105%~150%

Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed.

ENVIRONMENT

Working Temp., Humidity

-10℃~+60℃; 20%~90%RH

Storage Temp., Humidity

-20℃~+85℃; 10%~95%RH

Vibration

10~500Hz, 2G 10min./1 cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

Design refer to UL1012

OTHERS

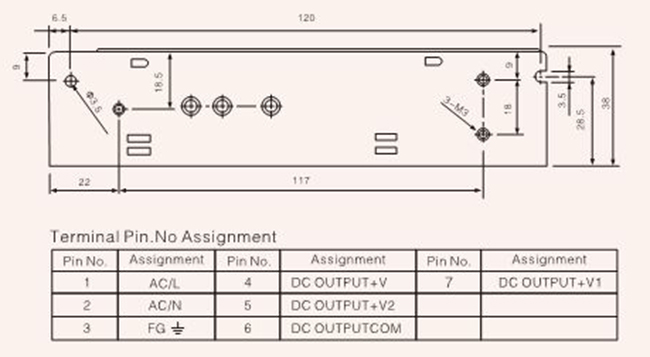

Dimension

159*97*38mm(L*W*H)

Weight

0.54Kg

Packing

24pcs/14Kg/0.75CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1μ &47μparallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation
