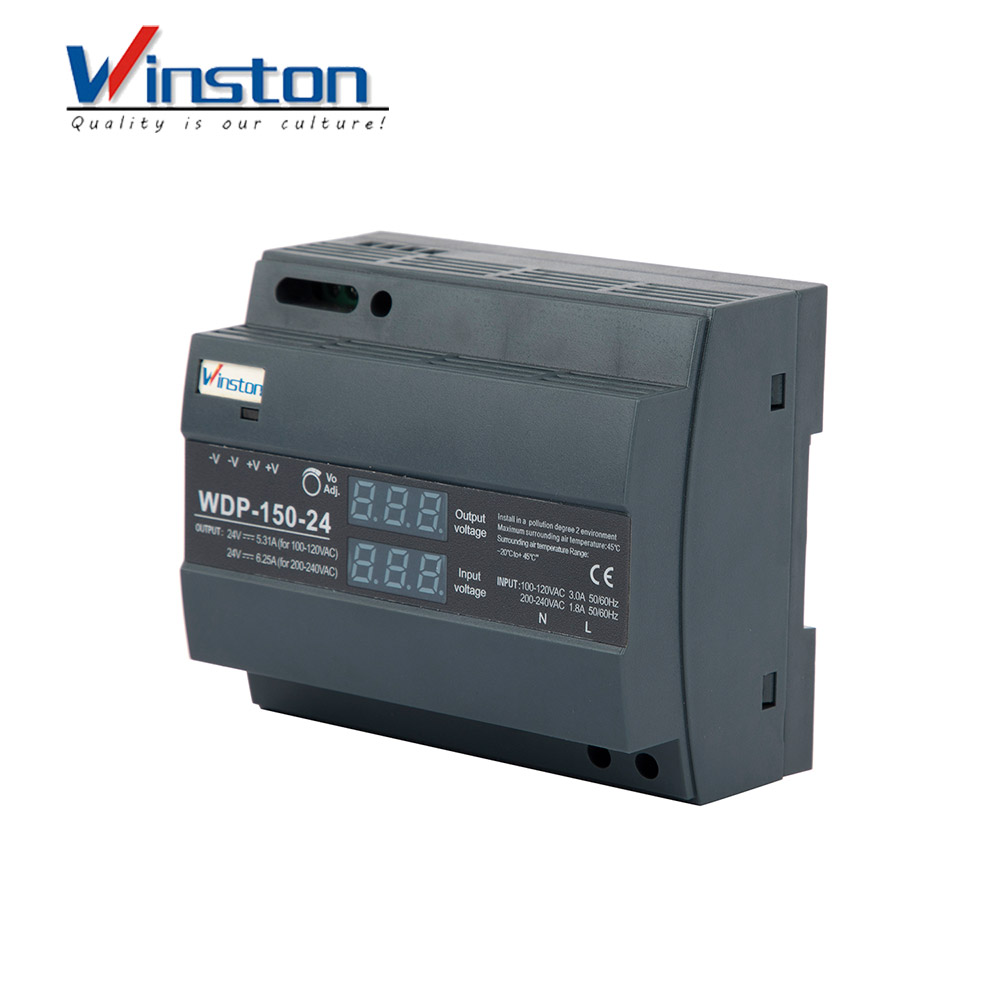

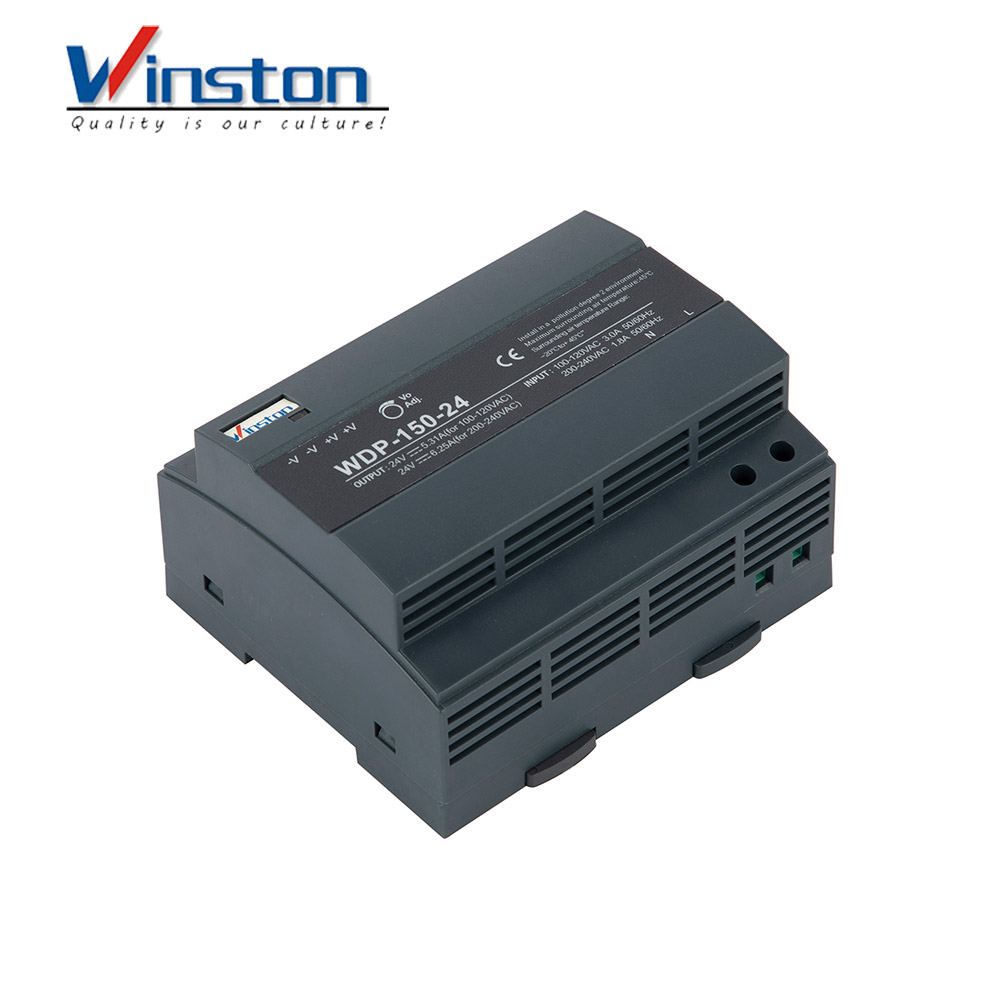

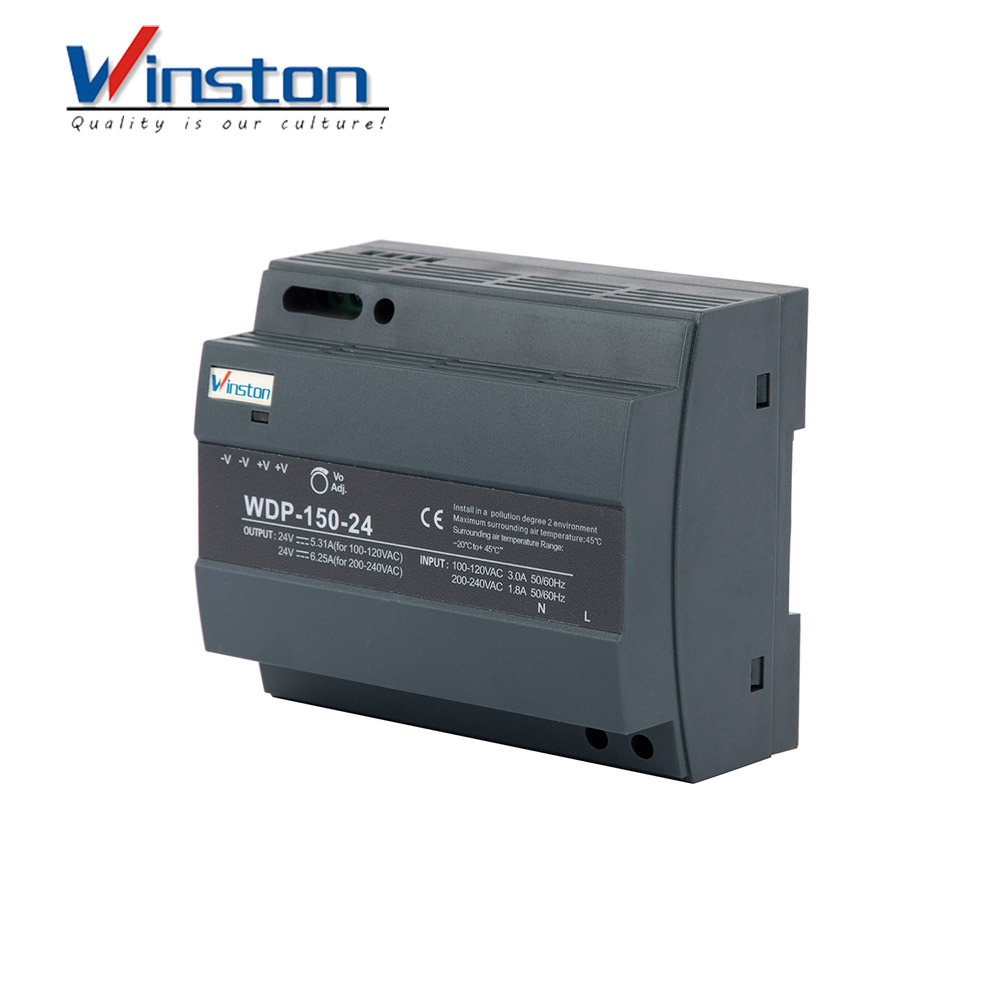

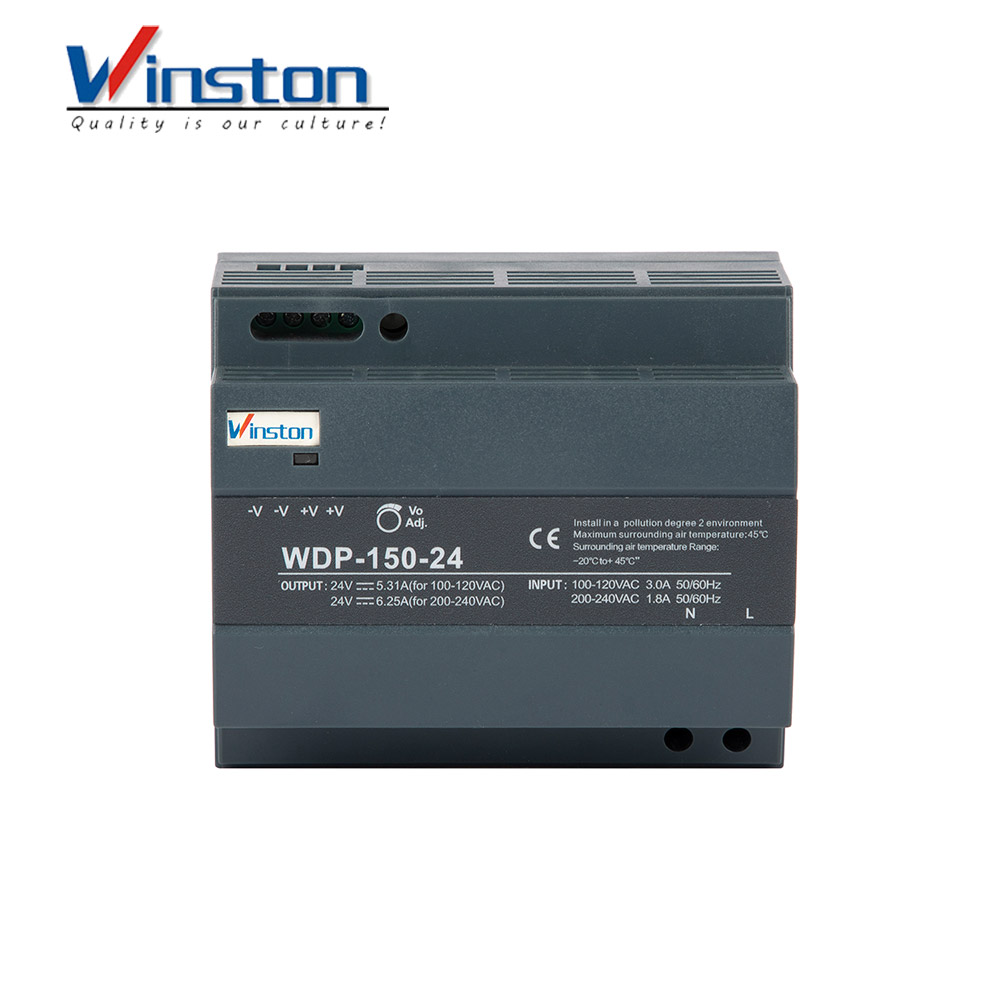

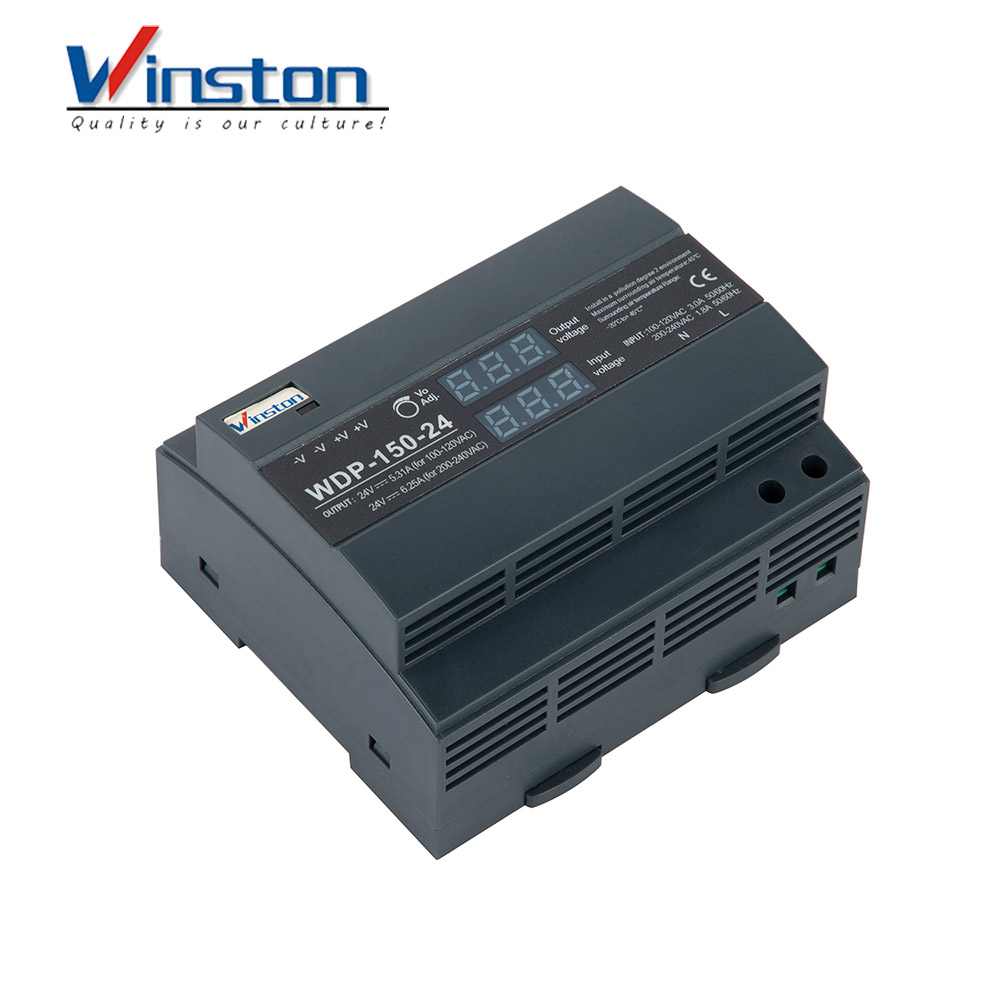

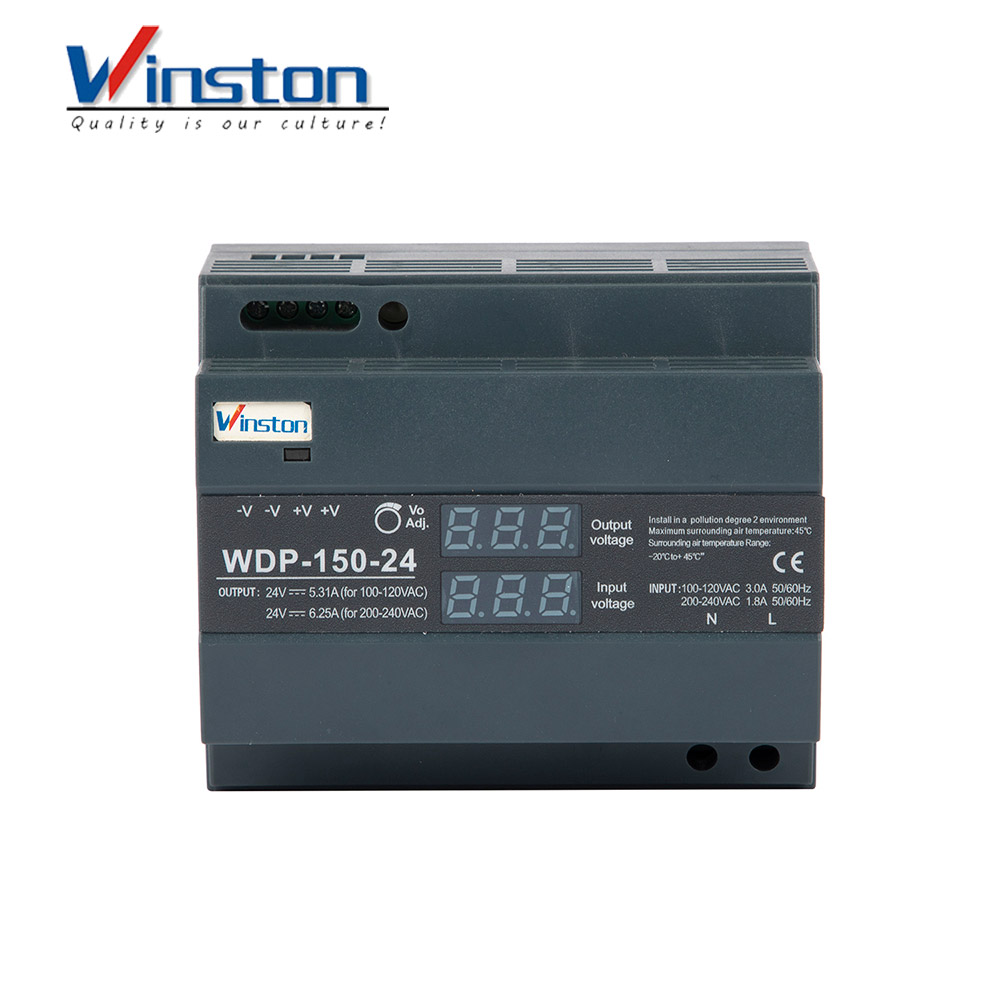

Name: WDP-150 150W Ultra-thin Rail Type Switching Power Supply
Brand: Winston
SKU: 03072
Rating: 4.1 (1586 reviews)

WDP-150 150W Ultra-thin Rail Type Switching Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

· Ultra-thin design, saving installation space

· Protection type: short circuit/overcurrent

· Working efficiency up to 88%

· 100% full load aging test

Technical parameter

Model		WDP-150-12	WDP-150-15	WDP-150-24	WDP-150-36	WDP-150-48
Output characteristic	Dc output voltage	12V	15V	24V	36V	48V
	Rated current 115VAC	10.2A	8.5A	5.3A	3.6A	2.7A
	Rated current 230VAC	11.3A	9.5A	6.2A	4.2A	3.2A
	Current range	0-11.3A	0-9.5A	0-6.2A	0-4.2A	0-3.2A
	Rated power 115VAC	120W	125W	125W	125W	130W
	Rated power 230VAC	135W	142W	150W	150W	150W
	Ripple & Noise(Max)	150mVp-p	150mVp-p	200mVp-p	220mVp-p	240mVp-p
	Voltage regulationr ange	10.9-13.2V	13.6-16.5V	21.8-26.4V	32.7-39.6V	43.6-52.8V
	Voltage accuracy	±1%	±1%	±1%	±1%	±1%
	Linear adjustmentr ate	±1%	±1%	±1%	±1%	±1%
	Load adjustment rate	±1%	±1%	±1%	±1%	±1%
	Start & rise time	2000mS，30mS1115VAC(Full load):1000mS，30mS/230VAC
	Holding time	30mS/230VAC(Full oad) 10mS/115VAC(Full load)
Input characteristic	Input voltage	85-264VAC 120-370VDC
