Technical data
|
Power circuit |
||
|
Voltage Rating(Ue) 1P, 2P |
250VAC |
|
|
3P, 4P |
400VAC |
|
|
Endurance(O-C) |
|
|
|
Electrical |
100000 cycles |
|
|
Maximum number of switching operation a day |
100 |
|
|
Additional characteristics |
||
|
Insulation voltage(Ui) |
500VAC |
|
|
Pollution degree |
2 |
|
|
Rated impulse withstand voltage(Uimp) |
2.5kV(4 kV for 12/24/48V AC) |
|
|
Degree of protection |
Device only |
IP20 |
|
Device in modular enclosure |
IP40 |
|
|
Tropicalization (IEC 60068-1) |
Treatment 2(relative humidity 95% at 55℃) |
|

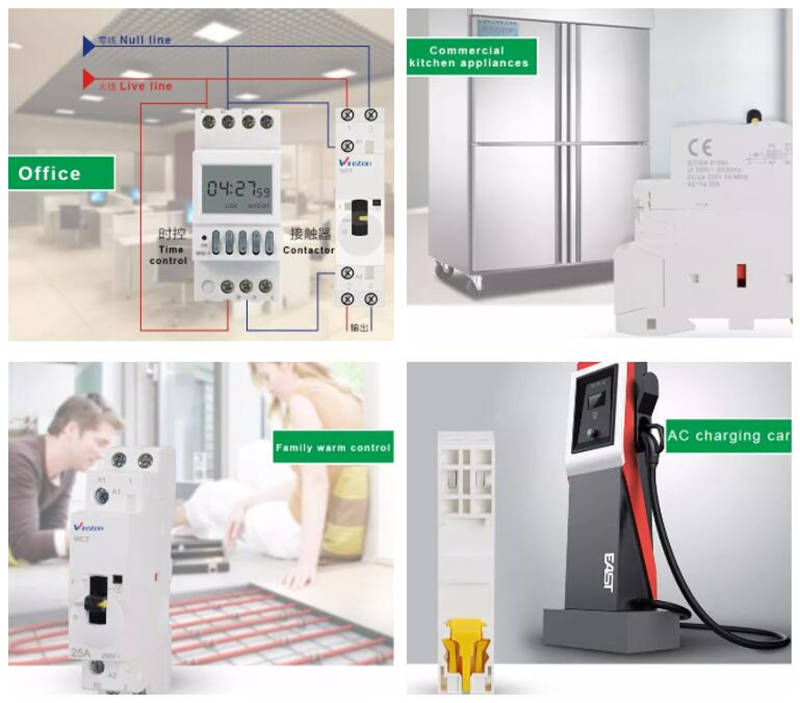

Application
Advantage
Attention
1. Confirm whether the product voltage, current, frequency and use category meet the requirements before use;
2. Connect the control circuit first for no-load operation test and then connect the load in case of no abnormality;
3. Regularly tighten the terminals and remove the deposited dust;
4. Don't make the foreign matters fall into the product

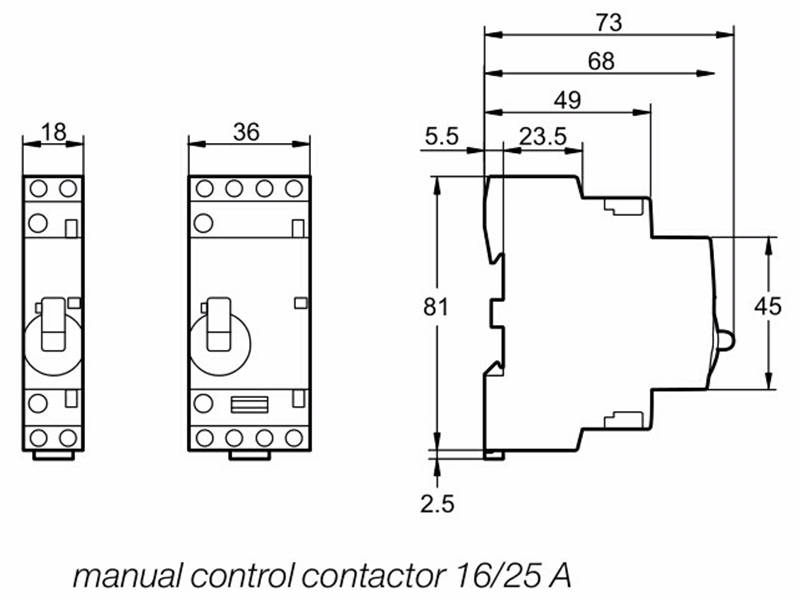

Dimension

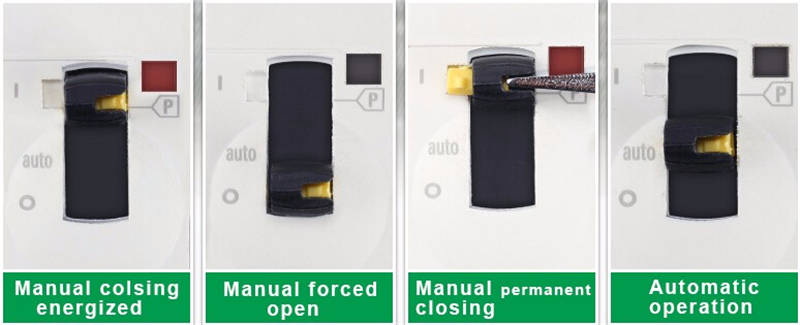

One of four gears manually

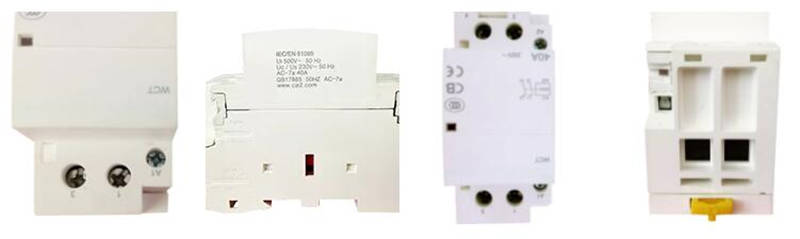

More pictures
