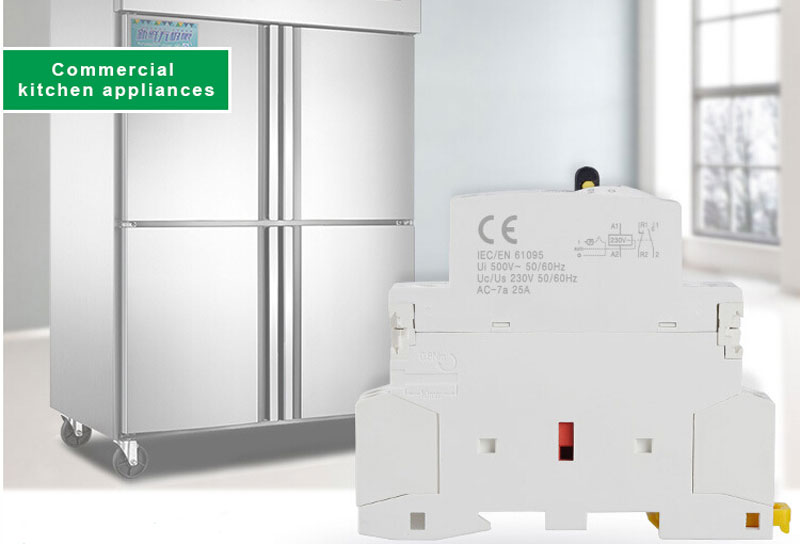

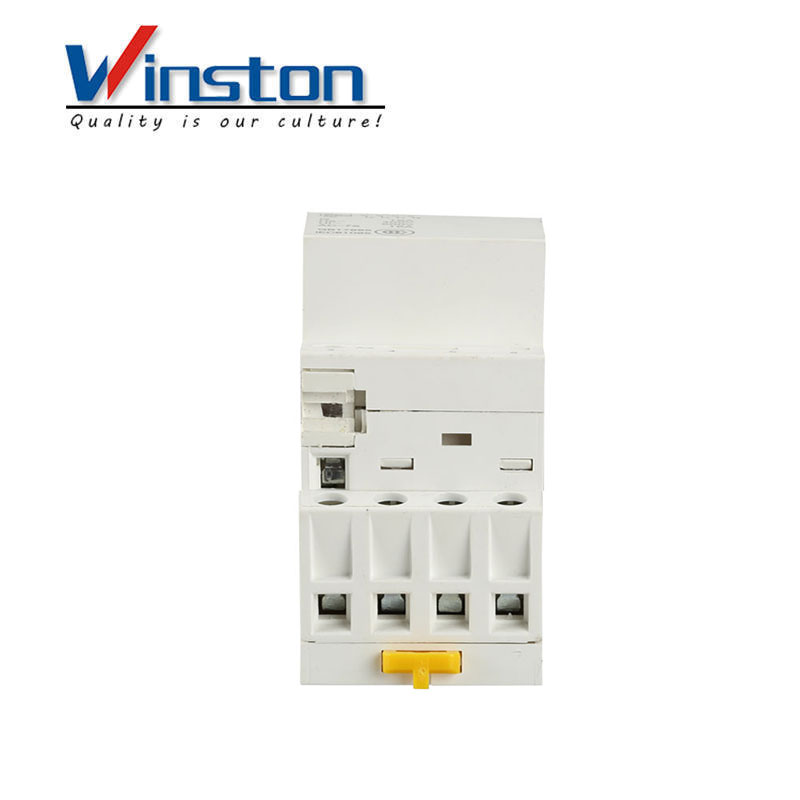

WCT series home AC contactor is a kind of control electric appliance which is used for long distance switch on and break off sense or low load, electric resistance furnace, household appliances and similar application.
Attention
1. Confirm whether the product voltage, current, frequency and use category meet the requirements before use;
2. Connect the control circuit first for no-load operation test and then connect the load in case of no abnormality;
3. Regularly tighten the terminals and remove the deposited dust;
4. Don't make the foreign matters fall into the product
Conditions of Working & Installations:
Temperature: 5℃~+40℃,AVG not over within 24h+35℃
Altitude: not over 2000m.
Atmospheric conditions: RH+40℃ not over 50% under,RH can be for 90% under +20℃, In dewing,it should be taken special precautious.
Class of pollution: 2
Installation type: II
Mode of installations: TH35-7.5 types steel DIN-RAIL
IP Grade: IP20

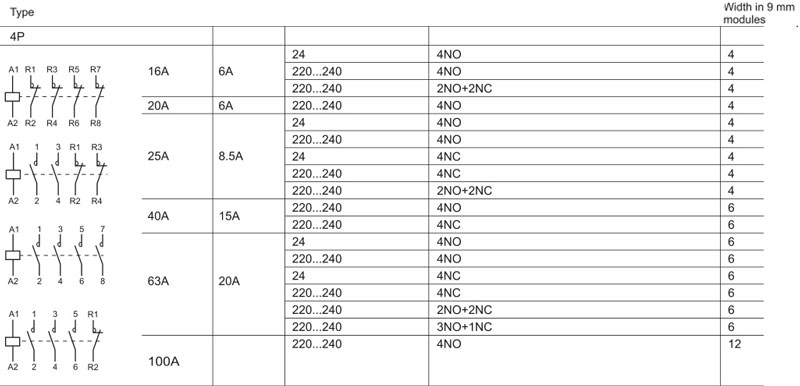

Technical Data Sheet
Consumption
|
WCT contactors-50Hz |
||||||
|
|
Raring(In) |
Control voltage(V AC)(50Hz) |
Consumption |
Max. power |
||
|
AC7a |
AC7b |
Holding |
Inrush |
|||
|
4P |
20A |
6.4A |
220...240 |
4.6VA |
34VA |
1.6W |

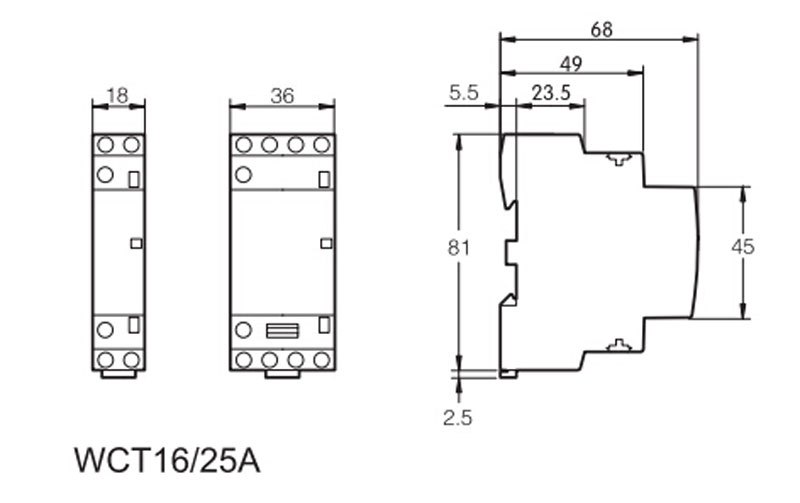

Dimension
